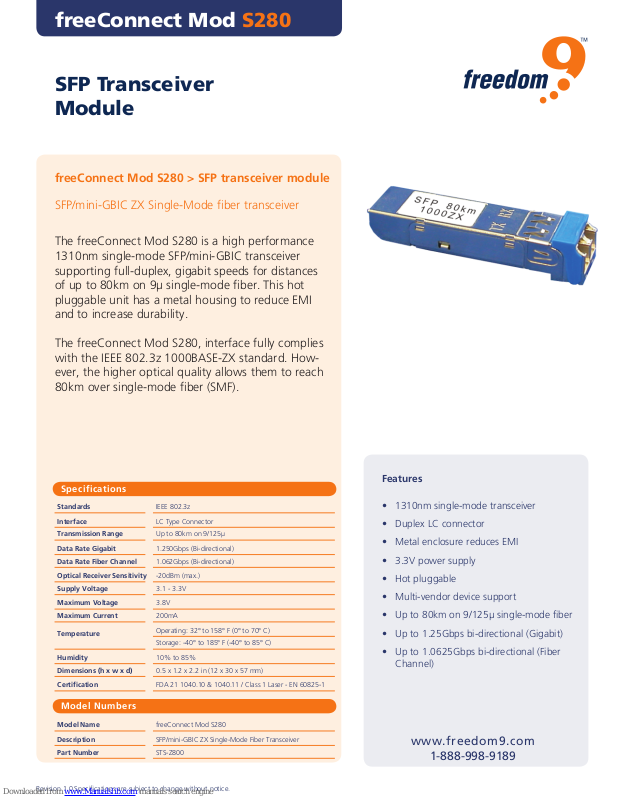

Freedom9 S280 Specifications

freeConnect Mod S280

SFP Transceiver
Module

freeConnect Mod S280 > SFP transceiver module

SFP/mini-GBIC ZX Single-Mode fiber transceiver

The freeConnect Mod S280 is a high performance
1310nm single-mode SFP/mini-GBIC transceiver
supporting full-duplex, gigabit speeds for distances
of up to 80km on 9µ single-mode fiber. This hot
pluggable unit has a metal housing to reduce EMI
and to increase durability.

The freeConnect Mod S280, interface fully complies
with the IEEE 802.3z 1000BASE-ZX standard. How

­ever, the higher optical quality allows them to reach
80km over single-mode fiber (SMF).

Specifications

Standards IEEE 802.3z

Interface LC Type Connector

Transmission Range

Data Rate Gigabit 1.250Gbps (Bi-directional)

Data Rate Fiber Channel 1.062Gbps (Bi-directional)

Optical Receiver Sensitivity -20dBm (max.)

Supply Voltage 3.1 - 3.3V

Maximum Voltage 3.8V

Maximum Current 200mA

Temperature

Humidity 10% to 85%

Dimensions (h x w x d) 0.5 x 1.2 x 2.2 in (12 x 30 x 57 mm)

Certification FDA 21 1040.10 & 1040.11 / Class 1 Laser - EN 60825-1

Up to 80km on 9/125µ

Operating: 32° to 158° F (0° to 70° C)

Storage: -40° to 185° F (-40° to 85° C)

Features

• 1310nm single-mode transceiver

• Duplex LC connector

• Metal enclosure reduces EMI

• 3.3V power supply

• Hot pluggable

• Multi-vendor device support

• Up to 80km on 9/125µ single-mode fiber

• Up to 1.25Gbps bi-directional (Gigabit)

• Up to 1.0625Gbps bi-directional (Fiber
Channel)

Model Numbers

Model Name freeConnect Mod S280

Description SFP/mini-GBIC ZX Single-Mode Fiber Transceiver

Part Number STS-Z800

Revision 1.0 Specifications are subject to change without notice.
