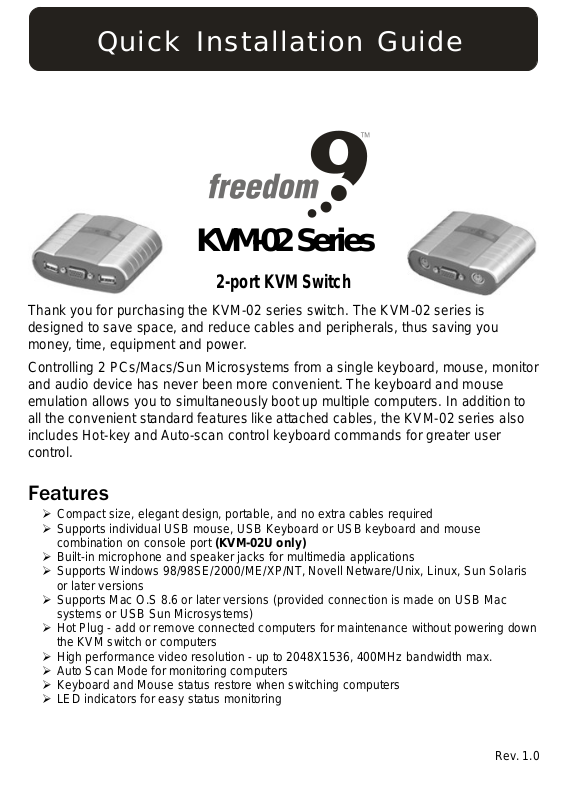

Freedom9 KVM-02 User Manual

Quick Installation Guide

KVM-02 Series

2-port KVM Switch

Thank you for purchasing the KVM-02 series switch. The KVM-02 series is
designed to save space, and reduce cables and peripherals, thus saving you
money, time, equipment and power.

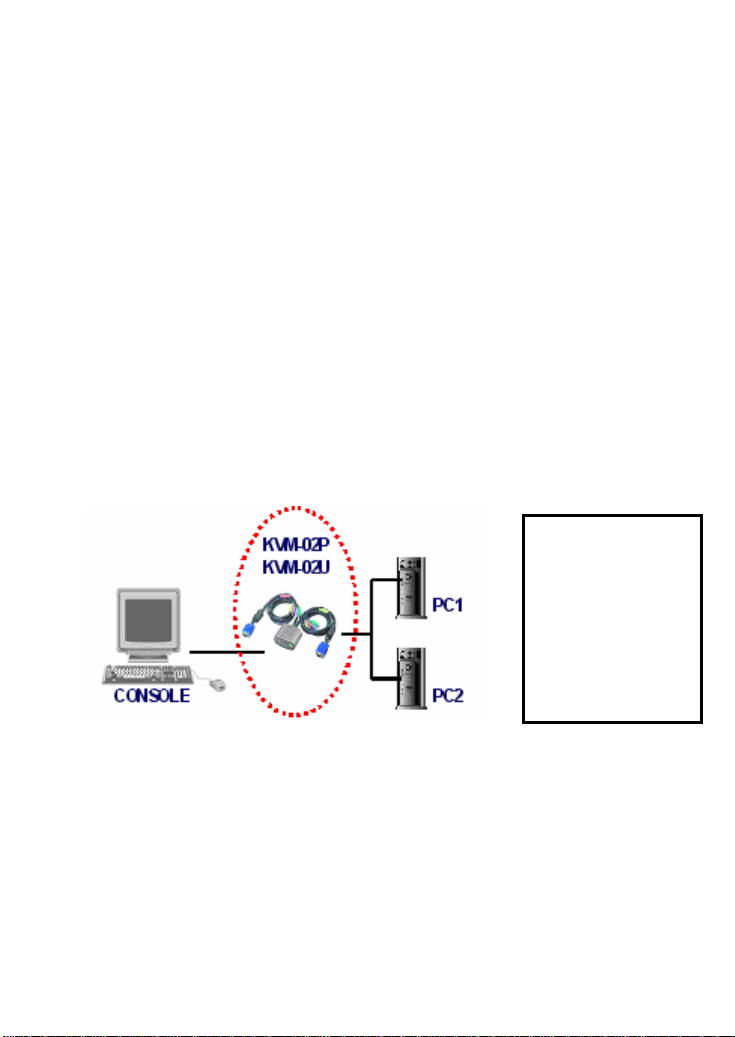

Controlling 2 PCs/Macs/Sun Microsystems from a single keyboard, mouse, monitor
and audio device has never been more convenient. The keyboard and mouse
emulation allows you to simultaneously boot up multiple computers. In addition to
all the convenient standard features like attached cables, the KVM-02 series also
includes Hot-key and Auto-scan control keyboard commands for greater user
control.

Features

¾ Compact size, elegant design, portable, and no extra cables required
¾ Supports individual USB mouse, USB Keyboard or USB keyboard and mouse

combination on console port (KVM-02U only)

¾ Built-in microphone and speaker jacks for multimedia applications
¾ Supports Windows 98/98SE/2000/ME/XP/NT, Novell Netware/Unix, Linux, Sun Solaris

or later versions

¾ Supports Mac O.S 8.6 or later versions (provided connection is made on USB Mac

systems or USB Sun Microsystems)

¾ Hot Plug - add or remove connected computers for maintenance without powering down

the KVM switch or computers

¾ High performance video resolution - up to 2048X1536, 400MHz bandwidth max.
¾ Auto Scan Mode for monitoring computers
¾ Keyboard and Mouse status restore when switching computers
¾ LED indicators for easy status monitoring

Rev. 1.0

Package Contents:

The KVM-02 series comes in 2 models:

KVM-02P

 2-port KVM switch with two 6’connecting cables

(PS/2 & VGA & PS/2 & Audio & Microphone)

 Console Connections (PS/2 & VGA & PS/2 & Audio & Microphone)
 Quick Installation Guide

KVM-02U

 2-port KVM switch with two 6’ connecting cables (USB & VGA & Speaker & Microphone)
 Console Connections (USB & VGA & Speaker & Microphone)
 Quick Installation Guide

2

Technical Specifications

Function
MAX Computer Connections 2 2
LED 2 2

K/B PS/2 USB

Computer Port

Console Port

Computer selection Hot-Key* Keyboard Command Keyboard Command

Audio port Yes Yes
AutoScan Intervals 8sec. 5 sec.
VGA Resolution 2048x1536 2048x1536
Bandwidth 400MHz 400MHz
Power Type Bus Power Bus Power
Housing Plastic Plastic
3-to3 KVM / Console Cable 180 cm (Built-in) 180 cm (Built-in)

Dimension (L*W*H) (w/o Cable)

Video VGA VGA
Mouse PS/2 USB
K/B PS/2 USB
Video VGA VGA
Mouse PS/2 USB

KVM-02P KVM-02U

3.4*2.8*1.1 inch
(87*74*28 mm)

3.4*2.8*1.1 inch
(87*74*28 mm)

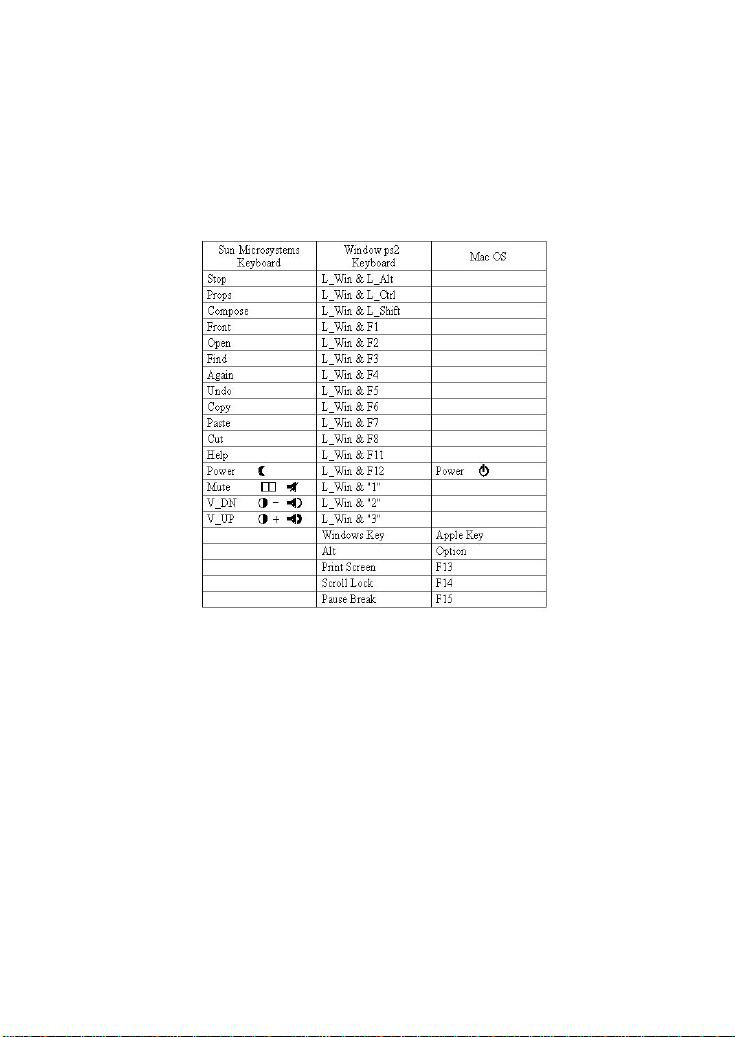

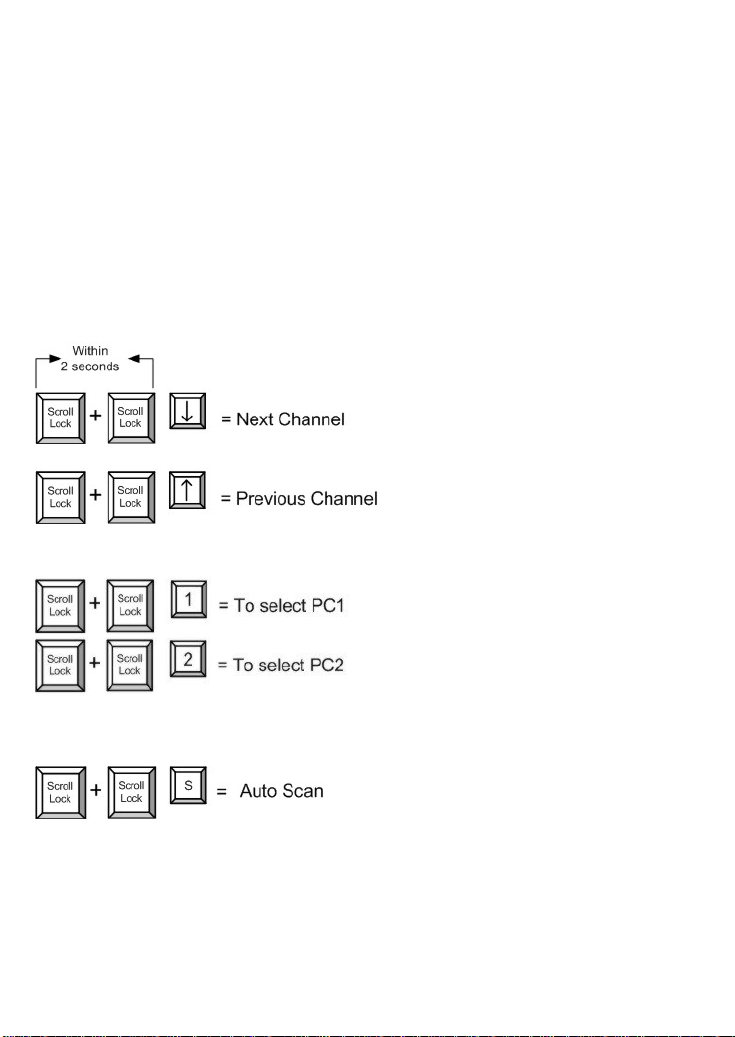

*See page 7 for Keyboard Hot Key Commands

3
