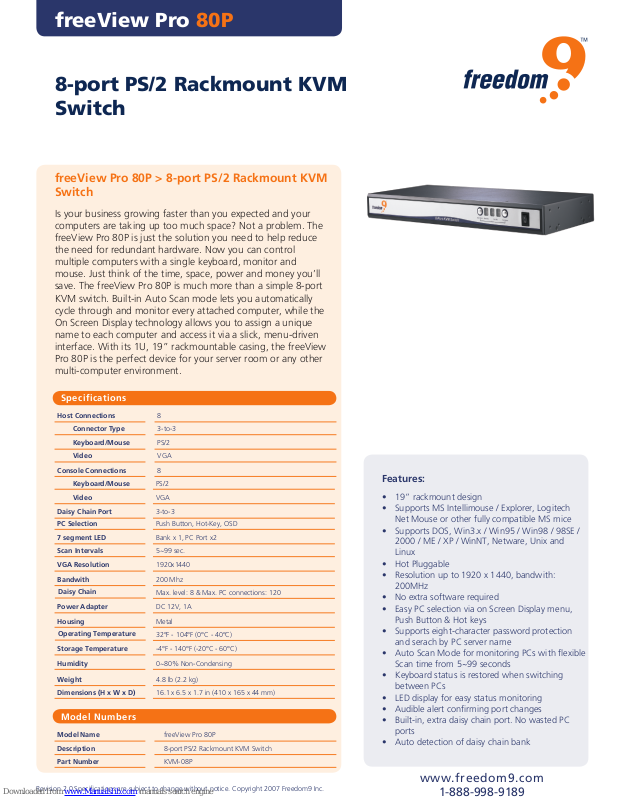

Freedom9 freeView Pro 80P Specifications

freeView Pro 80P

8-port PS/2 Rackmount KVM
Switch

freeView Pro 80P > 8-port PS/2 Rackmount KVM
Switch

Is your business growing faster than you expected and your
computers are taking up too much space? Not a problem. The
freeView Pro 80P is just the solution you need to help reduce
the need for redundant hardware. Now you can control
multiple computers with a single keyboard, monitor and
mouse. Just think of the time, space, power and money you’ll
save. The freeView Pro 80P is much more than a simple 8-port
KVM switch. Built-in Auto Scan mode lets you automatically
cycle through and monitor every attached computer, while the
On Screen Display technology allows you to assign a unique
name to each computer and access it via a slick, menu-driven
interface. With its 1U, 19” rackmountable casing, the freeView
Pro 80P is the perfect device for your server room or any other
multi-computer environment.

Specifications

Host Connections

Connector Type

Keyboard/Mouse

Video

Console Connections

Keyboard/Mouse PS/2

Video VGA

Daisy Chain Port 3-to-3

PC Selection Push Button, Hot-Key, OSD

7 segment LED Bank x 1, PC Port x2

Scan Intervals 5~99 sec.

VGA Resolution 1920x1440

Bandwith 200 Mhz

Daisy Chain

Power Adapter DC 12V, 1A

Housing Metal

Operating Temperature

Storage Temperature -4°F - 140°F (-20°C - 60°C)

Humidity 0~80% Non-Condensing

Weight 4.8 lb (2.2 kg)

Dimensions (H x W x D) 16.1 x 6.5 x 1.7 in (410 x 165 x 44 mm)

8

3-to-3

PS/2

VGA

8

Max. level: 8 & Max. PC connections: 120

32°F - 104°F (0°C - 40°C)

Model Numbers

Model Name freeView Pro 80P

Description 8-port PS/2 Rackmount KVM Switch

Part Number KVM-08P

Features:

• 19” rackmount design

• Supports MS Intellimouse / Explorer, Logitech
Net Mouse or other fully compatible MS mice

• Supports DOS, Win3.x / Win95 / Win98 / 98SE /
2000 / ME / XP / WinNT, Netware, Unix and
Linux

• Hot Pluggable

• Resolution up to 1920 x 1440, bandwith:
200MHz

• No extra software required

• Easy PC selection via on Screen Display menu,
Push Button & Hot keys

• Supports eight-character password protection
and serach by PC server name

• Auto Scan Mode for monitoring PCs with flexible
Scan time from 5~99 seconds

• Keyboard status is restored when switching
between PCs

• LED display for easy status monitoring

• Audible alert confirming port changes

• Built-in, extra daisy chain port. No wasted PC
ports

• Auto detection of daisy chain bank

Revision 2.0 Specifications are subject to change without notice. Copyright 2007 Freedom9 Inc.

ww w.freedom9.com

1-888-998-9189
