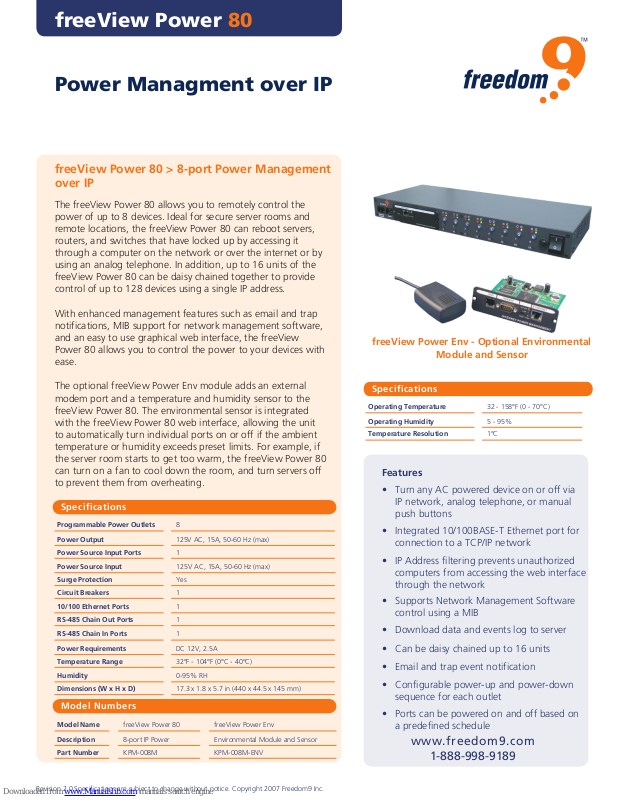

Freedom9 freeView Power 80 Specifications

freeView Power 80

Power Managment over IP

freeView Power 80 > 8-port Power Management
over IP

The freeView Power 80 allows you to remotely control the
power of up to 8 devices. Ideal for secure server rooms and
remote locations, the freeView Power 80 can reboot servers,
routers, and switches that have locked up by accessing it
through a computer on the network or over the internet or by
using an analog telephone. In addition, up to 16 units of the
freeView Power 80 can be daisy chained together to provide
control of up to 128 devices using a single IP address.

With enhanced management features such as email and trap
notifications, MIB support for network management software,
and an easy to use graphical web interface, the freeView
Power 80 allows you to control the power to your devices with
ease.

freeView Power Env - Optional Environmental

Module and Sensor

The optional freeView Power Env module adds an external
modem port and a temperature and humidity sensor to the
freeView Power 80. The environmental sensor is integrated
with the freeView Power 80 web interface, allowing the unit
to automatically turn individual ports on or off if the ambient
temperature or humidity exceeds preset limits. For example, if
the server room starts to get too warm, the freeView Power 80
can turn on a fan to cool down the room, and turn servers off
to prevent them from overheating.

Specifications

Programmable Power Outlets 8

Power Output 125V AC, 15A, 50-60 Hz (max)

Power Source Input Ports

Power Source Input

Surge Protection Yes

Circuit Breakers 1

10/100 Ethernet Ports 1

RS-485 Chain Out Ports 1

RS-485 Chain In Ports 1

Power Requirements DC 12V, 2.5A

Temperature Range 32°F - 104°F (0°C - 40°C)

Humidity 0-95% RH

Dimensions (W x H x D) 17.3 x 1.8 x 5.7 in (440 x 44.5 x 145 mm)

Model Numbers

Model Name freeView Power 80

Description 8-port IP Power

Part Number KPM-008M

1

125V AC, 15A, 50-60 Hz (max)

freeView Power Env

Environmental Module and Sensor

KPM-008M-ENV

Specifications

Operating Temperature 32 - 158°F (0 - 70°C)

Operating Humidity 5 - 95%

1°CTemperature Resolution

Features

• Turn any AC powered device on or off via
IP network, analog telephone, or manual
push buttons

• Integrated 10/100BASE-T Ethernet port for
connection to a TCP/IP network

• IP Address filtering prevents unauthorized
computers from accessing the web interface
through the network

• Supports Network Management Software
control using a MIB

• Download data and events log to server

• Can be daisy chained up to 16 units

• Email and trap event notification

• Configurable power-up and power-down
sequence for each outlet

• Ports can be powered on and off based on
a predefined schedule

ww w.freedom9.com

1-888-998-9189

Revision 2.0 Specifications are subject to change without notice. Copyright 2007 Freedom9 Inc.
