Freedom Tycoon Chair Assembly Instruction

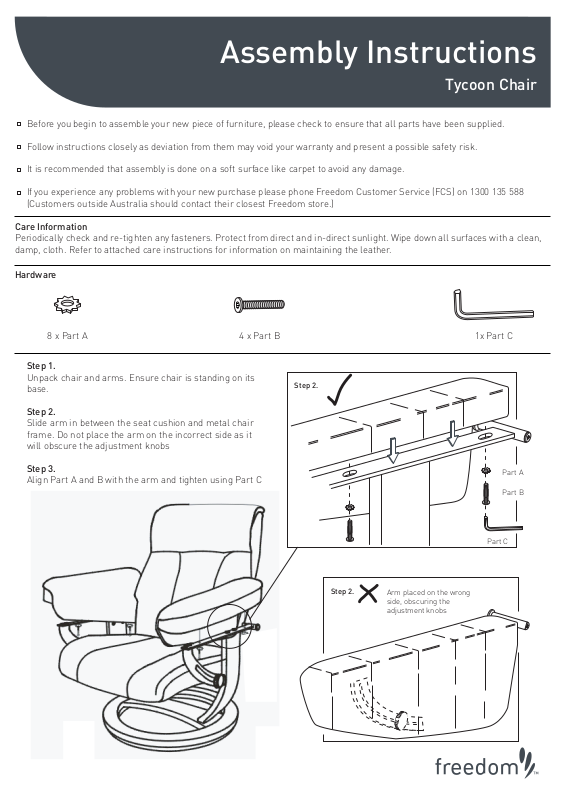

Assembly Instructions

Tycoon Chair

Before you begin to assemble your new piece of furniture, please check to ensure that all parts have been supplied.

Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.

It is recommended that assembly is done on a soft surface like carpet to avoid any damage.

If you experience any problems with your new purchase please phone Freedom Customer Service (FCS) on 1300 135 588 (Customers outside Australia should contact their closest Freedom store.)

Care Information

Periodically check and re-tighten any fasteners. Protect from direct and in-direct sunlight. Wipe down all surfaces with a clean, damp, cloth. Refer to attached care instructions for information on maintaining the leather.

Hardware

8 x Part A 4 x Part B

Step 1.

Unpack chair and arms. Ensure chair is standing on its base.

Step 2.

Slide arm in between the seat cushion and metal chair frame. Do not place the arm on the incorrect side as it will obscure the adjustment knobs

Step 3.

Align Part A and B with the arm and tighten using Part C

Step 2.

1x Part C

Part A

Part B

Part C

Arm placed on the wrong side, obscuring the adjustment knobs
