Freedom Oslo Bookcase Tall Assembly Instruction
OSLO
TALL BOOKCASE
(O-TST)
Before you begin to assemble your new piece of furniture please check to ensure all parts and fittings have been supplied. Follow all
instructions closely as deviation from them may void warranty and present possible safety risk. It is recommended that assembly is done on a
soft surface, like carpet, to avoid damage. CARE INSTRUCTIONS: Periodically re-tighten all fasteners. TOOLS REQUIRED: Allen key (provided),
screwdriver. Some packs may come with timber of a different colour to the model purchased. These pieces are for packing purposes only.
If you experience any problems with your new purchase please phone our Customer Service staff on (FREE CALL PHONE / FAX) 1800 029 715
Please keep last page of the instruction for warranty information.
CLEANING AND MAINTENANCE: Do not use solvent or alcohol based cleaners on this unit. To clean unit, we recommend using a
warm damp cloth to wipe over surfaces.
PARTS CHECKLIST
CODE PART QTY SIZE
A TOP 1 866 x 440
A
B RIGHT SIDE 1 1561.5 x 445
C
B
C
D
F
G
C
F
C ADJUSTABLE SHELF 4 423 x 377
D FIX SHELF 1 866 x 385
E BASE 1 866 x 385
F PARTITION 2 701.5 x 382
G LEFT SIDE 1 1561.5 x 445
H RAIL 4 425 x 100
C
E
H
FITTINGS CHECKLIST
CODE DESCRIPTION FITTING QTY CODE DESCRIPTION FITTING QTY
50-001 WOODEN DOWEL 28 50-228 METAL INSERT 1
50-007 SHELF SUPPORT 16 50-229 ALLEN KEY (8mm) 1
50-009 ALLEN KEY 4mm 1 50-490 LAG SCREW 2
50-015 MINIFIX CAM 18 50-508 METAL DOWEL 8mm 18
50-140 CAM COVER 16 51-183 NAIL ON GLIDE 2
50-152 WEDGE (SNAP OFF) 2 51-225 80mm FOOT 3
50-221 STUD BOLT 1 80-001 GLUE BOTTLE 1
CODE: O-TST MADE IN AUSTRALIA BY KD CONCEPTS
PAGE 1 OF 4

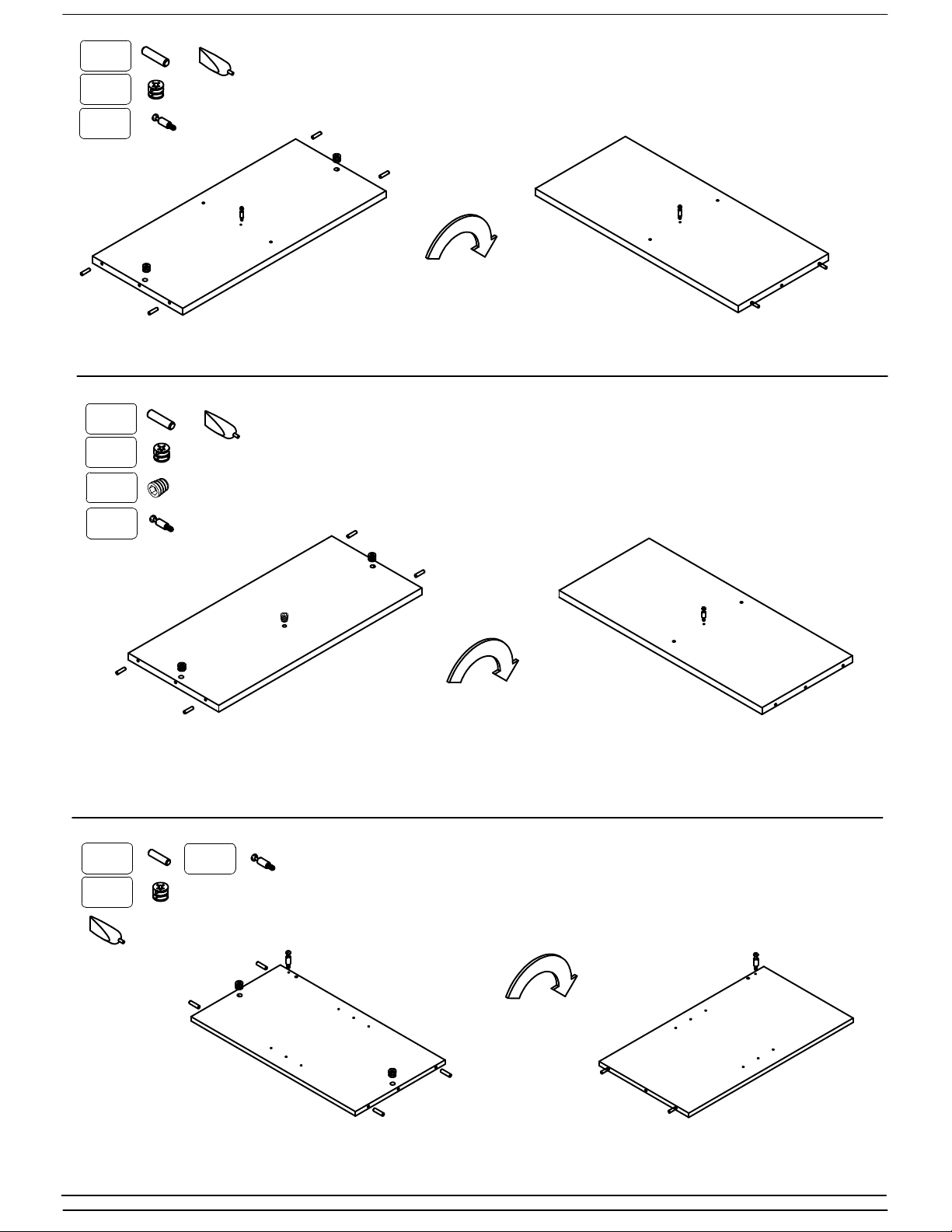

STEP 1: PREPARE FEET FITTINGS
50-490
x 2
51-225
x 2
STEP 2: PREPARE LEFT SIDE
50-508
x 5
51-183
x 1
x 2
G
STEP 3: PREPARE RIGHT SIDE
50-508
x 5
51-183
x 1
STEP 4: PREPARE RAIL
50-001
x 8
50-015
x 8
FOOT FROM
STEP 1
STEP 5: PREPARE TOP
50-001
x 4
50-015
x 2
50-508
x 1
FOOT FROM
STEP 1
B
x 4
H
CODE: O-TST MADE IN AUSTRALIA BY KD CONCEPTS
A
PAGE 2 OF 4
