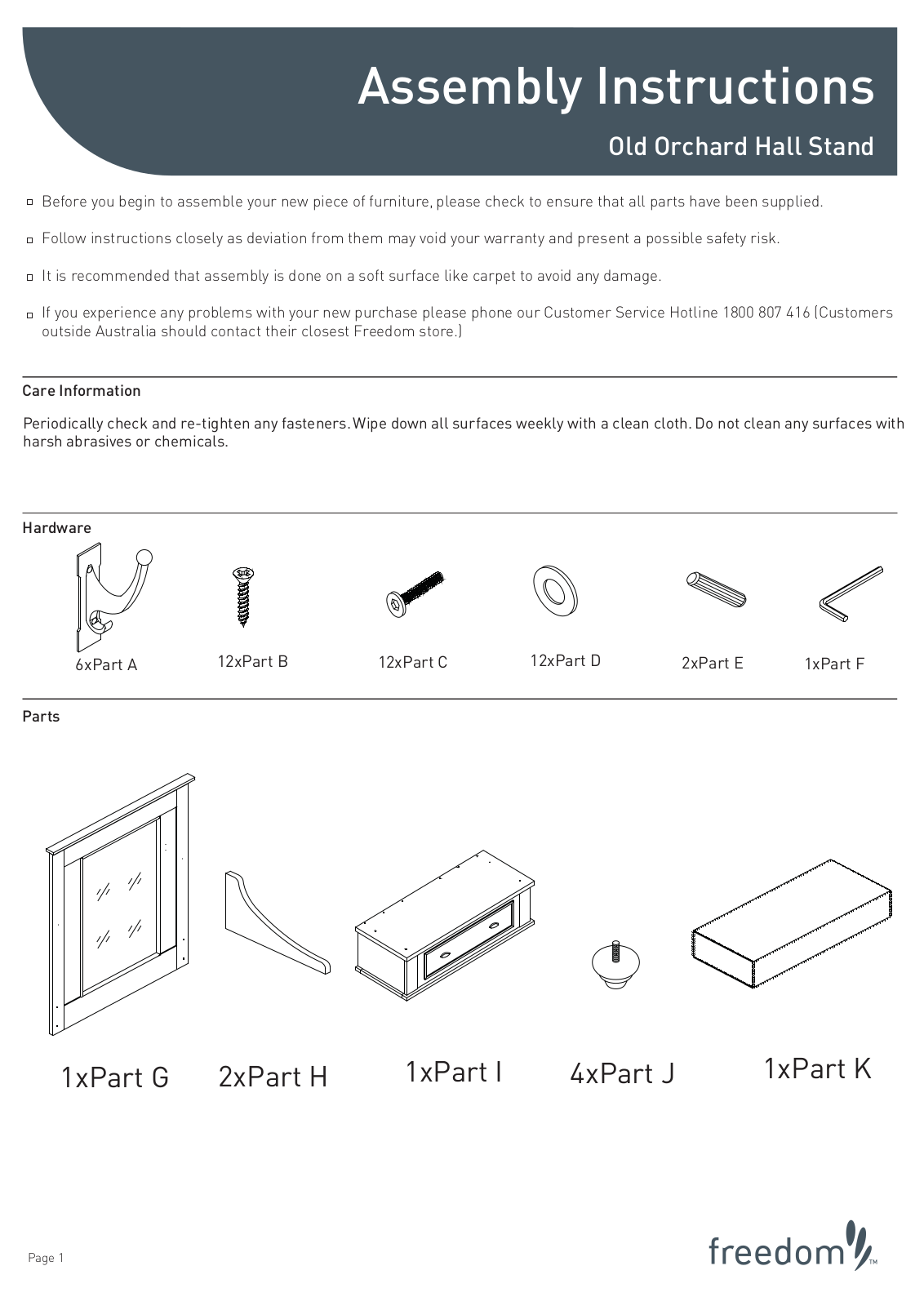

Freedom Old Orchard Hall Stand Assembly Instruction

Assembly Instructions
Old Orchard Hall Stand
Before you begin to assemble your new piece of furniture, please check to ensure that all parts have been supplied.
Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.
If you experience any problems with your new purchase please phone our Customer Service Hotline 1800 807 416 (Customers outside Australia should contact their closest Freedom store.)
Care Information
Periodically check and re-tighten any fasteners. Wipe down all surfaces weekly with a clean cloth. Do not clean any surfaces with harsh abrasives or chemicals.
Hardware
6xPart A
Parts
1xPart G
12xPart B
2xPart H
12xPart C
1xPart I
12xPart D
4xPart J
2xPart E
1xPart F
1xPart K
Page 1

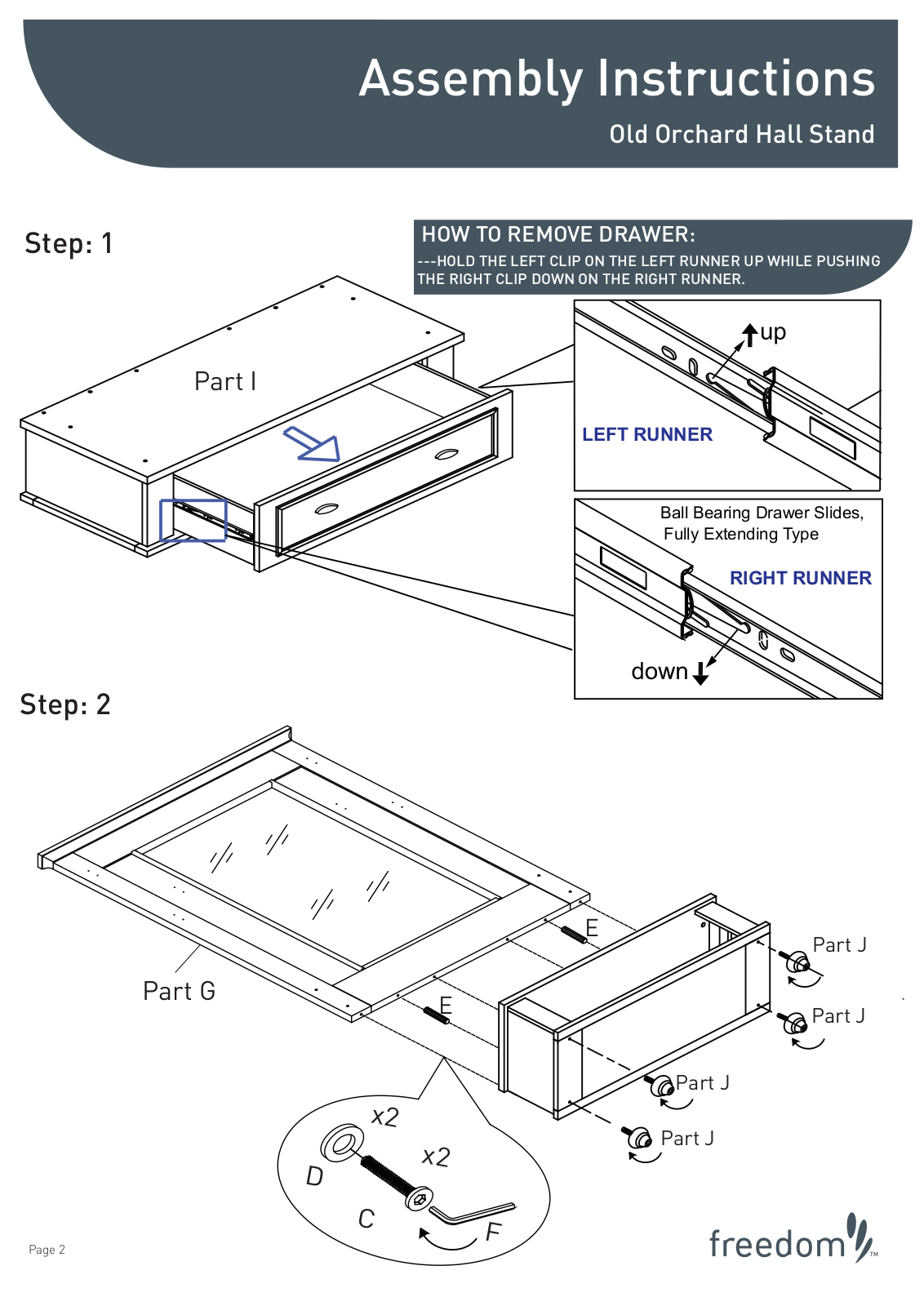

Assembly Instructions
Old Orchard Hall Stand
Step: 1
HOW TO REMOVE DRAWER:
---HOLD THE LEFT CLIP ON THE LEFT RUNNER UP WHILE PUSHING THE RIGHT CLIP DOWN ON THE RIGHT RUNNER.
Part I
LEFT RUNNER
Ball Bearing Drawer Slides,
Fully Extending Type
RIGHT RUNNER
Step: 2
Part G
D
x2
x2
E
E
Part J
Part J
Part J
Part J
Page 2
C
F
