Freedom Maximus Tall Narrow Assembly Instruction
Assembly Instructions
MAXIMUS TALL NARROW
Before you begin to assemble your new piece of furniture,please check to ensure that all parts have been supplied.
Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.
It is recommended that assembly is done on a soft surface like carpet to avoid any damage.
If you experience any problems with your new purchase please phone our Customer Service Hotline 1800 807 416
(Customers outside Australia should contact their closest Freedom store)
Care Information
GENERAL
Periodically check and re-tighten any fasteners. Wipe down surfaces with a clean cloth.
GLASS
Dust with a soft,dry cloth.Clean using a recognised glass cleaner.Avoid overspray on other surface.The glass used is known as
Toughened or Tempered glass.Although it is four times stronger than normal glass,it is not unbreakable and must still be
treated with care.Thermal or mechanical shock can weaken the glass,causing it to shatter or break.

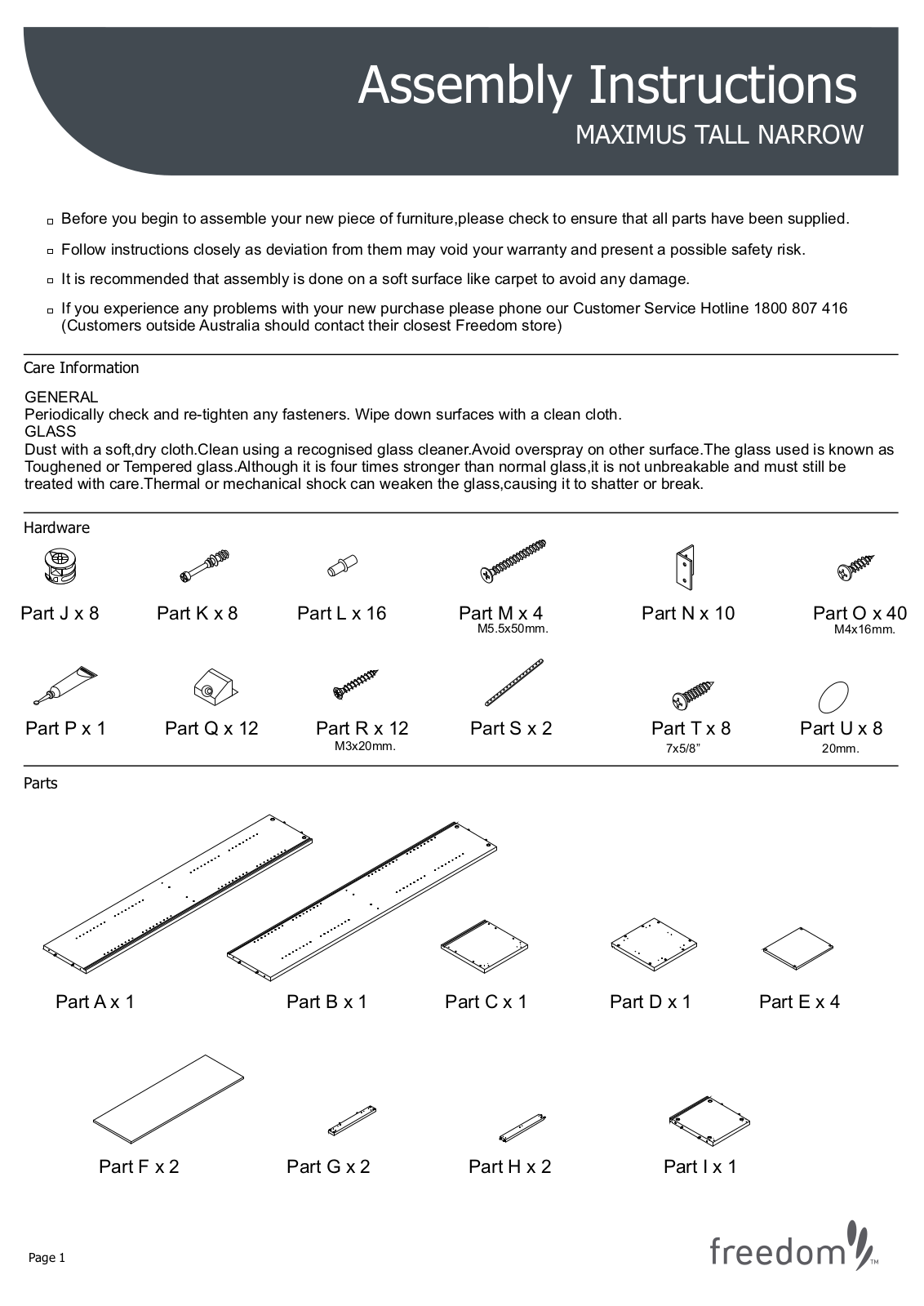

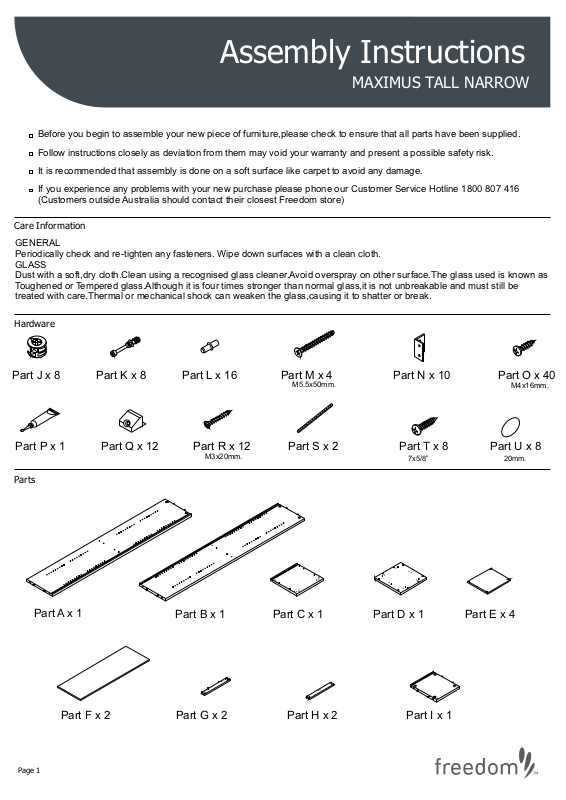

Hardware
Part J x 8 Part K x 8 Part L x 16 Part M x 4 Part N x 10 Part O x 40
M5.5x50mm.
Part P x 1 Part Q x 12 Part R x 12 Part S x 2 Part T x 8
Parts
Part A x 1
M3x20mm.
Part B x 1
Part C x 1 Part D x 1 Part E x 4
7x5/8”
M4x16mm.
Part U x 8
20mm.
Page 1
Part F x 2 Part G x 2 Part H x 2 Part I x 1
Assembly Instructions
MAXIMUS TALL NARROW

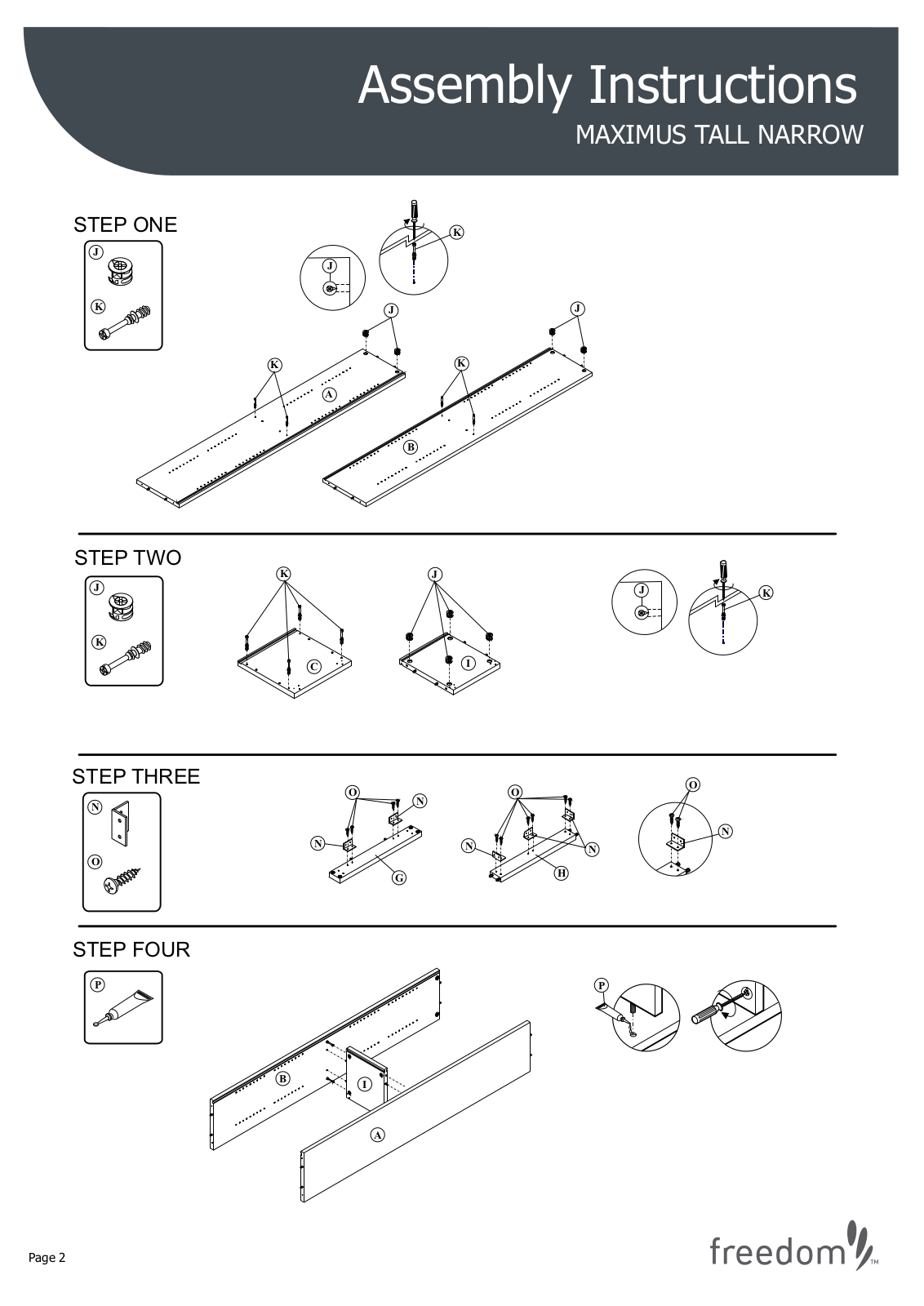

STEP ONE
J
K
STEP TWO
J
K
K
J
J
K
A
B
K
C
K
J
I
J
J
K
STEP THREE
N
O
STEP FOUR
P
O
N
B
I
N
G
A
O
N
N
H
P
O

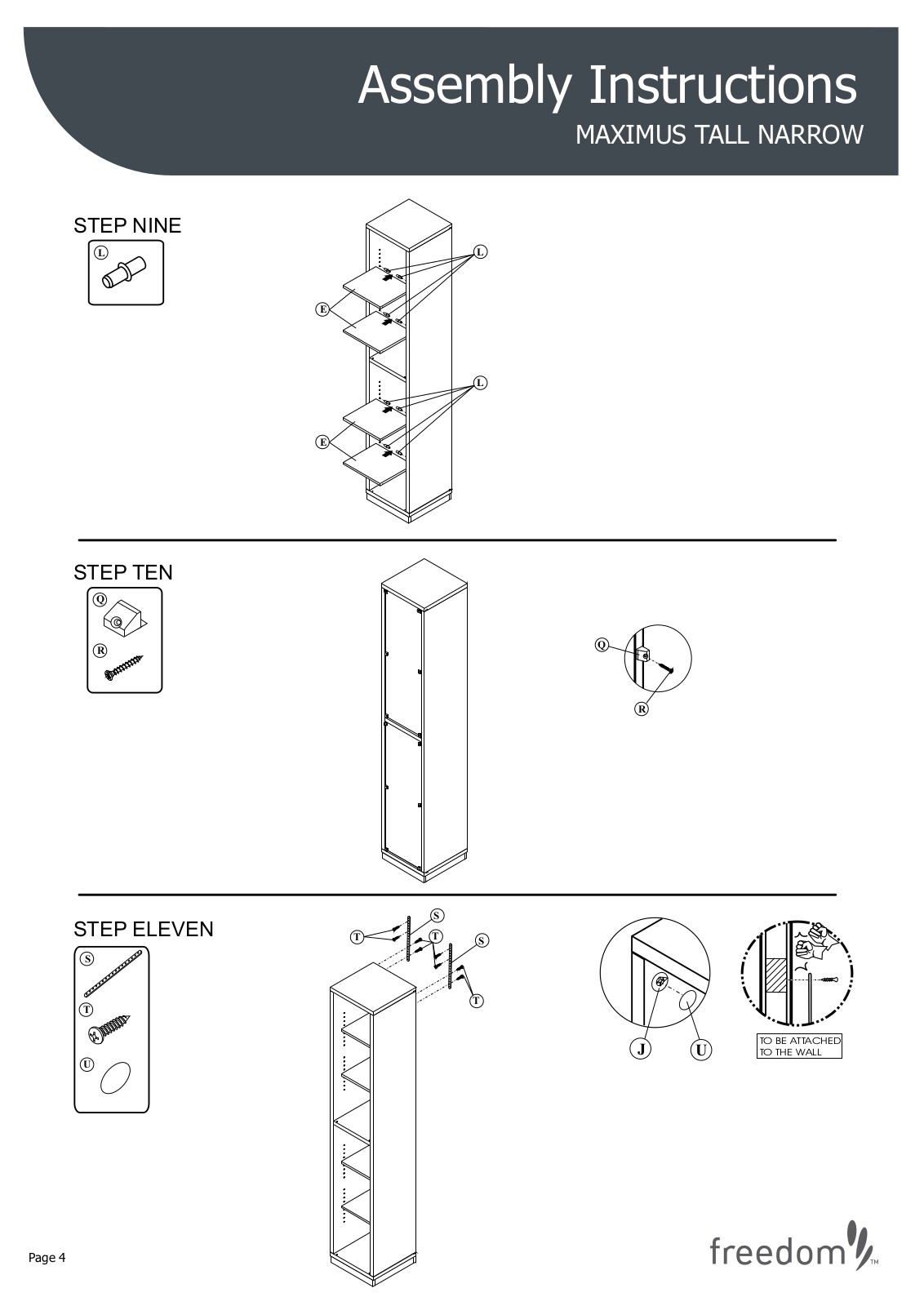

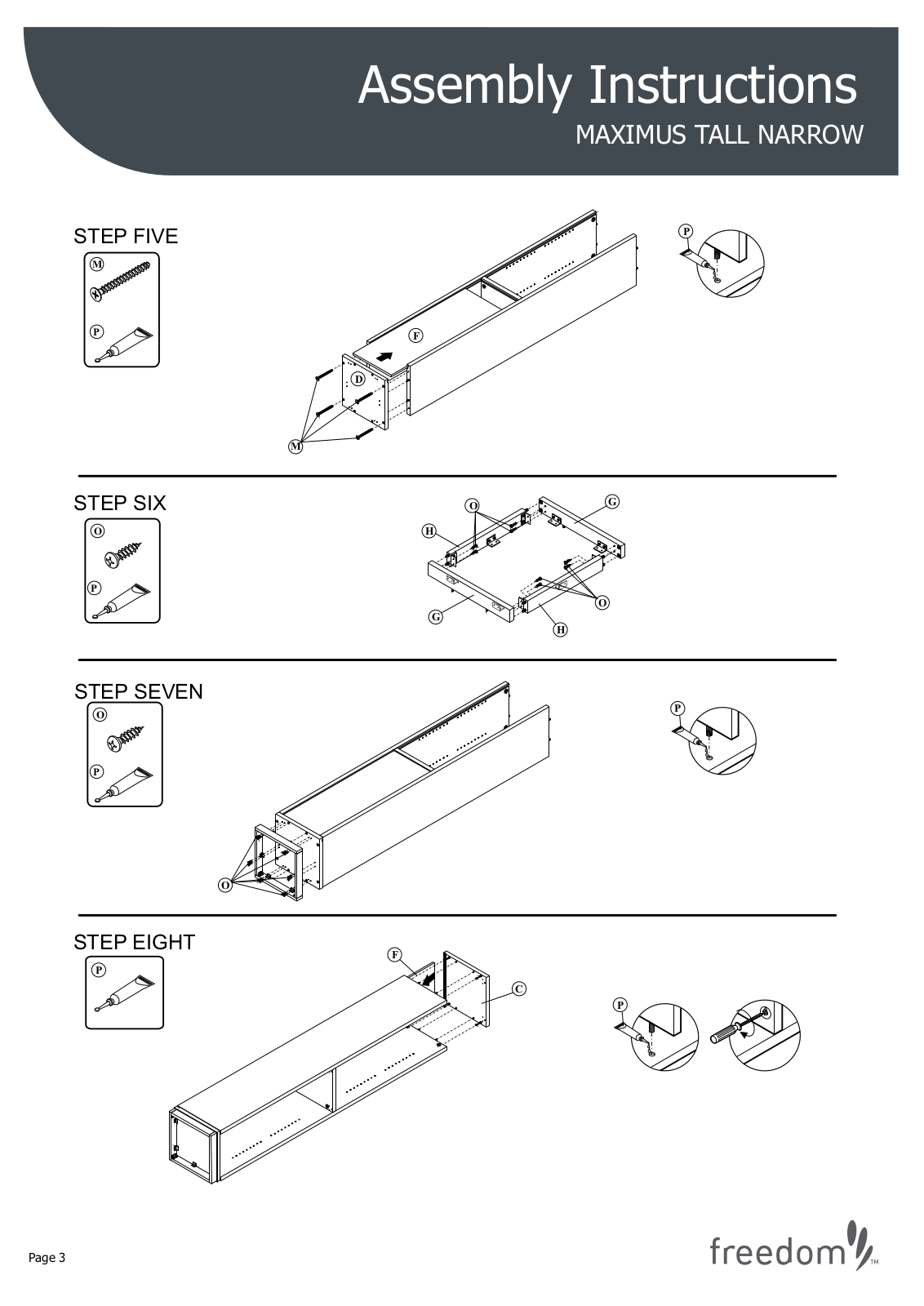

N
