Freedom Arabella Bed Assembly Instruction

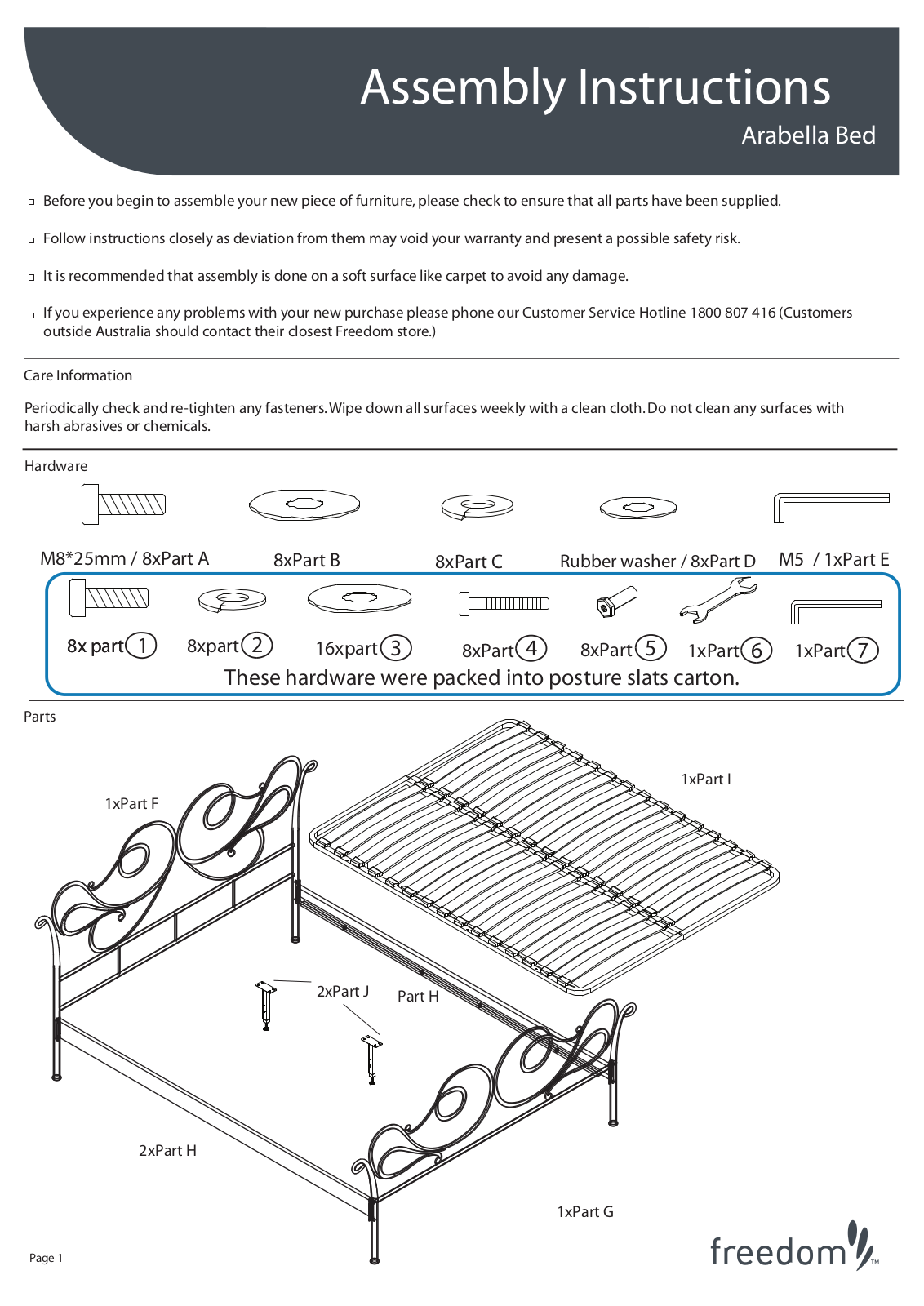

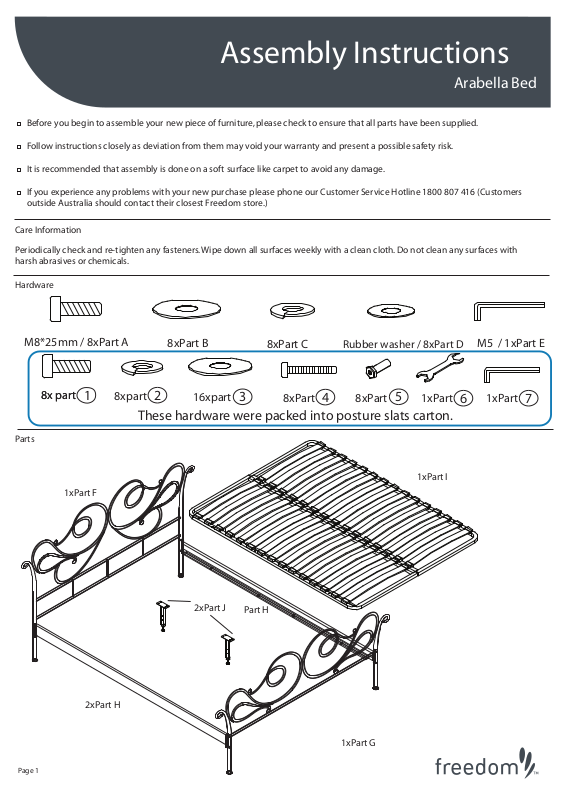

Assembly Instructions
Arabella Bed
Before you begin to assemble your new piece of furniture, please check to ensure that all parts have been supplied.
Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.
It is recommended that assembly is done on a soft surface like carpet to avoid any damage.
If you experience any problems with your new purchase please phone our Customer Service Hotline 1800 807 416 (Customers
outside Australia should contact their closest Freedom store.)
Care Information
Periodically check and re-tighten any fasteners. Wipe down all surfaces weekly with a clean cloth. Do not clean any surfaces with
harsh abrasives or chemicals.
Hardware
M8*25mm / 8xPart A
8x part
8x part
Parts
1
1xPart F
8xpart
8xPart B
2
16xpart
3
8xPart C
8xPart
Rubber washer / 8xPart D
4
8xPart
5
These hardware were packed into posture slats carton.
2xPart J
Part H
1xPart
1xPart I
M5 / 1xPart E
1xPart
6
7
Page 1
2xPart H
1xPart G

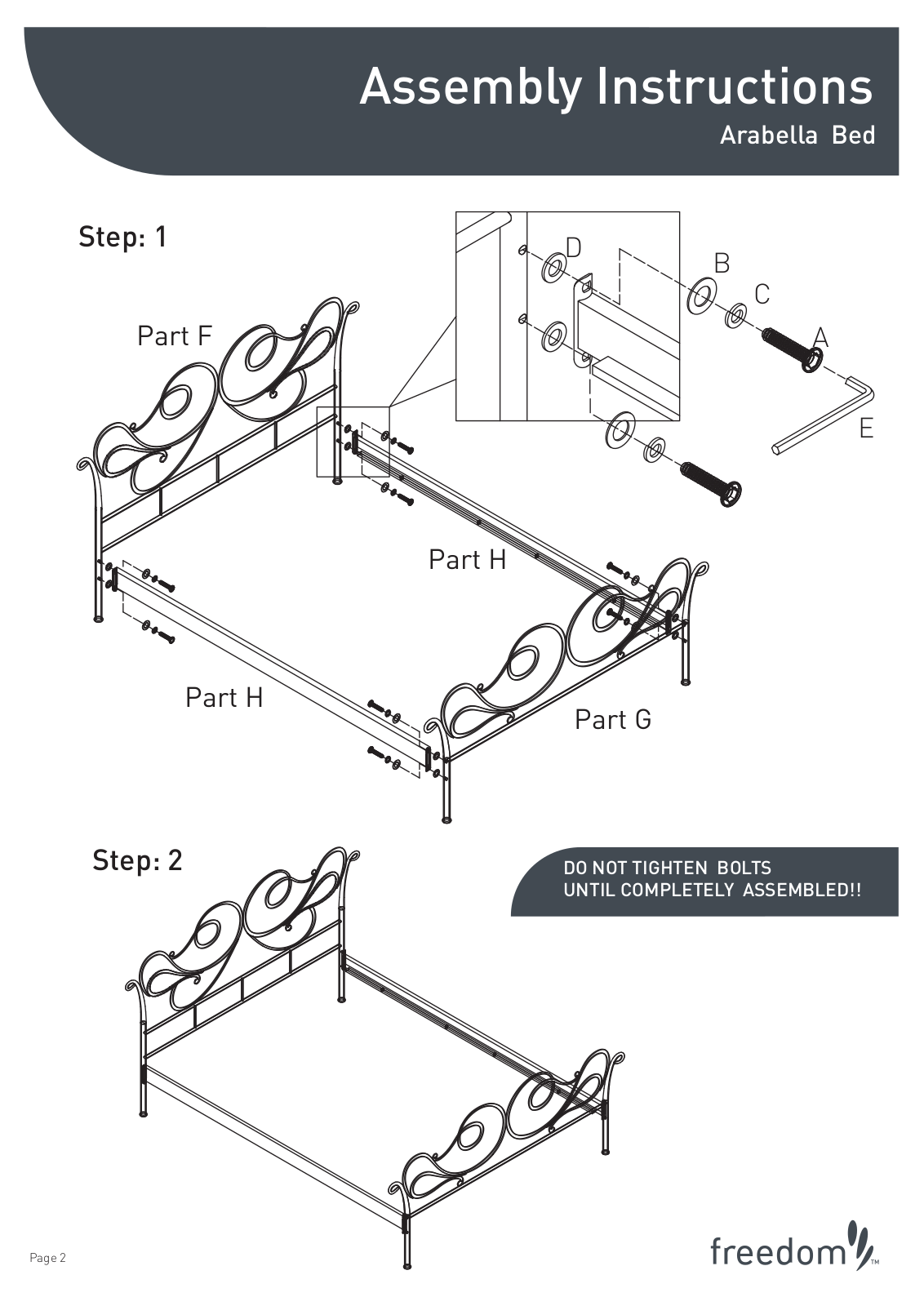

Assembly Instructions
Arabella Bed
Step: 1
Part F
D
B
C
A
E
Part H
Step: 2
Part H
Part G
DO NOT TIGHTEN BOLTS
UNTIL COMPLETELY ASSEMBLED!!
Page 2
