FREECALL ipcall-200 User Manual

Model:IPcall-200

User Manual

For Modem Router User

Ref. IPcall-200-Modem Ver. 20110520

2

Safety Notices

Please read the following safety notices before installing or using this phone. They are
crucial for the safe and reliable operation of the device.
l Please use the attached external power supply in the package. Other power

adapter may cause damage to the phone if it’s rating may out of the specification.

l Before using Power Adapter, please check with your local power voltage. Any

inaccurate power voltage may cause fire and damage.

l Please be careful to the power cord. If the power cord or plug is impaired, do not

use it to avoid fire or electric shock.

l Do not drop, knock or shake it. Rough handling can break internal circuit boards.
l Do not put the device in places where there is direct sunlight. Also do not put the

device on carpets or cushions. It may cause electro-leakage or breakdown.

l Avoid exposure the phone to high temperature, below 0℃ or high humidity.

Avoid the unit with any liquid or in wet environment .

l Do not attempt to open it. Non-expert handling to the device could damage it.

Consult your authorized dealer for help

l Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it.

Wipe it with a soft cloth that has been slightly dampened in a mild soap and
water solution.

l When lightning, It is recommended to disconnect the power plug and the internet

cable to avoid a damage by a electric-shock.

Products Advantage

l Unlimited free toll calls to any fixed line (PSTN) Home phones or mobile

phones of more than 40 countries and cities in the world. Now you will save
much expensive IDD expenses every year since having this unique VoIP phone.

l It is convenient to be used, simply like to use an ordinary telephone every days.
l The appearance looks fashionable, LCD display screen and blue backlight.
l High-quality conversation effect, performing the intelligent human-computer

interaction function operation.

It needs to know before usage

l This machine is guaranteed for free toll unlimited calls within one year

. It will be

valid within 365 days since it will be activated which 10 calls have been made

3

successfully. You can continue to use our service by paying an annual fee for our
server maintenance yearly. There is a pop up ALERT Warning before 30 days
of the expired date to remind you. Please call your local agent whom you bought
the IPcall-200 from paid for and tell him what your unique S/N which printed on
the back of your device is.

l In your current network, if someone is carrying on BT for downloading or

large-scale game, may have certain influence on conversation quality of this
machine at the same time. Try to counter-change their usage period.

l If there is a network exchanger after the router, please be sure the network

exchanger and router to be in the same address pool. To avoid a problem, a best
way is that connect the IPcall-200 to the router directly.

Table of Content

1. INTRODUCTION……………………………………………………………………

1.2. PACKING CONTENT................................................................................................

................................

1.3. KEYPAD ................................................................................................

................................

1.4. PORT FOR CONNECTING................................................................................................

................................

2.INITIAL CONNECTING AND SETTING................................................................

................................

2.1. CONNECT THE PHONE................................................................................................

................................

2.2. INITIAL SETTING ................................................................................................

................................

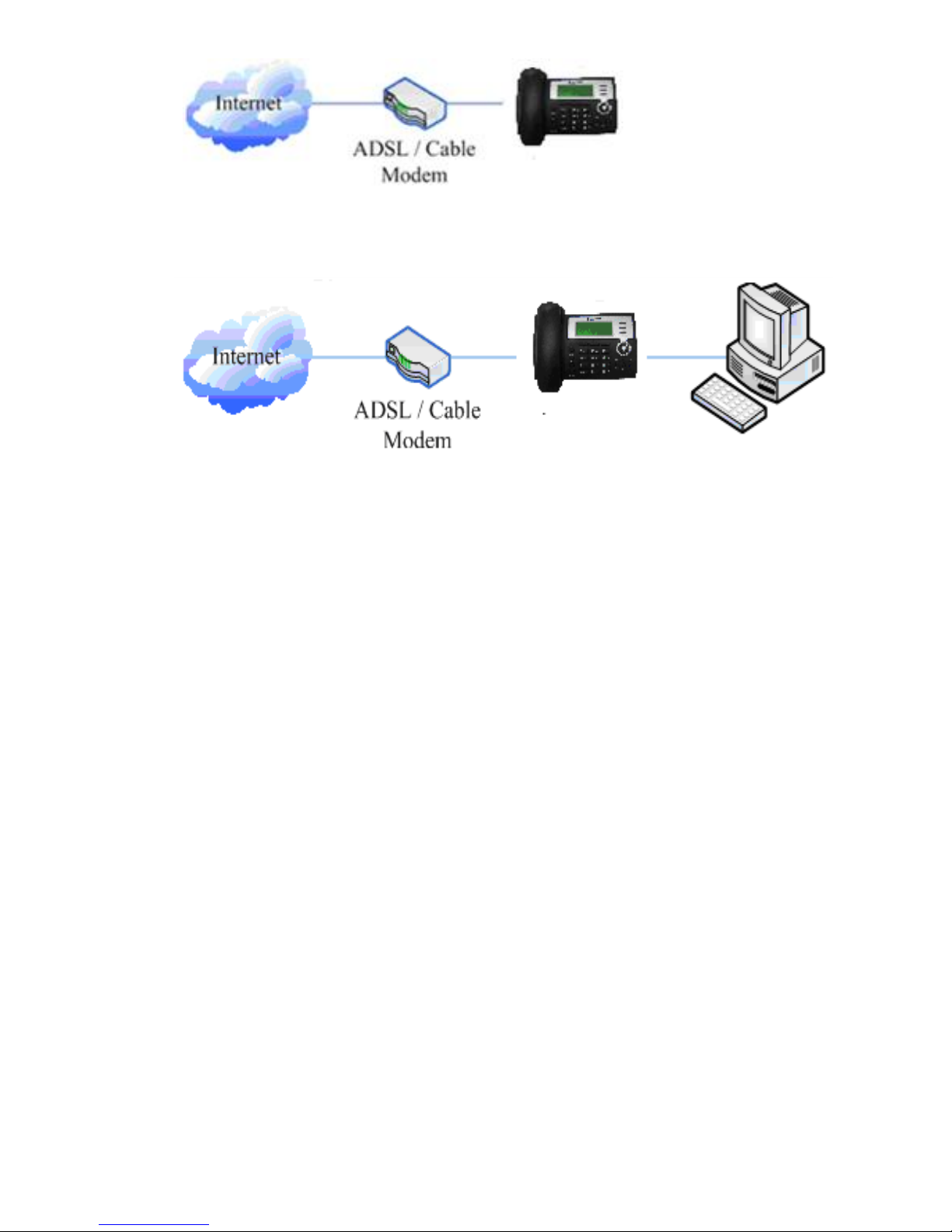

2.21. Modem mode................................................................................................

................................

3. BASIC FUNCTIONS................................................................................................

................................

3.1. BASIC OPERATION................................................................................................

................................

3.1.1. Dial Rules

3.1.2. Making a call & Phonebook................................................................

................................

3.1.3. Ending a call................................................................................................

................................

3.1.4. Calling Hold & Conference................................................................

................................

3.1.5. Call Records................................................................................................

................................

3.1.6. FREE COUNTRY & DISTRICT LIST

4. SETTING ................................................................................................

................................

4.1. INTRODUCTION OF CONFIGURATION................................................................

................................

4.4. SETTINGS VIA PHONE’S KEYBOARD.................................................................

................................

4.4.1. How to set via the phone’s keyboard.................................................................

................................

4.4.2. Phone menu................................................................................................

................................

4

5. APPENDIX................................................................................................

................................

5.1. SPECIFICATION................................................................................................

................................

5.1.1. Device specification................................................................................................

................................

5.1.2. Voice Features................................................................................................

................................

5.1.3. Network Features................................................................................................

................................

5.2. DIGIT-CHARACTER MAP TABLE................................................................

................................

Introduction for IPcall-200

1.2. Packing Content

The original packing contains the following parts:

1. Main unit x1

2. Handset x1

3. Handset cord x1

4. Power supply x1

5. Cat-5 Ethernet cable x1

6. Instruction manual x1

1.3. Keypad

The numeric keypad with the keys 0 to
9, *, and # are used for dialing

Quick View for Keys Mapping:

Key Key name

Function Description

Menu Press the MENU key to enter for setup menu in ON-HOOK.

Phone Book Press the Phone Book key to check the record list and add

a

new record as well as modify a record in ON-HOOK.
