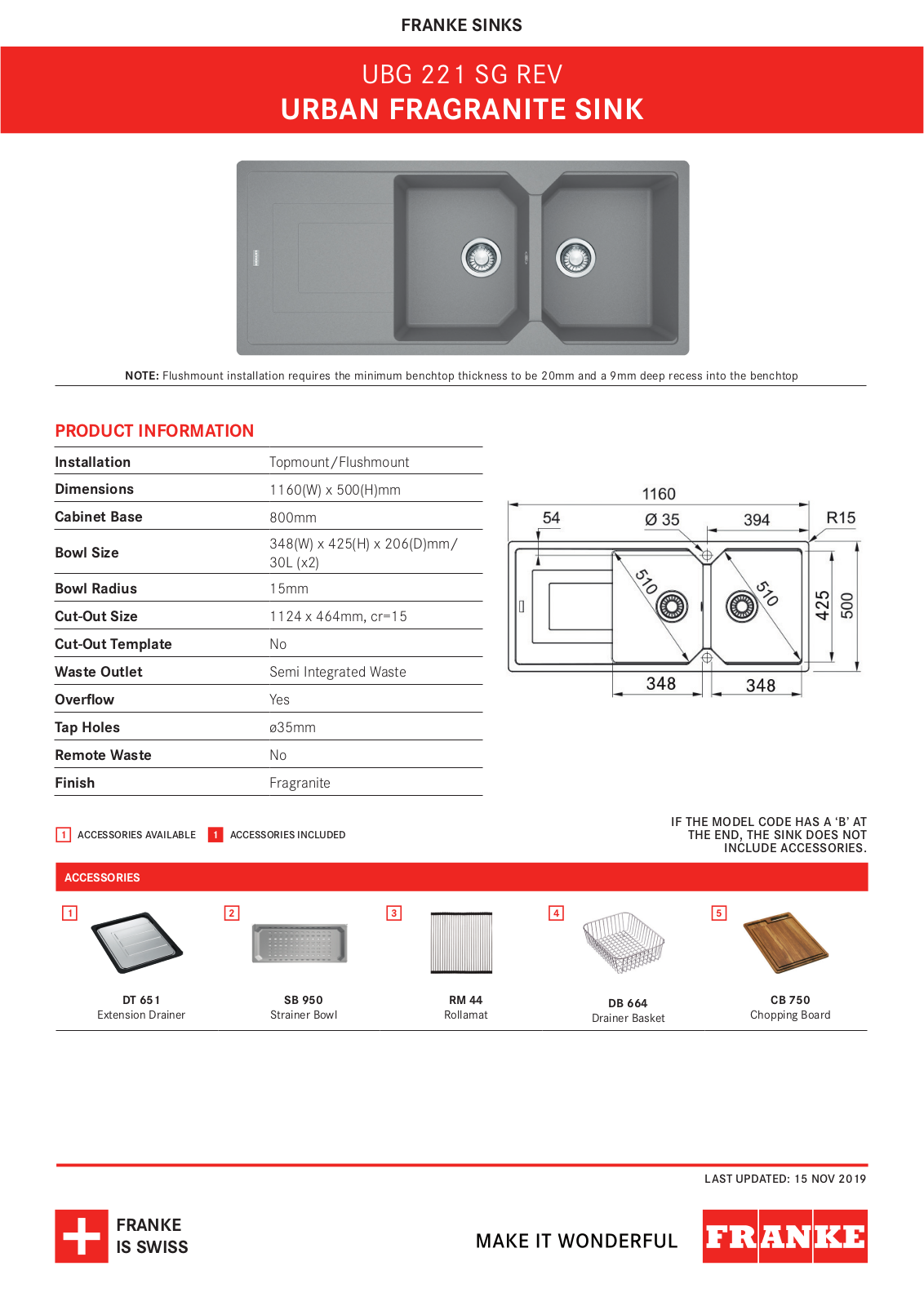

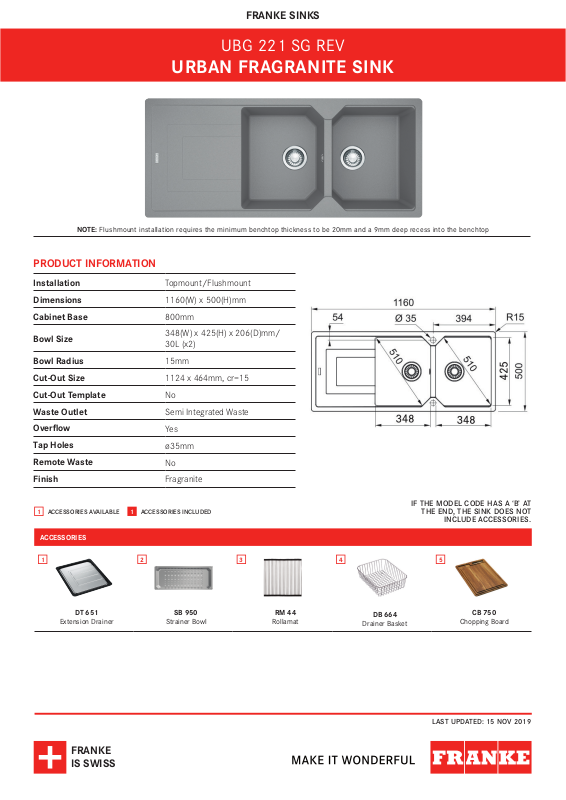

Franke UBG221SG Specifications Sheet

1 2

1 2

2 3

3 4

1 2

1 2

1 2

NOTE: Flushmount installation requires the minimum benchtop thickness to be 20mm and a 9mm deep recess into the benchtop

PRODUCT INFORMATION

FRANKE SINKS

UBG 221 SG REV

URBAN FRAGRANITE SINK

Installation

Dimensions

Cabinet Base

Bowl Size

Bowl Radius

Cut-Out Size

Cut-Out Template

Waste Outlet

Overflow

Tap Holes

Remote Waste

Finish

ACCESSORIES AVAILABLE ACCESSORIES INCLUDED

ACCESSORIES

Topmount/Flushmount

1160(W) x 500(H)mm

800mm

348(W) x 425(H) x 206(D)mm/
30L (x2)

15mm

1124 x 464mm, cr=15

No

Semi Integrated Waste

Yes

ø35mm

No

Fragranite

IF THE MODEL CODE HAS A ‘B’ AT

THE END, THE SINK DOES NOT

INCLUDE ACCESSORIES.

DT 651

Extension Drainer

FRANKE
IS SWISS

SB 950

Strainer Bowl

RM 44

Rollamat

DB 664

Drainer Basket

CB 750

Chopping Board

LAST UPDATED: 15 NOV 2019
