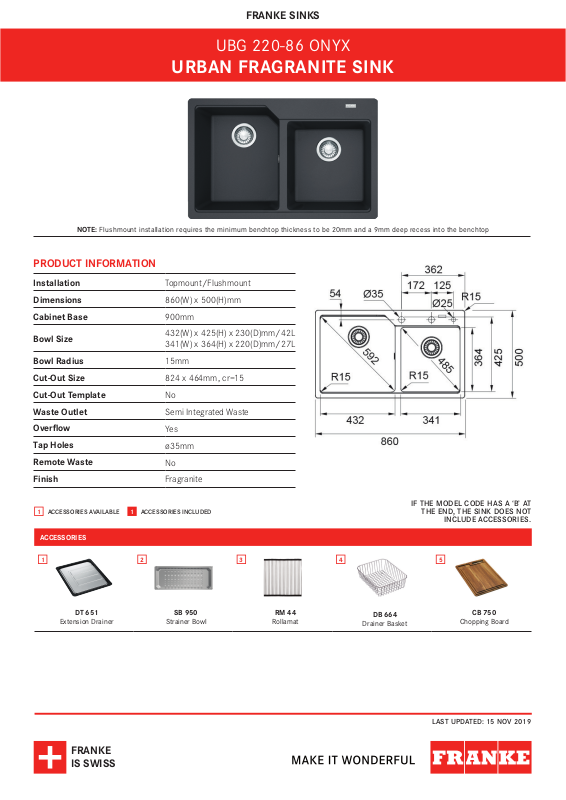

Franke UBG220-86ON Specifications Sheet

1 2

1 2

2 3

3 4

1 2

1 2

1 2

NOTE: Flushmount installation requires the minimum benchtop thickness to be 20mm and a 9mm deep recess into the benchtop

PRODUCT INFORMATION

FRANKE SINKS

UBG 220-86 ONYX

URBAN FRAGRANITE SINK

Installation

Dimensions

Cabinet Base

Bowl Size

Bowl Radius

Cut-Out Size

Cut-Out Template

Waste Outlet

Overflow

Tap Holes

Remote Waste

Finish

ACCESSORIES AVAILABLE ACCESSORIES INCLUDED

ACCESSORIES

Topmount/Flushmount

860(W) x 500(H)mm

900mm

432(W) x 425(H) x 230(D)mm/42L
341(W) x 364(H) x 220(D)mm/27L

15mm

824 x 464mm, cr=15

No

Semi Integrated Waste

Yes

ø35mm

No

Fragranite

IF THE MODEL CODE HAS A ‘B’ AT

THE END, THE SINK DOES NOT

INCLUDE ACCESSORIES.

DT 651

Extension Drainer

FRANKE
IS SWISS

SB 950

Strainer Bowl

RM 44

Rollamat

DB 664

Drainer Basket

CB 750

Chopping Board

LAST UPDATED: 15 NOV 2019
