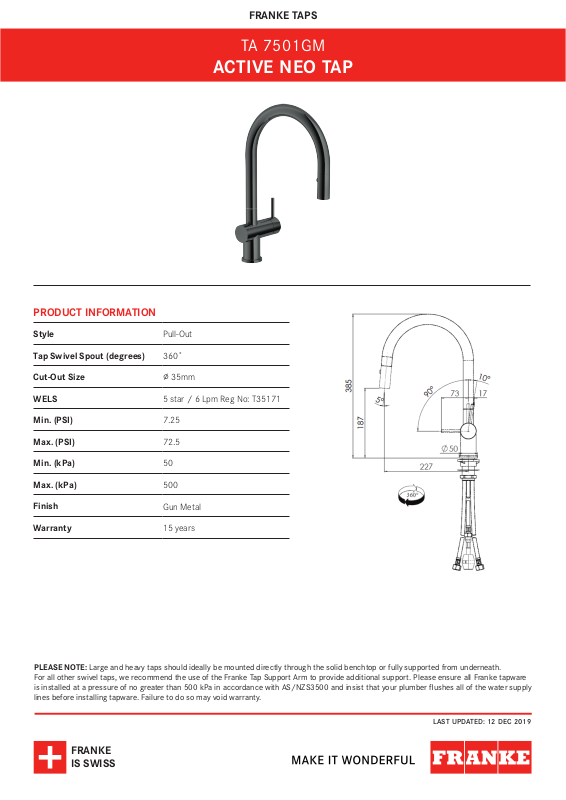

Franke TA7501GM Specifications Sheet

FRANKE TAPS

TA 7501GM

ACTIVE NEO TAP

PRODUCT INFORMATION

Style

Tap Swivel Spout (degrees)

Cut-Out Size

WELS

Min. (PSI)

Max. (PSI)

Min. (kPa)

Max. (kPa)

Finish

Warranty

Pull-Out

360˚

∅ 35mm

5 star / 6 Lpm Reg No: T35171

7.25

72.5

500

Gun Metal

15 years

PLEASE NOTE: Large and heavy taps should ideally be mounted directly through the solid benchtop or fully supported from underneath. For all other swivel taps, we recommend the use of the Franke Tap Support Arm to provide additional support. Please ensure all Franke tapware is installed at a pressure of no greater than 500 kPa in accordance with AS/NZS3500 and insist that your plumber ﬂushes all of the water supply lines before installing tapware. Failure to do so may void warranty.

LAST UPDATED: 12 DEC 2019

FRANKE IS SWISS
