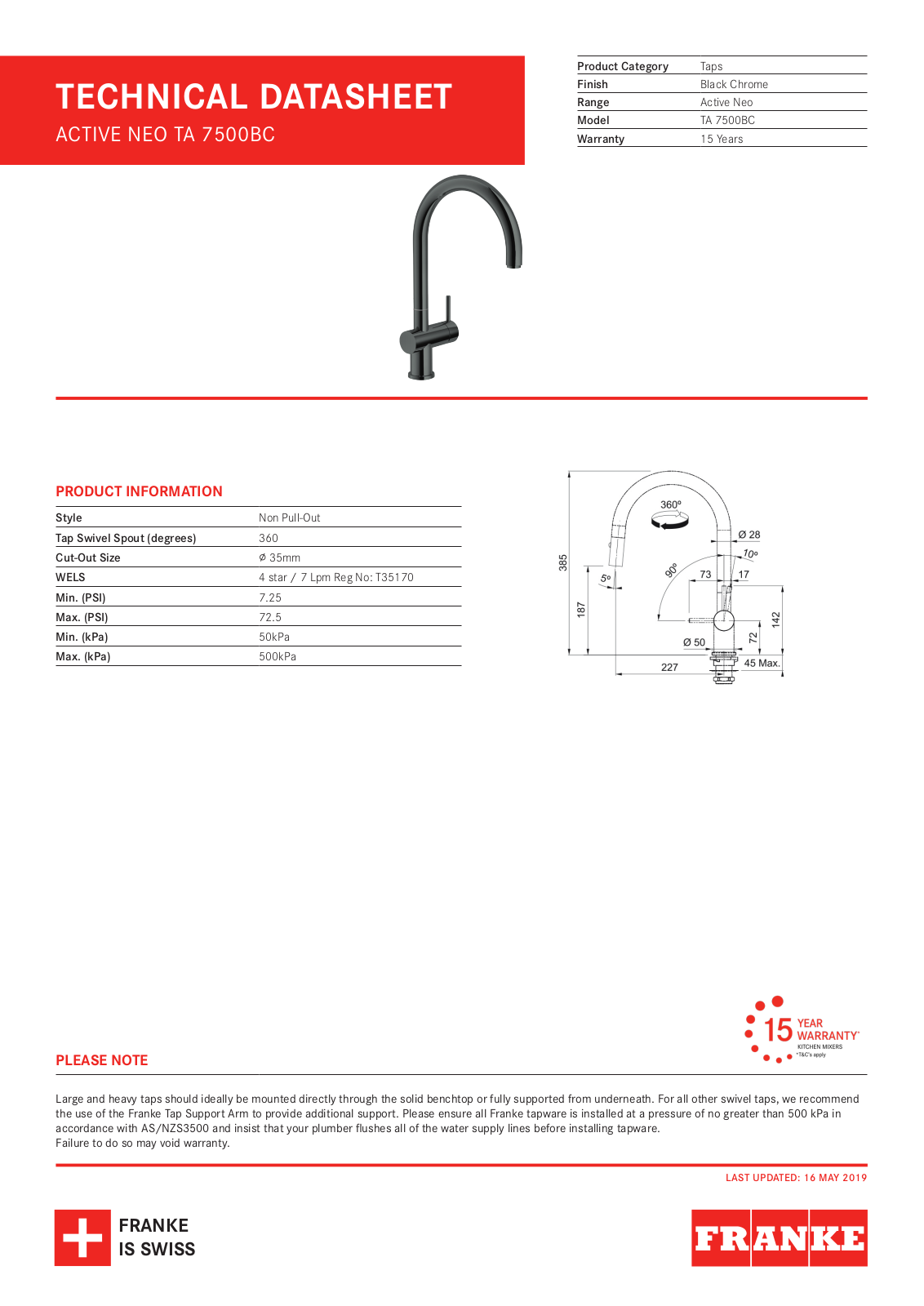

Franke TA7500BC Specifications Sheet

TECHNICAL DATASHEET

WISS

ACTIVE NEO TA 7500BC

PRODUCT INFORMATION

Style

Tap Swivel Spout (degrees)

Cut-Out Size

WELS

Min. (PSI)

Max. (PSI)

Min. (kPa)

Max. (kPa)

Non Pull-Out

360

∅ 35mm

4 star / 7 Lpm Reg No: T35170

7.25

72.5

50kPa

500kPa

Product Category

Finish

Range

Model

Warranty

Taps

Black Chrome

Active Neo

TA 7500BC

15 Years

PLEASE NOTE

Large and heavy taps should ideally be mounted directly through the solid benchtop or fully supported from underneath. For all other swivel taps, we recommend
the use of the Franke Tap Support Arm to provide additional support. Please ensure all Franke tapware is installed at a pressure of no greater than 500 kPa in
accordance with AS/NZS3500 and insist that your plumber flushes all of the water supply lines before installing tapware.
Failure to do so may void warranty.

LAST UPDATED: 16 MAY 2019
