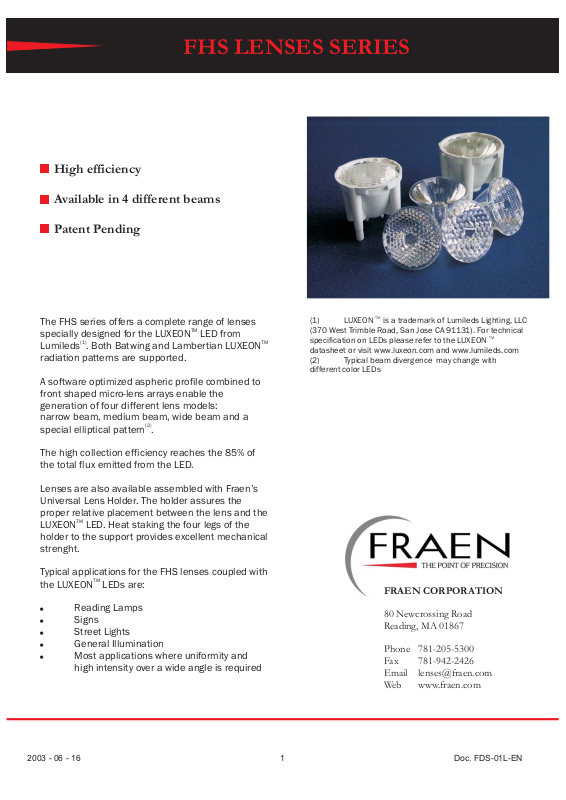

FHS LENSES SERIES
High efficiency
Available in 4 different beams
Patent Pending
The FHS series offers a complete range of lenses
specially designed for the LUXEON LED from
Lumileds . Both Batwing and Lambertian
(1)
TM
LUXEON
radiation patterns are supported.
A software optimized aspheric profile combined to
front shaped micro-lens arrays enable the
generation of four different lens models:
narrow beam, medium beam, wide beam and a
special elliptical pattern .
(2)
The high collection efficiency reaches the 85% of
the total flux emitted from the LED.
Lenses are also available assembled with Fraen’s
Universal Lens Holder. The holder assures the
proper relative placement between the lens and the
LUXEON
TM
LED. Heat staking the four legs of the
holder to the support provides excellent mechanical
strenght.
Typical applications for the FHS lenses coupled with
the LUXEON LEDs are:
TM
(1) LUXEON is a trademark of Lumileds Lighting, LLC
(370 West Trimble Road, San Jose CA 91131). For technical
TM
specification on LEDs please refer to the LUXEON
datasheet or visit www.luxeon.com and www.lumileds.com
(2) Typical beam divergence may change with
different color LEDs
TM
TM
FRAEN CORPORATION
!
!
!
!
!
Reading Lamps
Signs
Street Lights
General Illumination
Most applications where uniformity and
high intensity over a wide angle is required
2003-06-16 Doc. FDS-01L-EN1
80 Newcrossing Road
Reading, MA 01867
Phone 781-205-5300
Fax 781-942-2426
Email lenses@fraen.com
Web www.fraen.com
FHS LENSES SERIES
OPTICAL CHARACTERISTICS
Typical Beam Divergence FWHM with Batwing LED
Part Number Type
FHS-HNB1-LB01-x
FHS-HMB1-LB01-x
FHS-HWB1-LB01-x
FHS-HEB1-LB01-x
Narrow Beam
Medium Beam
Wide Beam
Elliptical Beam
Typical Beam Divergence FWHM with Lambertian LED
Amber, Red
(Degrees)
6
25
40
10x22
(3) (4)
LED Color
Blue, Cyan, Green
(Degrees)
8
28
42
12x25
(3) (4)
LED Color
White
(Degrees)
10
30
45
15x30
Part Number Type
FHS-HNB1-LL01-x
FHS-HMB1-LL01-x
FHS-HWB1-LL01-x
FHS-HEB1-LL01-x
(3)
FWHM full width half maximum is the full angle measured where the luminous intensity is
half of the peak value
(4) Typical divergence angle may change with different color LEDs and depends on LED
tolerances
Narrow Beam
Medium Beam
Wide Beam
Elliptical Beam
Amber, Orange, Red
(Degrees)
8
25
40
12x24
Blue, Cyan, Green
(Degrees)
10
28
42
14x25
White
(Degrees)
10
30
45
15x30
2003-06-16
2
FHS LENSES SERIES
OPTICAL CHARACTERISTICS
Part Number
FHS-HNB1-LB01-x
FHS-HMB1-LB01-x
FHS-HWB1-LB01-x
FHS-HEB1-LB01-x
Typical on axis intensity (candela per Lumen ) with Lambertian LED
Typical on axis intensity (candela per Lumen ) with Batwing LED
(5)
Blue Cyan Green Amber Red
(6,7)
Type
Narrow Beam
Medium Beam
Wide Beam
Elliptical Beam
28.3
5.6
1.6
8.2
(5)
Blue Cyan Green Amber Orange Red
29.5
5.7
1.7
8.5
29.5
5.7
1.7
8.5
(6,7)
32.6
4.3
1.4
7.7
32.6
4.3
1.4
7.7
White
13.5
4.1
1.6
5.7
White
Part Number
FHS-HNB1-LB01-x
FHS-HMB1-LB01-x
FHS-HWB1-LB01-x
FHS-HEB1-LB01-x
(5) Is the on axis luminous intensity measured in candela per lumen with a typical
(6) Multiply the candela per lumen value with the flux of the LED to obtain the expected on
(7) Luminous Intensity depends on the LED flux binning and LED tolerances. Please refer to the
typical ( )
Luxeon LED. Candela per Lumen where is the intensity measured in candela
F
and is the total flux of the LEDs under test.
axis intensity in candela. Please refer to the Luxeon datasheet to verify the flux bin.
Luxeon datasheet for more details on flux binning and mechanical tolerances.
Type
Narrow Beam
Medium Beam
Wide Beam
Elliptical Beam
=I/F I
K
K
17.1
5.3
1.5
6.2
18.1
5.4
1.7
6.5
18.1
5.4
1.7
6.5
K
16.5
4.3
1.2
6.4
16.5
4.3
1.2
6.4
16.5
4.3
1.2
6.4
17.1
5.5
1.8
6.7
2003-06-16
3
FHS LENSES SERIES
ILLUMINANCE CHART AT VARIOUS DISTANCES (white Batwing LUXEON LED )
1m
2m
Distance
3m
13.4 lux
3.4 lux
1.5 lux
FHS-HNB 1-LB01-x
Narrow Beam Lens for Batwing LED
1m
2m
Distance
3m
FHS-HMB 1-LB01-x
Medium Beam Lens for Batwing LED
TM (8,9)
4.1 lux
1.1 lux
0.5 lux
2003-06-16
1m
2m
Distance
3m
FHS-HWB 1-LB01-x
Wide Beam Lens for Batwing LED
4
1.6 lux
0.4 lux
0.2 lux
FHS LENSES SERIES
ILLUMINANCE CHART AT VARIOUS DISTANCES (white Lambertian LUXEON LED )
1m
2m
Distance
3m
17.1 lux
4.3 lux
1.9 lux
FHS-HNB 1-LL01-x
Narrow Beam Lens for Lambertian LED
1m
2m
Distance
3m
5.5 lux
1.4 lux
FHS-HMB 1-LL01-x
Medium Beam Lens for Lambertian LED
TM (8,9)
0.6 lux
(8) Typical illuminance measured in lux per lumen with a typical
LUXEON LED. Multiply the lux per lumen value with the
flux of the LED to obtain the expected illuminance in lux.
(9)Illuminance depends on the LED flux binning and LED tolerances.
Please refer to the LUXEON datasheet to verify the flux bin.
2003-06-16
TM
TM
(E)
E
1m
2m
Distance
3m
FHS-HWB 1-LL01-x
Wide Beam Lens for Lambertian LED
5
1.8 lux
0.5 lux
0.2 lux
DRAWINGS
Batwing LEDs Lenses Layout
ø 26.78
6.3
FHS LENSES SERIES
1
5.7
ø 23.96
19.25
The 4 pins on the bottom allow you to mount the
lens directly on your Batwing LUXEON LED.
TM
Dimension tolerance is +/- 0.2mm
2003-06-16
6
FHS LENSES SERIES
DRAWINGS
Lambertian LEDs Lenses Layout
ø 26.78
6.3
1
5.7
ø
23.96
18.76
To mount the lens directly on your Lambertian LUXEON LED
a ring spacer is required.
See details on page 8.
TM
Dimension tolerance is +/- 0.2mm
2003-06-16
7
FHS LENSES SERIES
DRAWINGS
Lens and holder assembly layout
FHS-xxxx-Lx01-H
5
28
31.61
31.61
ø 30.51
Lens holder assembly should be mounted to
the proper support by heat staking the four
legs on the bottom. Please refer to the
application note FAN-01EN for more details
on required tooling and procedures.
4
The Ring Spacer (P/N FTS-S) is required to
couple the Lambertian FHS lenses directly
on the Lambertian LEDs without
the Universal Lens Holder.
LUXEON
TM
ø11
Dimension tolerance is +/- 0.2mm
2003-06-16
8
DRAWINGS
FHS LENSES SERIES
FHS-HNB1-Lx01-x
Narrow Beam Lens, flat surface
FHS-HWB1-Lx01-x
Wide Beam Lens, 1.7mm h
micro-lens array
shape
exagonal
FHS-HMB1-Lx01-x
Medium Beam Lens, 2.6mm hexagonal
shape micro-lens array
FHS-HEB1-Lx01-x
Elliptical Beam Lens, 1 x 3.7mm
rectangular shape micro-lens array
2003-06-16
9
ORDERING NUMBER
FHS - XXXX - YYYY - ZFHS - XXXX - YYYY - Z
FHS LENSES SERIES
OPTIONS
0 - without holder
H - with plastic holder
LEDs VERSION
LB01 - Luxeon Batwing 1W
LL01 - Luxeon Lambertian 1W
LENS TYPE
HNB1 - Narrow beam lens
HMB1 - Medium beam lens
HWB1 - Wide beam lens
HEB1 - Elliptical beam lens
Lenses are distributed by Future Electronics.
For more information please contact:
North America Phone: 1-888-LUXEON2
Email: askluxeon@futureelectronics.com
Europe Phone: 00-800-44-FUTURE
Email: luxeon.europe@futureelectronics.com
Asia Phone: 1-800-LUMILEDS
Email: lumileds.asia@futureelectronics.com
Published by Fraen Corporation.
All technical data contained in this document are properties of Fraen Corporation and may change without notice.
2003-06-16
10
