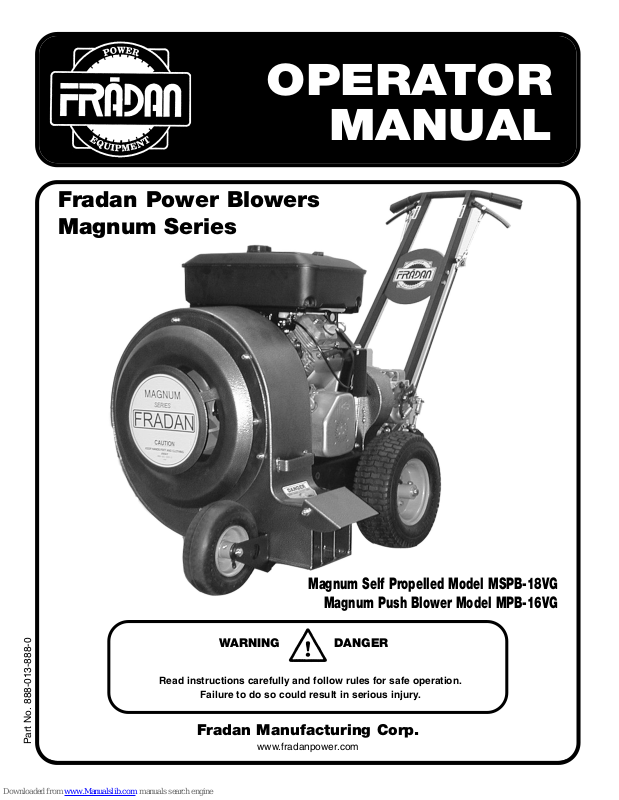

OPERATOR
Fradan Power Blowers
Magnum Series
MANUAL
Read instructions carefully and follow rules for safe operation.
Failure to do so could result in serious injury.
Fradan Manufacturing Corp.
Part No. 888-013-888-0
Magnum Self Propelled Model MSPB-18VG
Magnum Push Blower Model MPB-16VG
WARNING DANGER
www.fradanpower.com
WELCOME TO THE FRADAN FAMILY
CONGRATULATIONS! You are now the owner of a quality FRADAN POWER BLOWER.
Fradan manufactures a family of high performance, reliable power equipment. Our designs are
based on years of personal use of landscape equipment.
We at Fradan have revolutionized the landscaping industry, offering modern, reliable, high performance equipment
designed to meet today’s environmental demands and exceed tomorrow’s.
FRADAN built means durability, quality, maximum performance and non-obsolescence. With proper care and
maintenance of your unit, we assure you years of service-free operation. This booklet refers to the information
which you should learn in order to take advantage of its outstanding performance.
CONTENTS
Introduction................................................................................................................................ 2
Technical Data............................................................................................................................2
Graphic Warnings.......................................................................................................................3
Safety Rules and Precautions....................................................................................................4
Fuel & Oil....................................................................................................................................6
Preparing For Operations...........................................................................................................6
Check Points Before Operation..................................................................................................6
Operating Instructions ................................................................................................................7
Starting ......................................................................................................................................8
Starting MSPB-18VG Self Propelled .....................................................................................8
Starting MPB-16VG Push Blower Unit ..................................................................................8
Maintenance Instructions ...........................................................................................................9
Storage ......................................................................................................................................9
Troubleshooting........................................................................................................................10
Specifications, descriptions and illustrative material in this manual are as accurate as
known at the time of publication, but are subject to change without notice. Illustrations
may include optional equipment and accessories, and may not include all standard
equipment.
INTRODUCTION
The FRADAN Magnum Blower model is a ruggedly built, high performance gasoline powered unit specially
designed for blowing leaves and debris. Proper maintenance and use of the Fradan Blower will guarantee years of
safe, service-free, reliable operation.
We wish for you to gain sufficient knowledge from this booklet before operating your Fradan, and make the best
use of it in the future. We urge you to follow these instructions to assure safe and reliable operation.
TECHNICAL DATA
Model MPB- 16VG Model MSPB- 18VG
Engine 16hp Briggs & Stratton Vanguard - 18hp Briggs & Stratton Vanguard
Twin cylinder air cooled engine Twin cylinder air cooled engine
Displacement 29.3 cubic inch (480 cc) 34.8 cubic inch (570cc)
Spark Plug RC12YC RC12YC
Fuel Tank
Capacity
Ignition Fly Wheel Magneto Fly Wheel Magneto
Maximum
Ground Speed
Drive Type Push Type Hydrostatic Drive System
Transmission
Lubricant
Operating
Engine Speed
9 quartz 9 quartz
(Electric Ignition System) (Electric Ignition System)
N/A 4 mph (6.44 KPH)
Featuring: 4 miles Forward /
2.5 miles Reverse
N/A S.A.E 20-50 Oil
3600RPM 3600RPM
Tire Pressure 15-20 PSI Max. (Do not over inflate) 15-20 PSI Max. ( Do not over inflate)
Starter Recoil Starter Turn Key Electric Start
Dry Weight 168 pounds 225 pounds
*All Specifications are subject to change without notice
2
GRAPHIC WARNINGS
Because a power blower uses gasoline and blows air and debris at a high speed, safety precautions must be
observed to reduce the risk of personal injury. Read this manual carefully. Be familiar with the controls and the proper use of the machine.
This graphic accompanied by the words WARNING and DANGER calls
attention to an act or a condition which can lead to SERIOUS INJURY.
WHEN YOU SEE THIS SYMBOL, HEED ITS WARNING!
STAY ALERT!
FRADAN
POWER EQUIPMENT
CAUTION
R
emoval of this cover can result in
serious bodily injuries, and
will cause heavy damage
to the machine.
READ & UNDERSTAND
ALWAYS WEAR EYE AND EAR PROTECTION.
KEEP HANDS & FEET AWAY FROM AIR DISCHARGE AREAS.
ROTATING FAN BLADES WILL CAUSE SERIOUS INJURY.
Operator’s Manual and Safety Manual.
CAUTION
Removal of this cover can result in serious bodily injuries,
will cause heavy damage to the machine.
and
WARNING DANGER
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects, or other reproductive harm.
WARNING DANGER
To reduce the potential for accidents, comply with the safety instructions in this manual.
Failure to comply may result in serious personal injury and/ or equipment and property damage.
3
SAFETY RULES & PRECAUTIONS
IN THE INTEREST OF SAFETY……BEFORE STARTING ENGINE, READ AND
UNDERSTAND THE ENTIRE OPERATOR’S MANUAL & ENGINE MANUAL
Proper safety precautions must be observed. Like all power equipment this unit must be handled carefully.
DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use
this machine unless they are thoroughly responsible and have read, and understand the machine manual and are
trained in its operation.
• Always wear safety goggles for eye protection. Dress properly: do not wear loose clothing or jewelry that could
become caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be worn. Long hair
should be tied back.
• Inspect the entire machine for loose parts (nuts, bolts, screws, etc.) and any damage. Repair or replace as necessary before using the machine.
• Keep the handles free from oil and fuel.
DO NOT USE any attachment with this Power Blower other than the ones recommended by FRADAN. Serious
•
injury to the operator or bystanders could result as well as damage to the machine.
• Do not smoke while handling fuel or filling tank.
• Do not fuel machine in an enclosed room or near open flames. Assure adequate ventilation. Outdoor refueling is
recommended.
• Always store the fuel in a properly marked container that is approved by local codes and ordinances for such
usage.
• Never remove the fuel tank cap while the engine is running.
• Never start or run the engine inside a closed room or building. Fumes from the exhaust contain dangerous carbon monoxide.
• Never attempt to make engine adjustments while the unit is running. Always make engine adjustments with the
unit resting on a flat, clear surface.
• Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s guard and front air intake
cover.
• Keep children away. Onlookers should be kept at a safe distance from the work area, at least
METERS.
• Never leave the machine unattended.
• Do not use this unit for any job other than those for which it is intended as described in this manual.
• Do not overreach. Keep proper footing and balance at all times. Do not run the unit on very hilly areas or on any
unstable footing location.
• Do not use the unit when you are tired or under the influence of medication, drugs or alcohol.
Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, furnaces, etc.
•
Store in a locked, well ventilated area only
• Use only Fradan original equipment parts when servicing the unit. This will ensure safe and proper performance
of your product. These parts are available from your dealer. The use of any other accessories or attachments may
cause a potential hazard or injury to the user, damage to the machine and void this warranty.
• Clean the machine completely, especially, the fuel tank, its surrounding, and the air cleaner.
• When refueling, be sure to stop the engine and confirm that it is cooled down. Never refuel when the
engine is running. When gasoline spills, be sure to wipe it up completely dispose of those materials before
starting the engine.
• Whenever approaching an operator of the machine, carefully call his attention and confirm that the operator stops
the engine. Be careful not to startle or distract the operator which can cause an unsafe situation.
.
100 FEET/30
4
SAFETY RULES & PRECAUTIONS
WARNING- KEEP CHILDREN, PETS, AND BYSTANDERS AWAY- Do not permit children to contact blower. Keep
children a safe distance from work area. Never allow a person mentally ill, under influence of alcoholic drinks or drugs
or too young in age, to operate the blower.
• Pay attention to loosening and overheating of parts. If there is any abnormality of the machine, stop operation immediately and check the machine carefully. If necessary, have the machine serviced by an authorized FRADAN dealer.
Never continue to operate a machine which may be malfunctioning.
• In start-up or during operation of the engine, never touch hot parts such as the muffler, the high voltage wire or the spark
plug.
• After the engine has stopped, the muffler is still hot. Never place the machine in any places where there are flammable
materials (dry grass, etc.), combustible gases or combustible liquids.
Pay special attention to operation in the rain or just after the rain as the ground may be slippery.
•
• Be careful not to drop the machine or hit it against obstacles.
• Before proceeding to adjust or repair the machine, be sure to stop the engine and detach all spark plug caps from the
spark plugs. (Remember there are two spark plugs)
• When the machine is placed in storage for a long time, drain fuel from the fuel tank and carburetor, clean the parts,
move the machine to a safe place and confirm that the engine is cooled down.
• Make periodic inspections to assure safe and efficient operation. For a thorough inspection of your machine, please contact a FRADAN dealer.
• Keep the machine away from fire or spark.
• Never blow leaves and debris into highways and roadways.
• DO NOT POINT THE BLOWER OULET in the direction of people, cars, glass, or other similar items which could be
injured or damaged by blown debris.
• When operating, never direct the air stream at walls or vertical objects which can deflect debris back at you.
• Do not choke carburetor to stop engine. To properly stop the engine, gradually reduce engine speed to an idle, allow
two minutes for the engine to cool down and then use appropriate switch to stop the engine.
• Never run engine at excessive speeds. This may result in injury and/ or damage to unit.
Never tamper with governor springs, governor links or other parts which may change the governed engine speed.
•
• Never tamper with the engine speed selected by the engine manufacturer.
•
Do not operate engine without a muf
Do not operate engine with an accumulation of grass, leaves, dirt or other combustible material in the muffler area.
•
• Do not use this engine on any forest covered, brush covered, or grass covered unimproved land unless a spark
arrester is installed on the muffler
In the state of California the above is required by law (section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on federal lands.
Do not run engine without air cleaner or air cleaner cover
•
• Do not remove any shields, guards or decals. If a shield, guard or decal is damaged or does not function, repair or
replace it before operating the blower.
fler. Inspect periodically and replace, if necessary.
. The arrestor must be maintained in effective working order by the operator
.
.
Do not operate during excessive vibration.
•
Never leave machine unattended while in operation.
•
• Do not park machine on a steep grade or slope, the machine can role away uncontrollably causing injury or damage.
5
FUEL & OIL
• Do not attempt to refuel a hot engine.
• Never fill the fuel tank to the very top.
• Never add fuel to the tank in a closed non-ventilated area.
• Do not add fuel to this unit close to an open fire or sparks.
• Be sure to wipe off spilled fuel before attempting to start engine.
All Fradan Blowers are shipped
WITHOUT OIL.
When filling oil, refer to engine manufacturers’ Instruction Manual.
Oil Type:
Hydrostatic Transmission: Use S.A.E 20-50 oil.
Engine: Refer to engine owners manual
For Fradan Model MSPB-18VG use S.A.E. 20-50 oil for hydraulic transmission
PREPARING FOR OPERATIONS
When preparing fuel, use only the amount needed for the job you are to do. Do not use fuel that has been stored
longer than two months. Fuel stored longer than this will cause hard starting and poor performance. If fuel has been
stored longer than this time, it should be removed and filled with fresh fuel.
Be Sure Blower is Fully Assembled!
Never operate blower without all guards and deflectors in place.
Ensure that all nuts, bolts, screws are installed and properly tightened.
WARNING
Handle fuel with care. It is highly flammable. Fueling a hot engine or an
engine near an ignition source can cause fire and result in serious
personal injury and/or property damage.
WARNING
CHECK POINTS BEFORE OPERATION
1. Check for loose bolts, nuts and fittings.
2. Check the air cleaner for dirt. Clean the air filter of all dirt, debris etc. before operation.
3. Check to be sure that air intake screen is securely in place and clean.
4. Check oil level.
5. Check that unit has been removed of all debris, leafs, grass, dirt etc.
6
OPERATING INSTRUCTIONS
For best performance, be sure engine recoil starter assembly, front air intake cover and air discharge are clear
and free of leaves or other debris.
Air stream can be directed by simply maneuvering the unit and directing the flow of air accordingly.
Each unit is also fitted with an air deflector. Slight change in deflector will have a big effect on air flow. By mov-
ing the air deflector downward, this will allow wet leaves and heavy debris to move more efficiently.
WARNING DANGER
Never attempt to remove leaves or other debris
from any part of the power blower while it is running.
WARNING DANGER
Never attempt to move or adjust deflector
while engine is running!
WARNING DANGER
IN ORDER TO AVOID ENGINE DAMAGE DUE TO OVER-HEATING OR OVER-REVVING,
KEEP ENGINE RECOIL STARTER ASSEMBLY, THE BLOWER INTAKE AND DISCHARGE
VES OR OTHER DEBRIS.
BEFORE
AREAS CLEAR
ATTEMPTING TO REMOVE ANY LEAVES OR DEBRIS FROM THESE AREAS,
AND FREE OF LEA
THE MACHINE MUST BE TURNED OFF.
WARNING DANGER
• Do not smoke while handling fuel.
• Do not refuel a hot or running engine.
• Do not fill tank indoors.
• CAUTION - Do not start or run engine indoors as poisonous carbon monoxide is emitted.
• Do not operate in un-ventilated area.
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer
, birth defects, or other reproductive harm.
7
STARTING
Intended Use: This machine is designed for cleaning outdoor surfaces, where the debris can be effectively blown
nto a consolidated area for convenient pickup and removal.
i
ike all mechanical tools, reasonable care must be used when operating machine. Inspect machine work
L
area and machine before operating. Making sure that all operators of this equipment are trained in general
machine use and safety.
Starting MSPB-18VG Self Propelled Unit
Step 1 - Check First:
o Engine: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be
level when checking and filling oil and gasoline.
Engine speed: Is controlled by throttle lever on the engine. Under normal conditions, operate at minimum throttle
o
to accomplish your current cleaning task.
Stop switch: Located on engine. Switch must be in “on” position to start engine
o
o Fuel valve: Move fuel valve to “on” position.
o Choke: Operated with choke lever on side or front of engine. Pull choke lever completely out.
o Throttle: Move remote throttle control to middle position.
Step 2 – Turn Key to start.
• Turn until engine sputters (almost starts) then close choke by pushing lever inwards.
o Make sure free wheel lever is in the down position (engaged)
o Stand behind the blower. Grasp the left control lever in the fingers of your left hand with your thumb hooked
under the handle. Gradually squeeze the lever toward the handle. As you do so, the blower will move forward.
The speed increases the closer the lever moves toward the handle. To move in reverse, grasp the right control
lever in the fingers of your right hand with your thumb hooked under the handle. Gradually squeeze the lever
toward the handle. As you do so, the blower will move in reverse.
o To disengage hydrostatic drive simply pull neutral lever in its upward position. This will allow mobility while the
engine is off.
Starting MPB-16VG Push Blower Unit
Step 1- Check First:
o Engine: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be
level when checking and filling oil and gasoline.
Engine speed: Controlled by throttle lever on the engine. Under normal conditions, operate at minimum throttle to
o
accomplish your current cleaning task.
o Stop switch: Located on engine. Switch must be in “on” position to start engine
o Fuel valve: Move fuel valve to “on” position.
o Choke: Operated with choke lever on side of engine. Pull choke lever completely out.
o Throttle: Move remote throttle control to middle position.
Step 2-
o Hold starter grip and pull starter cord slowly until resistance is felt. Then pull cord rapidly to avoid kickback and
prevent hand or arm injury.
o Pull until engine sputters (almost starts) then close choke by pushing lever inwards.
• CAUTION: excess choking will flood engine preventing it to start.
NOTE: Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine of
check for damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign
objects.
8
f immediately and
MAINTENANCE INSTRUCTIONS
Any adjustments needed should be performed by a qualified mechanic and made
while engine is not running.
While engine is not running:
1. Clear intake screens on housing and engine throughout use.
2. Keep the blower, drive train and especially the engine air screen and cooling fins clean and free of grease, grass
and leaves to reduce the chance of fire and to permit proper cooling.
3. Inspect machine for loose bolts before starting the engine.
4. Engine Lubrication: Use proper weight oil specified in engine manual.
Forward and Reverse Control Linkages: Oil tie rod endings and grease all grease fittings (two grease fittings
5.
are located on each side of the axles)
6. Chain lubrication: With machine not running, oil chain using general purpose S.A.E 30 weight oil every 25 hours
or as needed. Note: Be sure that entire length of chain is properly oiled. Oiling only a few positions in the chain
rotation will not properly oil the chain.
Tire air pressure: Check at regular intervals and maintain.
7.
• Note: Low tire pressure will make unit hard to push and turn.
• Front tire: at 15-20 psi
• Rear tires: between 15-20 psi
NOTE: Chains and belts are normal replaceable wear items. A new chain should not be used on worn sprockets.
Sprockets should be inspected and replaced when worn.
NOTE: Lead –acid batteries generate hydrogen and oxygen gases which form an explosive mixture. Keep sparks
and flames away at all times.
Use only a qualified mechanic for any adjustments,
disassembly, or any kind of repair.
STORAGE
Never store engine indoors or in enclosed poorly ventilated areas with fuel in tank, where fumes may
reach and open flame, spark or pilot light, as in furnace, water heater, clothes dryer or other gas
appliance.
If engine is to be unused for 60 days or more, prepare as follows:
• Be sure engine is cool. Do not smoke. Remove all gasoline from carburetor and fuel tank to prevent gum
deposits from forming on these parts and causing possible malfunction of engine. Drain fuel outdoors, into an
approved container, away from open flame. Run engine until fuel tank is empty and engine runs out of gasoline
• Note: Fuel stabilizers may be used, refer to engine manufacture’s owners manual.
9
Troubleshooting
Problem Possible Cause Possible Solution
Poor air performance Air intake or exhaust clogged Clear clog
Machine is difficult to
maneuver
Low tire air pressure Inflate front and rear tires to correct
pressure
Abnormal Vibration Loose or out of balance impeller or
loose engine
Check impeller and replace if
required. Check engine
Engine will not start Stop switches off. Choke lever not
in run position. Out of gasoline.
Bad or old gasoline. Spark plug
wires disconnected. Dirty air
cleaner
Check switches, choke, gasoline
and oil. Check for spark with
approved tester. Clean or replace air
cleaner. Contact qualified service
dealer.
Engine backfires while
turning unit off
1.Stop switch malfunctioning
2.Fuel pre-igniting in exhaust
system
1. Install new stop switch.
2. Engine must idle in the idle
position for at least three minutes,
allowing the engine to cool down
before turning engine off.
Engine is locked, will not
pull over
Engine problem Contact your nearest engine
manufacturers servicing dealer
Trouble Shooting for Self Propelled Only
- For Model MSPB- 18VG. If engine does not start (crank) make sure neutral safety switch is
functioning properly, and wire harness is not cut, fractured or burned.
- If hydrostatic drive does not engage make sure belts and chains are tight, and neutral
engaging lever is in its engaged position (lever must be down)
Problem Possible Cause Possible Solution
No – self propelling 1. Engagement lever is not in the
engaged position
2. Drive change broken or
disconnected
3. Warn or broken drive belt
4. Improper oil level in transmission
1. Move engagement lever down to
engage
2. Install or adjust new change
3. Install new belt and properly
adjust
4. Install oil to the proper level
(S.A.E 20-50 oil)
Self propelled drive will
not release
Control levers bent or broken or not
properly lubricated
Check neutral spring on
transmission. Lubricate all levers
and check linkage for binding.
Noisy or broken chain No chain lubrication. Chain out of
alignment or over tensioned
Lubricate chains. If any alignment or
adjustments are needed to be made
this should be performed by a
servicing dealer.
Use only a qualified mechanic for any adjustments, disassembly, or any kind of repair
TROUBLESHOOTING
Use only a qualified mechanic for any adjustments,
disassembly, or any kind of repair.
10
Fradan Manufacturing Corp.
www.fradanpower.com
Loading...
