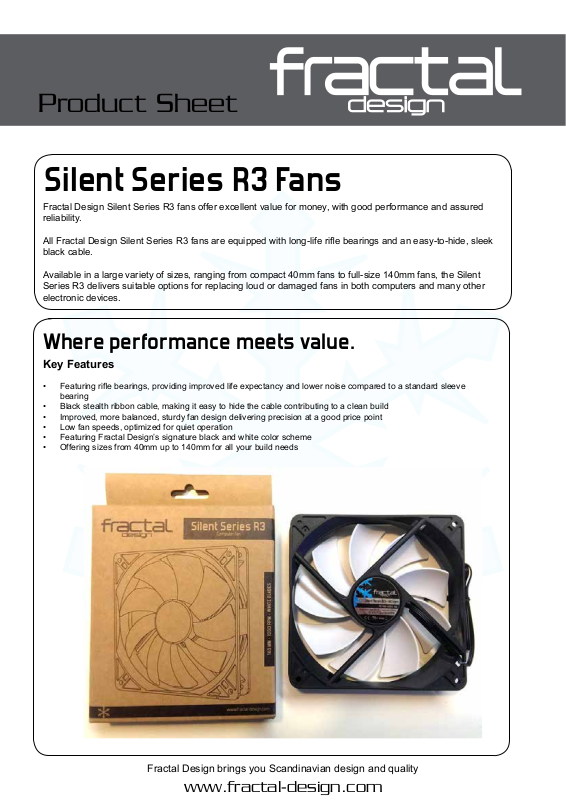

Silent Series R3 Fans
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rie bearings and an easy-to-hide, sleek black cable.
Where performance meets value.
Key Features
Featuring rie bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
Improved, more balanced, sturdy fan design delivering precision at a good price point
Low fan speeds, optimized for quiet operation
Featuring Fractal Design’s signature black and white color scheme
Offering sizes from 40mm up to 140mm for all your build needs
Fractal Design brings you Scandinavian design and quality
www.fractal-design.com
Product Sheet
General Specifications
FAN Silent Series R3
40mm
Size (mm) 40*40*10 50*50*10 60*60*25 80*80*25
Colours available White blades,
black frame
Screw hold pattern (mm) 32*32 40*40 50*50 71.5*71.5
Connector 3 pin fan header 3-pin fan header 3-pin fan header 3-pin fan header
Bearing Rie Rie Rie Rie
Number of blades 7 7 7 7
Rotational speed 4000 3500 2500 1600
Accoustical noise (dB (A))
Maximum air ow (CFM) 3.6 6.8 13.3 20.2
Maximum pressure (mm H2O)
Actual input power (W) 0.4 0.4 0.5 0.5
Maximum rated input current (A)
Nominal input voltage (V) 12 12 12 12
Minimum startup voltage (V) 7 7 6 6
MTBF (hours) >40,000 >40,000 >40,000 >40,000
Unit weight (g) 19 29 50 70
Package weight (g) 55 65 85 105
Cable length (mm) 350 350 350 350
Cable type Black ribbon cable Black ribbon cable Black ribbon cable Black ribbon cable
Package dimensions (mm),
including hanging tab
Package dimensions (mm),
excluding hanging tab
20.0 19.0 20.6 18.1
1.24 1.41 1.65 0.99
0.05 0.05 0.06 0.06
154*96*27 154*96*27 154*96*27 154*96*27
119*96*27 119*96*27 119*96*27 119*96*27
Silent Series R3 50mm
White blades,
black frame
Silent Series R3 60mm
White blades,
black frame
Silent Series R3 80mm
White blades,
black frame
Package contents
Silent Series R3 fan
Screw pack with 4 metal fan screws
Fractal Design brings you Scandinavian design and quality
www.fractal-design.com
Product Sheet
General Specifications
FAN Silent Series R3
92mm
Size (mm) 92*92*25 120*120*25 140*140*25
Colours available White blades,
black frame
Screw hold pattern (mm) 82.5*82.5 105*105 125*125
Connector 3 pin fan header 3-pin fan header 3-pin fan header
Bearing Rie Rie Rie
Number of blades 7 9 9
Rotational speed 1500 1200 1000
Accoustical noise (dB (A))
Maximum air ow (CFM) 24.4 46.5 56.1
Maximum pressure (mm H2O)
Actual input power (W) 0.6 1.0 1.6
Maximum rated input current (A)
Nominal input voltage (V) 12 12 12
Minimum startup voltage (V) 6 6 6
MTBF (hours) >40,000 >40,000 >40,000
Unit weight (g) 80 125 160
Package weight (g) 11 5 165 205
Cable length (mm) 350 350 350
Cable type Black ribbon cable Black ribbon cable Black ribbon cable
Package dimensions (mm),
including hanging tab
Package dimensions (mm),
excluding hanging tab
18.3 20.5 21.6
0.79 0.78 0.87
0.07 0.12 0.20
154*96*27 180*122*26 200*142*26
119*96*27 147*122*26 167*142*26
Silent Series R3 120mm
White blades,
black frame
Silent Series R3 140mm
White blades,
black frame
Description Art. Number EAN Code UPC Code
Fractal Design Silent Series R3 40mm FD-FAN-SSR3-40-WT 7350041083375 817301013376
Fractal Design Silent Series R3 50mm FD-FAN-SSR3-50-WT 7350041083382 817301013383
Fractal Design Silent Series R3 60mm FD-FAN-SSR3-60-WT 7350041083399 817301013390
Fractal Design Silent Series R3 80mm FD-FAN-SSR3-80-WT 7350041083405 817301013406
Fractal Design Silent Series R3 92mm FD-FAN-SSR3-92-WT 7350041083412 817301013413
Fractal Design Silent Series R3 120mm FD-FAN-SSR3-120-WT 7350041083429 817301013420
Fractal Design Silent Series R3 140mm FD-FAN-SSR3-140-WT 7350041083436 817301013437
