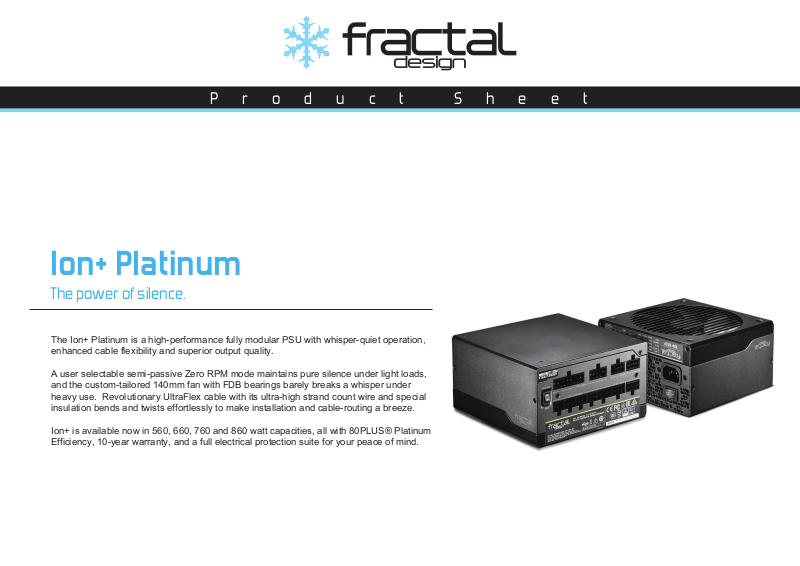

Produc t Sheet
Ion+ Platinum
The power of silence.
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation,
enhanced cable flexibility and superior output quality.
A user selectable semi-passive Zero RPM mode maintains pure silence under light loads,
and the custom-tailored 140mm fan with FDB bearings barely breaks a whisper under
heavy use. Revolutionary UltraFlex cable with its ultra-high strand count wire and special
insulation bends and twists effortlessly to make installation and cable-routing a breeze.
Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum
Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
Produc t Sheet
Key features
● Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it
● Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
● 80PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
● User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
● Outstanding output quality with tight voltage regulation and extremely low noise and ripple
● Fully modular design for reduced clutter and maximum ease of installation
● Premium Japanese 105° C capacitors provide enhanced reliability and durability
● Compact 150 mm depth easily fits compact spaces with extra headroom for cable management
● Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
● Extra-long 600 mm 24-pin ATX cable and 700 mm 4+4 pin cable
● Extensive 10 year warranty
Produc t Sheet
General specifications
Specification
80PLUS® Certification
Modular cables
Fan type
Maximum operating temperature (full load)
Semi-passive operation
Capacitors
Life expectancy (MTBF) at max output load
PSU specification compliance
Cable type
PSU Color
Cable Color
Protection features
Input voltage
Input frequency
Input current
• Platinum
• Fully modular
• Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
• 50° C
• Yes, user selectable (Zero RPM)
• Japanese
• 100,000 hours
• ATX12V 2.4 ; EPS12V 2.92
• Modular 24-pin: Braided sleeve UltraFlex wire
• Others: Flat UltraFlex wire
• Black/Gunmetal
• Black
• Over voltage protection
• Under voltage protection
• Over power protection
• Short circuit protection
• Over current protection
• Over temperature protection
• 100-240V AC
• 50-60 Hz
• 10A/5A
Produc t Sheet
General specifications
Specification
Number of 12V rails
Standby efficiency
Sleep State Compliance
Approvals & Certifications
Unit dimensions (LxWxH)
Net weight (unit only)
Package dimensions (LxWxH)
Package weight
Warranty
Connectors
ATX
EPS/ATX 12V
PCIe
SATA
Peripheral
• Ion+ 560P
• 1
• 1
• 4
• 6
• 4
• 1
• ErP 2013 (<0.45W @230
• VAC, 45 mA load on +5Vsb)
• C6/C7
• CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
• 150 x 150 x 86 mm
• 1.61 kg (560P/660P) / 1.665 kg (760P/860P)
• 325 x 110 x 210 mm
• 2.6 kg (560P) / 2.65 kg (660P) / 2.975 kg (760P/860P)
• 10 Years
• Ion+ 660P
• 1
• 1
• 4
• 10
• 4
• Ion+ 760P
• 1
• 2
• 6
• 10
• 4
• Ion+ 860P
• 1
• 2
• 6
• 10
• 4
Produc t Sheet
Cable Configuration
• Ion+ 560P
ATX 24-pin
ATX 12V 4+4 pin
EPS12V 8-pin
PCIe 6+2 pin
SATA
Peripheral
• 600
• 700
• N/A
• 550+120
• 400+120+120+120
• 650+120
• 400+120+120+120
DC Output
• Ion+ 560P
3.3V
5V
3.3V and 5V combined
12V
-12V
+5Vsb
Total Power
• 20A
• 20A
• 110W
• 46.6A
• 0.3A
• 3A
• 560W
(length in mm between connectors)
• Ion+ 660P
• 600
• 700
• N/A
• 550+120
• 400+120+120+120
• 650+120
• 400+120+120+120
• Ion+ 660P
• 20A
• 20A
• 110W
• 55.0A
• 0.3A
• 3A
• 660W
• Ion+ 760P
• 600
• 700
• 600
• 550+120
• 400+120+120+120
• 650+120
• 400+120+120+120
• Ion+ 760P
• 22A
• 22A
• 120W
• 63.3A
• 0.3A
• 3A
• 760W
• Ion+ 860P
• 600
• 700
• 600
• 550+120
• 400+120+120+120
• 650+120
• 400+120+120+120
• Ion+ 860P
• 22A
• 22A
• 120W
• 71.6A
• 0.3A
• 3A
• 860W
DC Voltage Regulation
Produc t Sheet
Fractal Design Ion+, typical value
ATX Specifications, maximum value
Ripple and Noise
Fractal Design Ion+, typical value
ATX Specifications, maximum value
• +3.3V
• <0.25%
• <5%
• +3.3V
• <15mV
• <50mV
• +5V
• <0.25%
• <5%
• +5V
• <15mV
• <50mV
• +12V
• <0.35%
• <5%
• +12V
• <15mV
• <120mV
Produc t Sheet
Package contents
● Ion+ PSU with protective bag
● Modular cables in a convenient storage bag
● Screw pack with Velcro cable ties
● AC power cord (localized)
● User manual
Additional information
Product
ION+ 560P
ION+ 660P
ION+ 760P
ION+ 860P
SKU
FD-PSU-IONP-560P-BK
FD-PSU-IONP-660P-BK
FD-PSU-IONP-760P-BK
FD-PSU-IONP-860P-BK
EAN
7340172701958
7340172701941
7340172701934
7340172701927
UPC
843276101954
843276101947
843276101930
843276101923
JAN
4537694270021
4537694270014
4537694270007
4537694269995
