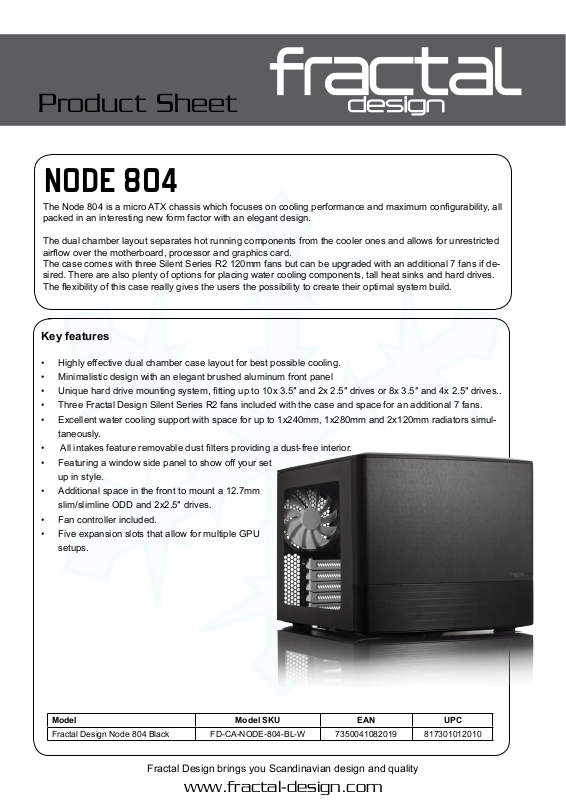

Product Sheet
NODE 804
The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum congurability, all
packed in an interesting new form factor with an elegant design.
The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted
airow over the motherboard, processor and graphics card.
The case comes with three Silent Series R2 120mm fans but can be upgraded with an additional 7 fans if de-
sired. There are also plenty of options for placing water cooling components, tall heat sinks and hard drives.
The exibility of this case really gives the users the possibility to create their optimal system build.
Key features
• Highly eective dual chamber case layout for best possible cooling.
• Minimalistic design with an elegant brushed aluminum front panel
• Unique hard drive mounting system, tting up to 10x 3.5″ and 2x 2.5″ drives or 8x 3.5″ and 4x 2.5″ drives..
• Three Fractal Design Silent Series R2 fans included with the case and space for an additional 7 fans.
• Excellent water cooling support with space for up to 1x240mm, 1x280mm and 2x120mm radiators simul-
taneously.
• All intakes feature removable dust lters providing a dust-free interior.
• Featuring a window side panel to show o your set
up in style.
• Additional space in the front to mount a 12.7mm
slim/slimline ODD and 2x2.5″ drives.
• Fan controller included.
• Five expansion slots that allow for multiple GPU
setups.
Model Model SKU EAN UPC
Fractal Design Node 804 Black FD-CA-NODE-804-BL-W 7350041082019 817301012010
Fractal Design brings you Scandinavian design and quality
www.fractal-design.com
Product Sheet
General Specifications
Motherboard compatibility • Micro ATX, Mini ITX
Drive bay capacity • 2 - USB 3.0
• 8 - 3.5″ HDD positions
• 2 - 2.5″ dedicated SSD unit positions
• 2 - Extra positions for either 3,5″ or 2,5″ drives
• 1 - 12.7mm slim/slimline ODD
Expansion slots • 5
Motherboard compatibility • Micro ATX
• Mini ITX
Cooling / Ventilation • 10 - Fan positions (3 Silent Series R2 fans included)
• Filtered fan slots in front, top and bottom
• CPU coolers up to 160 mm in height
• Integrated fan controller
Front interface • 2 - USB 3.0
• Audio in/out
• Power button
• Power (blue) and HDD activity LED (white)
Power supply compatibility • ATX PSUs up to 260 mm deep
Graphics card compatibility • Graphics card up to 320 mm in length.
Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower
position in the front.
Additional information • Velcro straps for easy cable management
• Clear Side panel window included
• Aluminum front bezel
Colors Available • Black
Case dimensions W x H x D (mm)
Net weight (kg) • 6
Package dimensions W x H x D (mm)
Package weight – (Kg) • 7.7 kg
• 344 x 307 x 389
• 370 x 468 x 412
Cooling System
Front • 4 - 120mm fan slots (included is 1 hydraulic bearing 120mm
Silent Series R2 fan, 1000 RPM speed)
Rear • 1 - 120/140mm fan (included is 1 hydraulic bearing 120mm
Silent Series R2 fan, 1000 RPM speed)
• 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm
Silent Series R2 fan, 1000 RPM speed)
Top • 4 - 120/140mm fan (not included)
Fan controller • 1 - integrated fan controller on the backside for up to 3 fans
Water cooling compatibility • Maximum radiator conguration: 1x240mm, 1x280mm and 2x120mm radiators
simultaneously.
Fractal Design brings you Scandinavian design and quality
www.fractal-design.com
