Frabill Commando 6115 Instruction Manual
INSTRUCTION MANUAL FOR
COMMANDO™
FLIPOVER STYLE ICE SHELTER
MANUEL D’INSTRUCTIONS POUR LES ABRIS
SUR GLACE COMMANDO™ DE STYLE PIVOTANT
#6115 Commando Nº 6115 Commando
© 2010 FRABILL, Inc. All Rights
© 2010 FRABILL, Inc. Tous droits réservés.
Printed in the USA
Imprimé aux Etats-Unis
# 611599A
nº 611599A
Safety Instructions and Warranty
(indicates a potential hazardous situation which, if not avoided, could result in injury or death)
!
Death from asphyxiation may occur from propane heaters or lanterns in a non-ventilated area.
•
Keep all flame and heat sources away from this tent fabric.
•
•
The application of any foreign substance to the tent may render the flame-resistant properties ineffective.
•
•
•
•
•
•
•
•
Injury or death may result if:
Tent is exposed to open flame. Do not use open flame as heat source inside shelter.
Nighttime collisions
Exterior reflectors on all four corners must be visible.
Falling Hazard
Never tow shelter with passengers inside.
WARNING!
Keep top of doors unzipped for ventilation.
This tent is made with flame-resistant fabric which meets the flammability requirements of CPAI-84. It is not fire-proof.
The fabric will burn if left in continuous contact with any flame source.
Never use candles, matches, or open flames of any kind near a tent.
Cooking inside a tent is dangerous.
Build campfires downwind, and several meters away from a tent. Always be sure to extinguish camp fires before leaving
camp, or retiring for the night.
Practice extreme caution when using fuel powered lanterns and heaters inside a tent. Use battery operated equipment
whenever possible.
Never refuel lamps, heaters, or stoves inside a tent.
Extinguish or turn off all lanterns before going to sleep.
Avoid smoking inside a tent.
Never store flammable liquids inside a tent.
(conveys potential equipment damage)
CAUTION
IMPORTANT
Warranty Information
defective within the one-year period upon inspection by the Frabill Quality Control Team. All parts must be returned to Frabill,
Inc. postage-prepaid to include the original dated receipt. All returns must be coded with a return authorization number, which
can be obtained from the Frabill, Inc., Customer Service Department.
For return authorization, call or write:
FRABILL, INC.
ATTENTION: CUSTOMER SERVICE DEPARTMENT
P.O. BOX 449 N173 W21121 NORTHWEST PASSAGE
JACKSON, WI 53037
Do not exceed 20 miles per hour/ 32 kilometers per hour when towing ice shelter.
Never leave ice shelter unattended when set up.
Check local regulations specific to the use of portable ice shelters
Frabill, Inc. warrants to the original purchaser that all Frabill, Inc. Ice Shelters are free from
manufacturers defects for the term of one year from the date of purchase. This warranty
does not cover cracked windows, tent tears, and broken or bent poles due to high wind
weather conditions or unattended use. Frabill will repair or replace any part found to be
PHONE 1-800-558-1005
(Mon. - Fri. 8-4:30 Central Time)
FAX 1-262-677-4750
E-MAIL: SERVICE@FRABILL.COM
WWW.FRABILL.COM
Limitation of Liability
It is understood that Frabill, Inc.’s liability for its products, whether due to breach of warranty, negligence, strict liability or
otherwise is limited to the repair of the product as stated in the warranty information. Frabill, Inc. is not liable for any injury,
loss, damage or expense, whether direct or consequential, including (but not limited to) loss of use, income, profit or damage
that occurs during the sale, installation, use of or the repair or replacement of Frabill, Inc. products. Frabill, Inc. is not liable for
any damage that may occur during any modifications that are made to the product at any time to improve performance of the
product. Frabill, Inc. is not obligated to make such changes to any products currently in service.
2 Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com
Table of Contents
Safety Instructions and Warnings ......................................................................................................... 2
Warranty .......................................................................................................................................................... 2
Parts List ........................................................................................................................................................... 4
Assembly Instructions ................................................................................................................................. 5-9
Safe Use and Operation ............................................................................................................................. 10
Tips for Use, Maintenance and Care ...................................................................................................... 11
Frabill Shelter Accessories ........................................................................................................................ 12
Table des matières
Consignes de sécurité et avertissements ........................................................................................... 14
Garantie ............................................................................................................................................................ 14
Liste de pièces ............................................................................................................................................... 4
Instructions d’assemblage ......................................................................................................................... 15-19
Utilisation et exploitation sécuritaires .................................................................................................. 19
Conseils d’utilisation, Entretien et soins............................................................................................... 20-21
Accessoires des Frabill ............................................................................................................................... 22
Need help? We’re a Toll-Free call away! 1-800-558-1005, option 3
Frabill, Inc. is committed to customer satisfaction. If you have any questions
or encounter a problem while assembling your shelter, please do not return
STOP!
to the retailer.
Besoin d’aide ? Nous sommes à un appel sans frais de vous !
1 800 558-1005, option 3
Frabill, Inc. est déterminée à assurer la satisfaction de sa clientèle. Si vous
avez des questions ou rencontrez un problème au moment d’assembler
votre abri, prière de ne pas retourner l’abri.
Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com 3
Commando Shelter Instructions • Instructions pour le Commando
Tools Required: Phillips Screwdriver, 7/16” deep well socket, 7/16” wrench. A cordless drill is recommended. Approximate Assembly Time: 1 Hour
Outils requis : tournevis cruciforme (Phillips), clé à douille profonde 7/16 po et clé 7/16 po, clé 3/8 po. Une perceuse sans fil est recommandée. Temps d'assemblage approximatif : 1 heure
Item Z
Item Y
Item L
Item X
Item M
Item K Item J
Item T
Item W
(Approximate Sizes/Tailles approximatives)
6115 Commando – Liste des pièces
tem Part # Qty. French
A 200072 2 Vis PHILLIPS .25-20 X 1.25 PHILLIPS
B 200073 2 Vis PHILLIPS .25-20 X 1.5 PHILLIPS
C 200580R 1 COQUILLE DE SIEGE
D 200581 1 COUSSIN DE SIEGE
E 200582 1 COUSSIN DE SIEGE, DOSSIER
F 200584 1 PIVOT DE SIEGE BATEAU
G 611520 1 TENTE COMMANDO
H 611530 1 BASE COMMANDO
I 611540 4 CADRE EN U
J 200015 32 ECROU NYLOCK HEXAGONAL.250-20T
K 200028 18 RONDELLE PLATE SAE .250
L 200089 12 COUVERTURE DE BOULON.25-20 X .750
M 200091 2 COUVERTURE DE BOULON.25-20 X 1.50
N 611561 1 ASSEMBLAGE DU DOSSIER DE SIEGE
O 611564 1 PLAQUE D'ABRIS
P 611565 1 ASSEMBLAGE DU SIEGE AVANT
Q 611569 1 GOUPILLE DE SECURITE
R 807146-6 2 ECARTEUR DU SIEGE D'ABRI
S 612025 1 GLISSIERE D'ABRI
T 203437 20 RONDELLE PHILIPPS #8 X .50 HD RD
U 806055 1 CORDE EN POLY DE 2.40M
V 807106 2 PROFILS D'ANGLE POUR CADRE DE 6"
W 807120 8 PIQUET DE MAINTIEN
X 807152 2 COUPE VENT
Y 200050 8 BOULON MAC .25-20 X 1.5
Z 200053 8 COUVERTURE DE BOULON.25-20 1
AA 903000 3 FENETRE
6115 Commando Parts List
Item Part # Qty. English
A 200072 2 .25-20 X 1.25 PHILLIPS SCREW
B 200073 2 .25-20 X 1.5 PHILLIPS SCREW
C 200580R 1 SEAT SHELL
D 200581 1 SEAT CUSHION
E 200582 1 SEAT CUSHION, BACK
F 200584 1 SWIVEL BOAT SEAT
G 611520 1 COMMANDO TENT
H 611530 1 COMMANDO BASE
I 611540 4 U-FRAME
J 200015 32 .250-20 HEX NYLOCK NUT
K 200028 18 .250 FLAT SAE WASHER
L 200089 12 .25-20 X .750 CAP BOLT
M 200091 2 .25-20 X 1.50 CAP BOLT
N 611561 1 SEAT BACK ASSEMBLY
O 611564 1 SHELTER PLATE
P 611565 1 FRONT SEAT ASSEMBLY
Q 611569 1 SAFETY PIN
R 807146-6 2 SHELTER SEAT SPACER
S 612025 1 SHELTER STORM GUARD
T 203437 20 #8 X .50 PHILLIPS HD RD WASHER
U 806055 1 8' POLY ROPE
V 807106 2 6" CORNER FRAME BRACKET
W 807120 8 POLE BEARING
X 807152 2 WIND BREAK
Y 200050 8 .25-20 X 1.5 MAC BOLT
Z 200053 8 .25-20 1 CAP BOLT
AA 903000 3 WINDOWS
4 Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com
Commando Shelter Instructions • Instructions pour le Commando
Tools Required: Phillips Screwdriver, 7/16” deep well socket, 7/16” wrench. A cordless drill is recommended. Approximate Assembly Time: 1 Hour
Outils requis : tournevis cruciforme (Phillips), clé à douille profonde 7/16 po et clé 7/16 po, clé 3/8 po. Une perceuse sans fil est recommandée. Temps d'assemblage approximatif : 1 heure
Need help? We’re a Toll-Free call away! 1-800-558-1005, option 3
Frabill, Inc. is committed to customer satisfaction. If you have any questions or
encounter problems assembling your shelter, please do not return shelter to the retailer.
STOP
Besoin d’aide? Nous sommes à un appel sans frais de vous! 1-800-558-1005, option 3
Frabill, Inc. est déterminée à assurer la satisfaction de sa clientèle. Si vous avez des
questions ou rencontrez un problème au moment d’assembler votre abri, prière de ne
pas retourner l’abri.
Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com 5

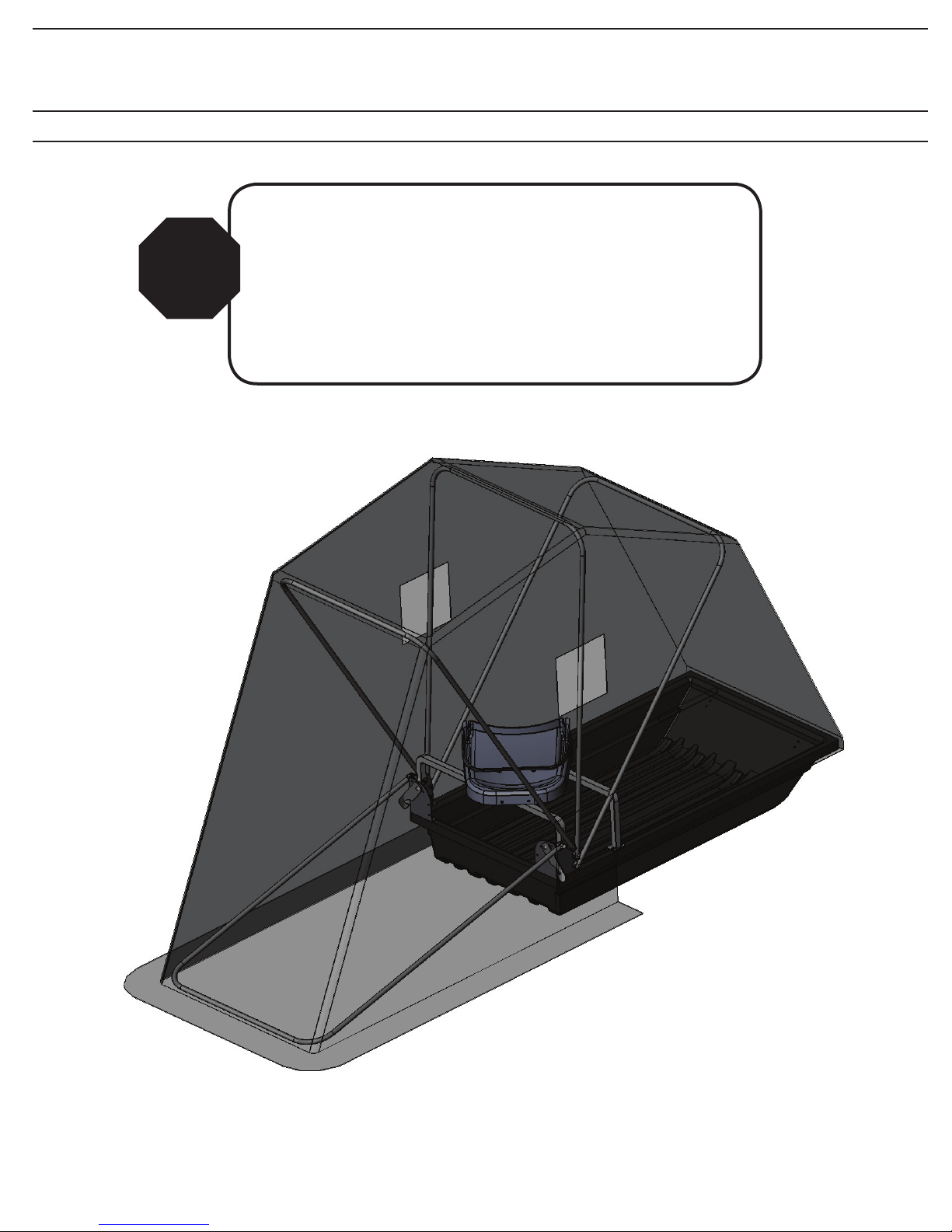

Commando Shelter Instructions
Tools Required: Phillips Screwdriver, 7/16” deep well socket, 7/16” wrench. A cordless drill is recommended. Approximate Assembly Time: 1 Hour
ASSEMBLY PARTS LIST
A
Note: Not all of the provided parts are used in this assembly

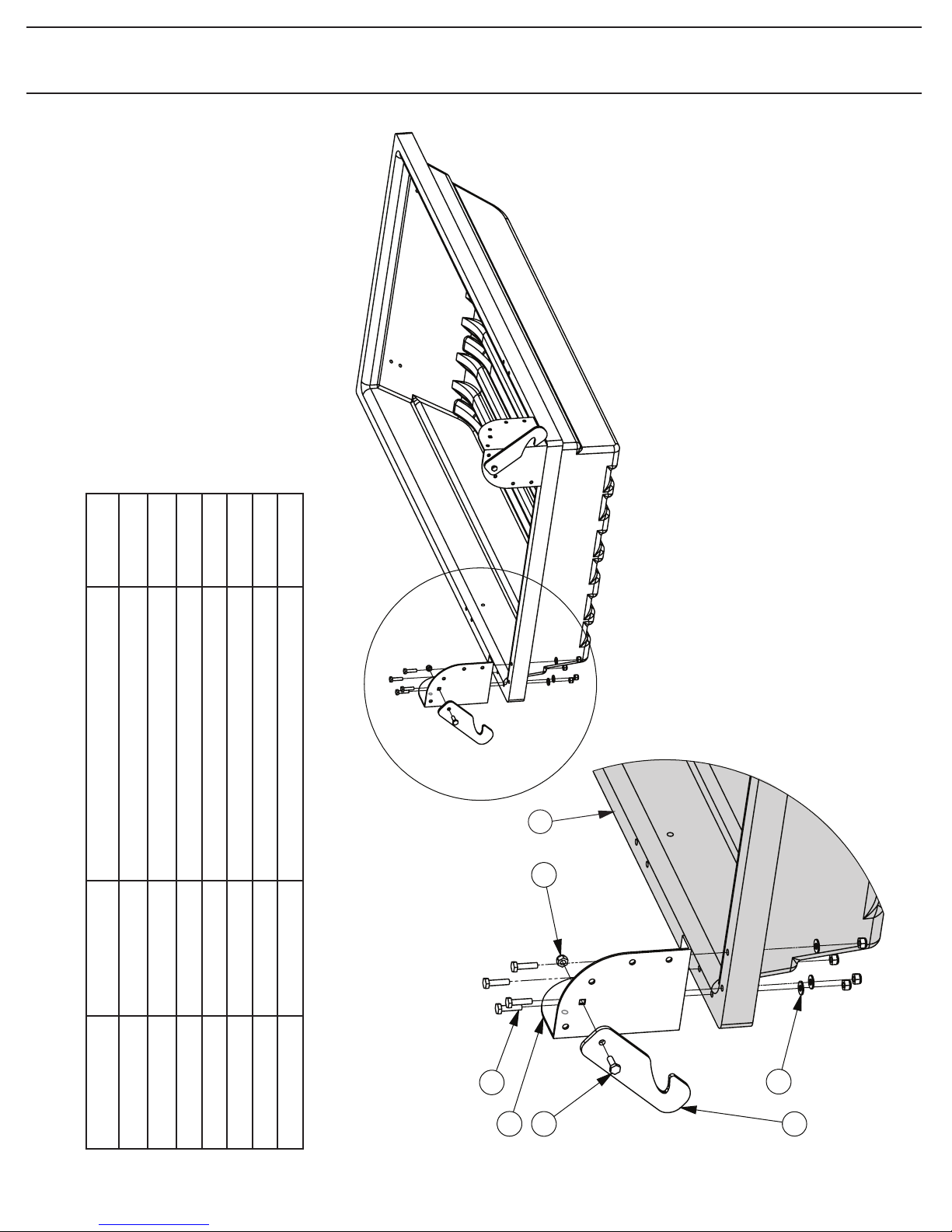

DETAIL A
1
6
SCALE 1 : 3
1 611530 SHELTER BASE 1
2 807106 FRAME BRACKET 2
3 807152 WIND BREAK BRACE 2
4 200053 BOLT .250-20X 1.00 CAP HEX 8
5 200028 WSHR .250 FLAT SAE 8
6 200015 NUT .250-20 HEX NYLK 10
7 200089 .250-20X .75 CAP HEX BOLT 2
4
ITEM NUMBER PART NUMBER DESCRIPTION QTY.
6 Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com
2
7
5
3
Commando Shelter Instructions
Tools Required: Phillips Screwdriver, 7/16” deep well socket, 7/16” wrench. A cordless drill is recommended. Approximate Assembly Time: 1 Hour
B
A
B
ASSEMBLY PARTS LIST
9
7
5
1
8

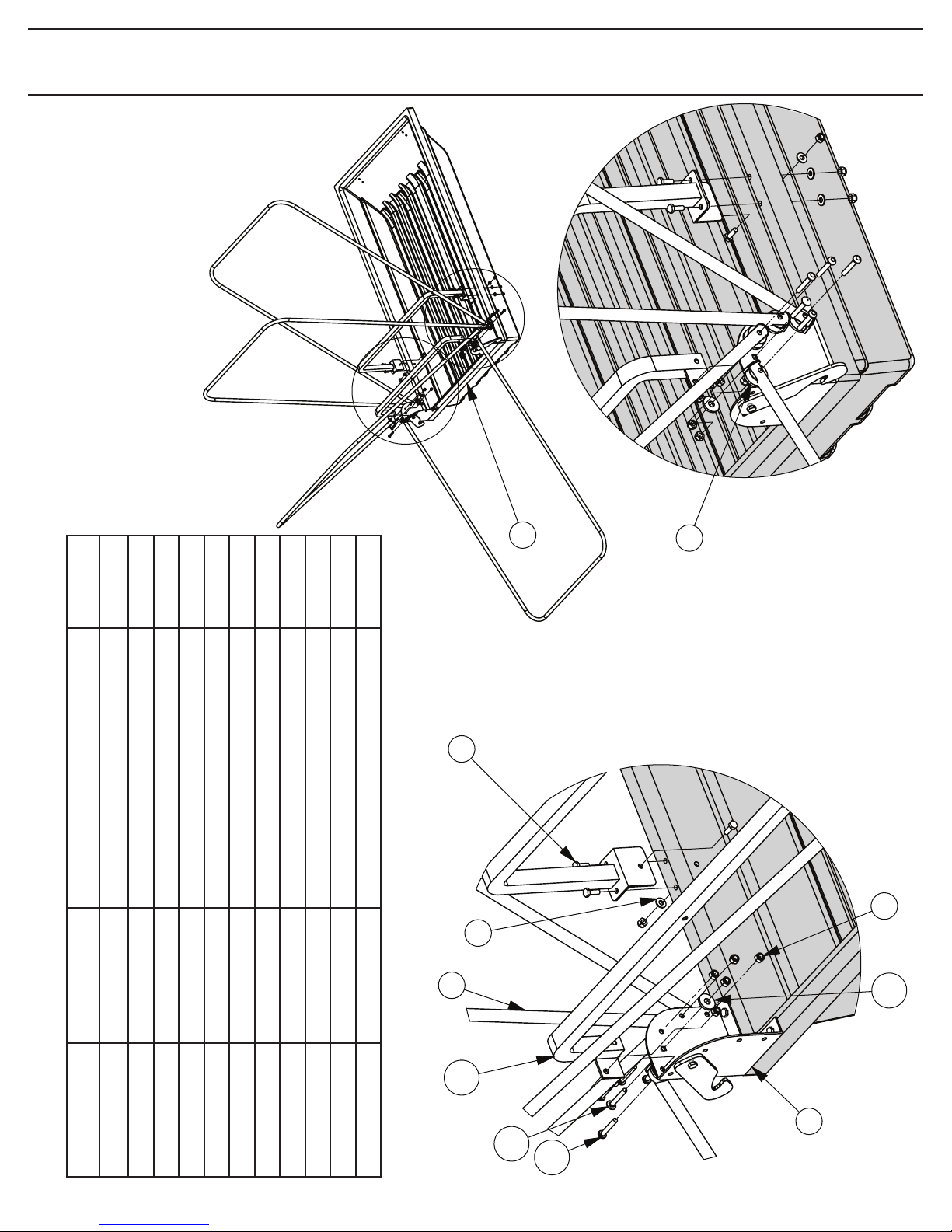

DETAIL A
SCALE 1 : 4
DETAIL B
SCALE 1 : 4
6
13
1 611530 SHELTER BASE 1
2 807106 FRAME BRACKET 2
5 200028 WSHR .250 FLAT SAE 6
6 200015 NUT .250-20 HEX NYLK 16
7 200089 .250-20X .75 CAP HEX BOLT 6
8 807120 BEARING POLE 8
9 611540 U-FRAME 4
10 200050 SCR .250-20X 1.50 MACH PAN HD .600" THREADS 8
ITEM NO. PART NO. DESCRIPTION QTY.
Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com 7
Note: Not all of the provided parts are used in this assembly
11
11 611560 ASSY 6115 SEAT 1
12 200091 .25X1.50 CARRIAGE BOLT 2
13 807146-6 SPACER SHELTER SEAT 2
2
12
10
Commando Shelter Instructions
Tools Required: Phillips Screwdriver, 7/16” deep well socket, 7/16” wrench. A cordless drill is recommended. Approximate Assembly Time: 1 Hour
7
9
10
1
5
8
ASSEMBLY PARTS LIST
4
3
6
2
Note: Not all of the provided parts are used in this assembly
1 611565 FRONT SEAT SUPPORT ASSY 1
2 611561 BACK SEAT SUPPORT ASSY 1
3 611564 SHELTER SEAT PLATE 1
4 200089 .250-20X .75 CAP HEX BOLT 5
5 200015 NUT .250-20 HEX NYLK 5
6 611569 1/4" SAFETY PIN 1
7 200584 SWIVEL BOAT SEAT 1
8 200580 SEAT ASSY BOAT 1
9 200073 .25-20X 1.5 PHILIPS HD SCREW 2
10 200072 .25-1.25 PHILIPS HD SCREW 2
ITEM NUMBER PART NUMBER DESCRIPTION QTY.
8 Frabill Instruction Manual For Commando Shelter • Manuel d'instructions pour abris sur glace Commando 1-800-558-1005 • service@frabill.com • www.frabill.com
