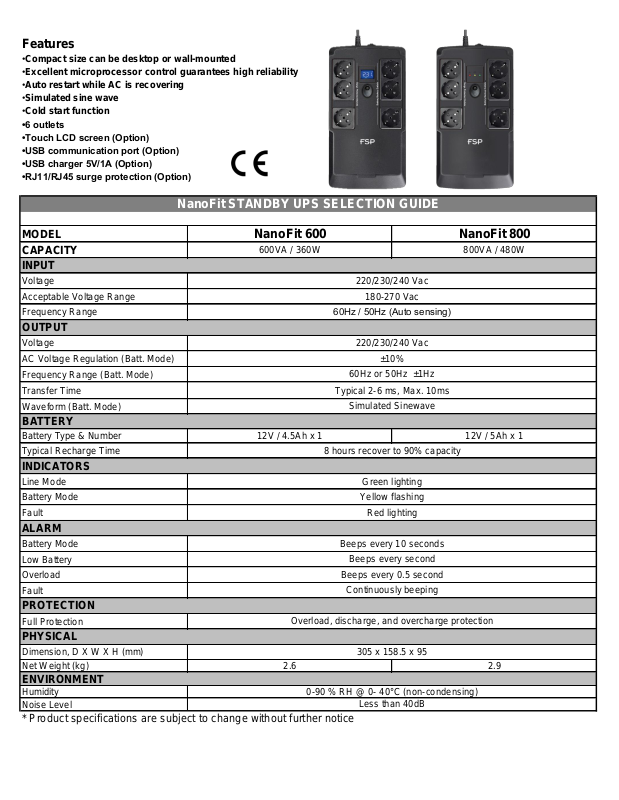

FPS NanoFit 600, NanoFit 800 User Manual

Features

•Compact size can be desktop or wall-mounted

•Excellent microprocessor control guarantees high reliability

•Auto restart while AC is recovering

•Simulated sine wave

•Cold start function

•6 outlets

•Touch LCD screen (Option)

•USB communication port (Option)

•USB charger 5V/1A (Option)

•RJ11/RJ45 surge protection (Option)

MODEL

NanoFit 600 NanoFit 800

CAPACITY

600VA / 360W 800VA / 480W

Voltage
Acceptable Voltage Range
Frequency Range

Voltage
AC Voltage Regulation (Batt. Mode)
Frequency Range (Batt. Mode)
Transfer Time
Waveform (Batt. Mode)

Battery Type & Number

12V / 4.5Ah x 1 12V / 5Ah x 1

Typical Recharge Time

Line Mode
Battery Mode
Fault

Battery Mode
Low Battery
Overload
Fault

Full Protection

Dimension, D X W X H (mm)
Net Weight (kg) 2.6 2.9

Humidity
Noise Level

* Product specifications are subject to change without further notice

180-270 Vac

60Hz / 50Hz (Auto sensing)

220/230/240 Vac

±10%

PROTECTION

Beeps every 10 seconds

BATTERY

INDICATORS

Beeps every second

0-90 % RH @ 0- 40°C (non-condensing)

Less than 40dB

Overload, discharge, and overcharge protection

PHYSICAL

ENVIRONMENT

60Hz or 50Hz ±1Hz

Typical 2-6 ms, Max. 10ms

Simulated Sinewave

8 hours recover to 90% capacity

Green lighting

NanoFit STANDBY UPS SELECTION GUIDE

INPUT

Beeps every 0.5 second

OUTPUT

Continuously beeping

305 x 158.5 x 95

Yellow flashing

Red lighting

ALARM

220/230/240 Vac
