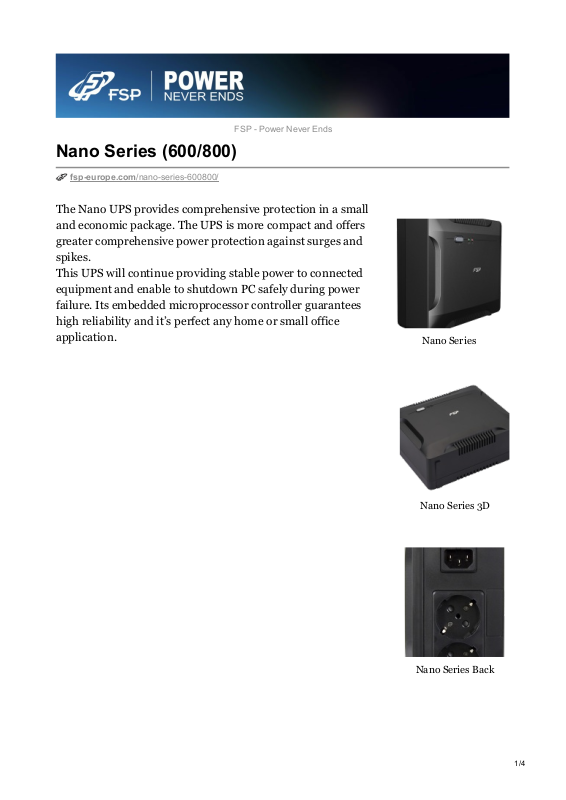

Nano Series
Nano Series 3D
Nano Series Back
FSP - Power Never Ends
Nano Series (600/800)
fsp-europe.com/nano-series-600800/
The Nano UPS provides comprehensive protection in a small
and economic package. The UPS is more compact and offers
greater comprehensive power protection against surges and
spikes.
This UPS will continue providing stable power to connected
equipment and enable to shutdown PC safely during power
failure. Its embedded microprocessor controller guarantees
high reliability and it’s perfect any home or small office
application.
1/4
Nano Series Colorbox
400/600/800
Nano Series Colorbox
400/600/800 Back
Nano Series Illustration
Features:
Compact size with stand and mounting flexibility
Excellent microprocessor control guarantees high reliability
Auto restart while AC is recovering
Simulated sine wave
Cold start function
Full protection: discharge, overcharge, short circuit and thermal protection
2/4
Specifications:
Model Nano 600 Nano 800
Capacity 600 VA / 360W 800 VA / 480W
Available Factory Settings 110 / 120 VAC or 220 / 230 / 240
VAC
Input Voltage 180~270 VAC
Input Frequency 50Hz or 60Hz
Output Voltage 220V nominal
Output Frequency Range 50 Hz or 60 Hz ±1 Hz
Output Transfer Time (Typical) Typical 2-6 ms
Output Waveform (Batt. Mode) Simulated Sine Wave
Battery Type & Number 12 V / 7 AH x 1 12 V / 9 AH x 1
Backup Time (One PC load@120W) 10 min. 15 min.
Typical Recharge Time 8 hours recover to 90% capacity
Indicators / Ac Mode Green lighting
Indicators / Battery Mode Green flashing every 10 seconds
Indicators / Fault Red lighting
Overload Protection ✔
Discharge Protection ✔
Overcharge Protection ✔
Alarm / Battery Mode Sounding every 10 seconds
Alarm / Low Battery Sounding every second (Batt. Mode)
Alarm / Overload ✘
Alarm / Battery Replacement Alarm ✘
Alarm / Fault Continuously sounding
Outlet Sockets 2 x Schuko
Dimensions (LxWxH @ vertical stand)
mm
228 x 82.5 x 207
3/4
Physical Net Weight (kg) 2.7 3.1
Operating Environment / Humidity 0-90%
Operating Environment / Noise Level ✘
Management / Optional USB / RS-232 Port ✘
EAN Code:
Nano 600 Nano 800
4711140481401 4711140484785
4/4
