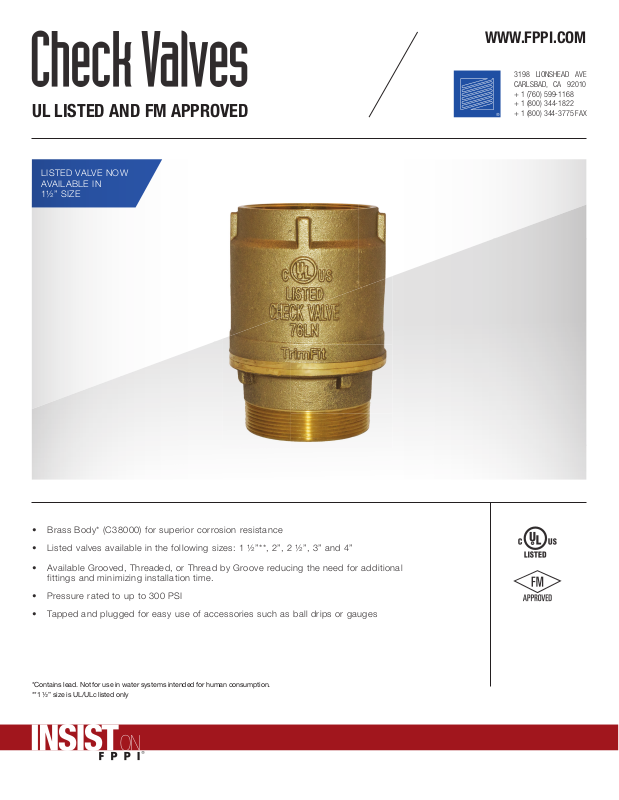

FPPI TrimFit User Manual

UL LISTED AND FM APPROVED

LISTED VALVE NOW
AVAILABLE IN
1½” SIZE

WWW.FPPI.COM

3198 LIONSHEAD AVE
CARLSBAD, CA 92010
+ 1 [phone]
+ 1 [phone]
+ 1 [phone] FAX

• Brass Body* (C38000) for superior corrosion resistance

• Listed valves available in the following sizes: 1 ½”**, 2”, 2 ½”, 3” and 4”

• Available Grooved, Threaded, or Thread by Groove reducing the need for additional
fittings and minimizing installation time.

• Pressure rated to up to 300 PSI

• Tapped and plugged for easy use of accessories such as ball drips or gauges

*Contains lead. Not for use in water systems intended for human consumption.
**1 ½” size is UL/ULc listed only

LENGTH WIDTH LENGTH WIDTH

LENGTH WIDTH LENGTH WIDTH

(MM) (MM) (IN) (IN)

1 1/2”* 09-574-00 176 105 6 15/16 4 1/8

1 1/2”* 09-575-00 154 105 6 1/16 4 1/8

1 1/2”* 09-576-00 176 105 6 15/16 4 1/8

1 1/2”* 09-577-00 150 105 5 9/16 4 1/8

2” 09-568-00 157 105 6 1/4 4 1/8

2” 09-570-00 146 105 5 3/4 4 1/8

2” 09-572-00 157 105 6 1/4 4 1/8

2 1/2” 09-562-00 176 105 6 15/16 4 1/8

2 1/2” 09-564-00 159 105 6 1/4 4 1/8

2 1/2” 09-566-00 176 105 6 15/16 4 1/8

3” 09-556-00 173 128 6 13/16 5 1/8

3” 09-558-00 167 128 6 5/8 5 1/8

3” 09-560-00 173 128 6 13/16 5 1/8

4” 09-550-00 206 142 8 1/8 5 5/8

4” 09-552-00 202 142 8 5 5/8

4” 09-554-00 202 142 8 5 5/8

TrimFit® Check Valves

UL Listed and FM Approved

Dimensions

WIDTH

LENGTH

SIZE

ITEM #

CONFIGURATION

LENGTH WIDTH

© 2016 Fire Protection Products, Inc.

WWW.FPPI.COM

*UL Listed Only

3198 LIONSHEAD AVE
CARLSBAD, CA 92010
+ 1 [phone]
+ 1 [phone]
+ 1 [phone] FAX

MNPT X GRV

MNPT X FNPT

GRV X GRV

FNPT X FNPT

MNPT X GRV

MNPT X FNPT

GRV X GRV

MNPT X GRV

MNPT X FNPT

GRV X GRV

MNPT X GRV

MNPT X FNPT

GRV X GRV

MNPT X GRV

MNPT X FNPT

GRV X GRV
