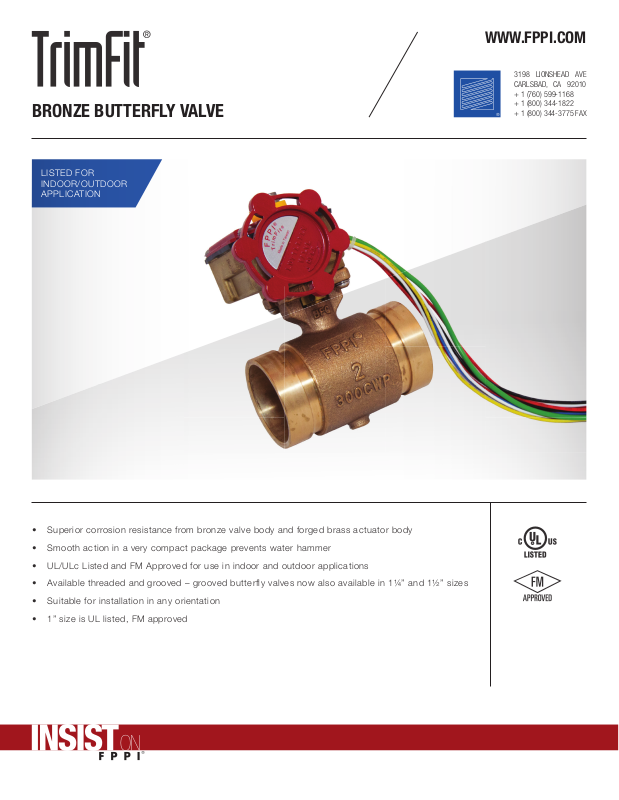

BRONZE BUTTERFLY VALVE
LISTED FOR
INDOOR/OUTDOOR
APPLICATION
WWW.FPPI.COM
3198 LIONSHEAD AVE
CARLSBAD, CA 92010
+ 1 (760) 599-1168
+ 1 (800) 344-1822
+ 1 (800) 344-3775 FAX
• Superior corrosion resistance from bronze valve body and forged brass actuator body
• Smooth action in a very compact package prevents water hammer
• UL/ULc Listed and FM Approved for use in indoor and outdoor applications
• Available threaded and grooved – grooved butterfly valves now also available in 1¼” and 1½” sizes
• Suitable for installation in any orientation
• 1” size is UL listed, FM approved
TrimFit® Bronze Butterfly Valve
UL Listed and FM Approved
Dimensions
4.65”
H
L
BFT SIZE: 1”, 1¼”, 1½”, 2”, 2½”
SIZE 1” 1 ¼” 1½” 2 ” 2 ½”
A 2.13” 2.63” 2.87” 3.25” 4.49”
H 4.94” 5.13” 5.59” 6.13” 6.58”
L 1.56” 1.94” 2.19” 2.76” 3.41”
M 1.75” 2.17” 2.37” 3.11” 3.78”
A
BFG SIZE: 1¼, 1½, 2”, 2½”
SIZE 1¼” 1½” 2” 2½”
A 3.86” 4.02” 4.09” 4.49”
H 5.20” 5.47” 6.07” 6.58”
H
P 0.63” 0.63” 0.63” 0.63”
O 0.31” 0.31” 0.31” 0.31”
M 1.54” 1.78” 2.25” 2.72”
L 1.67” 1.90” 2.37” 2.87”
A
4.65”
M
L
M
P O
Model BFT
· Packing Gland with Adjustable Glands shall be accessible for tightening stem seals without the disassembly of the valve or operator.
Model BFG
· Grooved ends to AWWA C606 for steel pipe.
· Packing Gland with Adjustable Glands shall be accessible for tightening stem seals without the disassembly of the valve or operator.
3198 LIONSHEAD AVE
CARLSBAD, CA 92010
+ 1 (760) 599-1168
+ 1 (800) 344-1822
+ 1 (800) 344-3775 FAX
© 2016 Fire Protection Products, Inc.
WWW.FPPI.COM
The information contained herein is produced in good faith and is believed to be reliable but is provided for guidance
and information purposes only. FPPI and its agents cannot assume liability or responsibility for results obtained in the
use or misuse of its product by persons whose methods and qualications are outside and beyond our control. It is the
user’s responsibility to determine the suitability of, methods of use, preparation prior to use, and appropriate installation
for all products purchased from FPPI. It is the user’s sole responsibility to observe and adapt such precautions as may
be advisable or necessary for the protection of personnel and property in the handling and use of any of our products.
TrimFit® Bronze Butterfly Valve
Installation Instructions
Description
TrimFit® Model BFT (Threaded Buttery Valve) and Model BFG (Grooved Buttery Valve)
close slowly to prevent water hammer. The buttery valves are designed to be installed
in any orientation and monitored to signal if the valve is opened or closed. They are
Listed and Approved for use in a re sprinkler system.
Installation
1. The valve can be installed in any
orientation in a piping system with
standard ASME B1.20.1 NPT or
standard roll or cut grooved pipe.
2. When threading to pipe, apply
PipeFit® or equivalent thread sealant
or tape.
3. Use a wrench to cramp on the
hexagon end of the valve.
4. The tamper switch features two
switches: Switch-1 has dual leads on
the terminals. This switch is used for
connection of the supervisory circuit
of a listed re alarm control panel.
Switch-2 has a single lead. This
switch is used for connection of
auxiliary equipment.
5. All the unused wires need to be
capped with lead nuts and tucked
into a junction box.
6. All connections need to be
reviewed and approved by the
appropriate jurisdictional authorities.
3198 LIONSHEAD AVE
CARLSBAD, CA 92010
+ 1 (760) 599-1168
+ 1 (800) 344-1822
+ 1 (800) 344-3775 FAX
7. A No. 14 green wire is xed inside
the switch housing. It is provided as a
ground for the housing.
8. The valves are intended for use with
ANSI B36.10 Schedule 40 and/or
Schedule 80 pipes, sizes 1”, 1-¼”, 1-½”,
2” and 2-½”.
NOTE: ALL REPLACEMENT PARTS
MUST BE OBTAINED FROM THE
MANUFACTURER TO ASSURE PROPER
OPERATION OF THE VALVE, AND TO
MAINTAIN APPROVAL OF THE DEVICE.
The information contained herein is produced in good faith
and is believed to be reliable but is provided for guidance
and information purposes only. FPPI and its agents cannot
assume liability or responsibility for results obtained in the
use or misuse of its product by persons whose methods and
qualications are outside and beyond our control. It is the
user’s responsibility to determine the suitability of, methods
of use, preparation prior to use, and appropriate installation
for all products purchased from FPPI. It is the user’s sole
responsibility to observe and adapt such precautions as may
be advisable or necessary for the protection of personnel and
property in the handling and use of any of our products.
Specifications
Rated to 300 PSI
Switch rating:
10.1Amps125/250VAC-60Hz
Actual switch application rating:
10 Amps/115 VAC-60Hz
0.5 Amps/28 VDC
Indoor/Outdoor Use
Materials
Body: Bronze ASTM 584
C83600
Disc: SS304
Handwheel: ASTM A216 WCB
Seat: ASTM D2000 Viton
Indicator: Powder Metal
Housing/Cover: Forged Brass
JIS C3771 (Ref. ASTM C37700)
Available Sizes
TrimFit® Model BFT (Threaded)
06-500-00 1” UL/FM
06-502-00 1¼” UL/ULc/FM
06-504-00 1½” UL/ULc/FM
06-506-00 2” UL/ULc/FM
06-508-00 2½” UL/ULc/FM
TrimFit® Model BFG (Grooved)
06-522-00 1¼” UL/ULc/FM
06-524-00 1½” UL/ULc/FM
06-526-00 2” UL/ULc/FM
06-528-00 2½” UL/ULc/FM
CA Bldg. Materials Listing #
7770-2164-0100
