FPI P36D-NG, P36D-LP Owners & Installation Manual

P36D Zero Clearance

WARNING:
If the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.

FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service
agency or the gas supplier.

FOR YOUR SAFETY
What to do if you smell gas:

Do not try to light any appliance
Do not touch any electrical switch: do not
use any phone in your building.
Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call
the fire department.

Direct Vent Gas Fireplace

MODELS: P36D-NG Natural Gas P36D-LP Propane

Owners & Installation Manual

Tested by:

918-059g

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

06/15/05

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS
INTERNATIONAL L TD. The P36D is a hand crafted appliance and has been designed to provide
you with all the warmth and charm of a wood fireplace at the flick of a switch. The model P36D
has been approved by Warnock Hersey for both safety and efficiency. As it also bears our own
mark, it promises to provide you with economy, comfort and security for many trouble free years
to follow. Please take a moment now to acquaint yourself with these instructions and the many
features of your FPI Fireplace.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This FPI product has been tested and listed by Warnock Hersey to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88b­2003/CSA 2.33b-2003 and GAS-FIRED APPLIANCES FOR USE AT HIGH ATLITUDES CAN/CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites,
and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow
the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA
B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This FPI Mobile/Manufactured Home Listed appliance
comes factory equipped with a means to secure the unit.

This FPI Mobile/Manufactured Home listed appliance comes
equipped with a dedicated #8 ground lug to which an 18
gauge copper wire from the steel chassis ground must be
attached.

This appliance may only be installed in an aftermarket
permanently located, manufactured (mobile) home, where
not prohibited by local codes.

This appliance is only use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.

2

FPI P36D Zero Clearance Direct Vent Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Safety Label .........................................................................5

INSTALLATION

Unit Dimensions .................................................................6

Before You Start...................................................................7

General Safety Information ..................................................7

Installation Checklist ...........................................................7

Locating Your Gas Fireplace ...............................................8

Manufactured Home Additional Requirements .................. 8

HeatWave Duct System (optional) ......................................8

Heat Release Kit (optional) ................................................. 8

Clearances..........................................................................9

Regency Clearances ................................................ 10

Arch Door Clearances ............................................... 10

Hampton Clearances ............................................... 10

Palace Series Clearances........................................ 10

Regency Mantel Clearances ............................................ 11

Hampton Mantel Clearances ........................................... 13

Palace Series Mantel Clearances ................................... 14

Mantel Leg Clearances .................................................... 1 5

Horizontal Venting with Two Elbows ................................ 27

Vertical Venting with Two Elbows .................................... 28

Vertical Terminations - Co-Linear Flex System ............... 2 9

Venting Arrangements - Vertical Terminations ................ 3 0

Venting - Dura-Vent Horizontal Installations .................... 31

Venting - Dura-Vent Vertical Termination......................... 32

Venting - Installation for Direct Vent System (Flex) .......... 3 3

System Data ..................................................................... 3 4

High Elevation .................................................................. 34

Gas Line Installation ........................................................ 34

Pilot Adjustment ............................................................... 34

Gas Pipe Pressure Test .................................................. 3 4

SIT Valve Description ....................................................... 34

Conversion to Propane .................................................... 35

Brick Panels (optional) ..................................................... 3 6

Log Set Installation ........................................................... 36

Flush Door ........................................................................ 38

Remote Wall Switch (optional) ......................................... 39

Remote Control (optional) ............................................... 39

Wall Thermostat (optional) ............................................... 39

Wiring Diagram ................................................................ 40

Fan Installation (optional) ................................................ 41

Framing and Finishing ..................................................... 16

Barcelona & Palace Series Framing Note ....................... 1 7

Arch Door Framing Note .................................................. 1 8

Unit Assembly Prior to Installation

Top Standoff Assembly ............................................. 1 9

Top Facing Suprt & Side Nailing Strip Assembly ..... 19

Venting Introduction .......................................................... 1 9

Exterior Vent Termination Locations ................................ 20

Venting ............................................................................ 21

Direct Vent System (Flex) .......................................... 21

Rigid Pipe Venting Components list ........................ 22

Rigid Pipe Venting Systems ..................................... 23

Venting Arrangements

Horizontal Terminations............................................ 24

Vertical Terminations ................................................ 25

OPERATING INSTRUCTIONS

Operating Instructions...................................................... 42

Lighting Procedure ........................................................... 42

Shutdown Procedure........................................................ 42

First Fire............................................................................ 42

Aeration Adjustment ......................................................... 4 2

Normal Operating Sounds ............................................... 42

Lighting Plate Instructions ............................................... 43

Regency, Hampton & The Palace Series unless otherwise specified.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 3

NOTE: All installation instructions apply to

TABLE OF CONTENTS

MAINTENANCE

Maintenance Instructions ................................................. 43

General Vent Maintenance ............................................... 44

Gold-Plated or Brass Louvers ......................................... 4 4

Gold Plated or Brass Trim ............................................... 4 4

Log Replacement............................................................. 44

Thermopile/Thermocouple .............................................. 44

Glass Gasket.................................................................... 44

Door Glass ....................................................................... 44

Flush Glass Replacement........................................ 44

Bay Glass Replacement ........................................... 4 4

Removing Valve................................................................ 45

Installing Valve ................................................................. 4 5

REGENCY

FLUSH & BAY DOOR OPTIONS

Flush Trim ........................................................................ 47

Louvers - Flush ................................................................. 4 7

Double Screen Door ........................................................ 4 7

HAMPTON

CAST FACEPLATE OPTION

Hampton Cast Faceplate ................................................. 5 4

Hampton Cast Grills ........................................................ 55

PALACE SERIES OPTIONS

The Kensington Front ....................................................... 5 7

The Westminster Front ..................................................... 58

The Balmoral Front ........................................................... 5 9

REPLACEMENT PARTS LIST

Part List ............................................................................ 6 2

WARRANTY

Warranty............................................................................ 71

Bay Front........................................................................... 48

Bay Trim............................................................................ 48

Louvers - Bay ................................................................... 48

Full Screen Front .............................................................. 49

Arch Screen Door ............................................................. 51

4

FPI P36D Zero Clearance Direct Vent Gas Fireplace

This is a copy of the label that accompanies
each P36D Zero Clearance Direct Vent Gas
Fireplace. We have printed a copy of the
contents here for your review. The safety label
is located on the front inside base of the unit,
visible when the bottom louver is open.

NOTE: FPI units are constantly being improved.
Check the label on the unit and if there is a
difference, the label on the unit is the correct
one.

SAFETY LABEL

For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.

For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.

For the State of Massachusetts, the appli­ances individual manual shut-off must be a
t-handle type valve.

Copy of Safety Decal for P36D

FPI P36D Zero Clearance Direct Vent Gas Fireplace 5

UNIT DIMENSIONS

6

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The P36D-NG or P36D-LP Direct Vent Fireplace
must be installed in accordance with these in­structions. Carefully read all the instructions in this
manual first. Consult the "authority having juris­diction" to determine the need for a permit prior to
starting the installation. It is the responsibility of the
installer to ensure this fireplace is installed in
compliance with manufacturer's instructions and
all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:

INSTALLATION AND REPAIR SHOULD
BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PROFESSION­AL SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE TO
EXCESSIVE LINT FROM CARPETING,
BEDDING MATERIAL, ETC. IT IS IMPER­ATIVE THAT CONTROL COMPART­MENTS, BURNERS AND CIRCULATING
AIR PASSAGEWAYS OF THE APPLI­ANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OF TRAFFIC AND AWAY FROM FURNI­TURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIAL­LY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CARE­FULLY SUPERVISED WHEN THEY ARE
IN THE SAME ROOM AS THE APPLI­ANCE.

CLOTHING OR OTHER FLAMMABLE MA­TERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLI

ANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local
codes, with the current Canadian or Na­tional Gas Codes, CAN1-B149 or ANSI
Z223.1 Installation Codes.

2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local
codes with the current National Electrical
Code, ANSI/NFPA 70 or CSA C22.1 Cana­dian Electrical Code.

3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.

4) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never
vent to another room or inside a building.
Make sure that the vent is fitted as per
Venting instructions.

5) Inspect the venting system annually for
blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into
a wall or siding.

7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.

8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.

9) Wear gloves and safety glasses for pro­tection while doing required maintenance.

10)Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.

11)Under no circumstances should this appli­ance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.

12)Installation and any repairs to this appliance
should be done by a qualified service per­son. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.

14)Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.

15)The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location, page 8.
b) Clearances to Combustibles, pages 9 -

14.
c ) Mantle Clearances, pages 11 - 13.
d) Framing & Finishing Requirements,

page 15.

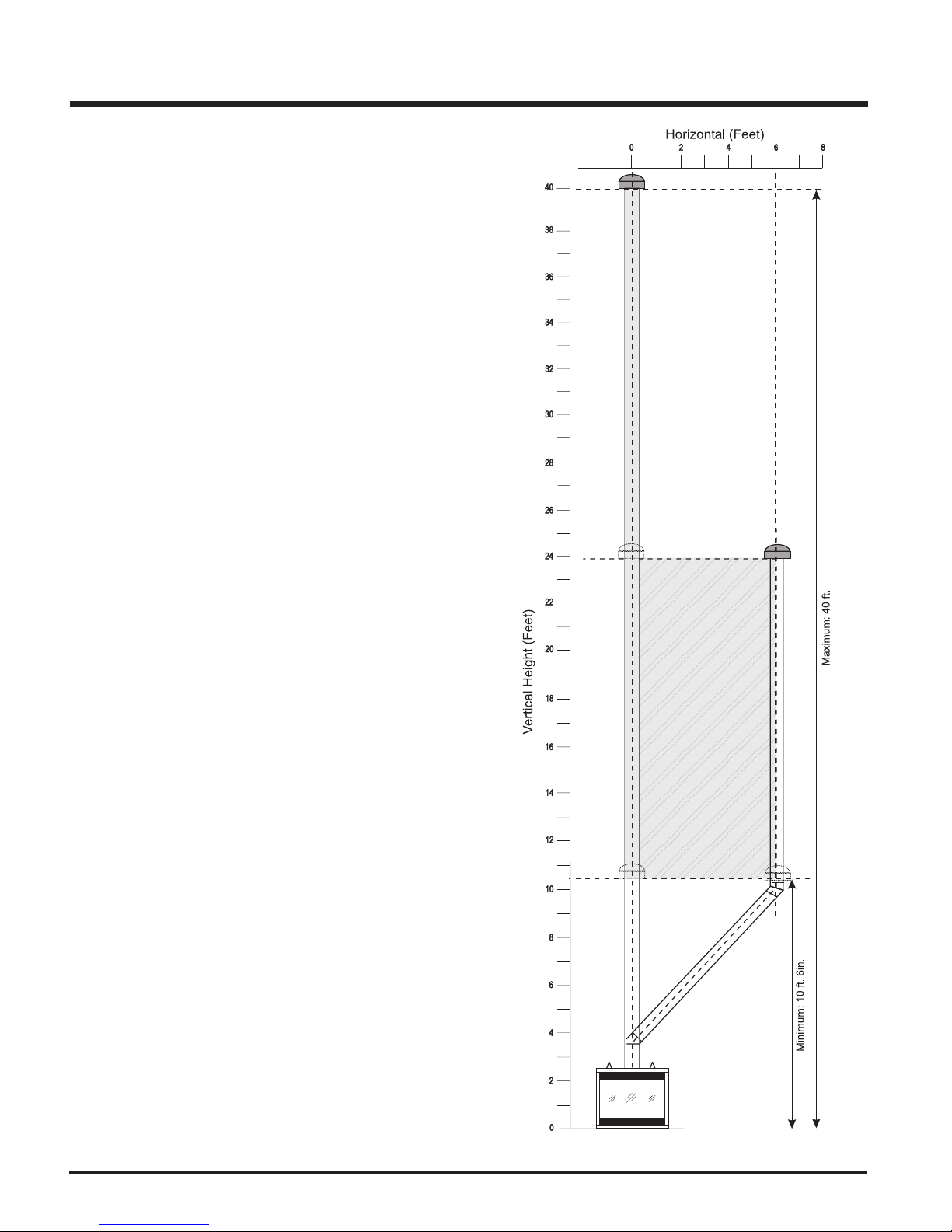

e) Venting Requirements, pages 21 - 25.

2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips, page 19.
(NOTE: must be done before installing unit
into fireplace.)

3) Install vent, pages 30 - 32.

4) Make gas and electrical connections. Test

the pilot. Must be as per diagram. Page 34.

5) Install brick panels (optional), page 36.

6) Install log set where indicated on page 36.

7) Install standard Flush Door, page 35.

8) Install Optional Regency Flush or Bay Fronts.

pages 47 - 51.

9) Install Optional Hampton Cast Faceplate,
page 54.

10)Install Optional Palace Series Fronts, pages
57 - 59.

11)Install optional Wall Switch, Remote Con­trol, or Wall Thermostat, page 39.

12)Install Optional Fan, page 41.

13)Final check.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 7

13)Do not slam shut or strike the glass door.

INSTALLATION

This includes:

1) Clocking the appliance to ensure the cor-

rect firing rate (rate noted on label 30,000
Btu/h) after burning appliance for 15 min­utes.

2) If required, adjusting the primary air to
ensure that the flame does not carbon. First
allow the unit to burn for 15-20 min. to
stabilize.

CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibil­ity of the manufacturer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your fire-

place, ensure that the clearances outlined
on this page are met.

2) Provide adequate clearances for servic­ing.

3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, met­al, concrete). This may be the floor, or
raised up on a platform to enhance its visual
impact. If the appliance is going to be in­stalled on carpeting, combustible linoleum
tile or other combustible material other than
wood flooring, the appliance must be in­stalled on a metal or wood panel extending
the full width and depth of the appliance.

4) The P36D Direct Vent Gas Fireplace can be
installed in a recessed position or framed
out into the room as in A, B, C, D. See
Diagram 1.

Diagram 1

A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner

5) This appliance is Listed for bedroom instal-

lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.

6) The P36D Direct Vent Gas Fireplace is
approved for alcove installations, which
meet the clearances listed on this page.

7) We recommend that you plan your installa­tion on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
qualified inspector, dealer, or installer re­view your plans before installation.

Note: For vent terminations see page 20.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8
ground lug provided. See page 40.

DUCT SYSTEM

OPTION KIT #946-556

The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warm air from the fireplace to remote locations
in the same room or other rooms in your home.

Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be
operated at one time. This includes the internal
blower option as well.

OPTIONAL

HEAT RELEASE

KIT #946-570

The Heat Release Kit expels warm air from the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat
entering the room. The kit may be used on either
the left or right side.

8

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of
the greatest importance that this fireplace and vent system be installed only in accordance with these instructions.

IMPORTANT: See page 17 for framing note on Barcelona Trim and Palace Series Fronts.

Clearance to Combustibles from:

Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)

NOTE: The minimum floor clearance must be maintained from the top surface of the carpeting, tile, etc.

Minimum Clearance from Top of Unit to:

Ceiling from top of unit. 32" (1016mm)

Side Wall Clearances:

Bay or Flush Front 6"* (152mm)
Barcelona Trim 6"* (152mm)
Cast Faceplate 6"* (152mm)
Kensington Front 6"* (152mm)
Balmoral & Westminster Front 6"* (152mm)

* Measured from Surround or Front. See page 14 for dimensions.

Horizontal Vent Clearances:

Top 2" (51mm)
Side 1-1/2"(38mm)
Bottom 1-1/2"(38mm)

Vertical Vent Clearances 1-1/4" (32mm)

Alcove Clearances**:

Max. Depth 36" (914mm)
Min. Width 48" 1219mm)
Min. Height 72" 1829mm)

**Approved for one sidewall installation only when using Barcelona Trim.

WARNING: Fire hazard is an extreme risk if these clearances are not adhered to.

Heat Release Kit

The HeatWave Duct Kit and the Heat
Release Kit have different clearance
and framing requirements, check the
HeatWave and Heat Release manual
for details.

To install the combination of the Barcelona front and screen doors
you must use non-combustible mantel in conjunction with the
already required framing specs for the Barcelona front.
Steel studs and non-combustible material on the facing must be
adhered to.

Barcelona & Double Screen Door Installations

FPI P36D Zero Clearance Direct Vent Gas Fireplace 9

INSTALLATION

REGENCY CLEARANCES

Clearances for Bay or Flush Front

ARCH DOOR CLEARANCES

PALACE SERIES CLEARANCES

Clearances for Barcelona Trim

HAMPTON CLEARANCES

Clearances for The Balmoral &

The Westminster Front

10

Clearances for The Kensington Front

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Diagram 3

framing is made of metal studs covered with a non-combustible board.

Note: A non-combustible mantel may be installed at a lower height if the

REGENCY COMBUSTIBLE MANTEL CLEARANCES

Diagram 2

Diagram 1

Because of the extreme heat this fireplace emits, the mantel clearances are

critical.

Combustible mantel clearances from top of unit are shown in Diagrams 1, 2, & 3.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 11

These drawings are to scale at 1:6 (one inch = 6 inches)

Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

INSTALLATION

REGENCY SERIES COMBUSTIBLE MANTEL CLEARANCES

Because of the extreme heat this fireplace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-

combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

12

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

HAMPTON COMBUSTIBLE MANTEL CLEARANCES

Because of the extreme heat this fireplace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-

combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 13

INSTALLATION

PALACE SERIES COMBUSTIBLE MANTEL CLEARANCES

Because of the extreme heat this fireplace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-

combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

14

FPI P36D Zero Clearance Direct Vent Gas Fireplace

REGENCY MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram:

HAMPTON & BARCELONA TRIM

MANTEL LEG CLEARANCES

INSTALLATION

Maximum 1-1/2" projection
at 2" minimum clearance.

Combustible mantel leg clearances as per diagram:

Hampton Cast Faceplate Width: 43-1/4"
Barcelona Trim Width: 40"

PALACE SERIES MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram:

Kensington Front Width: 42-5/8"
Balmoral Front Width: 40-5/8"
Westminster Front Width: 40-5/8"

Maximum 1-1/2" projection
at 2" minimum clearance.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 15

Maximum 1-1/2" projection
at 2" minimum clearance.

INSTALLATION

17-1/8"

3-1/2"

4"

2"

40-1/2"

36”

32-1/2"

10" dia. hole
through wall

for Flex

or for DuraVent

1/2"
Drywall

Top Header

Opening for gas

connection

1) Determine the total thickness of facing ma­terial (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
can vary from 1/2" (13mm) to 1-1/4" (32mm)
thick.

Install Side Nailing Strips, Top Facing
Support, and Top Standoffs before unit
is slipped into position. See page 17 for
assembly details.

2) Frame in the enclosure for the unit with

framing material. The framed opening is
37-1/4" high x 36-1/4" wide x 17-3/8" deep
(946mm high x 921mm wide x 441mm deep).

FRAMING AND

FINISHING

NOTE: See next page for important
Barcelona and Palace Series framing
note.

Framing Dimensions

A B C D
36-1/4" 37-1/4" 17-3/8" 46-1/2"*
921mm 946mm 441mm 1181mm*

* 'D' is Minimum height to combustible materials
including the Minimum 2-1/2" (64mm) Top
clearance to the Horizontal Vent.

3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate

the fireplace itself.)

4) The top of the unit must not be closer than

32" (813mm) to the ceiling.

Note: 40-1/2" (1029mm) is the minimum

height for both flex termination or
Simpson Dura-Vent venting.

Note: The unit does not have to be com-

pletely enclosed in a chase. The
clearance on top of the unit is 0" to
the standoffs so combustible
building materials can be laid di­rectly on top of the standoffs. You
must maintain clearance from the
vent to combustible materials for
flex, see Vent Clearances.

5) Use steel studs for framing where the

1-1/2" (38mm) clearance from the vent to
combustible material cannot be maintained,
e.g. front top header.

16

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

BARCELONA & PALACE SERIES FRAMING NOTE

When installing the optional Barcelona Front or Palace Series, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each
side must be used. See diagram 1.

The Barcelona Front and Palace Series also requires steel stud framing above and on each side of the unit. See diagram 1.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 17

Diagram 1

INSTALLATION

ARCH DOOR SERIES FRAMING NOTE

When installing the optional Arch Door Series, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side must be used.
See diagram 2.

The Arch Door Series also requires steel stud framing above and on each side of the unit. See diagram 2.

18

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The Top Facing Support, the Side Nailing Strips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.

Top Standoff Assembly

The top standoffs are shipped in a flat position
and must be folded into shape and attached.

1) Remove the standoffs from the fireplace
top.

2) Take each standoff and bend into the cor­rect shape. Bend up at the bend lines until
the screw holes in the standoff and the pre­punched screw holes on the fireplace top
line up.

3) Attach the standoff securely to the top with
2 screws per standoff (on opposite cor­ners).

Top Facing Support and

Side Nailing Strips

Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.

The Top Facing Support & Side Nailing Strips
can be mounted in 3 different positions de­pending on the thickness of the facing material.

Screw Facing Material
Position Depth

A 1/2" / 13mm
B 7/8" / 22mm
C* 1-1/4" / 32mm

* For "C" screw position the top facing support
is reversed.

1) Mount Top Facing Support using the 3
supplied screws into the three pre-punched
screw holes on the top front of the unit. Use
hole positions A, B, or C depending on your
facing depth.

"C" Screw Position:

For a facing material depth of 1-1/4"
(32mm), the top facing support must be
reversed.

2) Use the same screw hole position for the
Side Nailing Strips as was used for the Top
Facing Support. Attach each side nailing
strip using 3 screws.

VENTING

INTRODUCTION

The P36D uses the "balanced flue" technology
Co Axial system. The inner liner vents products
of combustion to the outside while the outer liner
draws outside combustion air into the combus­tion chamber thereby eliminating the need to use
heated room air for combustion and losing warm
room air up the chimney.

Not e : These flue pipes must not be con-

nected to any other appliance.

The gas appliance and vent system must be
vented directly to the outside of the building, and
never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's
own separate vent system. Common vent sys­tems are prohibited.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 19

.

B

B

B

B

A

C

V

V

V

V

V

V

V

A

A

V

Fixed

Fixed

Openable

Closed

Closed

Openable

N

L

B

E

B

M

D

F

K

H

j

Vertical

Termination

V

Vent terminal

Area where terminal is not permited

A

Air supply outlet

24"

V

A

G

Inside

corner detail

V

24"

18"

Vertical

Termination

INSTALLATION

EXTERIOR VENT TERMINATION LOCATIONS

the centerline of the regulator.

any other appliance *(12"/30cm)

*(min. 84"/2.1m)

H = Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally from

J= Clearance to service regulator vent outlet *(min. 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= Clearance above paved sidewalk or a paved driveway located on public property

N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)

20

distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with

local code.

Dura-Vent Termination Cap (14"/36cm)

Vent Termination Cap (12"/30cm)

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated soffit located above the terminal within a horizontal

E= Clearance to unventilated soffit (min. 15"/38cm)

F= Clearance to outside corner: with AstroCap Termination Cap (min. 6"/15cm), with

G= Clearance to inside corner: with AstroCap Termination Cap (min. 6"/15cm), with Dura-

FPI P36D Zero Clearance Direct Vent Gas Fireplace

Note:

- A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

- Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

- If the vent termination is accessible, a certified guard shall be installed.

* As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

INSTALLATION

VENTING

FPI Direct Vent System (Flex) Horizontal

Terminations Only

These venting systems, in combination with the P36D Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram on page 20.

FPI Direct Vent (Flex) System Termination Kit (Part # 946-515) includes all the parts needed to install the P36D with a maximum
run of 4 feet.

1) 6-7/8" dia. flexible liner (4 ft. length)

2) 4" dia. flexible liner (4 ft. length)

3) spring spacers (4)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)

If longer runs are needed, the FPI Direct Vent
system (Flex) # 946-516 includes all the parts
needed to install the P36D with a maximum 10'
run.

1) 6-7/8" dia. flexible liner (10 ft. length)

2) 4" dia. flexible liner (10 ft. length)

3) spring spacers (7)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from FPI may be used for Flex installations.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 21

INSTALLATION

RIGID PIPE VENTING COMPONENTS LIST

All Simpson Dura-Vent components are available directly from FPI.

Description Simpson Dura-Vent Selkirk Amerivent

Direct VentGS

6" Pipe Length, Galvanized 90 8 4DT-6 N/A
6" Pipe Length, Black 908B 4DT-6B N/A
7" Pipe Length, Galvanized N/A N/A 4 D7
7" Pipe Length, Black N/A N/A 4D7B
9" Pipe Length, Galvanized 90 7 4DT-9 N/A
9" Pipe Length, Black 907B 4DT-9B N/A
12" Pipe Length, Galvanized 906 4DT-12 4D12
12" Pipe Length, Black 906B 4DT-12B 4D12B
18" Pipe Length, Galvanized N/A 4DT-18 N/A
18" Pipe Length, Black N/A 4DT-18B N/A
24" Pipe Length, Galvanized 904 4DT-24 4D2
24" Pipe Length, Black 904B 4DT-24B 4D2B
36" Pipe Length, Galvanized 903 4DT-36 4D3
36" Pipe Length, Black 903B 4DT-36B 4D3B
48" Pipe Length, Galvanized 902 4DT-48 4D4
48" Pipe Length, Black 902B 4DT-48B 4D4B

Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A
Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A
Adjustable Length, 17"-24", Black 917B N/A N/A
Adjustable Length, 7" Galvinized N/A N/A 4D7A
Adjustable Length, 7" Black N/A N/A 4D7AB
Adjustable Length, 12" Galvinized N/A N/A 4D12A
Adjustable Length, 12" Black N/A N/A 4D12AB

45O Elbow, Galvinized 945 4DT-EL45 4D45L
45O Elbow, Black 945B 4DT-EL45B 4D45LB
45O Elbow, Swivel, Galvinized 945G N/A N/A
45O Elbow, Swivel, Black 945BG N/A N/A

O

Elbow, Galvinized 990 4DT-EL90S 4D90LS

90
90O Elbow, Black 990B 4DT-EL90SB 4D90LBS
90O Elbow, Swivel, Galvinized 990G N/A N/A
90O Elbow, Swivel, Black 990BG N/A N/A

Ceiling Support 949 - n/a from FPI 4DT-CS 4DFSP
Cathedral Support Box 941 4DT-CSS 4DRSB
Wall Support/Band 988 4DT-WS/B 4DWS
Offset Support 989 - n/a from FPI 4DT-OS N/A
Wall Thimble, Black 942 4DT-WT 4DWT
Wall Thimble Support Box/Ceiling Support 940 N/A N/A
Firestop Spacer 963 4DT-FS 4DFSP
Trim Plate, Black N/A 4DT-TP 4DFPB
Brass Trim for Wall Thimble/Ceiling Support 3951 N /A N/A

Attic Insulation Shield 12" N/A N/A 4DAIS12
Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36

Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2
Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1
Vertical Termination Kit 978 4DT-VKC 4DVTK

High Wind Vertical Cap 991 N/A N/A
High Wind Horizontal Cap 985 N/A N/A
Horizontal Square Termination Cap 9 84 4DT-HHC 4DHC
Verical Termination Cap 980 4DT-HVC 4DVC
Storm Collar 953 4DT-SC 4DSC

Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF
Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12

Vinyl Siding Standoff 950 4DT-VS N/A
Vinyl Siding Shield Plate N/A 4DT-VSP N/A

Snorkel Termination 14" 982 4DT-ST14 4D12S
Snorkel Termination 36" 981 4DT-ST36 4D36S

R

Direct-Temp

TM

Direct Vent

R

946-506/P Vent Guard (Optional)
510-994 Rigid Pipe Adaptor (Must use with all Rigid Piping)
640-994 U37 Rigid Pipe Adaptor
640-530/P Riser Vent Terminal

22

946-205 Vinyl Siding Shield for Riser Vent Terminal
946-208/P Vent Guard (Optional) - Riser Vent Terminal
946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff - AstroCap

FPI P36D Zero Clearance Direct Vent Gas Fireplace

Rigid Pipe Adaptor

Pipe Length

Vertical

Termination

Cap

Storm Collar

Flashing

Ceiling Firestop

24" Pipe

Length

Adj.Pipe Length

11" - 14-5/8"

90 Elbow

o

Horizontal

Termination

Cap

Wall Thimble

Vinyl Siding

Standoff (Optional)

RIGID PIPE VENTING SYSTEMS

Horizontal or Vertical Terminations

The minimum components required for a basic horizontal termination are:

1 Horizontal Termination Cap
190o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness (see

chart)
Wall thickness is measured from the back

standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl
siding standoff, to create a level surface to
mount the vent terminal. The Terminal must not
be recessed into siding. Measure the wall
thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be
used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.

Wall Thickness Vent Length

4" - 5-1/2" 6"
7" - 8-1/2" 9"

10" - 11-1/2" 12"

9" - 14-1/2" 11" - 14-5/8" Adj. Pipe

15" - 23-1/2" 17" - 24" Adj. Pipe

Wall Thickness Vent Length

(inches) Required (inches)

3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe
7-3/4" - 16-1/4" 17" - 24" Adj. Pipe
7-1/4" - 8-3/4" 6" + 12"

4-1/4" - 5-3/4" 6" + 9"

INSTALLATION

Flat Wall Installation

(inches) Required (inches)

Corner Installation

9" + 9"

WARNING:

Do not combine venting components from
different venting systems.

However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.

This product has been evaluated by Intertek for
using a Dura-Vent Flue Adaptor in conjunction
with Selkirk Direct-Temp and Ameri Vent Direct
venting systems. Use of these systems with
the Direct Vent GS starting collar is deemed
acceptable and does not affect the Intertek WHI
listing of components.

Alternate

Horizontal

Termination

Caps

The FPI AstroCap
GS, American Metal Products, and AmeriVent Direct Vent. FPITM, and FPI AstroCapTM are the proprietary trademarks of FPI Fireplace Products
International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 23

TM

and FPI Riser Vent terminal is certified for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent

INSTALLATION

VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS

RIGID PIPE and FPI DIRECT VENT SYSTEM (FLEX)

(Propane & Natural Gas)

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o elbow (two 45o elbows equal one 90
elbow).

Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe venting systems.

o

All Rigid Pipe Systems
4" inner diameter
6-5/8" outer diameter

FPI Flex Vent
4" inner diameter
6-7/8" inner diameter

A vent guard should be used when­ever the termination is lower than the
specified minimum or as per local
codes.

Note: FPI Direct Vent System

(Flex ) Part #'s 946-515 and
946-516 is only approved
for horizontal termina-

• Maintain clearances to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each floor level and whenever passing through a wall.

NOTE: If you are installing the P36D into a FPI cabinet Mantel Kit, use the minimum horizontal vent height

(centre-line of 40-1/2"). Remember to include the mantel base (3" in height) in your calculations and to maintain the 2"
clearance from the top with rigid or flex pipe systems to the underside of the mantel top.

24

FPI P36D Zero Clearance Direct Vent Gas Fireplace

tions.

INSTALLATION

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS

RIGID PIPE SYSTEM

(Propane & Natural Gas)

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using two 90o elbow, with

rigid pipe vent systems for Propane and Natural Gas.

• Vent must be supported at offsets.

• Firestops are required at each floor level and whenever passing through a wall.

• Maintain clearances to combustibles.

Note: Must use optional rigid pipe adaptor when using rigid pipe vent systems (Part # 510-994).

FPI P36D Zero Clearance Direct Vent Gas Fireplace 25

INSTALLATION

The P36D is approved for a 40 ft. straight vertical, with rigid pipe vent
systems for Propane and Natural Gas, as per the diagram 1.

The shaded area in the diagram 1 shows all allowable combinations of straight
vertical and offset to vertical terminations with rigid pipe vent systems for
Propane and Natural Gas. Maximum two 45o elbows allowed.

• Vent must be supported at offsets

• Firestops are required at each floor level and whenever passing
through a wall.

• Maintain clearances to combustibles.

26

Diagram 1

FPI P36D Zero Clearance Direct Vent Gas Fireplace

V1

H1

H

V

Horizontal Venting with Two (2) 90o Elbows

H

H1

V

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max.

Lengths do not include elbow indicated.

INSTALLATION

With these options, maxi­mum total pipe length is 30
feet with minimum of 6 feet
total vertical and maximum
8 feet total horizontal.

Please note minimum 1
foot between 90o elbows
is required.

Horizontal Venting with Three (3) 90o Elbows

Option V H V + V1 H + H1

A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.

One 90o elbow = Two 45o elbows.

With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.

Please note min. 1
foot between 90
elbows is required.

Lengths do not include elbow indicated.

o

FPI P36D Zero Clearance Direct Vent Gas Fireplace 27

V

H1

H

V1

INSTALLATION

V1

V

H

One 90o elbow = Two 45o elbows.

Option V H V + V1

A) 0' Min. 2' Max. 1' Min.
B) 1' Min. 4' Max. 3' Min.
C) 2' Min. 5' Max. 4' Min.
D) 3' Min. 6' Max. 5' Min.
E) 4' Min. 7' Max. 6' Min.
F) 5' Min. 8' Max. 7' Min.

Lengths do not include elbow indicated.

Vertical Venting with Two (2) 90o Elbows

With these options, max. total
pipe length is 30 feet with min.
of 7 feet total vertical and max.
8 feet total horizontal.

Please note min. 1 foot
between 90o elbows is re­quired.

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1

A) 0' Min. 2' Max. 2' Min.
B) 1' Min. 2' Max. 3' Min.
C) 2' Min. 3' Max. 4' Min.
D) 3' Min. 4' Max. 6' Min.
E) 4' Min. 5' Max. 7' Min.
F) 5' Min. 6' Max. 8' Min.
G) 6' Min. 7' Max. 9' Min.
H) 7' Min. 8' Max. 10' Min.

Lengths do not include elbow indicated.

With these options, max.
total pipe length is 30 feet
with min. of 10 feet total
vertical and max. 8 feet
total horizontal.

Please note min. 1 foot
between 90o elbows is
required.

28

FPI P36D Zero Clearance Direct Vent Gas Fireplace

VERTICAL TERMINATION

Flex Liner

Exhaust

Flue

A maximum

of two certified

joiner kits

may be used

per length.

#948-305 (35 ft)

Air Intake

Co-linear DV

Vertical Termination

Cap # 946-529

Co-Linear

Flex

Adapter

with Kit#

946-563

Outer

Pipe
with Kit#
946-563

Inner Pipe

Adapter
with Kit#
946-563

Rigid Pipe Adaptor

# 510-994

90 Degree

Elbow

Pipe Length

WITH CO-LINEAR FLEX SYSTEM

INSTALLATION

THE APPLIANCE MUST NOT BE

CONNECTED TO A CHIMNEY FLUE

SERVING A SEPARATE SOLID FUEL

BURNING APPLIANCE.

This appliance is designed to be attached to two
3" (76mm) co-linear aluminium flex running the
full length of the chimney. See the Venting
Arrangements on next page for minimum and
maximum heights.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical
948-305 3" Flex - 35 ft.

946-563 Co-Axial to Co-Linear Adapter Kit

510-994 Rigid Pipe Adaptor

Termination Cap

which contains the following:
Co-linear Flex Adapter
Outer Pipe
Inner Pipe Adapter

Alternate Approved Caps

980 Vertical Termination Cap
991 High Wind Cap
923GK

3" Co-linear Adapter with flashing

Masonry chimneys may take various contours which the flexible liner will accommodate.
However, keep the flexible liner as straight as possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

FPI Cabinet and/or Flat Wall Mantles
may be used in these applications
ensuring that clearances to com­bustibles are maintained.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 29

INSTALLATION

Venting Arrangements - Vertical Terminations

with Co-linear Flex System for both

Residential & Manufactured Homes

into Masonry Fireplaces

30

The shaded area in the diagrams show
the allowable vertical terminations.

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

HORIZONTAL

INSTALLATIONS

Install the vent system according to the
manufacturer's instructions included
with the components.

1) Set the unit in its desired location. Check to

determine if wall studs or roof rafters are in
the way when the venting system is at­tached. If this is the case, you may want to
adjust the location of the unit. Rough in the
gas preferably on the right side of the unit
and the electrical (junction block is on the left
side) on the left.

2) Direct Vent pipe and fittings are designed
with special twist-lock connections to con­nect the venting system to the appliance flue
outlet. A twist-lock appliance adaptor is an
available option that must be used in con­junction with the Simpson Dura-Vent Direct
Vent GS system.

3) Put a bead of silicone inside the outer section
of the adapter and a bead of Mill Pac on the
inner collar. Slip the adapter over the exist­ing inner and outer flue collar and fasten to
the outer collar only with the 3 supplied
screws (drilling pilot holes will make this
easier). Level the fireplace and fasten it to
the framing using nails or screws through
the nailing strips.

4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and
fittings, are designed to slide straight
onto the male ends of adjacent pipes and
fittings, by orienting the four pipe inden­tations so they match and slide in to the
four entry slots on the male ends, Dia­gram 1. Push the pipe sections com­pletely together, then twist-lock one
section clockwise approximately one­quarter turn, until the two sections are
fully locked. The female locking lugs will
not be visible from the outside, on the
Black Pipe or fittings. They may be locat­ed by examining the inside of the female
ends.

Diagram 1

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature sili­cone sealant to outer pipe on eve­ry twist-lock joint.

b) Horizontal runs of vent must be sup-

ported every three feet. Wall straps are
available for this purpose.

5) Mark the wall for a 10" x 10" square hole.
The center of the square hole should line up
with the centerline of the horizontal pipe.
Cut and frame the 10 inch square hole in the
exterior wall where the vent will be termi­nated. If the wall being penetrated is con­structed of non-combustible material, i.e.
masonry block or concrete, a 7"(178mm)
dia. (7-1/2"(191mm) dia. for flex) hole is
acceptable.

Note: With
Dura-Vent,
the mini­mum height
is achieved
by installing
a 90o elbow
directly to
the rigid
pipe adaptor.

Diagram 2

Note:

a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the vent to run downward. This
could cause high temperatures and may
present the possibility of a fire.

b) The location of the horizontal vent termi-

nation on an exterior wall must meet all
local and national building codes, and
must not be blocked or obstructed. For
External Vent Terminal Locations, see
diagram on page 20.

c) Snorkel Terminations:

For installations requiring a vertical rise
on the exterior of the
building, 14-inch and
36-inch tall Snorkel
Terminations are avail­able, as well as the
standard Riser
Vent. Follow the
same instal­lation pro­cedures as
used for
standard
Horizontal
Termina­tion. NEV­ER install
the snor­kel upside
down.

Diagram 3

Note: Riser Vent
is only for use
in above grade
terminations.

Diagram 3a

*Diagrams 3 & 4: As specified in CGA B149
Installation Code. Local codes or regula­tions may require different clearances.

Below Grade Installation

If the Snorkel Termination must be installed
below grade, i.e. basement application, proper
drainage must be provided to prevent water
from entering the Snorkel Termination. Refer to
Diagram 4. Do not attempt to enclose the Snor­kel within the wall, or any other type of enclo­sure.

Diagram 4

NOTE: For Snorkel terminations in ABOVE

grade installations, follow nation­al or local code requirements.

6) The arrow on the vent cap should be

pointing up. Insure that the 1-1/2" clear-

ances to combustible materials are main­tained (Diagram 4). Install the termination
cap.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 31

INSTALLATION

Diagram 5

The four wood screws provided should be
replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.

Note: If installing termination on a siding

covered wall, a vinyl siding stand­off or furring strips must be used
to ensure that the termination is
not recessed into the siding.

7) Before connecting the horizontal run of

vent pipe to the vent termination, slide the
Wall Thimble over the vent pipe.

8) Slide the appliance and vent assembly to­wards the wall carefully inserting the vent
pipe into the vent cap assembly. It is impor­tant that the vent pipe extends into the vent
cap sufficient distance so as to result in a
minimum pipe overlap of 1-1/4 inches. Se­cure the connection between the vent pipe
and the vent cap by attaching the two sheet
metal strips extending from the vent cap
assembly into the outer wall of the vent
pipe. Use the two sheet metal screws
provided to connect the strips to the pipe
section. See Diagram 6.

VERTICAL

TERMINATION

1) Maintain the 1-1/4" clearances

(air spaces) to combustibles
when passing through ceilings,
walls, roofs, enclosures, attic
rafter, or other nearby com­bustible surfaces. Do not pack
air spaces with insulation.
Check for the maximum vertical
rise of the venting system and
the maximum horizontal
offset limitations.

2) Set the gas appliance in
its desired location. Drop
a plumb bob down from
the ceiling to the position
of the appliance flue exit,

and mark the location where the vent will
penetrate the ceiling. Drill a small hole at his
point. Next, drop a plumb bob from the roof
to the hole previously drilled in the ceiling,
and mark the spot where the vent will
penetrate the roof. Determine if ceiling joists,
roof rafters or other framing
will obstruct the venting sys­tem. You may
wish to relocate
the appliance or
to offset, as
shown in Dia­gram 2 to avoid
cutting load
bearing mem­bers.

Diagram 1

Diagram 2

4) Assemble the desired lengths of pipe and
elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked
position and sealed.

5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet the
minimum requirements for clearance to com­bustibles of 1-1/2". Slip the flashing under
the shingles (shingles should overlap half
the flashing) as per Diagram 4.

Diagram 4: The upper half of the flashing is

installed under the roofing material and not

nailed down until the chimney is installed.

This allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic

to avoid obstructions, it is impor­tant to support the vent pipe every
3 feet, to avoid excessive stress
on the elbows, and possible sep­aration. Wall straps are available
for this purpose (Diagram 2).

Galvanized pipe is desirable above the roof­line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashing until the height of the vent cap meets
the minimum height requirements specified in
Diagram 5 or local codes. Note that for steep

Diagram 6

9) Install wall thimble
in the center of the
10" square and
attach with wood
screws (Diagram

7).

32

Diagram 7

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature sili­cone sealant to outer pipe on eve­ry twist-lock joint.

3) A Firestop spacer must be installed in the

floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling or wall, cut
a 10 inch square hole. Frame the hole as
shown in Diagram 3 and install the firestop.

Diagram 3

FPI P36D Zero Clearance Direct Vent Gas Fireplace

Diagram 5

Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44

INSTALLATION

roof pitches, the vertical height must be in­creased. A poor draft, or down drafting can
result from high wind conditions near big trees
or adjoining roof lines, in these cases, increas­ing the vent height may solve the problem.

7) Ensure vent is vertical and secure the base
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.

8) Install the vertical termination cap by twist­locking it.

Note: Any closets or storage spaces,

which the vent passes through
must be enclosed.

Offset Chart

INSTALLATION

PROCEDURES

for FPI Direct Vent

System (Flex)

Note: To make the
installation more
aesthetically pleas­ing, we recom­mend framing out a
square to mount
the terminal to.

Note: If installing termination on a siding

covered wall, furring strips must
be used to ensure that the termi­nation is not recessed into the
siding.

2) Level the fireplace and fasten it to the

framing using nails or screws through the
nailing strips.

3) Assemble the vent assembly by applying
Mill Pac to the 4"(100mm) inner collar of the
termination and slipping the 4"(100mm) liner
over it at least 1-3/8" (35mm). Fasten with
the 3 screws (drilling pilot holes will make
this easier). Apply Mill Pac or high temper­ature silicone to the 6-7/8"(175mm) flex pipe
and slip it over the 6-7/8" outer collar of the
vent terminal at least 1-3/8"(35mm) and
fasten with the 3 screws.

NOTE: Horizontal sections must be sup-

ported at intervals not exceeding 3
feet (0.9 meter). (Flame picture and
performance will be affected by
sags in the liner).

4) Separate the 2 halves of the wall thimble

and securely fasten the one with the tabs
to the outside wall making sure that the tabs
are on top and bottom. Fasten the other
thimble half to the inside wall. The thimble
halves slip inside each other and can be
adjusted for 2 x 4 or 2 x 6 walls. The liners

must slip over the collars a minimum
of 1-3/8".

5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.

6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace. (You may
wish to cut the liner shorter to make it more
workable.) Do not bend liner more than 90o.

7) Apply Mill Pac over the fireplace inner collar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.

8) Do the same with the 6-7/8"(175mm) liner.

9) Apply a bead of silicone between the thim-

ble and termination and around the outer
edge of the terminal at the wall in order to
keep the water out.

IMPORTANT: Do not locate termination
hood where excessive snow or ice build­up may occur. Be sure to check vent
termination area after snow falls, and clear
to prevent accidental blockage of venting
system. When using snow blowers, make
sure snow is not directed towards vent
termination area.

1) Locate the unit in the framing, rough in the
gas (preferably on the right side of the unit)
and the electrical (Junction block is on the
left side) on the left. Locate the centerline
of the termination and mark wall according­ly. Cut a 10"(254mm) hole in the wall (inside
dimension).

Note: A 1-1/2"(38mm) clearance around

the liner must be maintained ex­cept that only a 1" (25mm) clear­ance is needed at the termination
end. We recommend framing a
10"(254mm) x 10"(254mm) (inside
dimensions) hole to give struc­tural rigidity for mounting the ter­mination.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 33

INSTALLATION

P36D-NG System Data

For 0 to 4500 feet altitude

Burner Inlet Orifice Sizes: #37
Max. Input Rating 30,000 Btu/h

Min. Input Rating 15,500 Btu/h
Supply Pressure min.5.0" w.c.

Manifold Pressure

(High) 3.8"+/- 0.2"w.c.

Electrical: 120 V A.C. System.
Circulation Fan: variable speed 130 CFM.
Log Set: Ceramic fibre, 7 per set.
Vent System: Simpson Dura-Vent Direct

Vent System or FPI Direct
Vent System (Flex)

P36D-LP System Data

For 0 to 4500 feet altitude

Burner Inlet Orifice Sizes: #52
Max. Input Rating 30,000 Btu/h

Min. Input Rating 15,000 Btu/h
Supply Pressure min.12.0" w.c.

Manifold Pressure

(High) 11"+/- 0.2" w.c.

Electrical: 120 V A.C. System.
Circulation Fan: variable speed 130 CFM.
Log Set: Ceramic fibre, 7 per set.
Vent System: Simpson Dura-Vent Direct

Vent System

HIGH ELEVATION

This unit is approved in Canada for altitude 0 to
4500 ft. (CAN1 2.17-M91) with the orifice
supplied.

it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.

For USA installations follow local codes and/or
the current National Fuel Gas Code, ANSI
Z223.1.

When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.

Important: Always check for gas leaks
with a soap and water solution or gas leak
detector. Do not use open flame for leak
testing.

PILOT ADJUSTMENT

Periodically check the pilot flames. Cor­rect flame pattern has three strong blue
flames: 1 flowing around the thermopile,
1 around the thermocouple and 1 flowing
across the burner (it does not have to be
touching the burner).

Note: If you have an incorrect flame pat-

tern, contact your FPI dealer for
further instructions.

Incorrect flame pattern will have small,
probably yellow flames, not coming into
proper contact with the rear burner or
thermopile or thermocouple.

The manifold pressure is controlled by a reg­ulator built into the gas control, and should be
checked at the pressure test point.

Note: To properly check gas pressure,

both inlet and manifold pressures
should be checked using the
valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" posi-

tion.

2) Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a
1/8" wide flat screwdriver.

3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"
position.

5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specified on the safety
label.

6) When finished reading manometer, turn
off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
flat screwdriver. Note: Screw should

be snug, but do not over tighten.

S.I.T. VALVE

DESCRIPTION

1) Gas cock knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection

Point

GAS LINE

INSTALLATION

The gas line can be brought through either the
right or the left side of the appliance. The gas
valve is situated on the right hand side of the
unit and the gas inlet is on the right hand side
of the valve.

Note: If the gas line is being installed

from the left side, be sure to leave
room to accommodate servicing
of the fan.

The gas line connection may be made of rigid
pipe, copper pipe or an approved flex connec­tor. (If you are using rigid pipe, ensure that the
valve can be removed for servicing.) Since
some municipalities have additional local codes

34

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pres­sures over 1/2 psig.

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

CONVERSION KIT FROM NATURAL GAS TO PROPANE MODEL #512-969

FOR P36D USING SIT 820 NOVA GAS VALVE

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Conversion Kit Contains:
Qty. Part # Description

1 910-018 SIT Conversion Kit-50%

Turndown LP
1 910-037 LP Injector (Pilot Orifice)
1 904-390 Burner Orifice #52
1 908-255 Decal "Converted to Propane"
1 908-528 Red "PROPANE" label
1 918-013 LP Conversion Decal (not

required for P90)
1 908-529 5/32" Allen Key
1 908-793 Instruction Sheet

1) Shut off the gas supply.

2) Remove the louvers (and bay door if it is

installed).

3) Open the flush door and remove the door.

4) Remove the logs, embers, and brick panels

(if used).

5) Remove the 2 screws holding the Burner

Assembly to the firebox base. Push the
Burner Assembly to the left and lift out.

Remove the 2 screws, push Burner

Assembly to the left and lift out.

6) Pull off the pilot cap to expose the pilot
orifice.

8) Remove burner orifice with a 1/2" wrench
and discard. Use another wrench to hold
on to the elbow behind the orifice.

Burner Orifice

9) Reinstall new burner orifice LP stamped #52
and tighten.

10)Remove and discard the 3 pressure regu­lator mounting screws (A), pressure regu­lator tower (B) and diaphragm (C).

11)Insure that the rubber gasket (D) is properly
positioned and install the new HI/LO pres­sure regulator assembly to the valve using
the new screws (E) supplied with the kit.
Tighten screws securely.

12)Reverse steps 5) to 2).

13)Attach clear label "This unit has been con-

verted to Propane" near or on the serial #
decal. Attach white label "This valve has
been converted from NG to LPG using SIT
conversion Kit Code 0.907.202" onto the
valve.

14)Replace yellow "Natural Gas" label with red
"Propane" label

15)Check for gas leaks.

7) Unscrew the pilot orifice with the allen key

and replace with the LP pilot orifice in the kit
and replace pilot cap.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 35

16)Check inlet and outlet pressures.

17)Check operation of flame control.

18)Check for proper flame appearance and

glow on logs.

INSTALLATION

OPTIONAL

BRICK PANELS

1) Undo the bottom 2 door latches and open

and remove glass door. Remove logs.

Note: The logs must not be in the unit.

2) Insert the back brick panel first by carefully

slipping it between the back wall of the
firebox and the rear log bracket.

3) Put the side panels in next. Slide them in
from the front and push them flat up against
the wall. Be very careful not to scratch
them on the firebox hardware.

LOG SET

INSTALLATION

Read the instructions below carefully and
refer to the diagrams. If logs are broken
do not use the unit until they are replaced.
Broken logs can interfere with the pilot
operation.

The gas log kit (Part # 780-930) contains the
following pieces:

a) 02-75 Rear Log
b) 02-55 Middle Left Log
c ) 02-50 Front Left Log
d) 02-53 Center Left Log
e) 02-51 Front Bottom Log
f) 02-54 Center Right Log
g) 02-52 Middle Right Log
h) Embers

02-55

02-75

02-52

4) Place Log 02-51 on the front right side of
the burner. Push the back of the log against
the 2 brackets with the notch on the bottom
right side of the log fitting into the right side
of the grate.

02-5102-75

Bracket

02-51

Bracket

Notch

Notch

4) Install the 2 brick retaining clips, one on
each side.

02-50 02-53 02-51

The "02" refer numbers (i.e. 02-75) are

molded into the rear of each log.

NOTE: If you will be installing the optional

Brick Panels, install the Brick Pan­els prior to installing the logs.

1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.

2) Sprinkle the vermiculite all over the top of the
base brick panel.

3) Place the Log 02-75 on the rear log support
pins with the flat side to the back.

02-75

02-54

5) Position Log 02-53 across the cutouts in
Logs 02-75 and 02-51 with the notch on the
left side of the log fitting into the 2nd grate
tab.

02-53

02-75

02-51

2nd Grate Tab

6) Position Log 02-54 across the cutouts in
Logs 02-51 and 02-53. The notch in the
bottom right end fitting against the 5th grate
tab.

02-53

Cutouts

02-51

Note: If the bottom brick panel must be re-

moved: Remove the Rear Log Stand, then
remove the Burner Tray.

.

36

FPI P36D Zero Clearance Direct Vent Gas Fireplace

02-53

02-54

02-51

5th Grate Tab

02-52

02-54

Rear

Grate

Tab

Photo shows rear grate tab.

Log 02-51 was removed to show

the positioning of Log 02-52.

9) Sit Log 02-50 on the front left side of the
burner. Push the back of the log against the
2 front brackets with the notch on the
bottom of the log fitting into the first grate
tab.

INSTALLATION

10) Place the embers on the front of the burner
tray in the places shown on the photos
below.

Place embers in these 3

locations on the burner tray.

02-51

02-54

7) Place the bottom left front edge of Log
02-55 against the rear bracket on the burner
tray and rest the log on the cutout on
Log 02-53.

02-75

02-55

02-53

Rear Bracket

8) Place Log 02-52 between Logs 02-51 and
02-75 and on the indentation on Log 02-54.
The bottom right end sits behind the rear
grate tab.

02-52

02-51

Cutouts

02-75

Notch

Front Brackets

02-50

02-75

02-50

02-53

Do not block the burner holes in

this area adjacent to the Log 02-54

11) Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
burner to the other). If there is any flame
hesitation, check that area for any blockage
of the burner ports.

02-55

12) Install flush glass and bay glass (if used) as
per instructions in this manual.

02-53

02-55

02-55

02-51

02-54

Log indentation

FPI P36D Zero Clearance Direct Vent Gas Fireplace 37

02-50

02-53

02-54

02-51

INSTALLATION

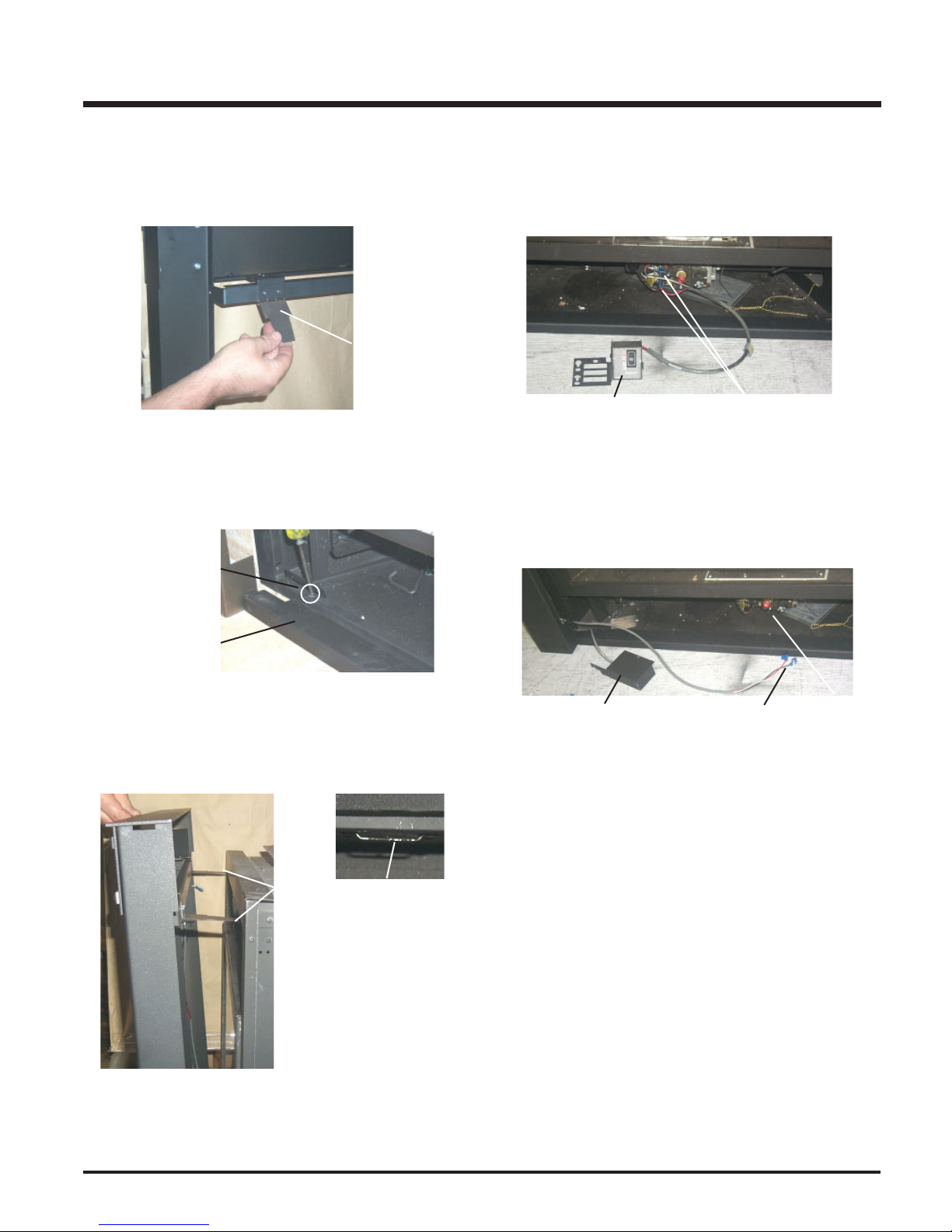

STANDARD FLUSH DOOR

The standard flush door comes with a black frame. To install the

frame, simply hook the top door flange onto the top of the unit and swing
the door towards the unit, see diagram 1.

Diagram 1

Be careful that the glass gasket does not roll up; there must be a gap
between the gasket and the door lip to ensure that the door sits
securely on the unit, see Diagram 2.

Diagram 2

Use the hook to pull the spring out until you can put the hook into the slot
on the bottom door bracket. Repeat for 2nd spring. See diagram 3.

38

Diagram 3

To remove the flush door, reverse the above steps.

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Option 1:

REMOTE CONTROL

Use the FPI Remote Control Kit approved for this
unit. Use of other systems may void your
warranty.

The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting
plate.

1) Choose a convenient location on the wall to
install the receiver and the receptacle box
(protection from extreme heat is very im­portant). Run wires from the fireplace to
that location. Use the Thermostat Wire Ta­ble.

2) Connect the two wires to the gas valve.
See diagram below.

CAUTION

Do not connect millivolt remote

control wires to a 120V wire.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver.
Install the receiver and its cover in the wall.
Switch the remote receiver to "remote"
mode. The remote control is now ready for
operation.

Option 2:

WALL SWITCH

1) Run the wire through the right or left side

inlet opening. Be careful not to damage
wire.

Note: We recommend a maximum of 15'

of wire but if you wish to go with a
longer run, use the Thermostat
Wire Table.

2) Connect the wire to the wall switch and

install into the receptacle box.

CAUTION

Do not connect millivolt

wall switch wire to a 120V wire.

Option 3:

WALL THERMOSTAT

A wall thermostat may be installed if desired,
connect the wires as per the wiring diagram.
Use the table below to determine the maximum
wire length.

Note: Preferable if the thermostat is in­stalled on an interior wall.

FPI offers an optional programmable thermostat
but any 250-750 millivolt rated non-anticipator
type thermostat that is CSA, ULC or UL ap­proved may be used.

CAUTION

Do not connect millivolt

wall thermostat wires

to a 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA.
16 GA.
18 GA.
20 GA.
22 GA.

50 Ft.
32 Ft.
20 Ft.
12 Ft.

9 Ft.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 39

INSTALLATION

Ground

Green

Neutral

Live

Black Red Red

Fan Thermodisc

(normally open)

Ground

ON OFF

Rotary Speed

Control

120V AC
60 Hz

Fan

Lockwasher

Fan

ground wire

Nut

#8 Ground Lug

(for mobile home)

Star washer

Piezo

Ignitor

To Thermocouple IN

Pilot

Assembly

H

I

L

O

O

F

F

O

N

P
I

L

O

T

Gas Pilot

Thermopile

Thermocouple

Electrode

Remote Transmitter

(Optional)

ON OFF

Regency

Remote Receiver

or Thermostat

(Millivolt) (Optional)

Brown

Red

T-Stat

Black

White

"S.I.T" Valve

Burner

ON
OFF

Thermostat

(To THTP)

(To TH)

White

Gas
In

WIRING DIAGRAM

This heater does not require a 120V A.C.
supply for operation. In case of a power failure,
the burner switch and the optional remote
control/thermostat will continue to operate.

However, a 120V A.C. power supply is needed
for the fan/blower operation.

(Do not cut the ground terminal off under
any circumstances.)

NOTE: Even if the fan is not purchased

with the unit, it is still a good idea
to bring power to the receptacle
box (provided with the unit) in case
the fan is installed at a later date.

Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.

40

CAUTION: Label all wires prior to
disconnection when servicing con­trols. Wiring errors can cause im­proper and dangerous operation.

FPI P36D Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

INSTALLING THE

OPTIONAL FAN

120 Volt AC power is needed for the fan switch
and blower. The fan can be hard wired if
desired. The receptacle box should be installed
on the left hand side of the unit by a qualified
electrician. The neutral (wider) slot of the po­larized receptacle should be at the top.

Unit must be grounded at all times. Do not
cut the ground terminal off under any
circumstances.

1) Shut the power off.

2) Remove the standard flush door and the

optional bay door, if installed. Open the
bottom louver door.

3) Loosen the 2 screws holding the Burner
ON/OFF switch and bracket to the bottom
louver and lift the assembly out.

4) Turn the fan base on its side (with the base
facing towards you) and then slide the fan
in towards the rear of the unit. Turn the fan
upright and slip it over the two mounting
studs. Take care not to damage the insula­tion on the fan base. Ensure that the fan

blades do not rub against the valve
tubing. Diagram 1.

firebox. Check that no wire will touch the
hot surfaces. Diagram 2.

7) Attach the Fan control box to the Burner
ON/OFF control box.

Use the clip & hook on the side of the

control boxes to join them together.

8) Secure the two boxes together with one
screw.

Secure the 2 boxes together

with one screw.

9) Position the control box assembly on the
bottom louver and mark the position of the
slot on the right side bracket.

Hold control box assembly

in place and mark the

position of the right side slot

10)Remove the control box as­sembly and push the hold-down
clip onto the louver. Bend the
tab until it is at 90o to the louver.

12)Secure the fan wires and power cord by
attaching one of the adhesive backed wire
holder clips (Part #910-199) onto the stove
base. Use the second clip to bundle up the
wires approximately 4" from the control
box. Ensure that there is no interference
with the wires when the louver is closed
and that no wire will touch the hot metal
surfaces or sharp edges.

13)Plug the fan power cord into the rear end
of the receptacle box to provide the max­imum clearance from the louvers.

TO REMOVE THE FAN

1) Shut the power off.

2) Reverse the above instructions.

Note: The bearings are lubricated for life.
Do not lubricate them. Make sure you
vacuum the fan area on a regular basis.

IMPORTANT:
These fans collect a lot of dust from
within your home. Ensure you maintain
these fan motors on a regular basis by
vacuuming out the fan blades and hous­ing using a soft brush nozzle.

Diagram 1

5) Connect fan ground cable to ground lug.
Refer to wiring diagram.

6) Slide the thermodisc/cover assembly into
the bracket clip on the underside of the

Diagram 2

FPI P36D Zero Clearance Direct Vent Gas Fireplace 41

11)Attach the two control boxes to the bottom
louver and tighten the 2 screws on the left
side and 1 screw on the right side.

Secure left
side with 2

screws.

Secure right side with one screw.

OPERA TING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and
enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the ap­pliance with the glass removed.

5) Verify that the venting and cap are unob­structed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have
been incorrectly positioned.

8) The unit should never be turned off, and on
again without a minimum of a 60 second
wait.

3) Turn gas control knob counterclockwise so
indicator points to the "PILOT" position.
Depress the gas control knob fully. De­press the igniter button several times until
the pilot lights. After approximately one
minute, release the gas control knob. The
pilot flame should continue to burn. If the
pilot does not remain lit, repeat operation
allowing a longer period before releasing
gas control knob.

4) When the pilot stays lit, turn the gas knob
further counterclockwise to the "ON" posi­tion.

5) Use the wall switch, thermostat or remote
control to turn on the unit.

6) Rotate the flame height regulator to adjust
the flame height higher or lower.

SHUTDOWN

PROCEDURE

1) Use the wall switch, thermostat or remote

control to turn off the main burner.

2) Turn the main gas control clockwise to the
"OFF" position to turn off the pilot.

3) Turn off all electric power to appliance if
service is to be performed.

FIRST FIRE

During the first few fires, a white film
may develop on the glass front as part
of the curing process. The glass should
be cleaned or the film will bake on and
become very difficult to remove. Use
a non-abrasive cleaner and NEVER clean
the glass while it is hot.

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the
adjusting wire up or down. The wire is ac­cessed through the bottom louver opening.
Open the air shutter for a blue flame or close for
a yellower flame. The burner aeration is factory
set but may need adjusting due to either the local
gas supply or altitude.

Minimum Air Shutter Opening:

3/16" Natural Gas
1/4" Propane

CAUTION: Carbon will be produced if air
shutter is closed too much.

Note: Any damage due to carboning re-

sulting from improperly setting the
aeration controls is NOT covered
under warranty.

Note: Aeration Adjustment should only

be performed by an authorized FPI
Installer at the time of installation

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot,

you must first release the

tension springs below the door.

Only when the pilot holds, without pressure
being applied to the control knob, reapply the
tension springs to the door. The unit must
not be operated with the tension springs
unattached.

IMPORTANT Gas cock knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.

1) Turn burner OFF using "ON/OFF" switch.

2) Turn gas control knob so indicator points to

"OFF" position and allow 5 minutes for any
gas in the combustion chamber to escape.

The first fire in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you burn
your fireplace for at least four (4) hours the first
time before you use it with the fan on.

When first operated, the unit will release an
odour caused by the curing of the paint, the
burning off of any oils remaining from manufac­turing. Smoke detectors in the house may go off
at this time. Open a few windows to ventilate
the room for a couple of hours.

The glass panel may require cleaning after the
unit has cooled down. DO NOT ATTEMPT

TO CLEAN THE GLASS WHILE IT IS
HOT.

Note: When the glass is cold and the

appliance is lit, it may cause con­densation and fog the glass. This
condensation is normal and will
disappear in a few minutes as the
glass heats up.

DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.

Adjustment Wire: Push to close or

pull to open aeration cap.

Closed - Tall yellow

Open - Short Blue

or service.

NORMAL OPERATING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds
from your gas appliance. This is perfectly
normal due to the fact that there are various
gauges and types of steel used within your
appliance. Listed below are some examples.

42

FPI P36D Zero Clearance Direct Vent Gas Fireplace

OPERA TING INSTRUCTIONS

TO TURN OFF GAS APPLIANCE

FOR YOUR SAFETY READ BEFORE LIGHTING

4) Push in control knob all the way and
hold in. Continually push and release
the black button on spark igniter until
pilot lights. Continue to hold the
control knob in for about 1/2 minute
after the pilot is lit. Release knob and
it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 1) to 4).
If knob does not pop up when
released, stop and immediately call
your service technician or gas
supplier. If the pilot will not stay lit
after several tries, turn the gas control
knob to “OFF” and call your service

STOP! Read the safety information
above on this label.

1)Push in gas control knob slightly
and turn clockwise to “OFF”.
Knob cannot be turned from “PI­LOT” to “OFF” unless knob is pushed
in slightly. Do not force.

2) Wait five (5) minutes to clear out any
gas. If you then smell gas STOP!
Follow step “B” in the Safety Infor­mation above on this label. If you
don’t smell gas, go to the next step.

3) Turn knob on gas control counter­clockwise to“PILOT”.

1) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force.

2) Turn off all electric power to the appliance if service is to be performed.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due
to high surface temperatures keep children, clothing and furniture, gasoline
and other liquids having flammable vapors away. Keep burner and control
compartment clean. See installation and operating instructions

accompanying appliance.

LIGHTING INSTRUCTIONS

technician or gas
supplier.

5)Turn gas control knob
counterclock-wise
to “ON”.

6) Use rocker switch to

operate main burner.

A)This appliance has a pilot which

must be lighted by hand. When
lighting the pilot, follow these
instructions exactly.

B)BEFORE LIGHTING smell all around

the appliance area for gas. Be sure
to smell next to the floor because
some gas is heavier than air and
will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do
not use any phone in your building.

- Immediately call your gas supplier
from a neighbours phone. Follow
the gas supplier’s instructions.

- If you cannot reach your gas
supplier, call the fire department.

C)Use only your hand to push in or turn

the gas control knob. Never use tools.
If the knob will not push in or turn by
hand, don’t try to repair it, call a
qualified service technician. Force or
attempted repair may result in a fire
or explosion.

D)Do not use this appliance if any part

has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and any
gas control which has been under
water.

E) This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.

DO NOT REMOVE THIS INSTRUCTION PLATE

WARNING: If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life. Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information
manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or gas supplier.

OFF

ELEMENT
THERMO­ELECTRIQUE

VEILLEUSE

PILOT BURNER

THERMOPILE

908-017b

You may shut off the pilot during prolonged non use periods to conserve fuel.

This appliance must be installed in accordance with local codes, if any; if none, follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation

Codes, CSA B149.1. (Australia: AG601, New Zealand: NZS 5261)

COPY OF THE LIGHTING PLATE INSTRUCTIONS

All are normal operating sounds and should
not be considered as defects in your appliance.

Blower:

FPI gas appliances use high tech blowers to
push heated air farther into the room. It is not
unusual for the fan to make a "whirring" sound
when ON. This sound will increase or decrease
in volume depending on the speed setting of
your fan speed control.

Burner Tray:

The burner tray is positioned directly under the
burner tube(s) and logs and is made of a
different gauge material from the rest of the
firebox and body. Therefore, the varying thick­nesses of steel will expand and contract at
slightly different rates which can cause "tick­ing" and "cracking" sounds. You should also be
aware that as there are temperature changes
within the unit these sounds will likely re-occur.
Again, this is normal for steel fireboxes.

Blower Thermodisc:

When this thermally activated switch turns ON
it will create a small "clicking" sound. This is the
switch contacts closing and is normal.

Pilot Flame:

While the pilot flame is on it can make a very slight
"whisper" sound.

Gas Control Valve:

As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.

Unit Body/Firebox:

Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 43

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before

cleaning. For relighting, refer to lighting
instructions. Keep the burner and control
compartment clean by brushing and vacu­uming at least once a year. When cleaning
the logs, use a soft clean paint brush as the
logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth
(never when unit is hot). Never use an
abrasive cleaner. The glass should be
cleaned with a gas fireplace glass cleaner.

The glass should be cleaned when it
starts looking cloudy.

3) The heater is finished in a heat resistant
paint and should only be refinished with
heat resistant paint. FPI uses StoveBright
Paint - Metallic Black #6309.

MAINTENANCE

4) Make a periodic check of burner for proper

position and condition. Visually check the
flame of the burner periodically, making
sure the flames are steady; not lifting or
floating. If there is a problem, call a qualified
service person.

5) The appliance and venting system must be
inspected before use, and at least annually,
by a qualified field service person, to en­sure that the flow of combustion and ven­tilation air is not obstructed.

Note: Never operate the appliance with-

out the glass properly secured in
place.

6) Do not use this appliance if any part has

been under water. Immediately call a qual­ified service technician to inspect the appli­ance and to replace nay part of the control
system and any gas control which has
been under water.

7) Verify operation after servicing.

General Vent Maintenance

Conduct an inspection of the venting system
semi-annually. Recommended areas to inspect
as follows:

1) Check the Venting System for corrosion in
areas that are exposed to the elements.
These will appear as rust spots or streaks,
and in extreme cases, holes. These com­ponents should be replaced immediately.

warranty. Clean any fingerprints off be-

fore turning the unit on.

GOLD-PLATED or

BRASS TRIM

The 24 carat gold plated or brass finish on the
trim requires little maintenance, and need only
be cleaned with a damp cloth. DO NOT use
abrasive materials or chemical cleaners, as
they may harm the finish and void the warranty.

Clean any fingerprints off before turning
the unit on. If the top louvers start to
discolour, check the door gasket seal and
replace if necessary.

LOG REPLACEMENT

The unit should never be used with broken logs.
Turn off the gas valve and allow the unit to cool
before opening door and carefully remove the
logs. (The pilot light generates enough heat to
burn someone.) If for any reason a log should
need replacement, you must use the proper
replacement log. The position of these logs must
be as shown in the diagrams under Log Instal­lation.

Note: Improper positioning of logs may

create carbon build-up and will
severely alter the unit's perform­ance which is not covered under
warranty.

DOOR GLASS

Your FPI fireplace is supplied with high temper­ature, 5 mm Neoceram ceramic glass that will
withstand the highest heat that your unit will
produce. If your glass requires cleaning, we
recommend using an approved glass cleaner
available at all authorized dealers. Do not use
abrasive materials. Do not clean the glass
when hot.

In the event that you break your glass by
impact, purchase your replacement from an
authorized FPI dealer only, and follow our
step-by-step instructions for replacement.

WARNING: Do not operate the appliance
with the glass panels removed, cracked
or broken. Replacement of the glass
panels should be done by a licensed or
qualified service person.

Caution: Wear gloves when removing
damaged or broken glass.

Flush Glass Replacement

Remove the flush door front. Remove the 4
glass clips from each corner. Slide in the new
replacement glass. Push the 4 glass clips back

onto the frame. The

glass must have

gasketing around

it.

2) Remove the Cap, and shine a flashlight

down the Vent. Remove any bird nests, or
other foreign material.

3) Check for evidences of excessive conden­sation, such as water droplets forming in
the inner liner, and subsequently dripping
out the joints, Continuous condensation
can cause corrosion of caps, pipe, and
fittings. It may be caused by having exces­sive lateral runs, too many elbows, and
exterior portions of the system being ex­posed to cold weather.

4) Inspect joints, to verify that no pipe sections
or fittings have been disturbed, and conse­quently loosened. Also check mechanical
supports such as Wall Straps, or plumbers'
tape for rigidity.

GOLD-PLATED or
BRASS LOUVERS

The 24 carat gold-plated or brass finish on the
louvers and trim requires little maintenance, and
need only be cleaned with a damp cloth. DO
NOT use abrasive materials or chemical clean­ers, as they may harm the finish and void the

THERMOPILE/

THERMOCOUPLE

1) Open the bottom louvers.

2) Loosen the thermocouple or thermopile with

a 7/16" wrench.

3) Disconnect thermocouple by loosening nut
from the valve with a 9mm wrench. Discon­nect thermopile by loosening 2 screws
marked TP on the valve.

4) Drop the thermocouple or thermopile down
from the bracket and pull it out of the unit.

5) Reinstall the new ones in reverse order.

GLASS GASKET

If the glass gasket requires replacement use 5/
8" flat glass gasket for the Bay Front (Part #
936-243) and a tadpole glass gasket for the
Flush Front (Part # 936-155).

Bay Glass Replacement

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Remove the nuts holding the glass clips in
place and remove.

3) Replace the glass. The glass must have
gasketing around it.

5) Reverse the previous steps, replace the

glass clips and fasten with the nuts but do
not over tighten, as this can break the
glass.

44

FPI P36D Zero Clearance Direct Vent Gas Fireplace

MAINTENANCE

6) Replace door on the

stove and check the
seal.

REMOVING VALVE

1) Shut off the gas supply.

2) Remove the louvers (and bay door if it is on).

3) Open the flush door and remove the door.

4) Remove the logs.

5) Remove the burner/grate assembly by re-

moving the two Phillips head screws and
then lift the burner assembly out.

7) Lift out the bottom brick panel.

8) Disconnect the inlet gas line. See diagram

2.

9) Disconnect the 2 TP wires and the 2 TH
wires from the valve.

10)Remove the 10 Phillips head screws secur­ing the valve tray assembly in place and
then lift the entire assembly out.

screws

Valve Tray Assembly

16)Remove the 4 Phillips head screws from
the sides of the valve bracket and remove
valve.

Hint: If you are using black pipe, en-

sure that there is a union by the
valve, otherwise removal will be
almost impossible.

INSTALLING VALVE

1) Attach the valve to the valve bracket with

the 4 (m5x8 metric) screws provided.

2) Reconnect the "gas out" flare fitting with an
11/16" wrench.

3) Reconnect the "gas out" flare nut with a
13/16" wrench.

4) Install piezo ignitor push button assembly
and reconnect wire.

5) Reconnect the quick drop out thermocou­ple nut with a 9mm wrench.

6) Reconnect the pilot tube nut with a 7/16"
wrench.

7) Scrape off the old gasket from the floor of
the firebox and from the valve tray assem­bly.

8) Install a new gasket and reinstall the valve
tray assembly.

Diagram 1: Remove the left and right

screws and then lift out the

burner/grate assembly.

6) Remove the rear log stand by removing the
2 screws.

screws

Rear Log Stand

11)Undo the pilot tube from the valve with a
7/16" wrench.

12)Undo the quick drop out thermocouple nut
on the valve with a 9mm (metric) wrench.

13)Remove the Piezo igniter wire and push
button assembly.

14)Undo the "gas out" flare nut with a 13/16"
wrench.

15)

Undo the "gas out" flare fitting with an 11/
16" wrench.

Note: Failure to install a new gasket

may severely affect the appliance
performance.

9) Reinstall the 10 hold down screws.

10)Hook up the 2 TP and 2 TH wires to the

appropriate connections on the valve.

11)Reinstall the bottom brick panel and the
front log stand.

12)Install Burner/grate assembly

13)Hook up the gas line and check for gas

leaks with a soap and water solution or a
gas leak detector. (Do not use open flame
for leak testing.)

14)Fire up the unit temporarily

15)Check the manifold pressure.

16)Reinstall the logs and brick panels as need-

ed.

17)Close the door and replace the louvers.

18)Fire up the unit again and check for proper

flame appearance and glow on logs.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 45

FLUSH & BAY

DOOR OPTIONS

46

FPI P36D Zero Clearance Direct Vent Gas Fireplace

REGENCY OPTIONS

FLUSH TRIM

Attach the round magnets to the back of the top
trim piece and to the bottom trim piece, then
attach trim to the top and bottom of Flush door.

FLUSH LOUVERS

1) Install the top louver by sliding the two

bracket clips into the brackets located un­derneath the top of the firebox.

2) The bottom louver has a hinge that is at­tached (2 screws per hinge) to the lip on
bottom of the unit.

3) Open the bottom louver. Pull the Burner ON/
OFF control box from inside the bottom of
the fireplace and position the slots in the
bracket over the 2 screws on the left side
of the bottom louver. Push down to lock into
place. Tighten the screws.

Note: Top and
bottom louvers
are different.

DOUBLE

SCREEN DOOR

1) Pull out the top louver.

2) Center the screen door and hook over the

flush door.

3) Open the screen door(s) and secure the
screen door to the flush door front with 2
clips on the bottom left and right side.

Clip installed on right side.

Screws on

louver bracket

Burner ON/

OFF control

box

attached to

bottom flush

louver.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 47

Burner ON/OFF

control box

Clip locations

REGENCY OPTIONS

BAY DOOR

The Bay louvers MUST be used

with the Bay glass option.

The optional Bay door is an overlay on the
flush front. The standard flush door and glass

must remain on the unit.

1) Slide the Bay Deflector into the 2 Bay
Deflector brackets in the top of the unit.

2) Hook the top of the bay door over the flush
door flange and swing the bottom against
the bottom flange of the flush door.

3) Secure to the flush door bottom bracket with
2 screws provided.

4) Slide the valve extension knobs onto the
valve knobs.

Note: If any maintenance etc. must be

done in the firebox, first remove
the Bay louvers and door.

BAY TRIM

Attach supplied magnets each to the back of
the top and bottom trim pieces, and attach trim
to the top and bottom of Bay door.

2) Install bottom louver by sliding the two
bracket clips into the brackets located un­derneath the bay door. Secure with 1 screw
into each Bottom Louver Mounting Bracket
as per diagram below. Use the bottom hole
in the bracket.

3) Slide the valve extension knobs onto the
valve knobs. Match the correct ext. knob
with the valve knob.

4) Open the bottom louver. Pull the Burner ON/
OFF control box from inside the bottom of the
fireplace and position the slots in the bracket
over the 2 screws on the left side of the
bottom louver. Push down to lock into place.
Tighten the screws.

BAY LOUVERS

1) Install top louver by sliding the two bracket

clips into the brackets located on top of the
bay door. See below. The fitted louver
leaves a small gap between faceplate bot­tom and louver top.

Burner ON/OFF

control box

Screws on louver

bracket

48

FPI P36D Zero Clearance Direct Vent Gas Fireplace

FULL SCREEN FRONT INST ALLA TION

1) Before beginning the installation, remove the Screen Doors from the

Full Screen Door Frame by fully opening the doors and lifting up off
of the hinges. See important note in step 7.

2) Full Screen Door Frame Installation

REGENCY OPTIONS

a) Before attaching the Full Screen Door Frame to the unit, loosen the

left and right side #8 Philips Head Screws located on the inside top
of the outer frame of the appliance. Also remove the center screw.

Loosen the #8 Philips Head Screw on the inner side of each hinge
bracket as shown below.

Inside Top

of Outer

Frame

Hinge

Bracket

Cut-Out

Oblong

Hole

Cut-Out

Top

Flange

Bottom
Flange

Backside of Full

Screen Door

Frame Shown

NOTE: Should the finished wall protrude beyond the face of the unit, you
can accommodate up to 1/2" depth.

Simply push in the Full Screen Door Frame until it aligns against the
finished wall. Secure Top Flange of Full Screen Door Frame as described
in step 2.

Cut-Outs

Inner Hinge

Bracket Screw

b) Slide the cut-outs in the Top and Bottom Flange of the Full Screen Door

Frame under the screw heads which were loosened in step 2a.
Once the Frame is in place, tighten the screws to secure. Also re­secure the top center screw through the oblong hole.

For the Bottom Flange of the Full Screen Door Frame, push the bottom
of the Frame until it aligns with the wall. Use the inner cut-outs to secure
the base of the Frame using the 2 x Hex Head Drill Point Screws provided.

Bottom
Flange

Inner

Cut-Outs

Backside of Full Screen

Door Frame Shown

FPI P36D Zero Clearance Direct Vent Gas Fireplace 49

REGENCY OPTIONS

3) Install the hinges to the hinge brackets on the left and right side of

the bottom of the outer frame, secure using 2 x #8 Philips Head
Screws per hinge.

4) Place the Bottom Grill near hinge. Flip the hinge over the Bottom Grill
and secure with 3 x #8 Philips Head Screws per side.

Restrain

Bracket

Hinge

Right Side

Bracket

of Bottom

Grill

6) Slide the Top Grill into the louver brackets located on the inside top
of the firebox. Push in place.

Hinge Location

Bottom Grill

5) Mount the Burner ON/OFF Control Box to the left side of the Bottom
Grill using 2 x #8 - 1/4" Philips Head Screws.

Left Side

of Bottom

Grill

Burner ON/OFF

Control Box

Top Grill

7) Install the Left and Right Side Screen Doors in the fully open position
by placing over top of the hinges on the Full Screen Door Frame.

NOTE: Failure to install the doors in the fully open position could result
in paint damage to the surface of the door.

Hinge

Loosen the 3 screws which secure the Right Side Hinge Bracket to
the Bottom Grill. Place the keyholes in the Restrain Bracket through
the screws and slide the Bracket to the right. Tighten the screws to
secure bracket in place.

50

Screen Door

8) Close screen doors.

FPI P36D Zero Clearance Direct Vent Gas Fireplace

A non-combustible material 12” (305mm) above the Arch and 6”
(153mm) on each side must be used. The Arch Screen Front also
requires steel stud framing above and on each side of the unit (refer
to
Diagram 1).

Diagram 1

Framing & Finishing

Note: The facing material has to go on after the unit is set.

1) Remove Glass Door. Refer to P36 Manual.

2) Remove 2 screws and bracket as indicated.

3) Install On/Off switch.

4) Place bracket under the Flange. Secure with 2 screws as indicated
in Diagram 4.

Diagram 2

Diagram 3

Diagram 4

5) Loosen the 3 x #8 Phillips Head Screws located on the inside top
of the outer frame of the appliance.

Remove bracket

Remove both screws

On/Off Switch

Control
Mounting
Bracket

3 x #8 Phillips

REGENCY OPTIONSIONS

ARCH SCREEN DOOR INSTALLATION

FPI P36D Zero Clearance Direct Vent Gas Fireplace 51

Note: The Nailing Strips can be adjusted, depending on the facing
material (as indicated in Diagram 2).

9) Optional
Install Optional 3-Panel Arch Door. (Refer to Install 3-Panel Arch
Door Instruction Sheet).

8) Attach Top and Side Support Frame

a) Ensure the Side Supports are aligned with the corresponding hole
on the Top Support Frame, then secure with 1 screw.

b) Repeat step on the other side.

Diagram 2

10) Change in Logo
Replace existing logo with Regency logo.

a) Mount Side Support Frame to unit as shown in diagram, then
secure with 2 screws on each side.

7) Side Support Frame

b) Repeat step on the other side.

6) Install Top Support Frame

Slide in the Top Support Frame
using the slots as a guide. Secure and re-tighten the screws to the
unit.

a) View of backside of Top Support Frame.

b)

Cut-Outs

1/2” Facing

Material

1” Facing

Material

REGENCY OPTIONS

52

FPI P36D Zero Clearance Direct Vent Gas Fireplace

CAST

FACEPLATE

FPI P36D Zero Clearance Direct Vent Gas Fireplace 53

HAMPTON OPTIONS

HAMPTON CAST FACEPLATE

1) Remove top louver.

2) Open bottom louver.

3) Install the left side faceplate by pushing in at the side of the firebox

and line up with top and bottom holes on side. Secure with screws,
tighten loosely.

Secure top of

faceplate with screw.

5) Slide top piece of faceplate into side faceplates by fitting mounting
plates into brackets.

(Back View)

Top piece
Faceplate

Mounting

Plate

Side piece

Faceplate

6) Push in both side faceplate pieces and completely tighten screws.

Bracket on back of

side faceplate.

Secure bottom of

faceplate with screw.

4) Repeat step 3 for the right side faceplate.

NOTE: Do not push in side faceplates all the

way, allow for room to place the top faceplate.

7) Re-install top louver.

8) Close bottom louver.

54

FPI P36D Zero Clearance Direct Vent Gas Fireplace

HAMPTON CAST GRILLS

HAMPTON OPTIONS

1) Remove the 3 faceplate mounting phillips head screws from the inside

top of firebox, and discard if necessary.

2) Place top grill in brackets located inside top of firebox as shown.

Bracket inside
top of firebox.

Bracket

5) Install hinge to bracket then secure with screw.

Hinge

Bracket

6) Place something underneath bottom grill to prevent scratching.

7) Line up hinge holes in bottom grill holes.

8) Place screws half way in -- do not secure completely.

Top Grill

3) Remove hinge brackets on bottom left and right side of firebox by
removing 2 screws and discard brackets only.

Hinge bracket.
Left side shown.

4) Install new hinge brackets using the same 2 screws removed in step

3.

New hinge bracket.
Left side shown.

9) Place bracket over screws then push to the side against faceplate
to lock in place as per diagram.

Bracket

10)Tighten screws. (Screws will easily be tightened if using a stubby
screwdriver.)

Black Metallic Grills Only: Mount grill stopper to bottom of firebox
securing with one screw.

Grill

Stopper

FPI P36D Zero Clearance Direct Vent Gas Fireplace 55

11)Adjust ball plunger if necessary.

INSTALLATION

The Westminster Front

The Kensington Front

56

The Balmoral Front

FPI P36D Zero Clearance Direct Vent Gas Fireplace

PALACE SERIES OPTIONS

THE KENSINGTON FRONT INSTALLATION

1) Bend tabs downwards located at the back of the Kensington Front.

Bend tabs
downwards.

Backside of front shown.

2) Secure the bottom frame of the Front by loosening the inner screw
on the hinge brackets on both the left and right side of the firebox.
Slide frame in place and secure.

Hinge bracket on

bottom of firebox

4) Remove existing control switch box from under firebox by discon­necting wires connected to the valve at TH-TH/TP terminals and
discard.

Control Box

5) Connect the ON/OFF switch wires coming from the left side of the
Front to the valve, with black hooked up to the TH/TP terminal and red
hooked up to the TH terminal.

NOTE: If fan option is not used please see step (5) of optional fan
installation for placement of fan control box.

Wires connected to Valve.

Kensington Front

frame

Left Side Shown

3) Slide tabs into louver brackets located on the inside top of the firebox.

Tabs

Bracket inside
top of firebox.

Fan Control Box

ON/OFF Switch

Wires

6) For optional fan installation, see page 60.

7) For 2-panel & 3-panel door installation, see page 61.

Valve

FPI P36D Zero Clearance Direct Vent Gas Fireplace 57

PALACE SERIES OPTIONS

THE WESTMINSTER FRONT INSTALLATION

1) Install the hood to the Westminster Front by sliding the 4 cut-outs thru

the screws and tighten to secure.

Westminster Front

2) Bend tabs located at the back of the Westminster Front upwards 90
degrees.

Cut-out in Hood

Bend tab
upwards 90
degrees.

Backside of front shown.

4) Slide tabs into louver brackets located on the inside top of the firebox.

Bracket inside
top of firebox.

5) Remove existing control switch box from under firebox by discon­necting wires connected to the valve at TH-TH/TP terminals and
discard.

Tabs

3) Secure the bottom frame of the Front by loosening the inner screw
on the hinge brackets on both the left and right side of the firebox.
Slide frame in place and secure.

Hinge bracket on

bottom of firebox

Westminster Front

frame

Left Side Shown

Control Box

6) Connect the ON/OFF switch wires coming from the left side of the
Front to the valve, with black hooked up to the TH/TP terminal and red
hooked up to the TH terminal.

NOTE: If fan option is not used please see step (5) of optional fan
installation for placement of fan control box.

Fan Control Box

7) For optional fan installation, see page 60.

8) For 2-panel & 3-panel door installation, see page 61.

Wires connected to Valve.

Valve

ON/OFF Switch Wires

58

FPI P36D Zero Clearance Direct Vent Gas Fireplace

PALACE SERIES OPTIONS

THE BALMORAL FRONT INSTALLATION

1) Bend tabs located at the back of the Balmoral Front upwards 90

degrees.

Bend tab
upwards 90
degrees.

Backside of Front shown.

2) Secure the bottom frame of the Front by loosening the inner screw
on the hinge brackets on both the left and right side of the firebox.
Slide frame in place and secure.

Hinge bracket on

bottom of firebox

4) Remove existing control switch box from under firebox by discon­necting wires connected to the valve at TH-TH/TP terminals and
discard.

Control Box

5) Connect the ON/OFF switch wires coming from the left side of the
Front to the valve, with black hooked up to the TH/TP terminal and red
hooked up to the TH terminal.

NOTE: If fan option is not used please see step (5) of optional fan
installation for placement of fan control box.

Wires connected to Valve.

Balmoral Front

frame

Left Side Shown

3) Slide tabs into louver brackets located on the inside top of the firebox.

Tabs

Bracket inside
top of firebox.

Fan Control Box

ON/OFF Switch

Wires

6) For optional fan installation, see page 60.

7) For 2-panel & 3-panel door installation, see page 61.

Valve

FPI P36D Zero Clearance Direct Vent Gas Fireplace 59

PALACE SERIES OPTIONS

THE KENSINGTON, WESTMINSTER & BALMORAL FRONT

OPTIONAL FAN INSTALLATION

1) Remove fan cover by undoing screw.

Fan Cover

2) Disconnect fan switch wires and discard fan cover with wires.

4) Tuck wires in new fan control box and secure with screw.

Fan Control Box

Secure with screw.

Discard Fan

Cover with Wires

3) Connect new fan control box wires to the existing fan plug wires
(red to red, black to black).

New Fan

Control Box

Disconnect

Wires

5) Place fan control box under left side of firebox and secure to left side
vertical hinge bracket supplied screw.

Vertical Hinge

Bracket

Fan Control Box

60

FPI P36D Zero Clearance Direct Vent Gas Fireplace

PALACE SERIES OPTIONS

THE KENSINGTON, WESTMINSTER & BALMORAL FRONT

2-PANEL DOOR INSTALLATION:

1) Install sub-frame by hooking top over glass door, push in bottom of

frame and secure with 2 screws.

Sub-Frame

Secure bottom of

sub-frame with

screws.

2) Mount 2-panel door frame to flange on sub-frame, ensuring to line
up holes. Secure using the 6 screws provided.

3-PANEL DOOR INSTALLATION:

1) Install sub-frame by hooking top over glass door, push in bottom of

frame and secure with 2 screws.

Sub-Frame

Secure bottom of

sub-frame with

screws.

3) Hook left side door to door frame by placing the door hinges (top &

bottom) over pins on door frame. Repeat for right side door.
Note: It will be easier to put the door in place by starting with the

bottom hinge.

Left Side Door

Note: If you find that the left or right side door is lower then the other,
use the spacer provided to help align the doors.

Pin on door frame

2) Mount 3-panel door frame to flange on sub-frame, ensuring to line­up holes. Secure using the 4 screws provided.

The spacer is to be placed over the bottom pin before installing the
screen door.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 61

REPLACEMENT

PARTS LIST

62

FPI P36D Zero Clearance Direct Vent Gas Fireplace

PARTS LIST

MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 948-253 Door Handle

2) 510-026 Hinge Bracket - Left/Right

3) 948-045 Chain

4) 948-115 Spring

6) 430-129 Receptacle Box Mount

7) 910-429 Box - Receptacle

8) 910-428 Duplex Receptacle

9) 910-430 Cover - Receptacle

10) 904-687 Clamp Connector

20) 510-033 Top Nailing Strip

21) 510-064 Side Nailing Strip

22) 780-010 Baffle Plate

23) 780-011 Standoff - Top

24) 780-013 Standoff - Side/Back

27) * Outer Flue Collar

28) * Inner Flue Collar Assy

29) * Flue Mounting Plate

30) * Gasket for Flue Collar

780-928 Brick Panel Set - Standard
780-901 Brick Panel Set - Standard Brown
780-902 Brick Panel Set - Standard Red
780-903 Brick Panel Set - Herringbone Brown
780-904 Brick Panel Set - Herringbone Red

31) * Brick Panel - Back

32) * Brick Panel - Left

33) * Brick Panel - Right

34) * Brick Panel - Bottom

35) * Thermodisc Bracket
432-967 Burner ON/OFF Switch Assy

38) 910-241 Switch-Burner ON/OFF(3-way)
910-899 Wire Harness-Valve to Burner

432-917 Fan & Speed Control Assy

(120 Volts) Optional

42) 910-331/P Fan Motor
432-966 Fan Switch Assy (120 Volts)

Optional

43) 910-813 Power Cord (120 Volts)

46) 910-330 Fan Speed Control Switch

47) 904-586 Knob - Speed Control

48) 910-199 Wire Holder Clip

49) 910-142 Thermodisc-Fan (Auto
ON/OFF)

910-845 Wire Harness - Plug In Fan

50) 510-994 Optional Rigid Pipe Adaptor

946-556 Optional Heat Wave Duct Kit

89) 946-004 Junction Box

90) 946-000 Round Duct Adaptor

91) 946-002 Round to Oval Adaptor

92) 946-001 Oval Duct Adaptor

93) 946-007 Angle Bracket

94) 946-517/P Fan Assembly - HeatWave
Option

95) 946-006 Grill Plate - White

96) 946-005/01 Wall Adaptor Plate - White

97) 910-417 Knob - White

98) 910-366 Switch Cover Plate - White

99) 910-412 Fan Speed Controller

100)910-367 Box - Plastic Switch

101)690-022 Cover Plate - Outer Box Side

102)946-010 Flexible Air Duct

946-011 Insulation 6" dia. x 24"
946-570 Heat Release Duct Kit

105) 910-165 Fan (120 Volts)

106)946-000 Flexible Air Release Duct

918-059 Manual
512-969 Conversion Kit - NG to LP

*Not available as a replacement part.

Receptacle

(Optional)

FPI P36D Zero Clearance Direct Vent Gas Fireplace 63

PARTS LIST

BURNER ASSEMBLY & LOG SET

Part # De scription

52) 910-190 Piezo Ignit or & N ut

53) 780-021 Gasket - Valve Access Plate NG/LP

54) 910-421 Pilot ON/OFF 3" Extension Knob

55) 910-422 Flame HI/LOW 3" Extension Knob
780-524/P Valve Assy - Natural Gas

780-526/P Valve Assy - Propane

56) * Valve Tray - NG/LP

57) 910-378 Valve - S.I.T. - Natural Gas
910-380 Valve - S.I.T. - Propane

58) * Valve Bracket

65) * Pilot Bracket

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG

910-039 Pilot Assy - S.I.T. - 3 Flame LP

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket
904-240 Orifice #37 - Natural Gas
904-390 Orifice #52 - Propane
936-170 Orifice Gasket

69) * Firebox Base

75) * Deflector - Left

76) * Deflector - Right

79) 790-525 Burner Assy - NG/LP

82) 511-030 Burner Grate Assy

83) 780-028 Rear Log Support Bracket

84) * Deflector

85) 780-930 Log Set

*Not available as a replacement part.

64

FPI P36D Zero Clearance Direct Vent Gas Fireplace

REGENCY BAY FRONT ASSEMBLY

Part # De scription Part # Description

780-931 Bay Front Complete
780-953 Bay Front - Decorative Glass-Complete

103) 940-092/P Side Glass

104) 940-096/P Side Glass - Decorative

107) 936-243 Glass Gasket

108) 940-094/P Center Glass

109) 940-098/P Center Glass - Decorative

111) 902-285 Bay Brick Panel - Standard
780-905 Bay Brick Panel - Standard Brown
780-906 Bay Brick Panel - Standard Red

780-938 Bay Front Trim (Set) - Brass
780-936 Bay Front Trim (Set) - Steel

112) * Bay Front Trim - Top/Bottom
780-934 Bay Front Trim (Set) - Gold

113) * Bay Front Trim-Gold-Bottom

114) * Bay Front Trim-Gold-Top
510-988 Bay Louvers - Black

510-993 Bay Louvers - Steel/Black
510-990 Bay Louvers - Gold/Black
510-992 Bay Louvers - Brass/Black

115) * Bay Louver Assy-Top

116) * Bay Louver Assy-Btm

117) 904-196 Magnet (1" round)

119) 780-025 Bay Door Baffle

120) * Glass Retainer Bracket

121) 780-932 Bay Front Screen

160) 948-216 Regency Logo Plate

*Not available as a replacement part.

PARTS LIST

FPI P36D Zero Clearance Direct Vent Gas Fireplace 65

PARTS LIST

138

152

150

132

158

159

157

139

161

148

146

136

135

REGENCY FLUSH FRONT ASSEMBLY

Part # De scription Part # Description

132) 512-518 Flush Door Assembly

135) 940-090/P Glass (Flush)

136) 936-155 Glass Gasket (Tadpole)
904-691 U-Clip

510-920 Flush Louvers (Set)-Gold/Blk
510-921 Flush Louvers (Set)-Brass/Blk
510-922 Flush Louvers (Set)-Black
510-923 Flush Louvers (Set)-Steel/Black

138) * Flush Louver Assy-Top

139) * Flush Louver Assy-Btm

146) * Barcelona Assy - Black

148) * Barcelona Louver Assy-Black
510-934 Flush Glass Trim (Set) - Brass
510-947 Flush Glass Trim (Set) - Steel

152) * Flush Glass Trim
904-196 Magnet

510-932 Flush Glass Trim (Set) - Gold

150) * Flush Glass Trim
904-196 Magnet

510-950 Finishing Trim (Set) - Brass
510-986 Finishing Trim (Set) - Black

157) * Finishing Trim Left

158) * Finishing Trim Top

159) * Finishing Trim Right

161) 948-216 Regency Logo Plate

*Not available as a replacement part.

66

FPI P36D Zero Clearance Direct Vent Gas Fireplace

FACEPLATE & GRILL ASSEMBLY

Part # Description

513-971** Cast Faceplate (Set)

201)* Cast Faceplate - Right

202)* Cast Faceplate - Top

203)* Cast Faceplate - Left
513-981** Cast Grills (Set)

204)* Top Grill

205)* Bottom Grill

*Not available as a replacement part.
** Last digit of part number represents colour:
1=Black Metallic, 5=Enamel Brown, 6=Enamel Black

PARTS LIST

HAMPTON CAST

FPI P36D Zero Clearance Direct Vent Gas Fireplace 67

NOTES

_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________

68

FPI P36D Zero Clearance Direct Vent Gas Fireplace

NOTES

_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________

FPI P36D Zero Clearance Direct Vent Gas Fireplace 69

NOTES

_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________

70

FPI P36D Zero Clearance Direct Vent Gas Fireplace

WARRANTY

FPI Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit
thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
of a FPI Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited
Lifetime Warranty for five (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for five (5) years and parts only thereafter from date of purchase.
External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from

the date of purchase and parts only thereafter.
Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant

heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing
colors and marks, ie. finger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly
components, and gas valves are covered for one year parts and subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered
repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date
of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.
Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent
provided that the defective part be returned to the distributor or agent

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three
days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated
for manufacturer defect.

The authorized selling dealer is responsible for all in-field service work carried out on your FPI product. FPI will not be liable for results or costs of workmanship from
unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the field which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer

name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.

ie. as products evolve, field modifications or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence

or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by
mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your

warranty on this product.
Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

Transportation Prepaid, if requested.

original purchaser

* Subsidy according to job scale as predetermined by FPI.

FPI P36D Zero Clearance Direct Vent Gas Fireplace 71

FPI fireplaces are designed with reliability and simplicity in
mind. In addition, our internal Quality Assurance Team
carefully inspects each unit thoroughly before it leaves
our door .

FPI Fireplace Products International Lt d. is pleased to
extend this Limited Lifetime Warranty to the original
purchaser of a FPI Product.

See the inside back cover for details.

Register your Regency online at

http://www.regency-fire.com

Register your Hampton online at

http://www.hampton-fire.com

Register your Palace online at

http://www.palace-fire.com

Installer: Please complete the following information

Dealer Name & Address:______________________________________________

__________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: _________________________________________________________

FPI, Hampton and Panorama are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2005, FPI Fireplace Products International Ltd. All rights reserved.

Printed in Canada
