FPG IN 3H06, IN 3H12, IN 3H08, INLINE 3000C Series, IN 3H15 Product Manual

Heated Cabinets

Curved Format

Part No.26118 Rev. H September 2018 - 2 - Inline 3000 Series Cabinets

Copyright © September 2018 Future Products Group Limited.
All rights reserved.

No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior
written permission of Future Products Group Ltd.

IN 3H06/08/12/15 - 3 - © Future Products Group

Table of Contents

INTRODUCTION ................................................................................................................ 6

Welcome .......................................................................................................................................................... 6

Future Products Group (FPG) ................................................................................................................... 6

Guidance and Help .................................................................................................................................... 6

Warranty .......................................................................................................................................................... 6

Warranty Period ........................................................................................................................................ 6

Liability Exceptions .................................................................................................................................... 7

Specific Exclusions .................................................................................................................................... 7

Assessment ............................................................................................................................................... 7

Time Limit .................................................................................................................................................. 7

Caution ...................................................................................................................................................... 7

OPERATION ...................................................................................................................... 8

Cabinet Layout................................................................................................................................................ 8

3000 Series Cabinets ................................................................................................................................ 8

Lighting ...................................................................................................................................................... 8

Controls ........................................................................................................................................................... 8

Light Switch ............................................................................................................................................... 8

Heating ...................................................................................................................................................... 8

Thermometer ............................................................................................................................................. 8

Preparation ..................................................................................................................................................... 9

Shelf Location and Ticketing ..................................................................................................................... 9

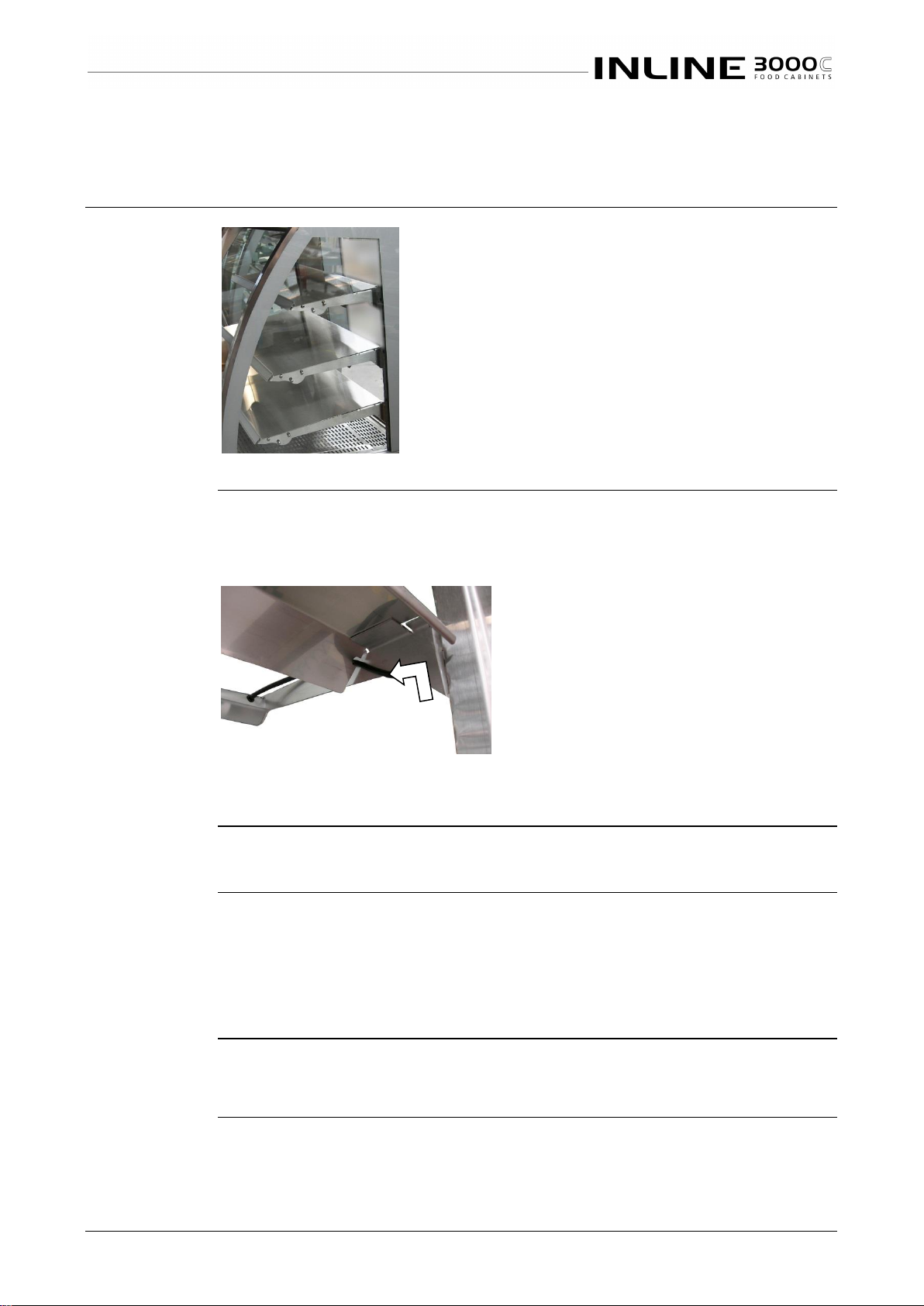

Shelf Adjustment ....................................................................................................................................... 9

Power Supply ............................................................................................................................................ 9

Set the Temperature ................................................................................................................................. 9

Fumes and Odours .................................................................................................................................... 9

Load Cabinet ........................................................................................................................................... 10

WARNING: Aluminium Foil...................................................................................................................... 10

Close all Doors ........................................................................................................................................ 10

Turn on Lights ......................................................................................................................................... 10

WARNING: Extraction Fan ................................................................ ................................ ...................... 10

Door Opening .......................................................................................................................................... 10

TROUBLE SHOOTING ................................ ................................ .................................... 11

CLEANING ...................................................................................................................... 12

Cautions ........................................................................................................................................................ 12

Power ...................................................................................................................................................... 12

Water ....................................................................................................................................................... 12

Exterior .......................................................................................................................................................... 12

Metal Surfaces ........................................................................................................................................ 12

Glass ....................................................................................................................................................... 12

Sliding Doors ........................................................................................................................................... 12

Interior ........................................................................................................................................................... 13

Cabinet Well ............................................................................................................................................ 13

Trays, Racks, Shelves & Air Grills ........................................................................................................... 13

Part No.26118 Rev. H September 2018 - 4 - Inline 3000 Series Cabinets

Routines ........................................................................................................................................................ 13

Schedules................................................................................................................................................ 13

Inspection ................................................................................................................................ ................ 13

Correction ................................................................................................................................................ 13

INSTALLATION ................................................................................................ ............... 14

Regulations ................................................................................................................................................... 14

Compliance with Local Requirements ..................................................................................................... 14

Setting Up ..................................................................................................................................................... 14

Unpacking ............................................................................................................................................... 14

Site Preparation....................................................................................................................................... 14

Cabinet Preparation ................................................................................................................................ 14

Shelf Trays .............................................................................................................................................. 14

Grounding................................................................................................................................................ 15

Power Supply .......................................................................................................................................... 15

Isolation ................................................................................................................................................... 15

Location ........................................................................................................................................................ 15

Ventilation................................................................................................................................................ 15

Access ..................................................................................................................................................... 15

Fumes and Odours .................................................................................................................................. 15

Livery ............................................................................................................................................................. 16

Custom Inserts ........................................................................................................................................ 16

SERVICING ..................................................................................................................... 17

Control Gear ................................................................................................................................................. 17

Location ................................................................................................................................................... 17

Lighting ......................................................................................................................................................... 17

Caution .................................................................................................................................................... 17

Test Lighting Components ...................................................................................................................... 17

Access to LED Strips ............................................................................................................................... 17

LED Strip Replacement ........................................................................................................................... 17

Heating .......................................................................................................................................................... 18

Caution .................................................................................................................................................... 18

Element Replacement ............................................................................................................................. 18

Test ......................................................................................................................................................... 18

Caution .................................................................................................................................................... 18

Re-assemble ........................................................................................................................................... 18

Door Seals ..................................................................................................................................................... 19

Seal Replacement ................................................................................................................................... 19

Sliding Doors ........................................................................................................................................... 19

Mains Lead .................................................................................................................................................... 19

Lead Replacement .................................................................................................................................. 19

IN 3H06/08/12/15 - 5 - © Future Products Group

SPECIFICATIONS ........................................................................................................... 20

Mechanical .................................................................................................................................................... 20

Electrical ....................................................................................................................................................... 20

Compliance ................................................................................................................................................... 21

Standards ................................................................................................................................ ................ 21

Operational Safety ................................................................................................................................... 21

Performance Aspects .............................................................................................................................. 21

Improvements ................................................................................................ ................................ ............... 21

Ongoing Development ............................................................................................................................. 21

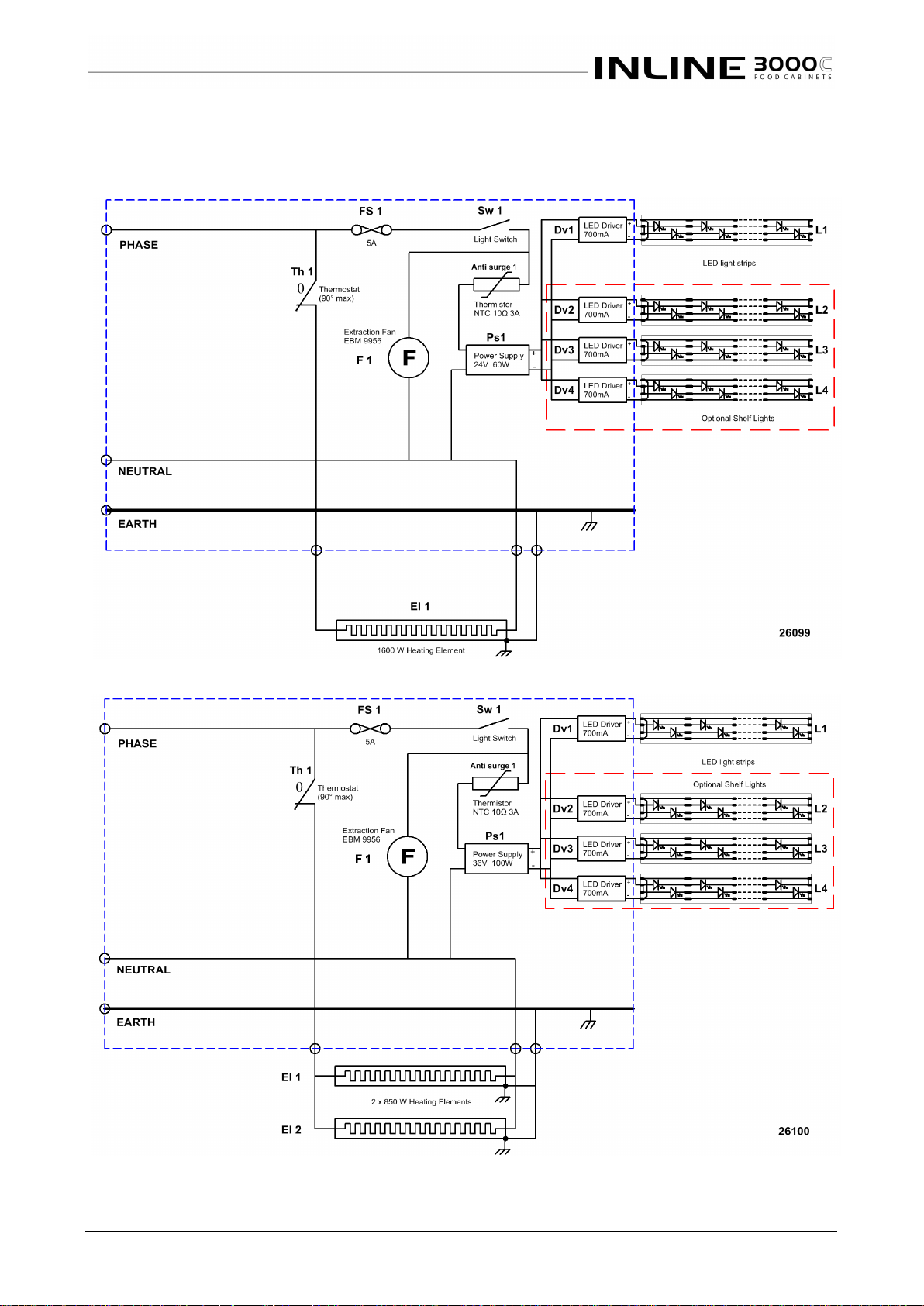

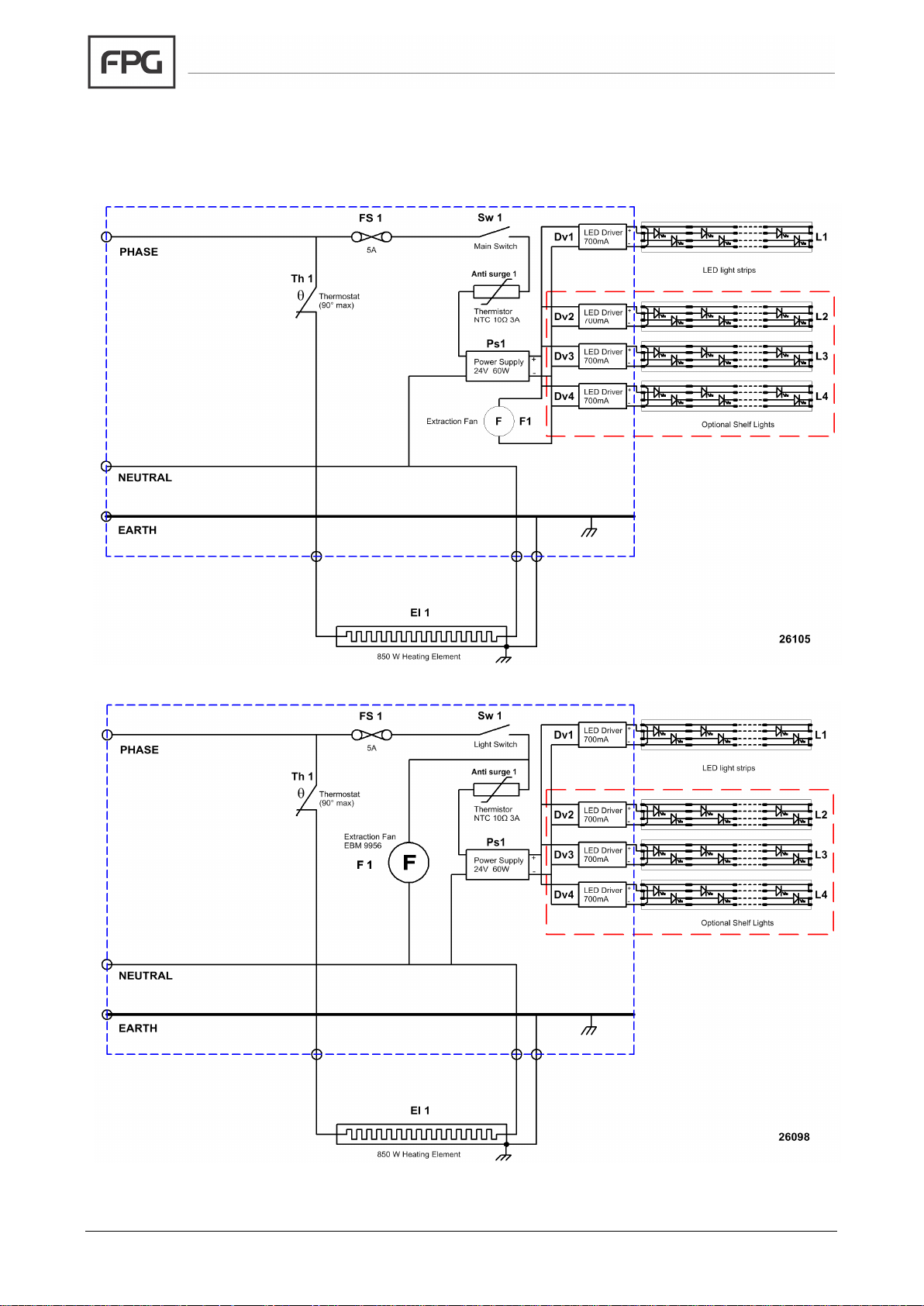

ELECTRICAL CIRCUIT DIAGRAMS ............................................................................... 22

Model: IN 3H06 ....................................................................................................................................... 22

Model: IN 3H08 ....................................................................................................................................... 22

Model: IN 3H12 ....................................................................................................................................... 23

Model: IN 3H15 ....................................................................................................................................... 23

SPARE PARTS ................................................................................................................ 24

Cabinet Serial Number ............................................................................................................................ 24

Handed Parts .......................................................................................................................................... 25

MECHANICAL DRAWINGS ............................................................................................. 26

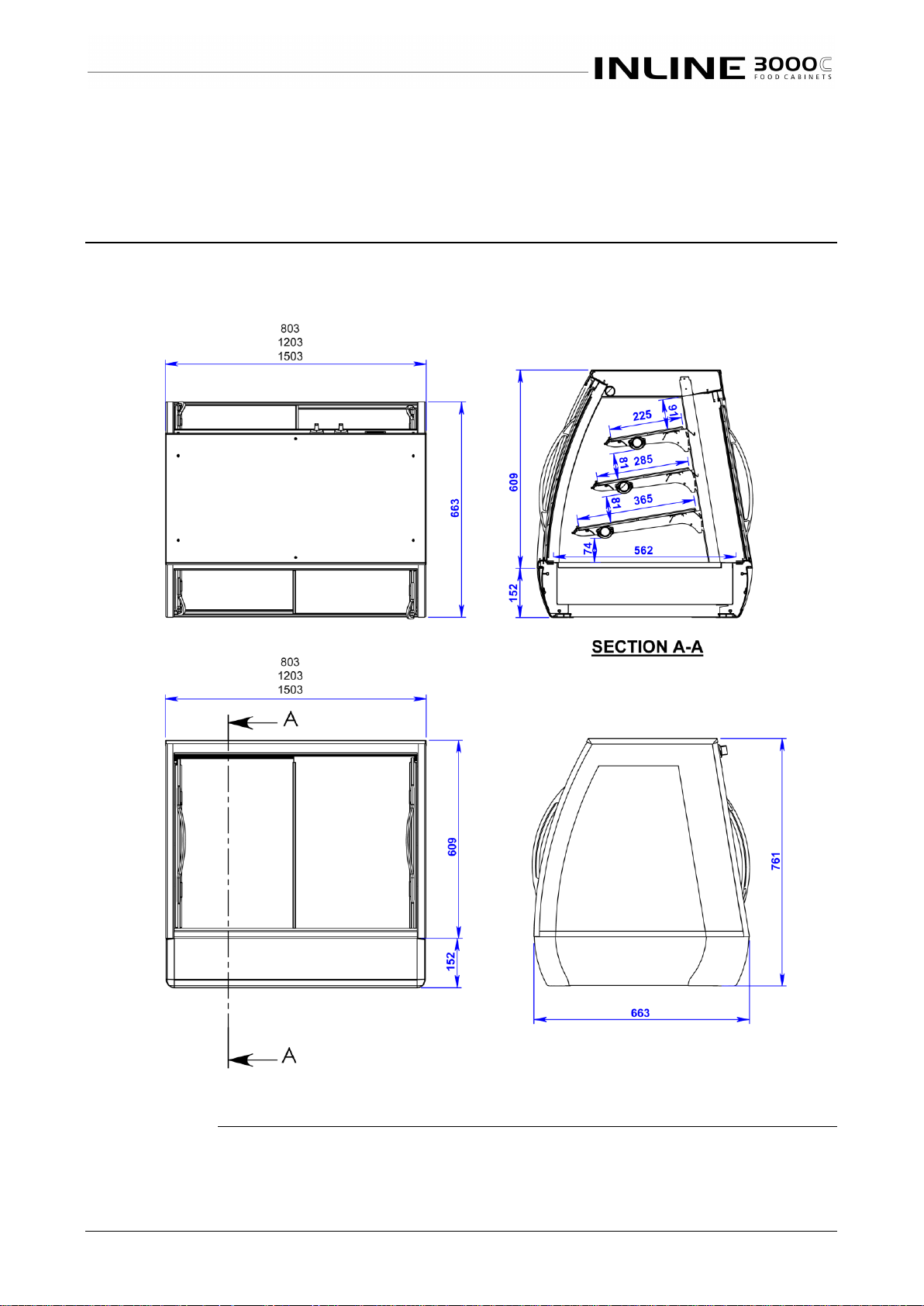

Dimensions ................................................................................................................................................... 26

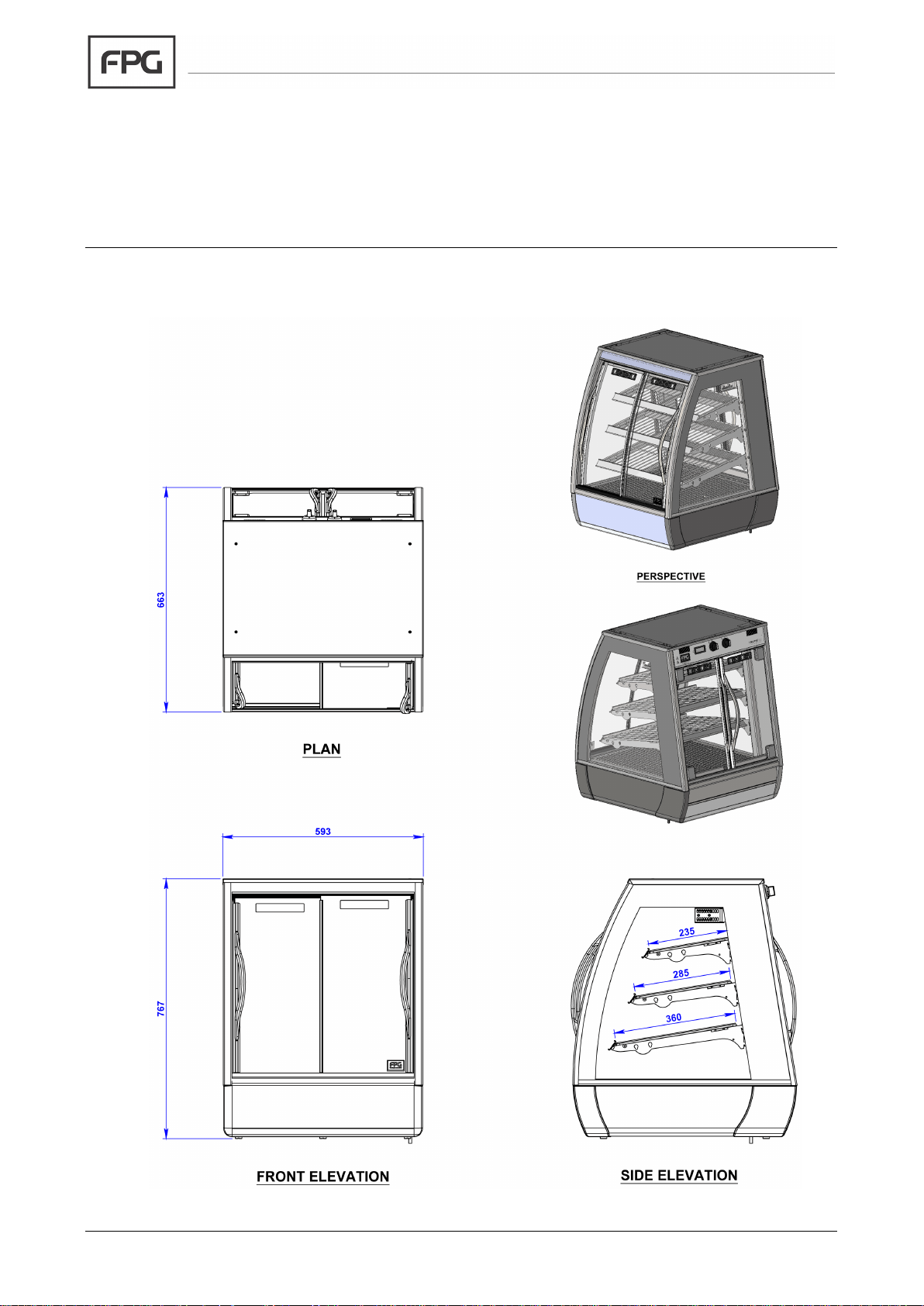

IN-3H06-A002 ......................................................................................................................................... 26

IN-3H08/12/15 ......................................................................................................................................... 27

Cabinet Variants ...................................................................................................................................... 28

Livery ....................................................................................................................................................... 28

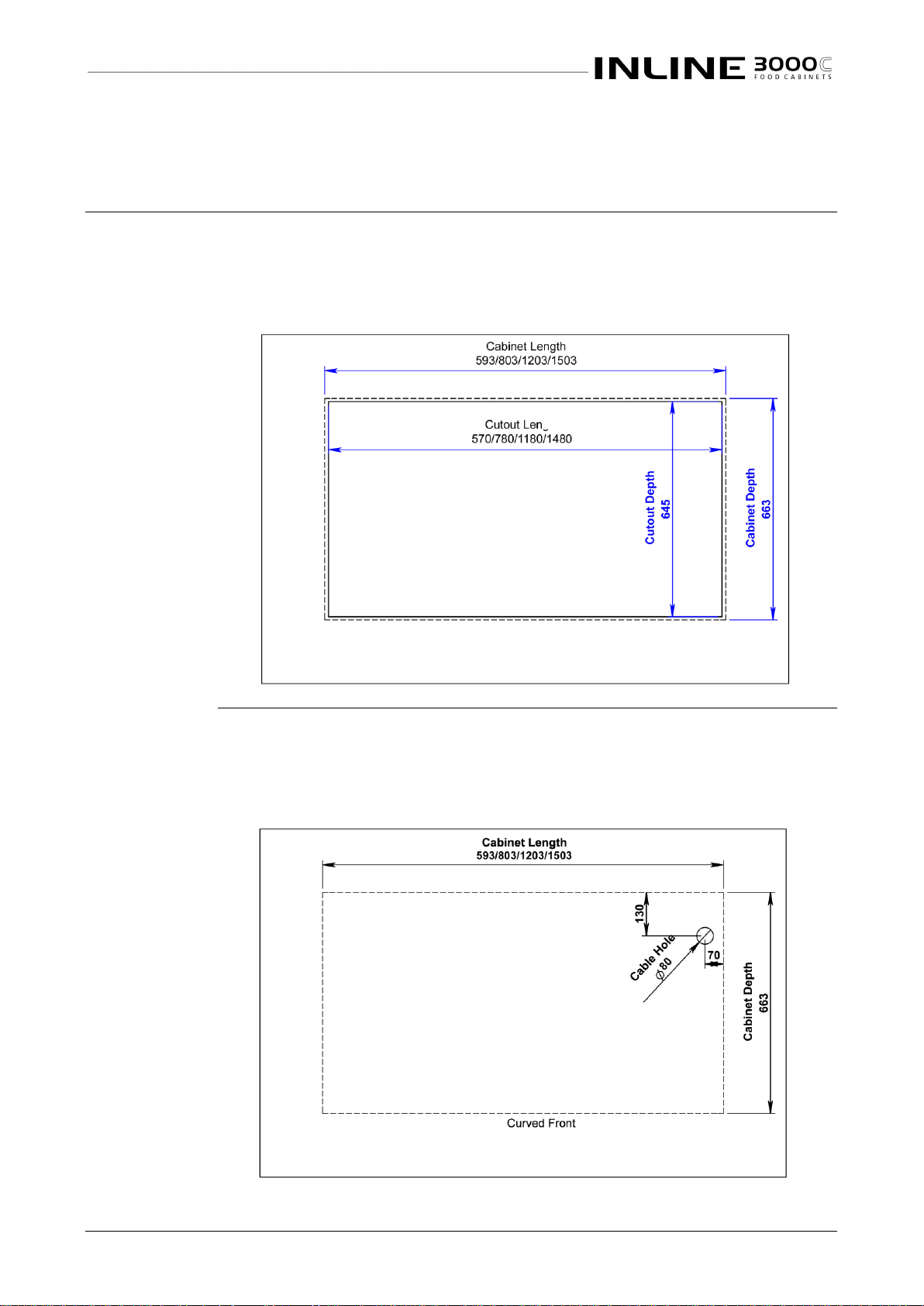

Bench Cut-outs ............................................................................................................................................. 29

In Bench Mounting .................................................................................................................................. 29

On Bench Mounting ................................................................................................ ................................. 29

Part No.26118 Rev. H September 2018 - 6 - Inline 3000 Series Cabinets

INTRODUCTION

Welcome

HEATED CABINETS

-

INTRODUCTION

Future
Products
Group (FPG)

Welcome to the world of FPG! Our products are designed and engineered to
give you the optimal performance that you deserve with innovative visual
merchandising appeal.

We are confident that you will be delighted with your state of the art inline food
service cabinet, and that it will become a valued appliance in your store.

Guidance and
Help

Any new appliance can seem very complex and confusing at first glance. To
ensure you receive the utmost benefit from your new inline cabinet, there are
two things you can do.

• Before operating the cabinet, please read the instruction book carefully and
follow its recommendations. The time taken will be well spent. These
instructions both general and technical tell you how to install, operate and
look after your inline food service cabinet so that you can receive the full
benefits that this cabinet has to offer.

• These instructions cannot, however, cover all eventualities. If you are
unsure of any aspect of the installation, instructions or performance of your
cabinet, contact your dealer promptly or contact us via email to
[e-mail].

Warranty

HEATED CABINETS

-

INTRODUCTION

Warranty
Period

Future Products Group Limited warrants, to the original purchaser of an FPG
manufactured food service cabinet that for ONE YEAR (12 months), from the
date of purchase, any defect in workmanship or material resulting in the product
malfunctioning while under correct use will be rectified.

Liability under this warranty is limited to replacing or repairing a part, without
charge.

Continued on next page

IN 3H06/08/12/15 - 7 - © Future Products Group

Warranty cont.

HEATED CABINETS - INTRODUCTION

Liability
Exceptions

Liability under this warranty does not include:

• Any loss, or damage or expenses directly or indirectly arising from use or
inability to use the product or from any other cause.

• Any part of the cabinet which has been subject to misuse, neglect,
alteration, incorrect installation, accident, or damage caused by
transportation, use of abrasive or caustic chemicals, flooding, fire or acts of
God.

• Any damage or malfunction resulting from the use of non-FPG supplied
spare parts.

Specific
Exclusions

The following are specifically excluded from warranty:

• Breakage of glass or plastic components, or the replacement of LED lighting
assemblies or gaskets.

• Failure to re-assemble the cabinet correctly after cleaning.

• Fair wear and tear.

Assessment

The liability under this warranty is dependent on an assessment by FPG, to
determine the defect in workmanship or materials.

Time Limit

FPG does not guarantee that any service to be performed under this warranty
will be carried out within any particular time limit.

Caution

No warranty claim will be accepted unless authorised by FPG prior to
commencement of service.

Part No.26118 Rev. H September 2018 - 8 - Inline 3000 Series Cabinets

OPERATION

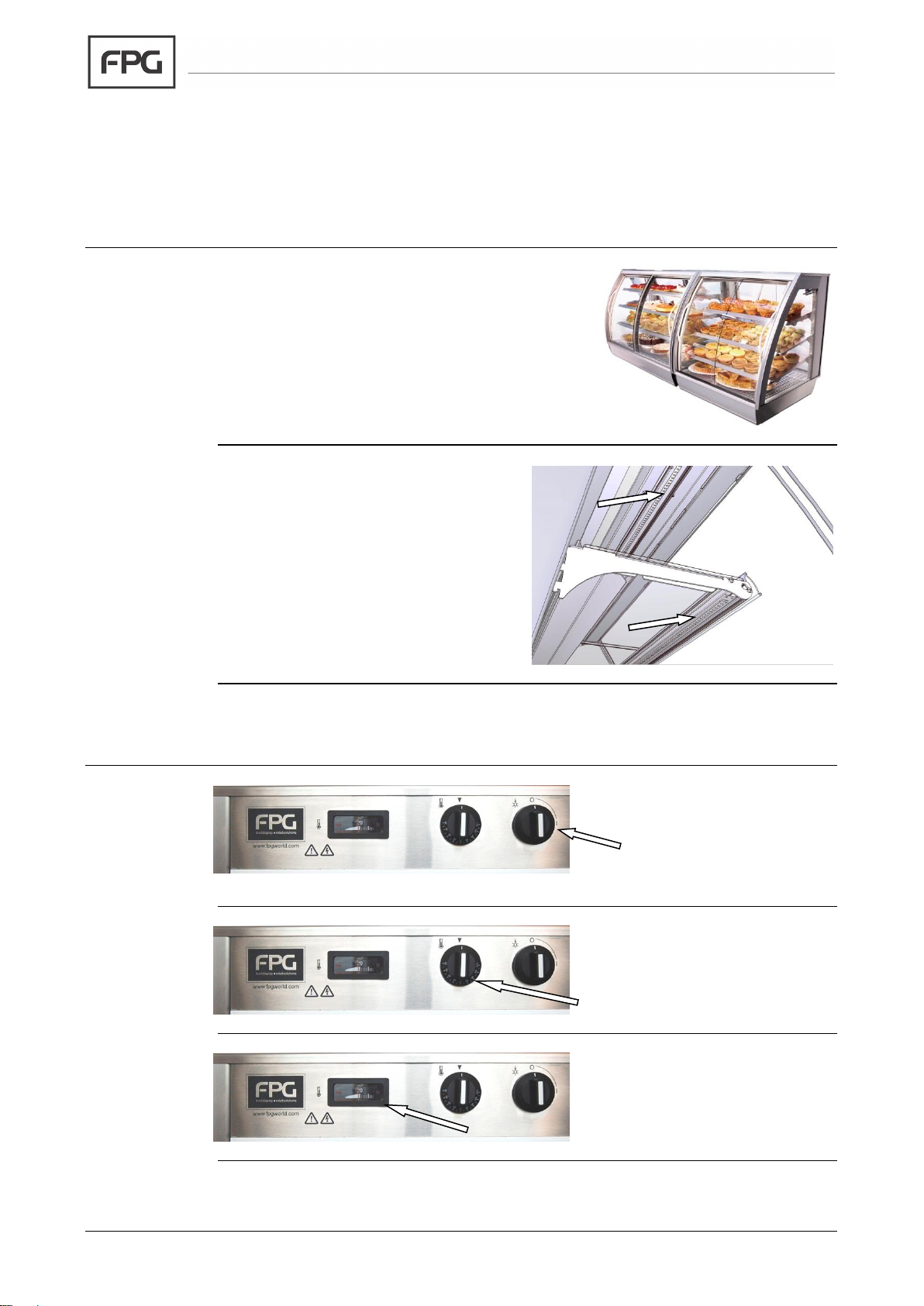

Cabinet Layout

HEATED CABINETS

-

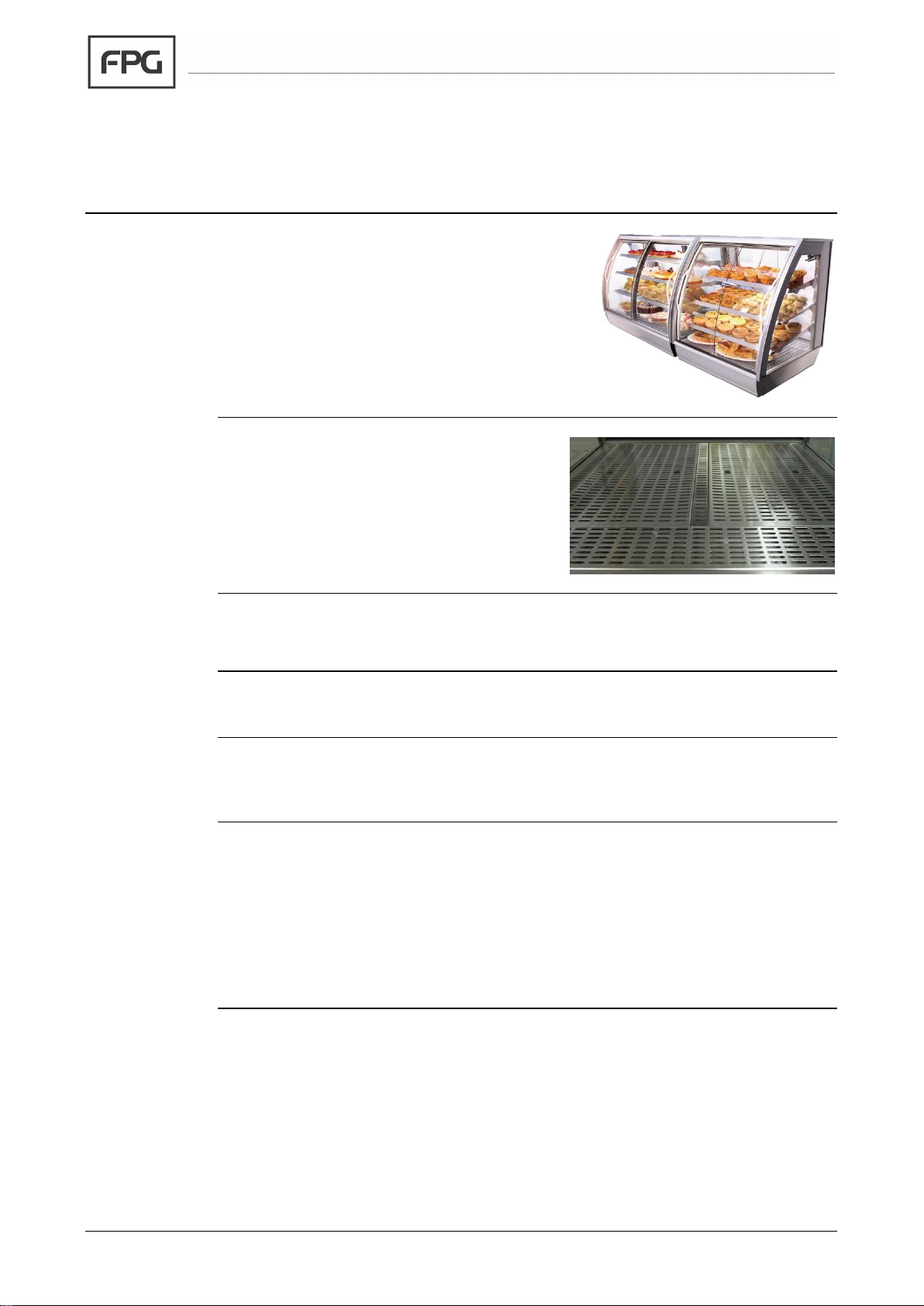

OPERATION

3000 Series
Cabinets

The 3000 Series cabinets are available with
either fixed glass or sliding glass front doors,
and sliding glass rear doors, (hinged on 600).

The series includes Ambient, Heated and
Refrigerated models.

The cabinet lighting and temperature controls
are on the back of the cabinet.

Lighting

All cabinets are fitted with high
efficiency LED lighting strips in the
ceiling of the cabinet as standard.

Additional LED strips, below each
shelf, are available as an optional
extra, at the time of ordering.

Controls

HEATED CABINETS

-

OPERATION

Light Switch

The control panel is located at
the top of the cabinet back.

To turn the lights on, rotate the
switch, with the LIGHT symbol.

Heating

Set the desired temperature
with the thermostat control
knob. Turn it to the off mark
when heating is not required.

Thermometer

A thermometer indicates the
internal temperature of the
cabinet.

IN 3H06/08/12/15 - 9 - © Future Products Group

Preparation

HEATED CABINETS

-

OPERATION

Shelf Location
and Ticketing

All shelves are adjustable in height and can easily be
moved up or down, to match product size.

If shelf lights are fitted, the movement is restricted to
50mm, because of the electric cables to the lights.
For greater movement contact the manufacturer or
supplier for advice, as electrical modifications may be
required.

Wire shelf racks are supplied as standard, but trays,
as shown, are available to order.

The front and rear edges of the shelves are profiled to
carry ticketing/labels.

Shelf
Adjustment

To move the shelf brackets, first remove the sliding doors and the shelf trays.
Using two people, one on each bracket, lift the brackets straight up firmly and

then pull the brackets forward, to disengage them from the slots in the support

posts.
Insert the brackets into their new position,

and push bracket down firmly.
The brackets may be positioned to give

two different degrees of slope to the
shelves.

Refit all shelf trays and doors.

N.B. Make sure brackets are pushed down as far as they can go. Failure

to do this may result in shelf collapse, when loaded with product.

Power Supply

Ensure that power is connected to the cabinet.

Set the
Temperature

Set the thermostat to the desired temperature, 75 degrees Celsius is the
recommended setting to maintain food temperature within food safety
guidelines.

NOTE Setting the dial to a higher temperature than required will not speed up

the heating process. Set it to the desired temperature.

Fumes and
Odours

Before use, operate the cabinet for 4 hours to remove any fumes or odours,
which may be present. This will avoid possible tainting of food.

Continued on next page

Part No.26118 Rev. H September 2018 - 10 - Inline 3000 Series Cabinets

Preparation cont.

HEATED CABINETS - OPERATION

Load Cabinet

Load the cabinet with pre-heated product.
The cabinet is designed to maintain the

temperature of pre-heated product above 65C.
It is not an oven, and consequently, if cold

product is introduced, there could be a
considerable delay before the operating
temperature rises to the normal operating level.

WARNING:

Aluminium Foil

Do NOT place aluminium foil on the base
trays. This will disrupt the convection
circulation of air, and cause uneven heating.

Blockage of air vents may cause severe
overheating of the cabinet base.

Close all Doors

It is important to keep all cabinet doors closed. If doors are not fully closed, an
even temperature will not be maintained within the cabinet.

Turn on Lights

When ready for service, turn on the cabinet lights.

WARNING:

Extraction Fan

Do not place items on top of the cabinet, where they could block the air flow
from the extraction fan.

Door Opening

The cabinet is designed to maintain food at a temperature above 65C. The
heating system is designed to maintain this temperature with the doors being
opened and closed up to sixty times per hour.

If the doors are left open for an extended period the temperature will fall. Once
the doors are closed the temperature will take some time to rise to the normal
operating level. The longer the doors are open the longer the time to restore
normal operating temperature.

IN 3H06/08/12/15 - 11 - © Future Products Group

TROUBLE SHOOTING

FAULT

POSSIBLE CAUSE

REMEDY

Doors are not sliding smoothly

Door not in track

Install door correctly in track

Debris in track

Clean door tracks (see cleaning)

Lack of lubricant

Apply food grade lubricant to
door track

Cabinet does not operate/start
The mains isolating switch on

the wall, circuit breaker or
fuses are off at the power
board

Turn isolating switch circuit
breaker or fuses on
The thermostat is in the OFF
position

Turn control knob to desired
temperature

Internal fuse blown

Have wiring checked and
replace fuse (5A Slow Blow)

Cabinet does not reach
temperature

One or more doors is open

Close doors and re-test
temperature after thirty
minutes

Thermostat setting disturbed

Re-set thermostat and re-test
after thirty minutes

Thermostat is faulty

Have thermostat replaced

An element is blown

Have the element replaced

Cabinet lights not working

The light switch is OFF

Turn light switch ON

A failed LED power supply

Replace the power supply

An LED strip has failed

Replace the LED assembly

Internal fuse blown

Have wiring checked and
replace fuse (5A Slow Blow)

Aluminium parts corroded

Caustic detergent damage

Order replacement parts

Service
Personnel Only

The table entries in italics indicate actions to be taken only by qualified Service
Personnel.

Part No.26118 Rev. H September 2018 - 12 - Inline 3000 Series Cabinets

CLEANING

A wall chart is included at the back of this manual. It contains step-by-step instructions for every
day cleaning of your cabinet. However, please read the following additional information.

Cautions

HEATED CABINETS

-

CLEANING

Power

ALWAYS TURN THE POWER SUPPLY OFF BEFORE CLEANING.

Water

THIS UNIT IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY TO
CLEAN THE INTERIOR OR EXTERIOR OF THIS CABINET.

Exterior

HEATED CABINETS

-

CLEANING

Metal Surfaces

Stainless steel or aluminium surfaces should be cleaned with hot soapy water or
a good quality metal cleaning compound. DO NOT clean surfaces with abrasive
pads or cleaners (e.g. Scotchbrite pads or Jif), as paint, stainless steel and
aluminium surfaces will be damaged.

Glass

All glass should be cleaned using a good quality glass cleaner and a clean
cloth.

DO NOT use abrasive pads or cleaners, because they will damage the surface
of the glass.

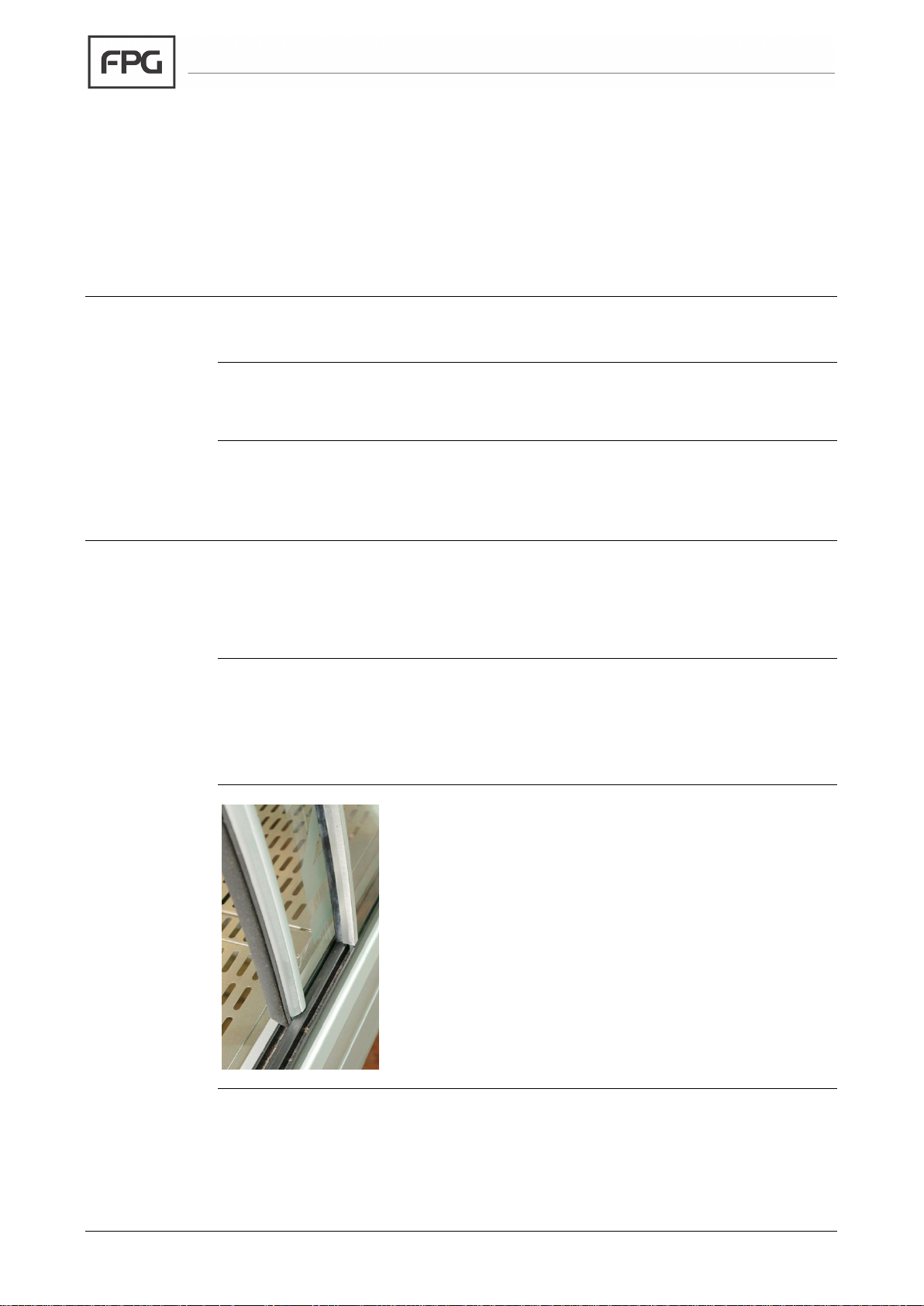

Sliding Doors

Sliding glass doors are located by plastic guides at the
top and bottom.

The doors can be removed for cleaning by sliding the
door to a central position, placing hands either side of the
door, lifting it up and then swinging it out at the bottom.

When replacing doors, make sure that they are located in
the correct slots, top and bottom. The left door should be
in the inner slots, and the right door in the outer slots.

Sliding door tracks should be vacuumed out regularly to
keep doors sliding freely.

Continued on next page

IN 3H06/08/12/15 - 13 - © Future Products Group

Interior

HEATED CABINETS

-

CLEANING

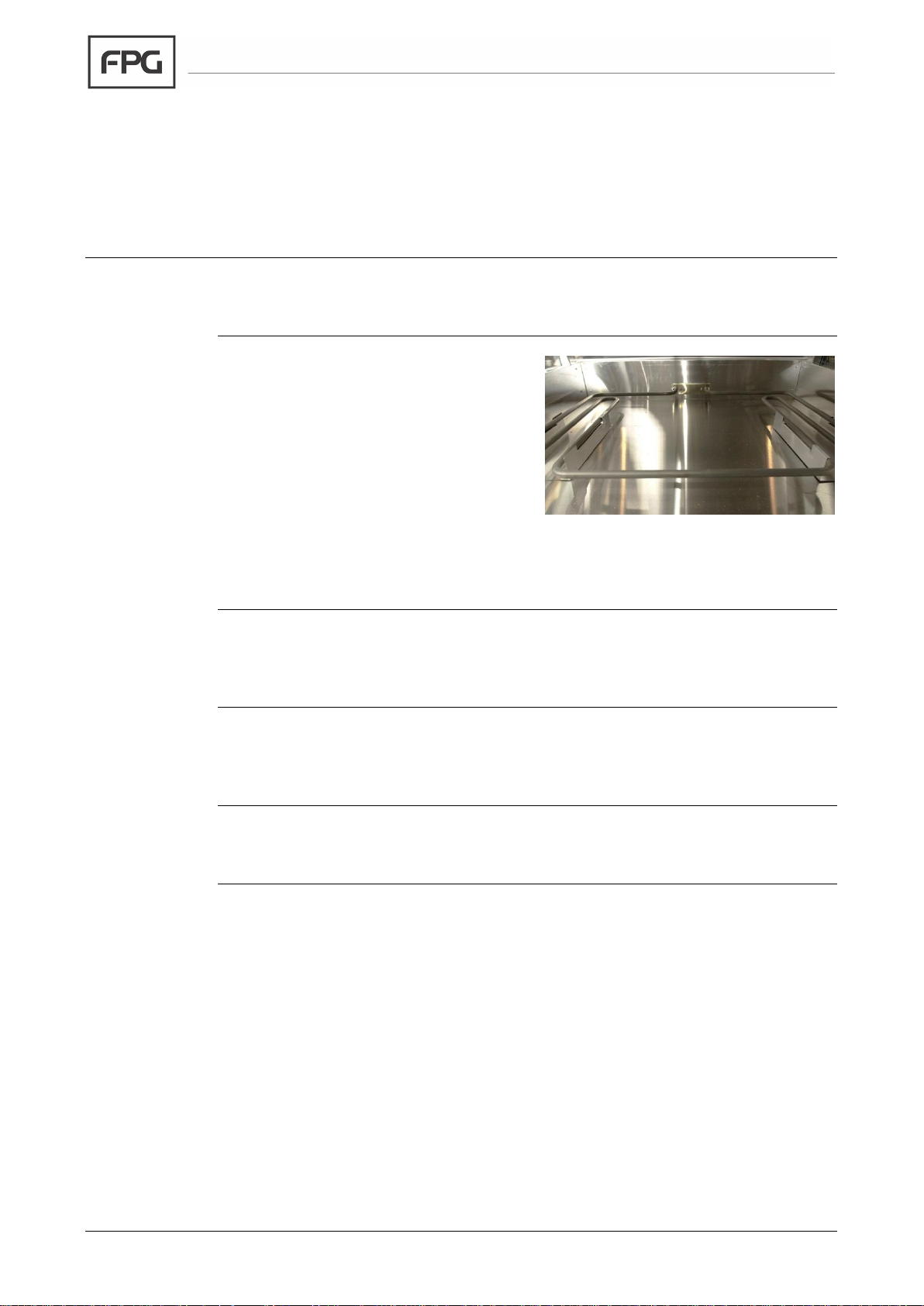

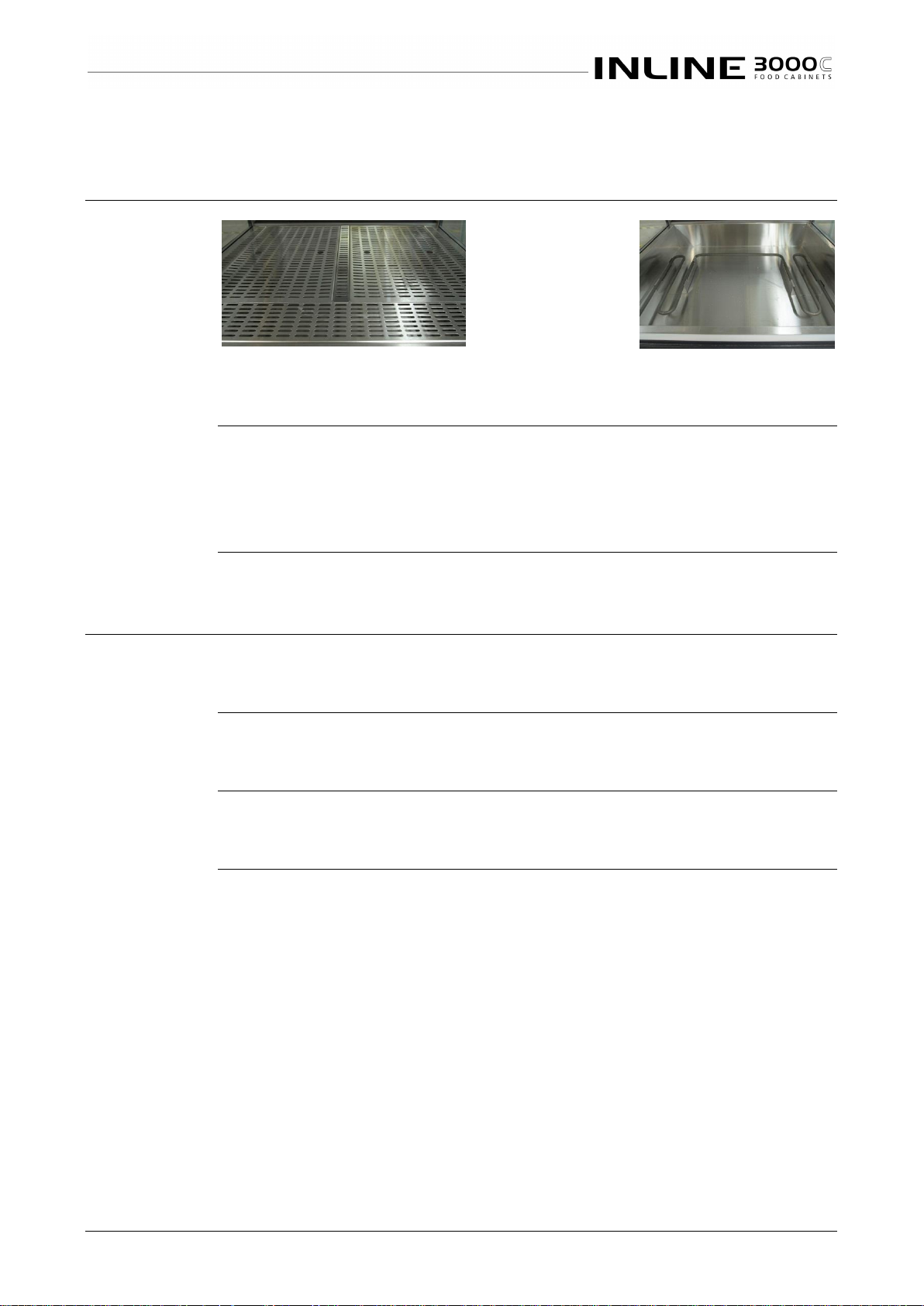

Cabinet Well

To clean the hot
cabinet well, first
lift out the deck
trays and dividers
and then sweep
out or vacuum
away loose debris.

This cabinet is a dry well unit, so the well is not waterproof. Do NOT pour water
into the well as it will leak out and damage insulation and electrical wiring.

Trays, Racks,
Shelves & Air
Grills

Stainless steel trays, racks, shelves, grills etc. should be cleaned with hot soapy
water. Do not use abrasive pads or cleaners (e.g. Scotchbrite pads or Jif), as
these may damage surfaces.

Warning: Dishwasher detergents will damage any anodised aluminium parts.

Routines

HEATED CABINETS

-

CLEANING

Schedules

To maintain optimum performance, cleaning schedules must be regular and
thorough.

Inspection

As part of the cleaning routine, the controls, mechanical parts and electrical
wiring should be inspected for damage, deterioration or need of adjustment.

Correction

If any small faults are found, have them attended to promptly by a competent
serviceman. Don’t wait until they cause a complete breakdown.

Part No.26118 Rev. H September 2018 - 14 - Inline 3000 Series Cabinets

INSTALLATION

Regulations

HEATED CABINETS

-

INSTALLATION

Compliance
with Local
Requirements

It is very important that your inline food cabinet is installed correctly and that the
operation is correct before use. Installation must comply with local electrical,
health & safety and hygiene requirements.

Setting Up

HEATED CABINETS

-

INSTALLATION

Unpacking

Unpack and check unit for damage and report any damage to the carrier and
supplier. Report any deficiencies to your supplier.

The cabinet is supplied fully assembled, but the shelf trays are packed
separately.

Site
Preparation

Ensure the cabinet location and any bench cut outs are made to the precise
measurements shown in the Mechanical Drawings. Position the cabinet in its
allocated working position. Use a spirit level to ensure the cabinet is level from
side to side and front to back. (If this is not carried out, uneven temperature
distribution could occur).

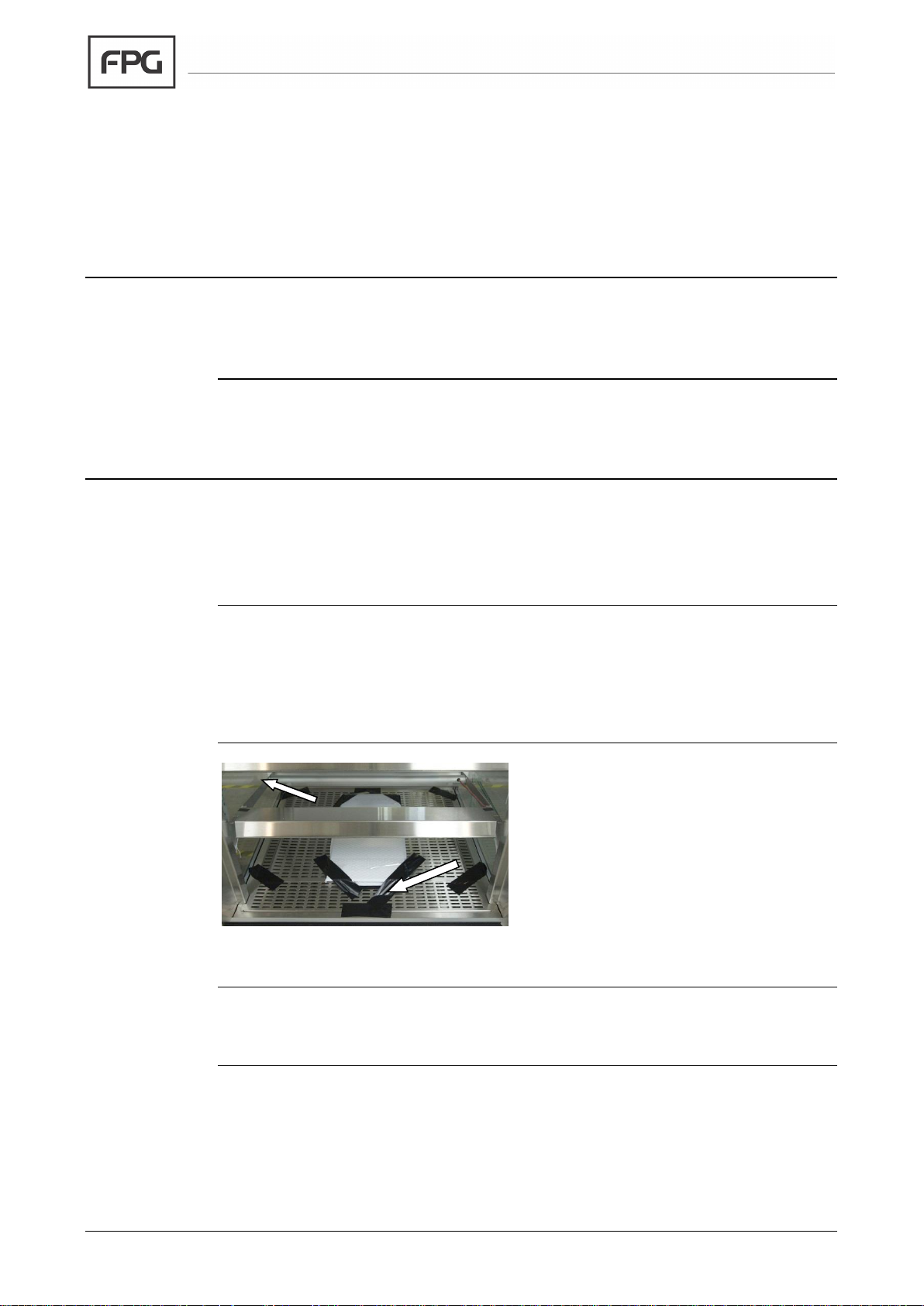

Cabinet
Preparation

Remove all tapes, ties and packers,
used to prevent movement during
transit.

Lift out the deck trays, grills and divider
bars, to gain access to the cabinet well.

Check that all plastic film protection has
been removed from surfaces; otherwise
it will melt when the cabinet heats up.

Re-assemble the trays and shelves.

Shelf Trays

Remove the shelf trays from their packing, peel off the protective plastic coating
and assemble them on the support members.

Continued on next page

IN 3H06/08/12/15 - 15 - © Future Products Group

Setting Up cont.

HEATED CABINETS - INSTALLATION

Grounding

WARNING: THIS APPLIANCE MUST BE GROUNDED TO EARTH

The grounding lead, in the mains cable, must always be connected to ground.
A binding post is also provided adjacent to the control gear chassis, to allow the

cabinet to be bonded to a surge grounding conductor or to adjacent equipment,
should this be required.

Power Supply

Before connecting to the power supply, check that the local supply is correct to
that shown on the rating plate, located on the rear of the cabinet.

Isolation

If the cabinet is not connected by a plug and socket, but is hard wired to the
mains supply, a means of isolation must be provided.

If a plug and socket are used, they should still be accessible after the cabinet is
installed.

Location

HEATED CABINETS

-

INSTALLATION

Ventilation

The heated cabinet is designed to meet the HACCP specification with free room
air circulation.

Access

Access to the back of the cabinet is required for loading, cleaning, re-positioning
of shelves and operation of the control panel.

Fumes and
Odours

Before use, operate the cabinet for 4 hours at 90°C, to remove any fumes or
odours, which may be present. Open the doors periodically during this period,
to allow a change of air. This will avoid possible tainting of food.

Part No.26118 Rev. H September 2018 - 16 - Inline 3000 Series Cabinets

Livery

HEATED CABINETS

-

INSTALLATION

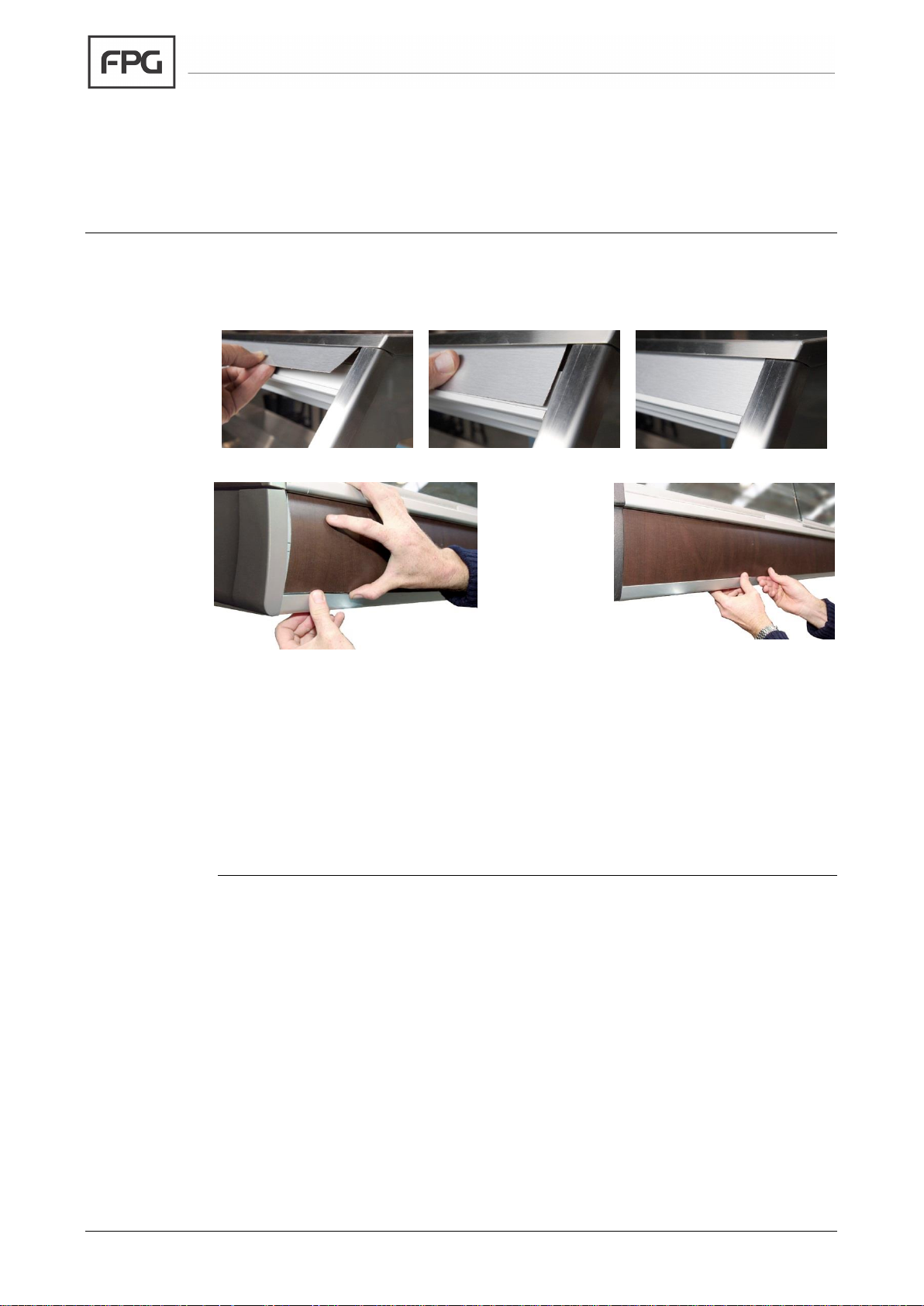

Custom Inserts

The captive strips, above and below the front doors, can be removed and
replaced with coloured or printed strips of decorative laminate, if desired.

The cabinet top must be unscrewed, to allow the upper strip to be changed.

The lower
strip is held
captive by the
cabinet ends,
and has to be
bowed for
removal and
insertion.

Insert the upper edge into the narrow groove, closest to the curved surface, bow
the strip to insert the end into the lower groove, then, use your thumbs to work
the rest of the strip into place.

If the strip is hard to bend, a length of wooden dowel can be placed underneath
to aid bowing. The dowel should be progressively withdrawn as the strip is
inserted.

Note: Most metals are too rigid for insertion in this position.
Maximum strip thickness is 0.75mm. See Mechanical Drawings for dimensions.

IN 3H06/08/12/15 - 17 - © Future Products Group

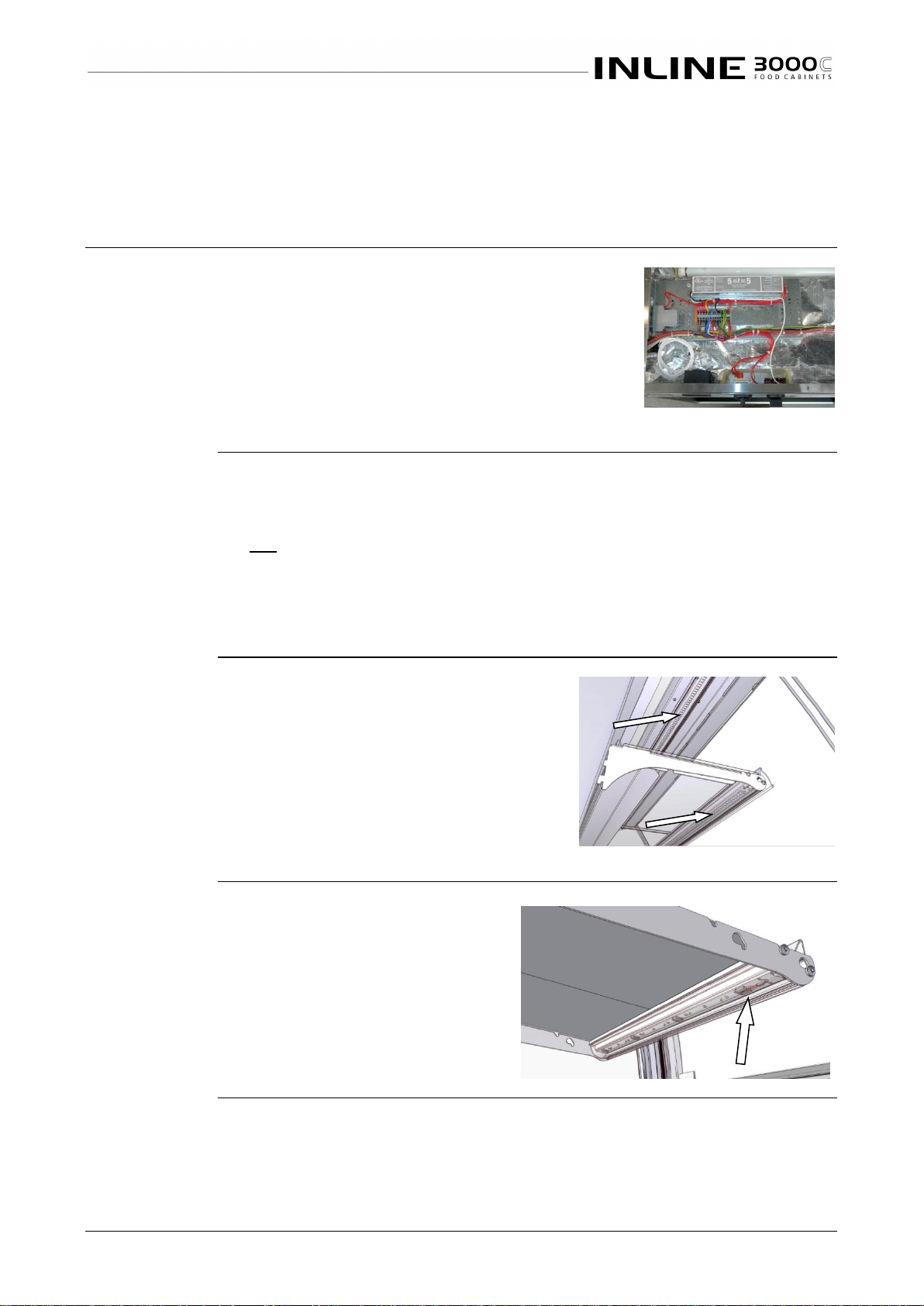

SERVICING

Control Gear

HEATED CABINETS

-

SERVICING

Location

The electrical control gear is located in the top of the
cabinet.

Remove the top plate to access the control gear.
The chassis has a light switch, power supplies for the

lights and fan, a thermostat, a thermometer and a
protective fuse.

Extraction fans are fitted in the cabinet top, to keep the power supplies cool.

Lighting

HEATED CABINETS

-

SERVICING

Caution

Do not service lights without isolating the cabinet from the mains supply.

Test Lighting
Components

Before replacing an LED strip, check that its power supply is working.
If there is no dc voltage at the output, the power supply should be replaced.
If there is a dc output, the LED strip must be replaced.

Access to LED
Strips

The LED strips are protected with plastic
covers. These clip into grooves in the
aluminium extrusion.

Remove the plastic cover to access the LED
strip.

The top light assembly is different from the
shelf lights, so the correct replacement unit
must be used.

LED Strip
Replacement

Individual LED modules cannot be
replaced. A complete light unit must
be used.

Connection is made with a plug and
socket. Disconnect the supply lead
from the faulty unit, and reconnect it
to the replacement unit.

Part No.26118 Rev. H September 2018 - 18 - Inline 3000 Series Cabinets

Heating

HEATED CABINETS

-

SERVICING

Caution

DO NOT attempt to replace heating elements without isolating the cabinet
at the supply switch or by unplugging it from the mains supply.

Element
Replacement

CAUTION:

This must only
be carried out by
a qualified
service person.

Remove all base trays and dividers from
inside the cabinet, to reveal the heating
elements.

To access the element terminals,
remove the screws securing the element
to the rear bulkhead. Unclip the element
from its support brackets and withdraw it
to reveal the connections.

Disconnect the old element, connect the replacement, taking care to replace
and refit any insulation material. Position the new element against the
bulkhead, clip it into the support brackets and replace the two fixing screws.

Test

Turn the power on and test the heater operation. If normal operation cannot be
restored, by replacing the element, other circuit elements will have to be
checked, see Fault Finding.

Caution

Do not run the cabinet heaters for extended periods, without the base
trays and divider bars in position. Directly radiated heat may otherwise
damage the lower light fittings.

Re-assemble

If the heater is now working, replace the steel connection covers and re­assemble the base trays and dividers inside the cabinet.

IN 3H06/08/12/15 - 19 - © Future Products Group

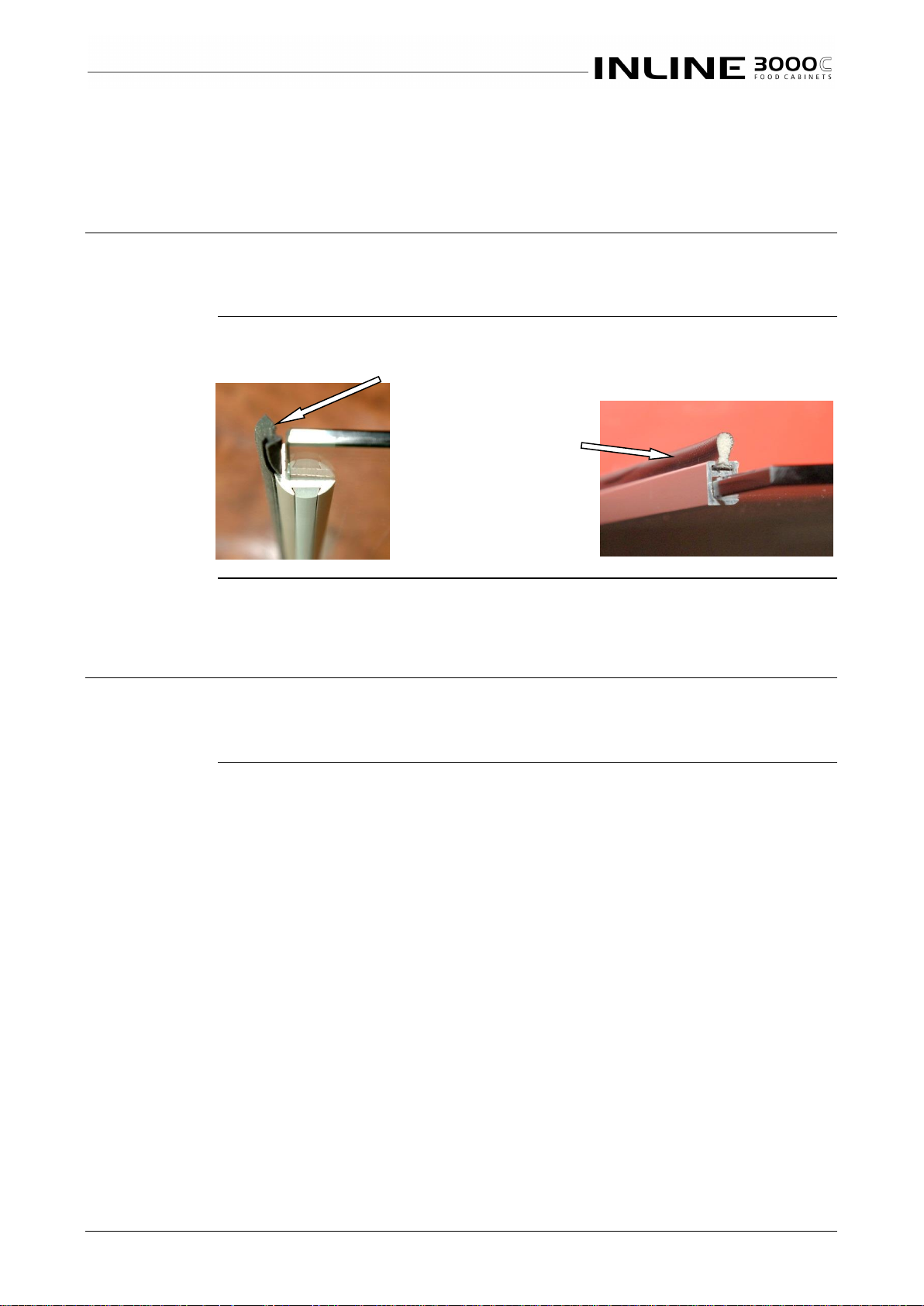

Door Seals

HEATED CABINETS

-

SERVICING

Seal
Replacement

The doors should be removed to allow the old seals to be removed and the new
ones fitted. See the Cleaning section for details.

Sliding Doors

Each sliding door has a seal between the door and the cabinet end panel. The
seal slides into a groove in the door extrusion, and can be withdrawn and

replaced, if damaged.
A centre seal is fitted

between the inner and
outer doors. The Qlon
seal is located in a slot
in the aluminium
extrusion, and can be
replaced if damaged.

Mains Lead

HEATED CABINETS

-

SERVICING

Lead
Replacement

If damaged, the mains lead must ONLY be replaced by a qualified service
person.

Part No.26118 Rev. H September 2018 - 20 - Inline 3000 Series Cabinets

SPECIFICATIONS

Mechanical

HEATED CABINETS

-

SPECIFICATIONS

CABINET MODEL

IN 3H06

IN 3H08

IN 3H12

IN 3H15

Height

767 mm

761 mm

761 mm

761 mm

Width

593 mm

803 mm

1203 mm

1503 mm

Depth

663 mm

663 mm

663 mm

663 mm

Dry Weight

62 kg

62 kg

92 kg

122 kg

Cabinet Well Material

Stainless steel

Cabinet Colour

Grey, stainless steel and natural anodised aluminium.

Top Lighting

Standard

Shelf Lighting

Optional

Glass Type

Toughened

Glass (front/back)

Single glazed

Glass (ends)

Double glazed

Front Doors

Sliding or Fixed options

Number of Shelves

Three plus base

Display Area

0.7 m2

0.9 m2

1.4 m2

1.8 m2

Climatic Class & IP

Cabinets are tested under Climate Class 2 conditions and have IP 20 ratings

Electrical

HEATED CABINETS

-

SPECIFICATIONS

CABINET MODEL

IN 3H06

IN 3H08

IN 3H12

IN 3H15

Voltage

220 - 240 V 50 Hz 1

Power (with shelf lights)

875 W

900 W

1.7 kW

1.8 kW

Current (with shelf lights)

3.8 A

3.9 A

7.2 A

7.7 A

Connection

3 pin plug, 10 A lead

HACCP Temp. Range

65 - 80 C

65 - 80 C

65 - 80 C

65 - 80 C

Max. Temp. Range

30 - 90 C

30 - 90 C

30 - 90 C

30 - 90 C

Top Lights

1 x LED strip

1 x LED strip

1 x LED strip

1 x LED strip

Optional Shelf Lights

3 x LED strips

3 x LED strips

3 x LED strips

3 x LED strips

IN 3H06/08/12/15 - 21 - © Future Products Group

Compliance

HEATED CABINETS

-

SPECIFICATIONS

Standards

FPG heated food display cabinets are designed to meet and exceed:

• International safety standards for electrical heated appliances: IEC 60335-1,
IEC 60335-2-49, IEC 60335-2-50 and the equivalent country-specific
standards including AS/NZS and BS EN.

• International standards for electromagnetic compatibility/emissions: CISPR
14-1, and the equivalent county-specific standards including AS/NZS CISPR
and BS EN 55014-1.

• Essential safety requirements: AS/NZS 3820 and AS/NZS 4417

Please contact FPG to discuss your requirements for meeting country-specific
standards.

Operational
Safety

This appliance is not intended for use by young children or infirm persons,
unless they have been adequately supervised by a responsible person, to
ensure that they can use the appliance safely.

Young children should be supervised, to ensure that they do not play with the
appliance.

Performance
Aspects

The cabinet is HACCP compliant, with the following performance:

Cabinet Operating Temperature

Test Conditions

>65°C

22°C Ambient with 65% RH

Improvements

HEATED CABINETS

-

SPECIFICATIONS

Ongoing
Development

FPG reserves the right to change specifications and construction, as part of
ongoing product improvement.

Part No.26118 Rev. H September 2018 - 22 - Inline 3000 Series Cabinets

ELECTRICAL CIRCUIT DIAGRAMS

Model: IN 3H06

Inline 3000 Series, 600mm Heated Cabinet

Model: IN 3H08

Inline 3000 Series, 800mm Heated Cabinet

IN 3H06/08/12/15 - 23 - © Future Products Group

ELECTRICAL WIRING DIAGRAMS, Continued

Model: IN 3H12

Inline 3000 Series, 1200mm Heated Cabinet

Model: IN 3H15

Inline 3000 Series, 1500mm Heated Cabinet

Part No.26118 Rev. H September 2018 - 24 - Inline 3000 Series Cabinets

SPARE PARTS

Cabinet Serial
Number

When ordering spare parts, it is important to quote the Serial Number printed on
the label fixed to the control panel. This will enable FPG to ensure that spare
parts are fully compatible with your cabinet.

To satisfy warranty conditions, and ensure optimum performance, use
only FPG supplied spare parts.

Part Description

FPG Part No.

Light Switch EGO

14372

Knob (light switch)

14374

24V 60W LED power supply

21613

36V 100W LED power supply

25922

LED Driver 700mA

25762

Polycarbonate Light Cover 1120mm

18113

Polycarbonate Light Cover 720mm

18114

Top Light Replacement Kit for 3H06

69871

Shelf Light Replacement Kit for 3H06

69839

Top Light Replacement Kit for 3H08

71647

Shelf Light Replacement Kit for 3H08

70397

Top Light Replacement Kit for 3H12

69858

Shelf Light Replacement Kit for 3H12

69869

Top Light Replacement Kit for 3H15

69863

Shelf Light Replacement Kit for 3H15

69424

Thermostat 90°C

21112

Control Gear 40 dia Knob 90C for Rainbow Thermostat

21113

Thermometer

11925

Fuse Link (5A, 250V, Slow Blow)

13330

Extraction Fan 119 mm 230V

21614

Extraction Fan BLDC 60x60x25mm (600 cabinets only)

23282

Shelf Light Diffuser 1120mm Long Clear Polycarb

18113

Shelf Light Diffuser 720mm Long Clear Polycarb

18114

Heating Element 850W (800/1500 Cabinets only)

22557

Heating Element 1600W (1200 Cabinets only)

18683

Qlon centre door seal

13677

Slide-in rubber door seal

11424

IN 3H06/08/12/15 - 25 - © Future Products Group

Spare Parts continued

Handed Parts

All handed parts are referenced as viewed from the back of the cabinet

Part Description

FPG Part No.

LH End Glass Kit (viewed from back of cabinet)

62709

RH End Glass Kit (viewed from back of cabinet)

62710

Back Inner Sliding Door(800 cabinets only)

62662

Back Outer Sliding Door(800 cabinets only)

62663

Back Inner Sliding Door(1200 cabinets only)

62664

Back Outer Sliding Door(1200 cabinets only)

62665

Back Inner Sliding Door(1500 cabinets only)

62666

Back Outer Sliding Door(1500 cabinets only)

62667

Front Inner Curved Sliding Door (600 cabinets)

66934

Front Outer Curved Sliding Door (600 cabinets)

66935

Rear Swing Door (600 cabinets only)

66965

Front Inner Curved Sliding Door (800 cabinets)

63342

Front Outer Curved Sliding Door (800 cabinets)

63343

Front Inner Curved Sliding Door (1200 cabinets)

63344

Front Outer Curved Sliding Door (1200 cabinets)

63345

Front Inner Curved Sliding Door (1500 cabinets)

63346

Front Outer Curved Sliding Door (1500 cabinets)

63347

Front Fixed Glass Kit (800 cabinets)

62643

Front Fixed Glass Kit (1200 cabinets)

62649

Front Fixed Glass Kit (1500 cabinets)

62653

Product Manual for Inline 3000 Series Heated Cabinets

15876

Part No.26118 Rev. H September 2018 - 26 - Inline 3000 Series Cabinets

MECHANICAL DRAWINGS

Dimensions

HEATED CABINETS

-

MECHANICAL DRAWINGS

IN-3H06-A002

IN 3H06/08/12/15 - 27 - © Future Products Group

Dimensions cont.

HEATED CABINETS - MECHANICAL DRAWINGS

IN-3H08/12/15

Continued on next page

Part No.26118 Rev. H September 2018 - 28 - Inline 3000 Series Cabinets

Top Insert 539 / 749 / 1149 / 1449 mm long x 50 mm wide

Bottom Insert 544 / 754 / 1154 / 1454 mm long x 134 mm wide

Colour / Text

Inserts

Max. thickness

0.75 mm

Dimensions cont.

HEATED CABINETS - MECHANICAL DRAWINGS

Cabinet
Variants

The drawings show the common overall dimensions for 800mm, 1200mm and
1500mm cabinets.

The cabinets can have a single fixed front glass, in place of the twin sliding
doors shown.

Livery

If custom livery is applied to the cabinet, the insert material must be flexible,
such as Formica decorative laminate or plastic sheet.

Most metals cannot be flexed sufficiently for insertion in the lower position.

IN 3H06/08/12/15 - 29 - © Future Products Group

Bench Cut-outs

HEATED CABINETS

-

MECHANICAL DRAWINGS

In Bench
Mounting

Remove the decorative end panels from the base, to allow in bench mounting.
The following diagram shows the aperture dimensions, which will allow the

cabinet well to enter the bench. The cabinet deck trays will then be just above
bench height.

On Bench
Mounting

The following diagram shows the size and location of the holes, required for the
cabinets to sit on the bench.

The holes are always in the same location, with reference to the back, right
hand corner of all cabinets.

Part No.26118 Rev. H September 2018 - 30 - Inline 3000 Series Cabinets

IN 3H06/08/12/15 - 31 - © Future Products Group

Part No.26118 Rev. H September 2018
