Page 1
F-PEDALS
SYNTHFONIA
PULSE OF REBELLION
USER’S GUIDE
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA - User’s Guide
F-Vision LLC © All Rights Reserved.
Page 2
Congratulations on your new F-Pedal !
I know you are ready to rock but Please Read
through this guide before you start.
You will find important information about this
pedal and useful tips.
Please don’t be shy to share photos, videos or
stories of your epic moments rockin’ out Fpedals!
Stay connected with us and many other cool
artists on our social medias and be part of our Family.
I truly hope our pedals will inspire you to create
amazing music.
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA- User’s Guide
F-Vision LLC © All Rights Reserved.
STEP 1 Plug in audio and power
cables
STEP 2 Stomp on the foot switch and
turn on the Tremelon
STEP 3 Figure it out yourself….!
End of this User’s Guide. LOL !
STEP 4 If STEP 3 Failed…
…keep reading !!
Page 3
TOP PANEL CONTROLS
TONE!
Sets the amount of brightness of the synthfuzz and has
a built in LED light to indicate the ON/OFF status of the
pedal
TRUE BYPASS FOOT SWITCH!
Turns the pedal ON/OFF.
EXTREME SWITCH
Switch down to increase the amount of filter
LEVEL!
Use this control to adjust the amount of output volume
SYNTHFUZZ!
This control increases simultaneously the amount
of fuzz and synth filter, increase it by turning
clockwise.
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA - User’s Guide
F-Vision LLC © All Rights Reserved.
Page 4

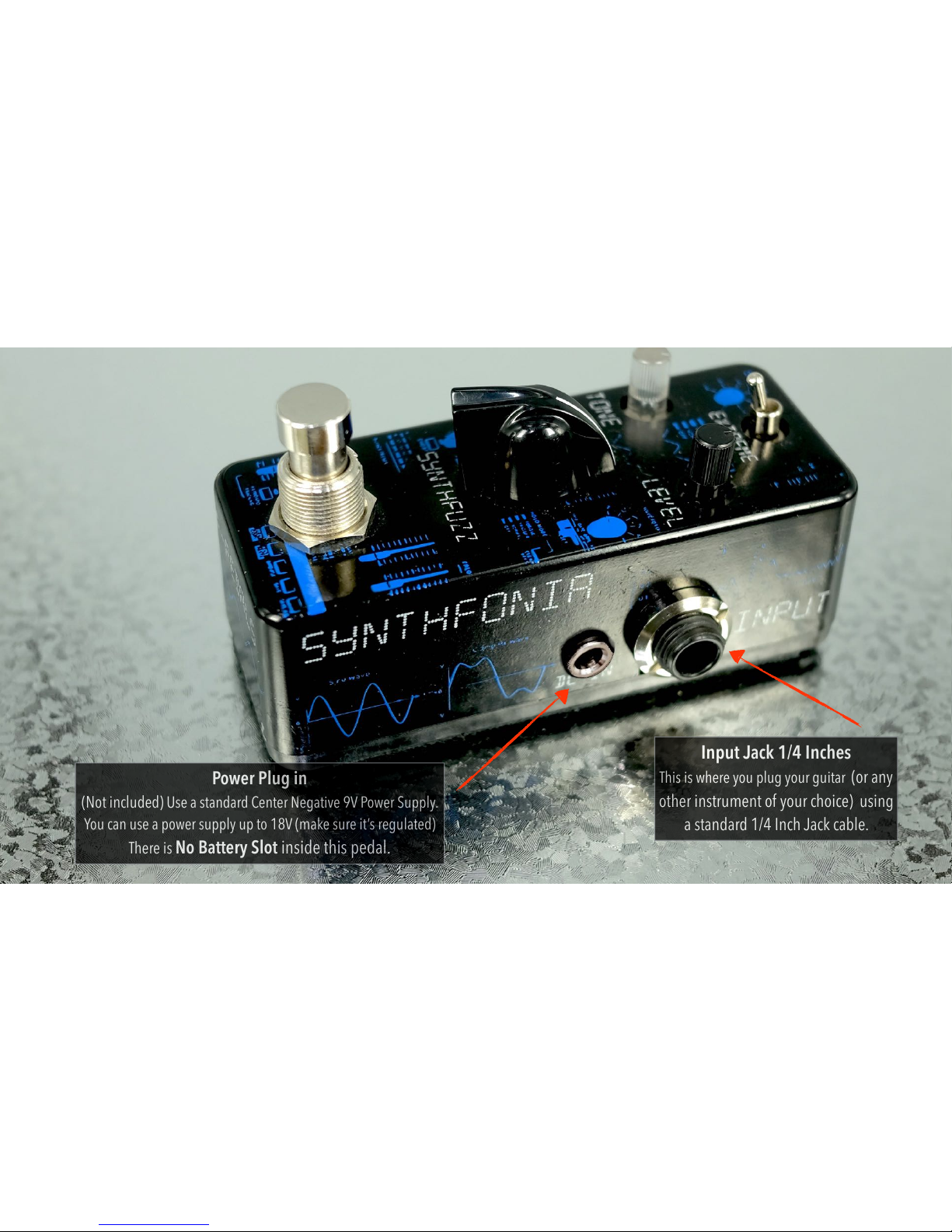

RIGHT PANEL
Power Plug in!
(Not included) Use a standard Center Negative 9V Power Supply.
You can use a power supply up to 18V (make sure it’s regulated)
There is No Battery Slot inside this pedal.
Input Jack 1/4 Inches
This is where you plug your guitar (or any
other instrument of your choice) using
a standard 1/4 Inch Jack cable.
F-Vision LLC © All Rights Reserved.
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA - User’s Guide
F-Vision LLC © All Rights Reserved.
Page 5
Please do not try to open
the pedal! Keep in mind
that if the stickers on the
screws are removed or
damaged you will lose
your Warranty.
Output Jack 1/4 Inches
Connect here the 1/4 inch Jack that goes to
your Amplifier or other system of your choice.
LEFT PANEL
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA - User’s Guide
F-Vision LLC © All Rights Reserved.
Page 6
Warranty !
If you experience a malfunction of the pedal, depending on the country and region
you are!in,!you may either contact the dealer where you purchased the pedal from, or
you can reach us directly!at [email protected].
We will ask you to ship your pedals to us ONLY IF!we find it necessary to perform a
factory repair or replacement. Our!warranty is effective for 1 year (from the date of
purchase of a new unit) and only for issues caused by our manufacturing defects.!The
warranty will be voided if the unit has been misused, abused, modified by any
unauthorized parties, or if any seal sticker on the bottom screws is removed or
broken.!
Although you don’t need to register your product, we will ask for your original
receipt in order to process your request.
F-Pedals reserves the right to make changes or improvements on this
product!without incurring any obligation to install the same on!products previously
manufactured. F-Pedals is not responsible for injuries and/or damages related to the
use of our products.!
F-Pedals - PULSE OF REBELLION SERIESSYNTHFONIA - User’s Guide
F-Vision LLC © All Rights Reserved.
