Foxwell DPT701 User Manual
1

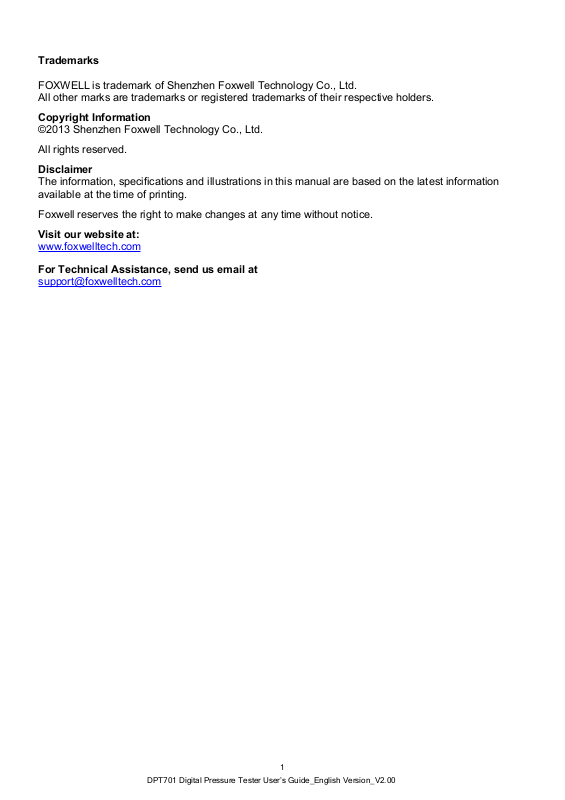

Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
©2013 Shenzhen Foxwell Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest information
available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at:
www.foxwelltech.com
For Technical Assistance, send us email at
support@foxwelltech.com
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
2
One-Year Limited Warranty
Subject to the conditions of this limited warranty, Shenzhen Foxwell Technology Co., Ltd
(“FOXWELL”) warrants its customer that this product is free of defects in material and
workmanship at the time of its original purchase for a subsequent period of one (1) year.
In the event this product fails to operate under normal use, during the warranty period,due to
defects in materials and workmanship, FOXWELL will, at its sole option, either repair or replace
the product in accordance with the terms and conditions stipulated herein.
Terms and Conditions
1 If FOXWELL repairs or replaces the product, the repaired or replaced product shall be
warranted for the remaining time of the original warranty period.No charge will be made to the
customer for replacement parts or labor charges incurred by FOXWELL in repairing or replacing
the defective parts.
2 The customer shall have no coverage or benefits under this limited warranty if any of the
following conditions are applicable:
a) The product has been subjected to abnormal use, abnormal conditions, improper storage,
exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of
FOXWELL, including damage caused by shipping.
b) The Product has been damaged from external causes such as collision with an object, or from
fire, flooding, sand, dirt, windstorm, lightning, earthquake or damage from exposure to weather
conditions, an Act of God, or battery leakage, theft, blown fuse, improper use of any electrical
source, or the product was used in combination or connection with other product, attachments,
supplies or consumables not manufactured or distributed by FOXWELL.
3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall
bear the cost of shipping the product back to the customer after the completion of service under
this limited warranty.
4 FOXWELL does not warrant uninterrupted or error-free operation of the product. If a problem
develops during the limited warranty period, the consumer shall take the following step-by-step
procedure:
a) The customer shall return the product to the place of purchase for repair or replacement
processing, contact your local FOXWELL distributor or visit our website www.foxwelltech.com to
get further information.
b) The customer shall include a return address, daytime phone number and/or fax number,
complete description of the problem and original invoice specifying date of purchase and serial
number.
c) The customer will be billed for any parts or labor charges not covered by this limited warranty.
d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the
product. If FOXWELL cannot perform repairs covered under this limited warranty within 30 days,
or after a reasonable number of attempts to repair the same defect, FOXWELL at its option, will
provide a replacement product or refund the purchase price of the product less a reasonable
amount for usage.
e) If the product is returned during the limited warranty period, but the problem with the product is
not covered under the terms and conditions of this limited warranty, the customer will be notified
and given an estimate of the charges the customer must pay to have the product repaired, with
all shipping charges billed to the customer. If the estimate is refused, the product will be returned
freight collect. If the product is returned after the expiration of the limited warranty period,
FOXWELL’ normal service policies shall apply and the customer will be responsible for all
shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED
WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE
CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. FOXWELL SHALL NOT BE LIABLE FOR SPECIAL,
INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
3
TO LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE,
LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY
ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT
OR FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING
CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE PURCHASE OR USE
OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE
THEORY, EVEN IF FOXWELL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. FOXWELL
SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED
WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING
REPAIRED.
6. Some states do not allow limitation of how long an implied warranty lasts, so the one-year
warranty limitation may not apply to you (the Consumer). Some states do not allow the exclusion
or limitation of incidental and consequential damages, so certain of the above limitations or
exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer
specific legal rights and the Consumer may also have other rights which vary from state to state.
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
4
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your tester. The safety messages
presented below and throughout this user’s manual are reminders to the operator to exercise
extreme care when using this device. Always refer to and follow safety messages and test
procedures provided by vehicle manufacturer. Read, understand and follow all safety messages
and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
injury to the operator or to bystanders.
Important Safety Instructions
And always use your tester as described in the user’s manual, and follow all safety messages.
●Do not route the test cable in a manner that would interfere with driving controls.
●Do not exceed voltage limits between inputs specified in this user’s manual.
●Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot
or caustic liquids.
●Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced
by a malfunction engine can cause serious injury or death. Do not use the tester in areas
where explosive vapor may collect, such as in below-ground pits, confined areas, or areas that
are less than 18 inches (45 cm) above the floor.
●Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all
sparks, heated items and open flames away from the battery and fuel / fuel vapors as they are
highly flammable.
●Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in work
area.
●Always be aware of rotating parts that move at high speed when an engine is running and keep
a safe distance from these parts as well as other potentially moving objects to avoid serious
injury.
●Do not touch engine components that get very hot when an engine is running to avoid severe
burns.
●Block drive wheels before testing with engine running. Put the transmission in park (for
automatic transmission) or neutral (for manual transmission). And never leave a running
engine unattended.
●Do not wear jewelry or loose fitting clothing when working on engine.
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
5
Table of Contents
ONE-YEAR LIMITED WARRANTY....................................................................................................................2
SAFETY INFORMATION......................................................................................................................................4
1 USING THIS MANUAL......................................................................................................................................7
2 INTRODUCTION.................................................................................................................................................8
3 GETTING STARTED..........................................................................................................................................9
4 DIAGNOSTIC OPERATION...........................................................................................................................11
SAFETY MESSAGE CONVENTIONS USED........................................................................................................... 4
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................... 4
1.1 BOLD TEXT....................................................................................................................................................7
1.2 SYMBOLS AND ICONS....................................................................................................................................7
1.2.1Solid Spot..............................................................................................................................................7
1.2.2Arrow Icon.............................................................................................................................................7
1.2.3 Note and Important Message...........................................................................................................7
2.1 TESTER DESCRIPTIONS................................................................................................................................ 8
2.2 ACCESSORY DESCRIPTIONS.........................................................................................................................9
2.3 TECHNICAL SPECIFICATIONS........................................................................................................................9
3.1 PROVIDING POWER TO TESTER...................................................................................................................9
3.1.1 Powered by Cell Battery....................................................................................................................9
3.1.2 Replace Battery(9V)...........................................................................................................................9
3.2 SYSTEM SETUP...........................................................................................................................................10
3.2.1 Select Language.............................................................................................................................. 10
3.2.2 Select Measurement Unit................................................................................................................10
3.2.3 Save The Plate Number..................................................................................................................10
3.2.4 Backlight............................................................................................................................................10

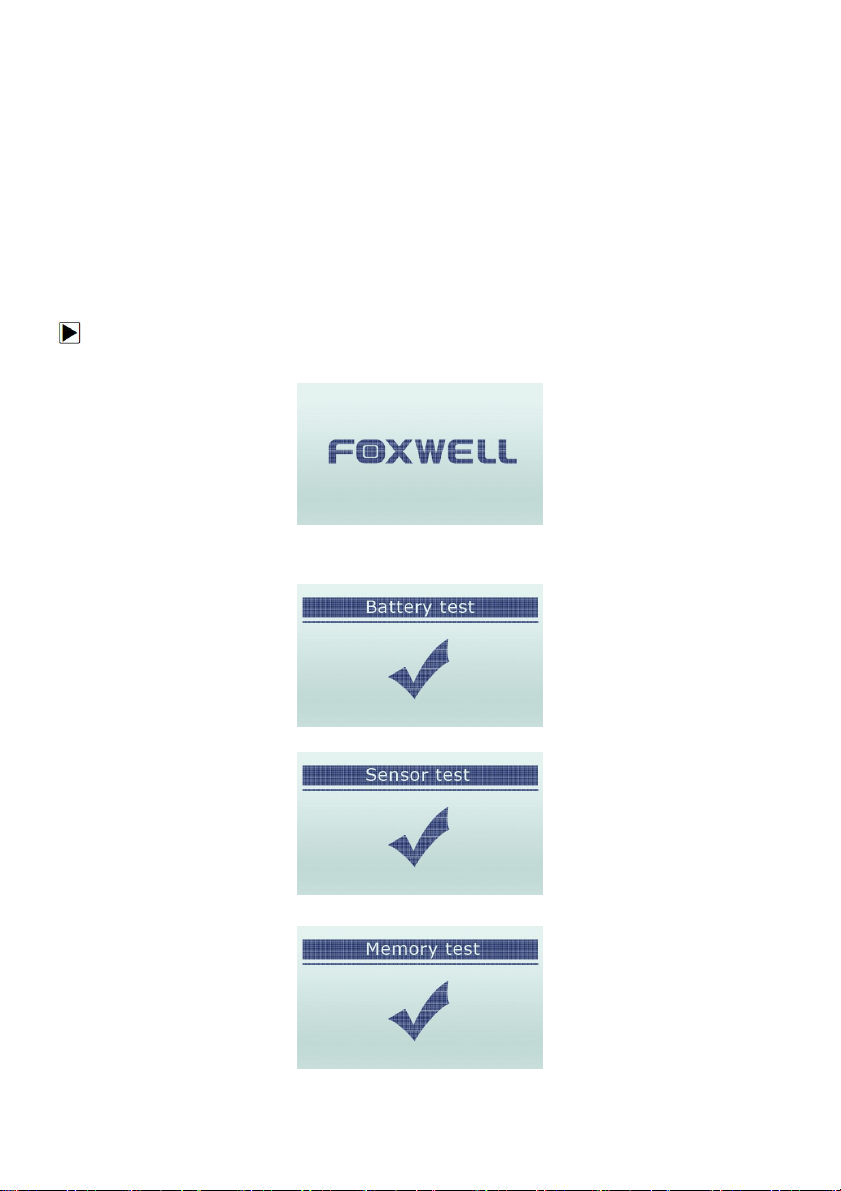

4.1 START-UP AUTO TEST................................................................................................................................11

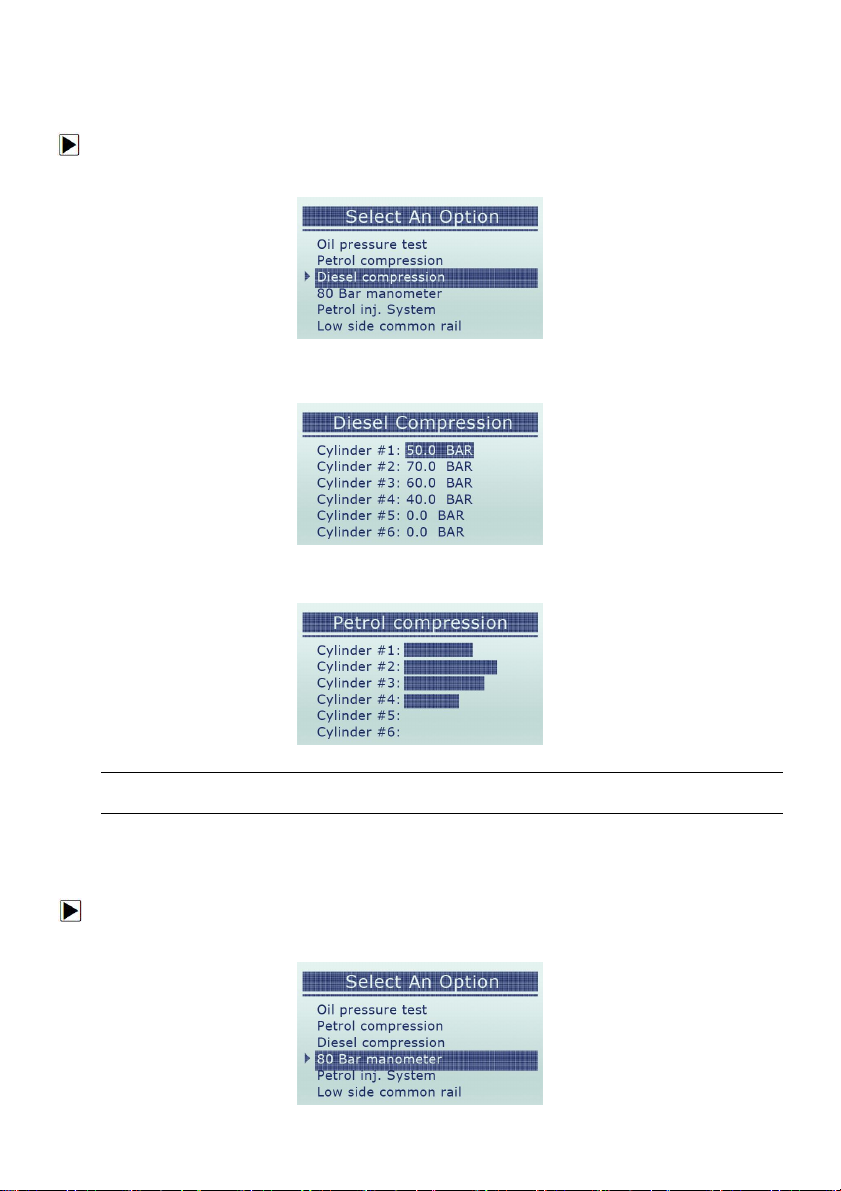

4.2 DIAGNOSTIC FUNCTION SELECTION.......................................................................................................... 12
4.2.1 Oil Pressure Test..............................................................................................................................12
4.2.2 Petrol Compression Test................................................................................................................ 13
4.2.3 Diesel Compression Test................................................................................................................14
4.2.4 80 Bar Manometer...........................................................................................................................14
4.2.5 Petrol Injection System....................................................................................................................15
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
6
4.2.6 Common Rail Test – Low Pressure Circuit..................................................................................16
5 PRINT DATA.....................................................................................................................................................18

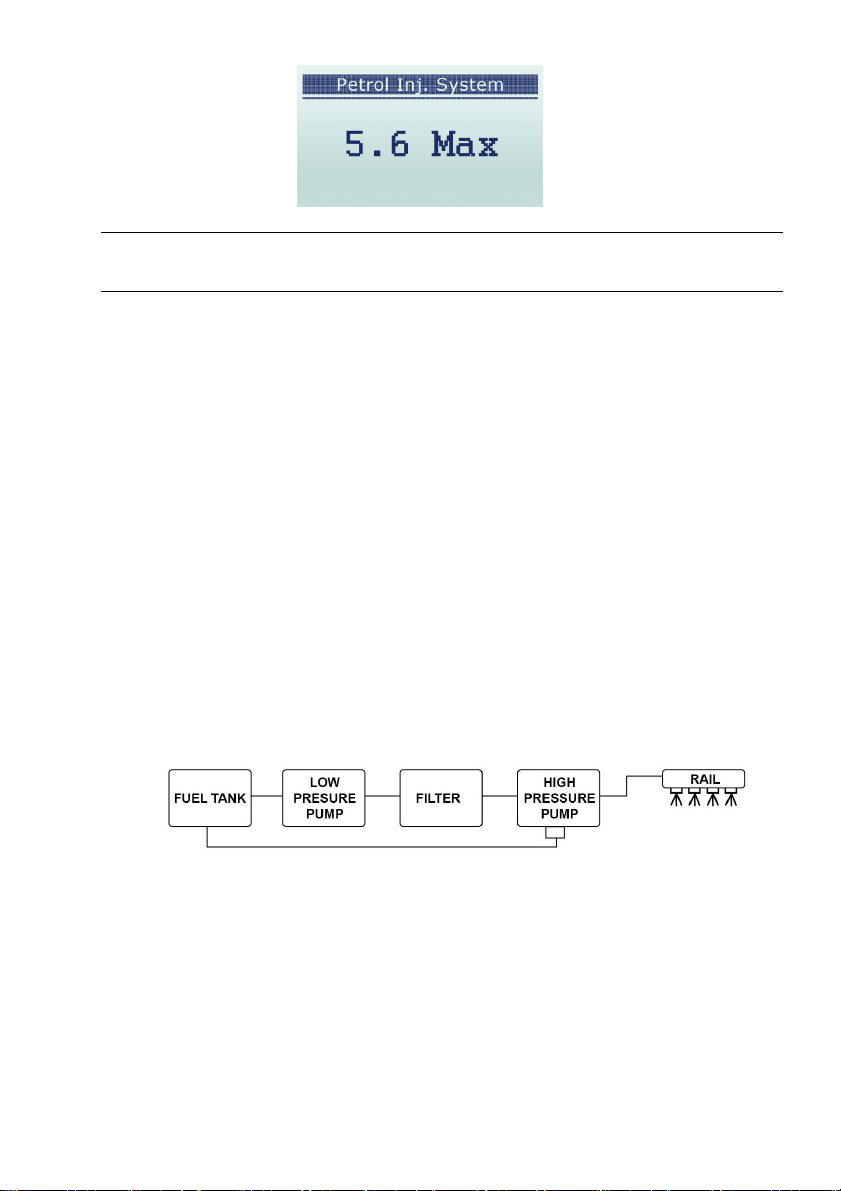

4.2.6.1 About The Common Rail System..........................................................................................16
4.2.6.2 To perform low pressure circuit test......................................................................................16
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
7
1 Using This Manual
We provide tool usage instructions in this manual. Below is the conventions we used in the
manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example
Press the ENTER key to select.
1.2 Symbols and Icons
1.2.1Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot ●.
Example
When System Setup is selected, a menu that lists all available options displays. Menu options
include:
●Languages
● Unit
● Workshop Name saving
1.2.2Arrow Icon
An arrow icon indicates a procedure.
Example
To change menu language
1. Scroll with the arrow keys to highlight Language on the menu.
2.Press the ENTER key to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example
NOTE
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test
equipment or vehicle.
Example
IMPORTANT
Do not soak keypad as water might find its way into the tester.
DPT701 Digital Pressure Tester User’s Guide_English Version_V2.00
