Foxwell BT705 User Manual
1

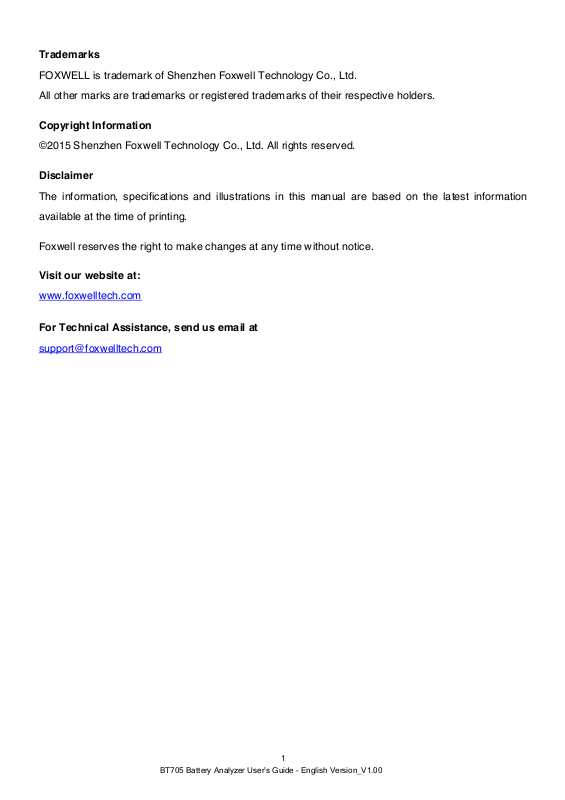

Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
©2015 Shenzhen Foxwell Technology Co., Ltd. All rights reserv ed.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest information
available at the time of printing.
Foxwell reserves the right to make changes at any time without notic e.
Visit our website at:
www.foxwelltech.com
For Technical Assistance, send us email at
support@foxwelltech.com
BT705 Battery Analyzer User’s Guide - English Version_V1.00
2
One-Year Limited Warranty
Subject to the conditions of this limited warranty, Shenzhen Foxwell Technology Co., Ltd
(“FOXWELL”) warrants its customer that this product is free of defects in material and
workmanship at the time of its original purchase for a subsequent period of one (1) year.
In the event this product fails to operate under normal use, during the warranty period, due to
defects in materials and workmanship, FO XWELL will, at its sole option, either repair or replace
the product in accordance with the terms and conditions stipulated herein.
Terms and Conditions
1 If FOXWELL repairs or replaces the product, the repaired or replaced product shall be
warranted for the remaining time of the original warranty period. No charge will be made to the
customer for replacement parts or labor charges incurred by FOXWELL in repairing or replacing
the defective parts.
2 The customer shall have no coverage or benefits under this limited warranty if any of the
following conditions are applicable:
a) The product has been s ubjected to abnormal use, abnormal conditions, improper storage,
exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of
FOXWELL, including damage caused by shipping.
b) The Product has been damaged from external causes such as collision with an object, or from
fire, flooding, s and, dirt, windstorm, lightning, earthquake or damage from exposure to weather
conditions, an Act of God, or battery leakage, theft, blown fuse, improper use of any electrical
source, or the product was used in combination or connection w ith other product, attachments,
supplies or consumables not manufactured or distributed by FOXWELL.
3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall
bear the c ost of shipping the product back to the customer after the completion of service under
this limited warranty.
4 FOXWELL does not warrant uninterrupted or error-free operation of the product. If a problem
develops during the limited warranty period, the consumer shall take the following step-by-step
procedure:
BT705 Battery Analyzer User’s Guide - English Version_V1.00
3
a) The customer shall return the product to the place of purchase for repair or replacement
processing, contact your local FOXWELL distributor or visit our website www.foxwelltech.com to
get further information.
b) The customer shall include a return address, daytime phone number and/or fax number,
complete description of the problem and original invoice specifying date of purchase and serial
number.
c) The customer will be billed for any parts or labor charges not covered by this limited warranty.
d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the
product. If FOXWELL cannot perform repairs cov ered under this limited warr anty within 30 days,
or after a reasonable number of attempts to repair the same defect, FOXWELL at its option, will
provide a replacement product or refund the purchase price of the product less a reasonable
amount for usage.
e) If the product is returned during the limited warranty period, but the problem with the product
is not covered under the terms and conditions of this limited warranty, the customer will be
notified and given an estimate of the charges the customer must pay to have the product
repaired, with all shipping charges billed to the customer. If the estimate is refused, the product
will be returned freight collect. If the product is returned after the expiration of the limited
warranty period, FOXWELL’ normal service policies shall apply and the customer will be
responsible for all shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PAR TICULAR
PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED
WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE
CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. FOXWELL SHALL NOT BE LIABLE FOR SPECIAL,
INCIDENTAL, PUNITIVE OR CONSEQUEN TIAL DAMAGES, INCLUDING BUT NO T LIMITED
TO LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE,
LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY
ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT
OR FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING
CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE PURC HASE OR USE
OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE
THEORY, EVEN IF FOXWELL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. FOXWEL L
BT705 Battery Analyzer User’s Guide - English Version_V1.00
4
SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED
WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING
REPAIRED.
6. Som e states do not allow limitation of how long an implied warranty lasts, so the one-year
warranty limitation may not apply to you (the Consumer). Some states do not allow the exclusion
or limitation of incidental and consequential damages, so certain of the above limitations or
exclusions may not apply to you (the Consumer). This limited warranty gives the Consum er
specific legal rights and the Consumer m ay also have other rights which vary from state to state.
BT705 Battery Analyzer User’s Guide - English Version_V1.00
5
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your tester. The safety messages
presented below and throughout this user’s manual are reminders to the operator to exercise
extreme care when using this device. Always follow all BCI (Battery Council International) safety
recommendations. Read, understand and follow all safety messages and instructions in this
manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or s erious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
injury to the operator or to bystanders.
Important Safety Instructions
And always use your tester as described in the user’s manual, and follow all safety messages.
Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals
know to the state of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
BT705 Battery Analyzer User’s Guide - English Version_V1.00
6
Table of Contents
ONE-YEAR LIMITED WARRANTY............................................................................................................ 2
SAFETY INFORMATION ............................................................................................................................ 5
SAFETY MESSAGE CONVENTIONS USED ................................................................................................... 5
IMPORTANT SAFETY INSTRUCTIONS .......................................................................................................... 5
1 USING THIS MANUAL ............................................................................................................................ 7
1.1 BOLD TEXT ......................................................................................................................................... 7
1.2 SYMBOLS AND ICO NS .......................................................................................................................... 7
1.2.1 Solid Spot .................................................................................................................................. 7
1.2.2 Arrow Icon ................................................................................................................................. 7
1.2.3 Note and Important Message ................................................................................................... 7
2 INTRODUCTIONS.................................................................................................................................... 8
2.1 TESTER DESCRIPT IONS ....................................................................................................................... 8
2.2 ACCESSORY DESCRI PTIONS ................................................................................................................ 9
2.3 SPECIFICATI ONS ............................................................................................................................... 10
3 OPERATIONS ........................................................................................................................................ 10
3.1 CONNECTING THE TESTER ................................................................................................................ 10

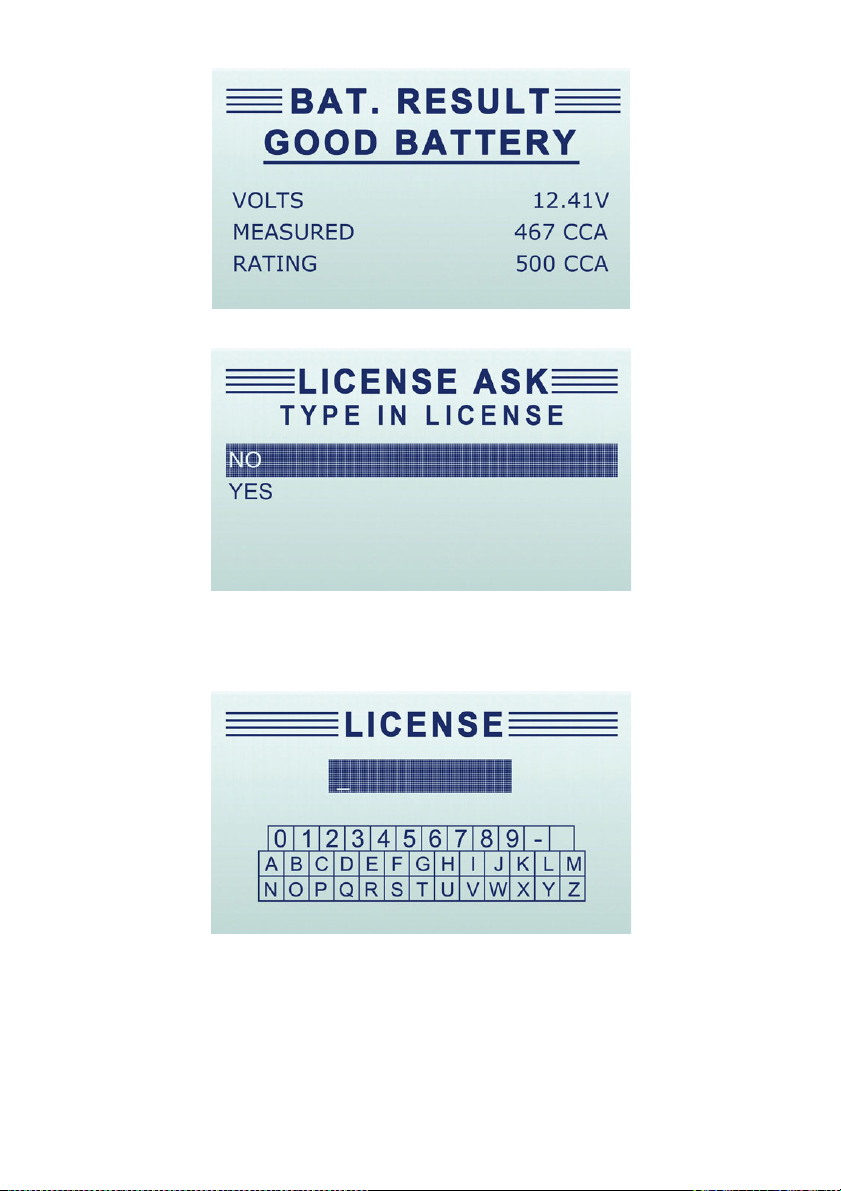

3.2 BATTERY TEST .................................................................................................................................. 11
3.3 CRANKING TEST ................................................................................................................................ 15
3.4 CHARGING SYSTEM TEST .................................................................................................................. 17

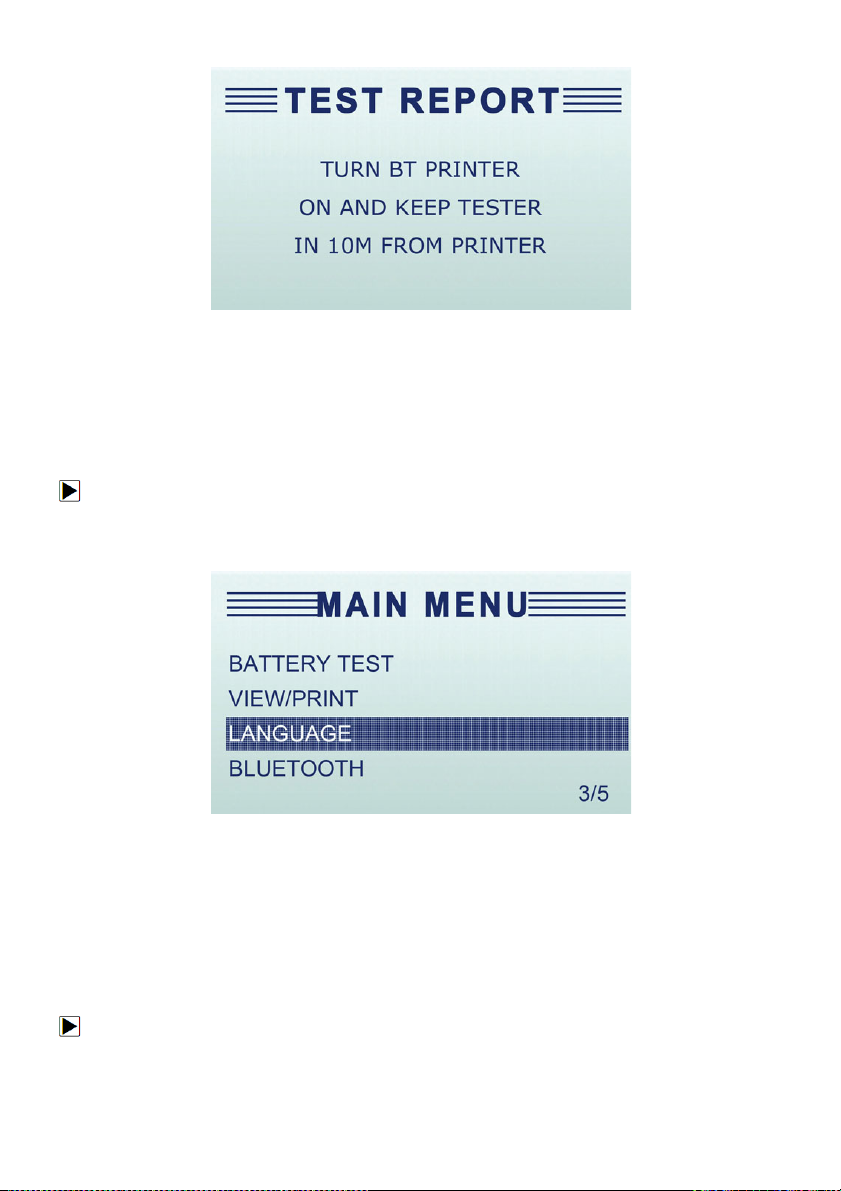

4 VIEWING/PRINTING TEST RESULTS ................................................................................................. 18
5 LANGUAGE ........................................................................................................................................... 20
6 BLUETOOTH PRINTER ........................................................................................................................ 20
7 VERSION INFO ...................................................................................................................................... 21
BT705 Battery Analyzer User’s Guide - English Version_V1.00
7
1 Using This Manual
We provide tool usage instructions in this manual. Below is the conventions we used in the
manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot ●.
Example:
When System Setup is selected, a menu that lists all available options displays. Menu options
include:
● Languages
● Unit
● Beep
● Keypad Test
● LCD Test
● About
● Shortcuts
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example:
To change menu language:
1. Scroll with the arrow keys to highlight Language on the menu.
2. Press the ENTER button to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
BT705 Battery Analyzer User’s Guide - English Version_V1.00
