Operating Instructions
FX-KVM02
DVI KVM Extender Over 70m Single Cat5e/6 with IR
Incorporates HDBaseT Technology
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
ABLE OF CONTENTS
Feature
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Product Service
Warranty
www.foxunhd.com
Operating Instructions
Use single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute DVI cable to
Support 8KV ESD protection.
Support TMDS equalization and enhancement.
Support EDID pass through via LAN, for best compliance with most display devices.
Support lnfrared control signal pass through via LAN.
By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely.
With customized remote button, it is easy to turn on PC remotely.
Support 1920x1080@60Hz.
1) Transmitter x1
2) Receiver x1
3) IR transmitter x1
4) IR receiver x1
5) DC5V Power Supply x2
6) User manual x1
Feature
extend longer transmission distance, transmitter up to 70m.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
PACKING CONTENTS
Notes: Please confirm if the product and the accessories and all in duded, if not please contact with
the dealers.
PANEL DESCRIPTION
Transmitter Panel
www.foxunhd.com
Operating Instructions
Receiver Panel
1) Connect the DVI source (Such as PC) to DVI Transmitter.
2) Connect cat5e/6 cables to both UTP output port of the transmitter and
UTP input port of the Receiver.
3) Connect the Receiver to the Monitor, keyboard, mouse.
4) Connect 5VDC power supplies to both Transmitter unit and Receiver unit.
1. IR transmitter port 2.LED indicators of power 3.Connection status
4. UTP cable port 5. DC 5V input 6.DVI input 7.USB cable in 8.Customized button
output pins
1.Customized button 2. IR receiver port 3. LED indicators of power 4.Connection status
5.UTP cable port 6.DC 5V input 7.DVI output 8.Keyboard and mouse input
CONNECT AND OPERATE

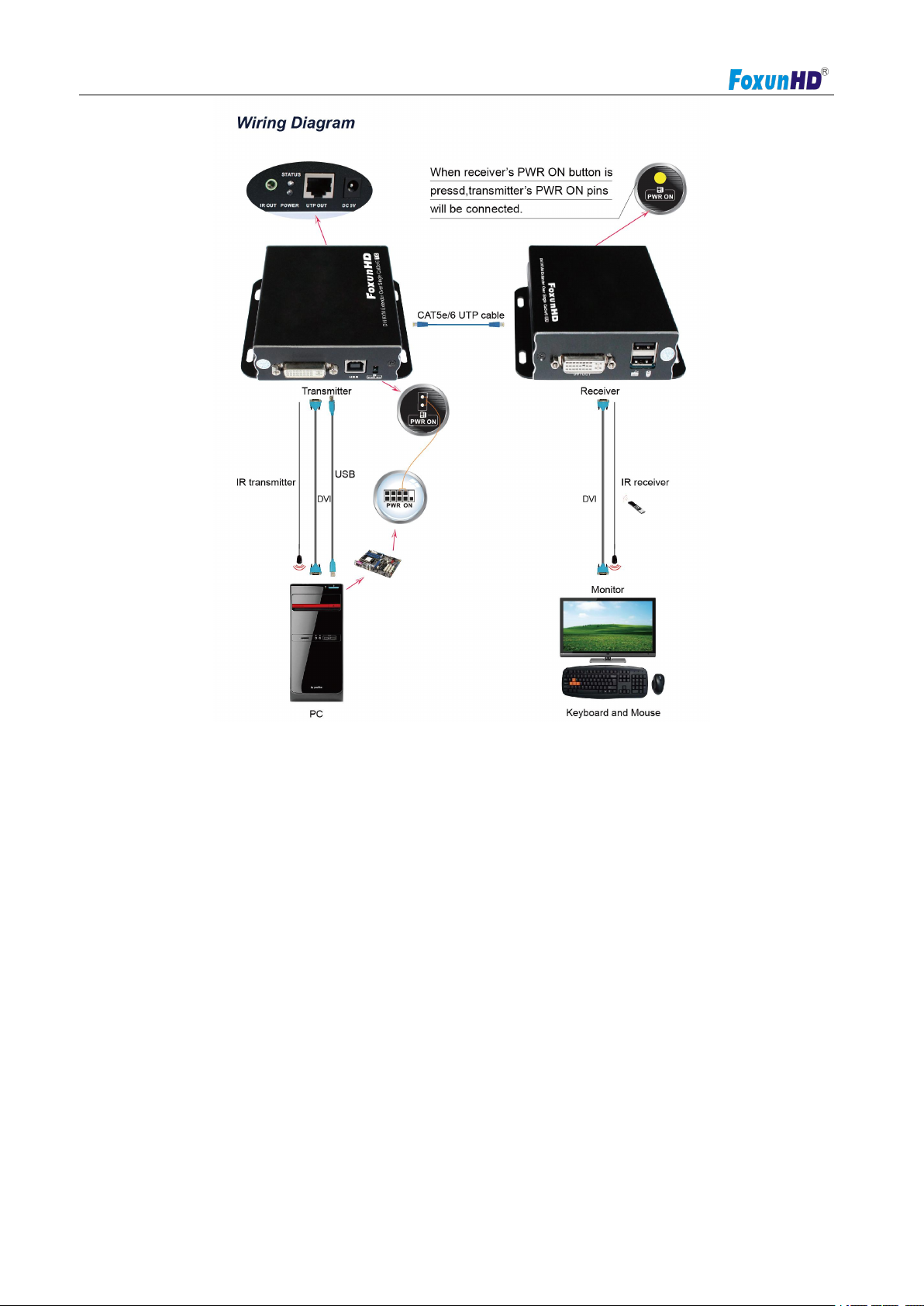

Typical Application
www.foxunhd.com
Operating Instructions
5) Damage requiring service: The unit should be serviced by qualified service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
Attention: 1) Insert/Extract cable gently.
2) Please don’t insert into or pull out HDMI Cable when power on. please connect Cable
only when power is off.
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzene to clean this unit.
PRODUCT SERVICE
www.foxunhd.com
Operating Instructions
(e)The unit has been dropped or the cabinet damaged.
6) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit
is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company
(referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"),
at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a
refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during
the warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by
warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory
Service center or other Authorized Servicer, or damage that is attributable to acts of God.
www.foxunhd.com
Operating Instructions
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images,
data or other recorded content. The items listed are not exclusive, but are for illustration only.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
www.foxunhd.com
