SX-MX42 HDMI Matrix
Operating Instruction
4 by 2 HDMI Matrix
Manual Version:Release 1013
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Routes four Ultra Hi-Def sources to two Ultra HD displays simultaneously.
Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
Supports 36 bit Deep Color
Supports PCM , Dolby Digital™, and DTS Digital Surround™ ®
Audio SPDIF(Coaxial and optical ) signal output and Output A signal is simultaneous.
Support HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution
Input port 1 is compliant with HDMI1.4/MHL2.0 specification
Support CEC function (including Input port 1-4 and Output A)
Support HDCP 1.3 specification
Support HDMI1.4 ARC(Audio return channel) RX (Output A)
3DTV pass-through
IR remote control
Surface-mounting ears
Package Contents
1x HDMI Matrix
1x IR Remote control
2x wall/rack mounts
1x 5V/2A DC Adapter
1x User Manual
Compliant HDCP
Specifications
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 10.2Gbps
Input ports 4xHDMI (female)
Output ports
2 x HDMI outputs
1x Optical audio output
1x Coaxial audio output
Resolution outputs up to 4K x 2K (3840 x 2160 @ 30Hz)
Dimensions (HxWxD) 28x230x87mm
Power consumption 5W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Net Weight 510g
Panel Description
Front Panel
Back Panel
1）Power switch.
2）IR Receiver Window
3）Indicator of HDMI outputs
4）Indicator of HDMI Inputs
5）Output A Select Button
6）Output B Select Button
7）Reset button
8）HDMI input ports
9）HDMI output ports
10）S/PDIF audio out：Optical
11）S/PDIF audio out：Coaxial
12）Power input

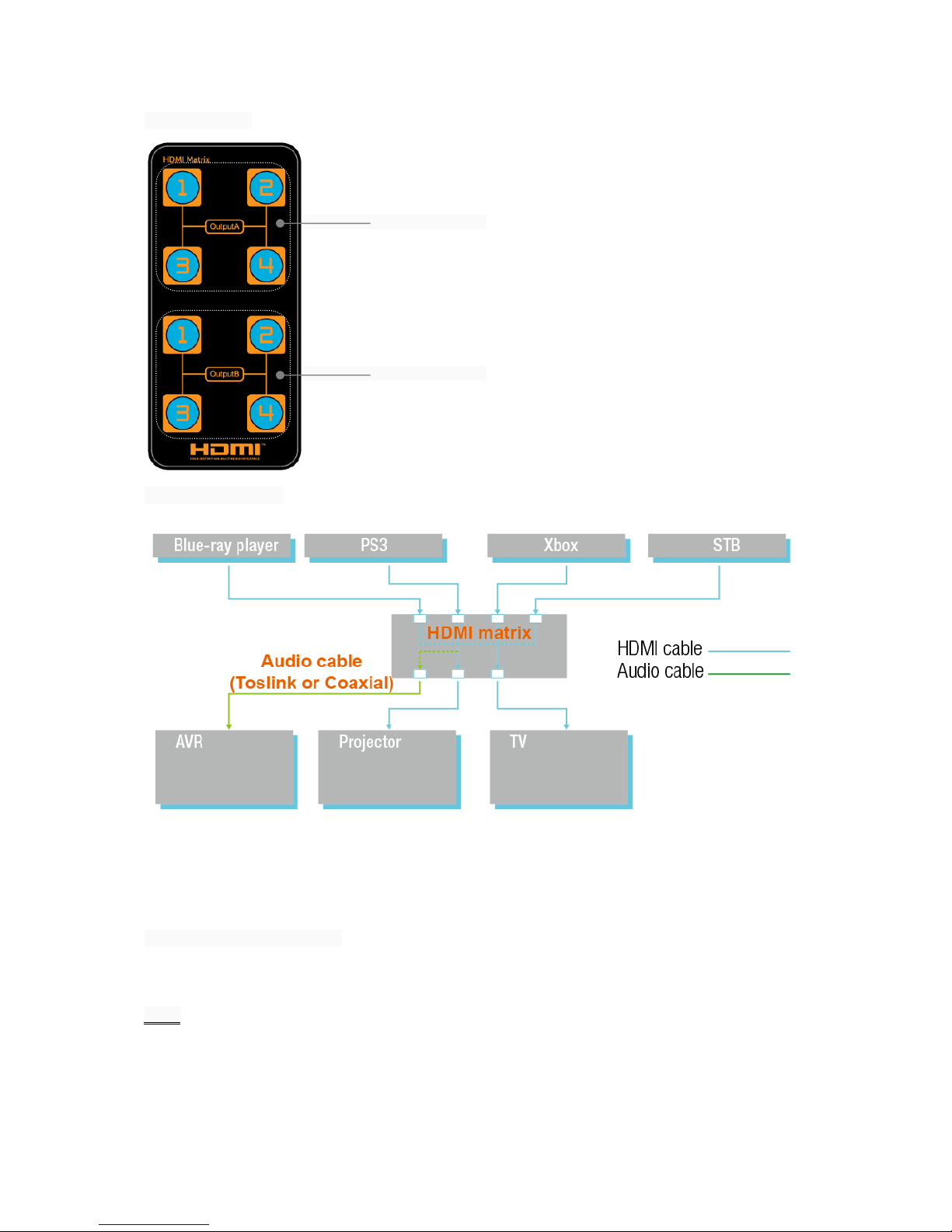

Remote Control
Output A selection.Numbers correspond with the HDMI outputs
(1-4) on the matrix.
Output B selection.Numbers correspond with the HDMI outputs
(1-4) on the matrix.
Connection Diagram

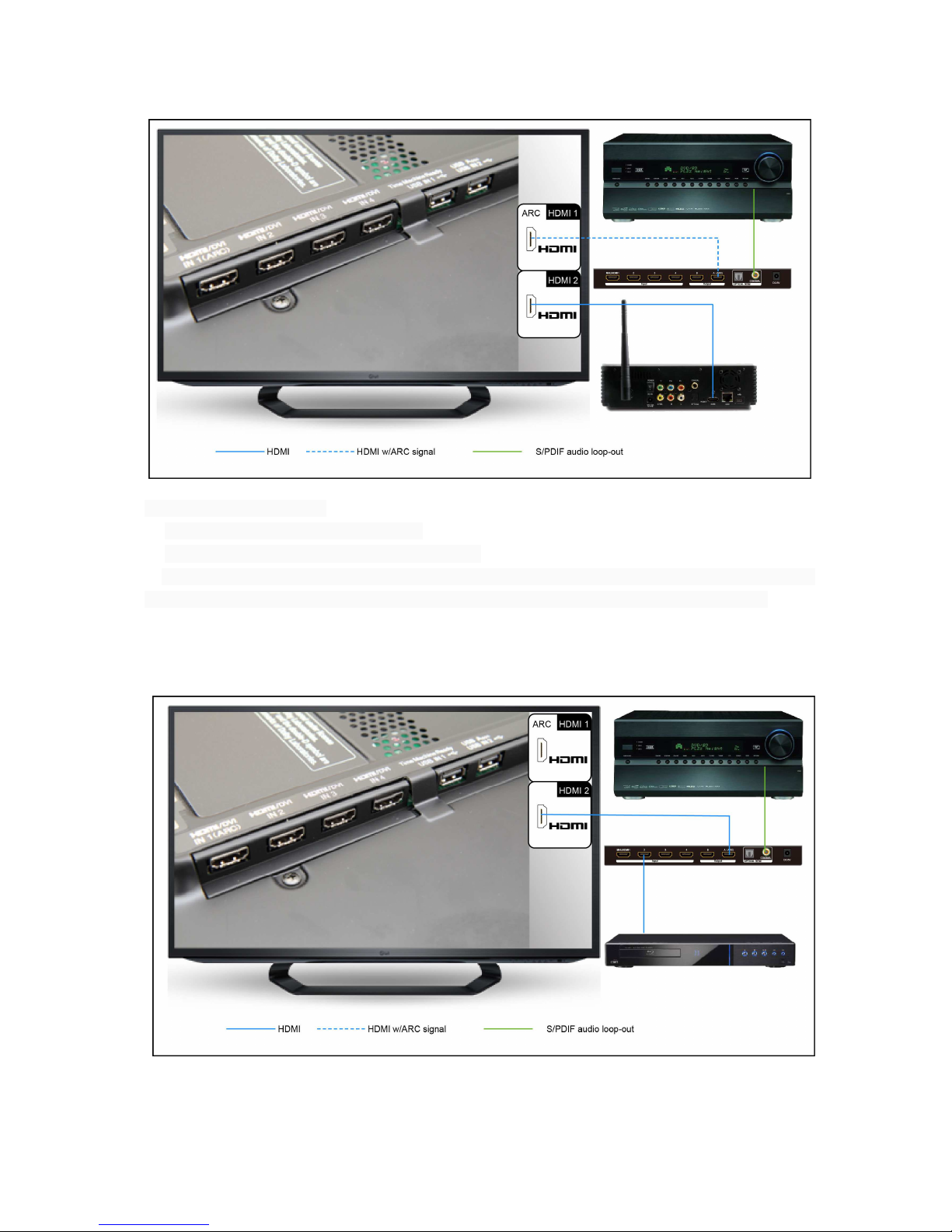

Audio Return Channel (ARC)
ARC enab les a source which connected to a display to route the source audio to an AV Receiver
or Amplifier.
steps
1.Make sure the display supports ARC
2.Connect the output port A of HDMI Matrix to HDMI 1 ( ARC port ) of the display (TX).
3.Connect the source to
HDMI 2 of the display.
4.Connect the S/PDIF output port ( Optical port or Coaxial port) to an AV Receiver or Amplifier.
Matrix source audio isolate
1. Connect the source with HDMI Matrix.
2. Connect the HDMI matrix to HDMI2 of Display.
3. Connect the S/PDIF output port (Optical port or Coaxial port) to an AV receiver or Amplifier. The
source audio can be isolated and transported by the S/PDIF port of AV receiver or Amplifier.
NOTE: make sure ARC function of TV is turned off when isolating the audio from the source.
NOTE: HD audio formats are not supported through S/PDIF. eg. Dolby TrueHD or DTS-HD Master Audio
