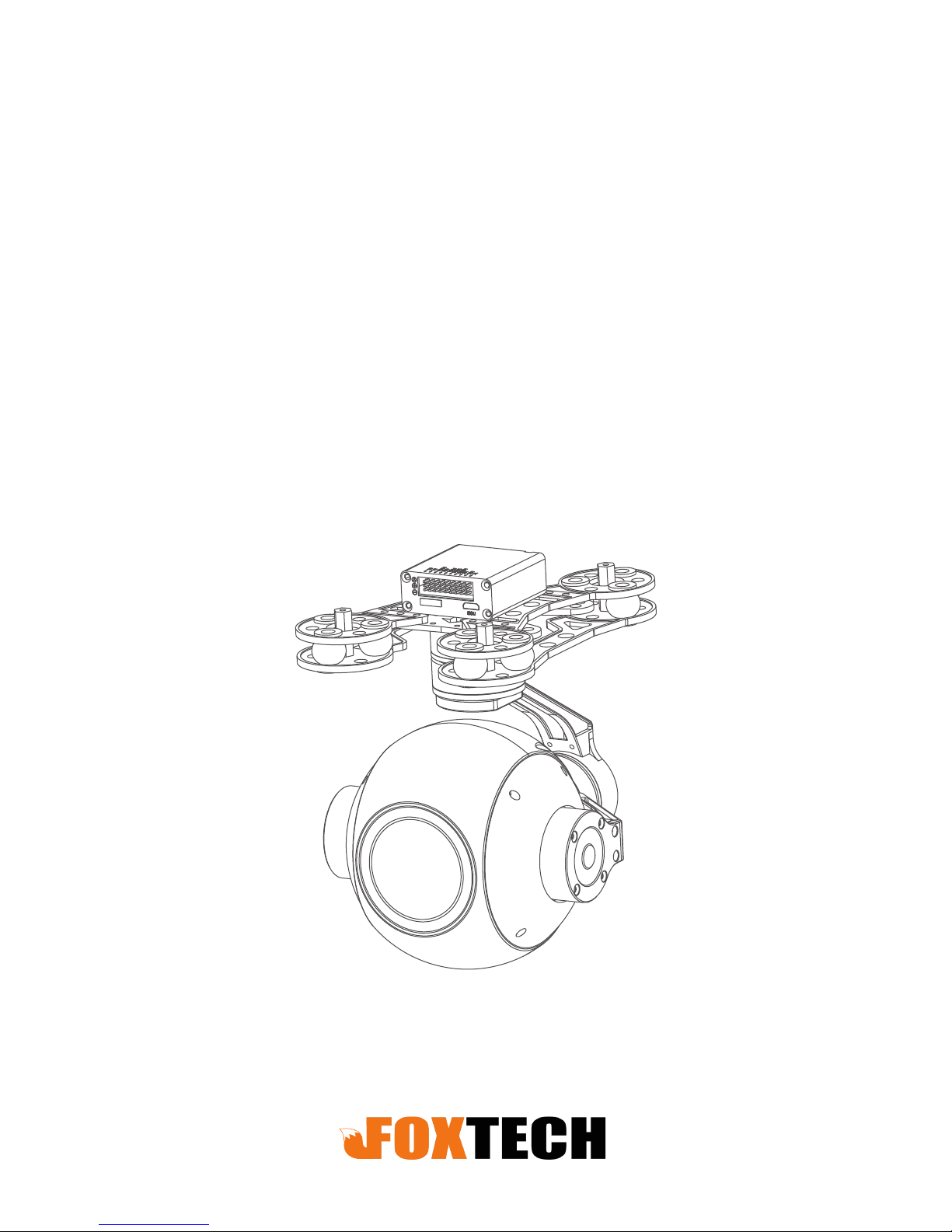

Page 1
FOXTECH SEEKER-30 HD 30X Optical
Zoom Camera with 3-axis Gimbal
User manual
Page 2
Q3N High-precision pod
-1-
Contents
SEEKER-30 High-precision 3-axis Gimbal
1 ..........................................................................................2
2、 ……….………………………………2
3、Gimbal description………………………………………..…………………………3
4、Packing list.............……………………………………………………………………4
5、Mounting plate dimension drawing…………………..............………………4
6、Installing………………………........................………………………………………5
7、Mechanics@Electronic characteristics…….....……………………………5
8、Working characteristics………………………..................………………………5
9、Gimbal’s signal wire box………………. ...............………………………………6
10、Connection of control box and wiring instructions……………6
1 1、Functional descriptions of gimbal mode………….......................………7
、Gimbal introduction
Object tracking function（Optional）
1 Camera introduction……………….............……………………………………8
2、Parameter index…………........……………………………………………………8
3、Functional characteristics..................................................................……9
、
30X Optical Zoom Camera
Page 3
3-axis Gimbal introduction
-2-
FOXTECH SEEKER-30 is a high-precision professional 3-axis
gimbal with a 30X 1080P Optical Zoom Camera which features
high stability,small size and light weight. The 3-axis gimbal
adopts high-precision encoder in each motor, based on FOC
motor control technology.
The speed of the gimbal is ajustable, LOW speed mode is
used for large zoom range, so the control will be more
accurate; Fast speed mode is used for small zooming range,
which makes the gimbal control sensitive and quick. Also the
one-key to center function will allow the gimbal returning to
initial position automatically and rapidly.
Object tracking function(optional)
-2-
1
Build-in normalization ,cross-correlation and tracking algorithm,
combining with object missing recapture algorithm, achieve stable
track of the target.
Support custom characters of user OSD, adaptive gate, cross
cursor, trace information display.
2、Tracking performance
1)Update rate of deviation pixel 50Hz
2)Output delay of deviation pixel <15ms
3)Minimum target contrast 5%
4)the minimal signal-to-noise ratio( SNR) 4
5)Minimum target size 16*16 pixel
6)Maximum target size 160*160 pixel
7)Tracking speed 32 pixel/frame
8)The mean square root values of pulse noise in the target
position<0.5 pixel
、Function description
Page 4

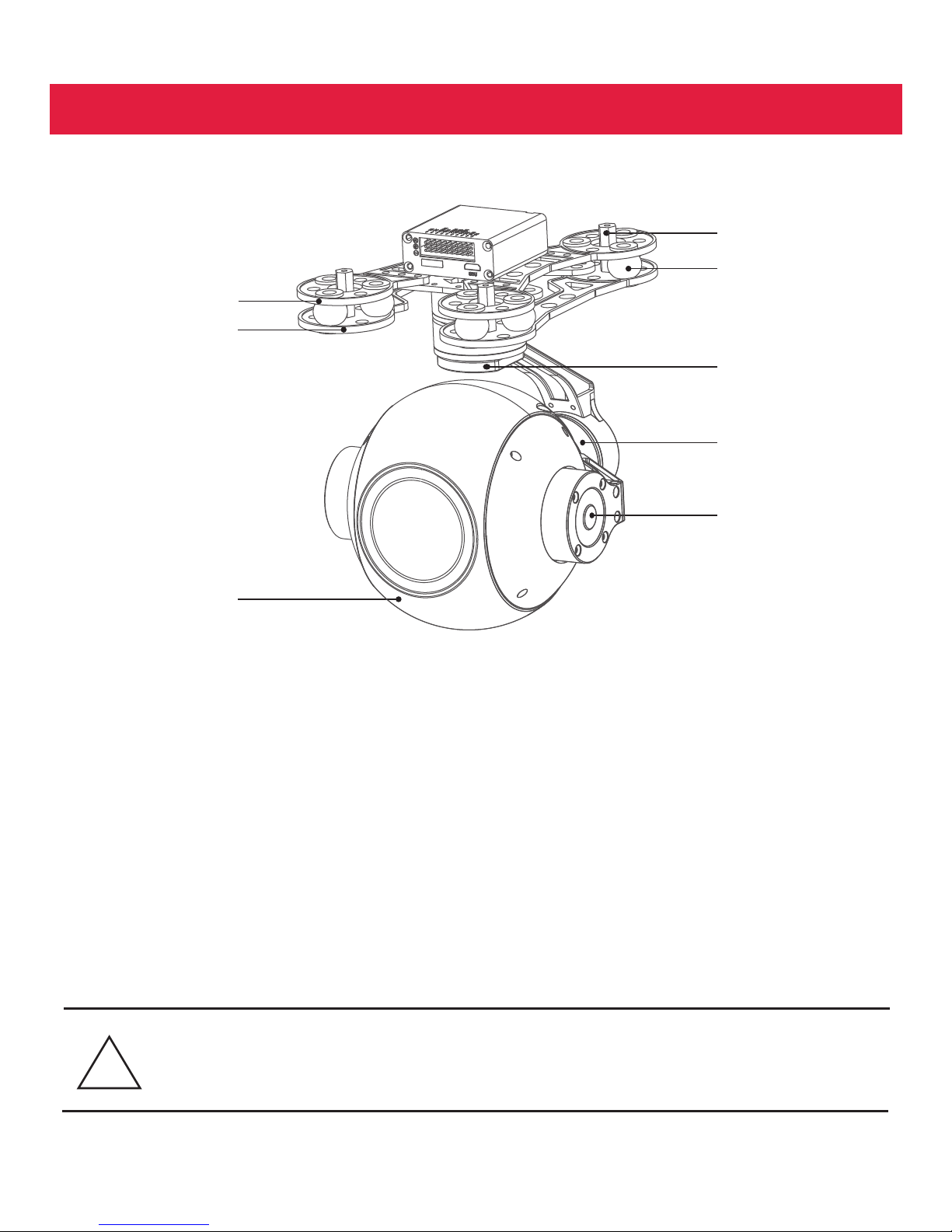

Pod description
-3-
[3]
[5]
[7]
[4]
[6]
[8]
[2]
[1]
-3-
[1]Pod fixed copper pillar
[2]Damping sphere
[3]Upper plate of gimbal board
[4]Under plate of gimbal board
[5]YAW axis motor
[6]Roll axis motor
[7]Pitch axis motor
[8]HD zoom camera
!
Please make sure that the motor is not stopped by any object
during the rotation，if the gimbal is blocked during rotation,
please remove the obstruction immediately.
Page 5
Screw pack*1
DIMENSIONS
Packing list
Pod*1
-4-
151
158
144
M3*5mm half round inner six
angle screw*12
(fixed copper pillar and damping
plate)
Copper pillar*4 Damping sphere*12
unit:mm
Page 6

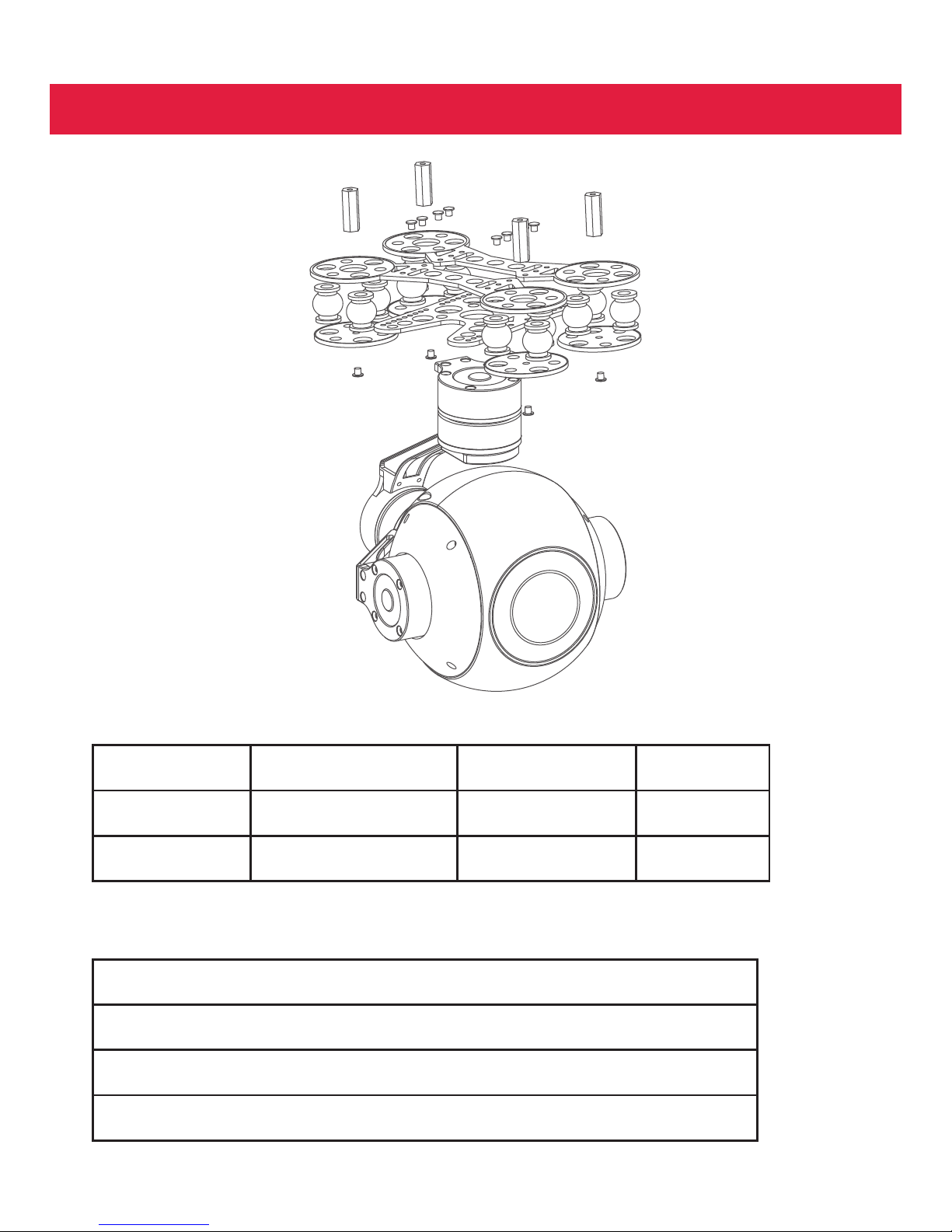

Installing
-5-
Voltage
Working current
Size
3S~6S(12V)
450mA@12V
L144*W151*H158mm
330mA@12V
-20 ~+80° °
848g
Working characteristics
Mechanics@Electronic characteristics
Pitch angle range of action: ° °-90 ~+90
Roll angle range of action: ° °-85 ~+85
Yaw angle range of action: ° °-150 ~+150
Angle jitter pitch and roll direction ,horizontal direction ±0.03 : ±0. 02° °
Quiescent current
Weight
Work environment
Page 7

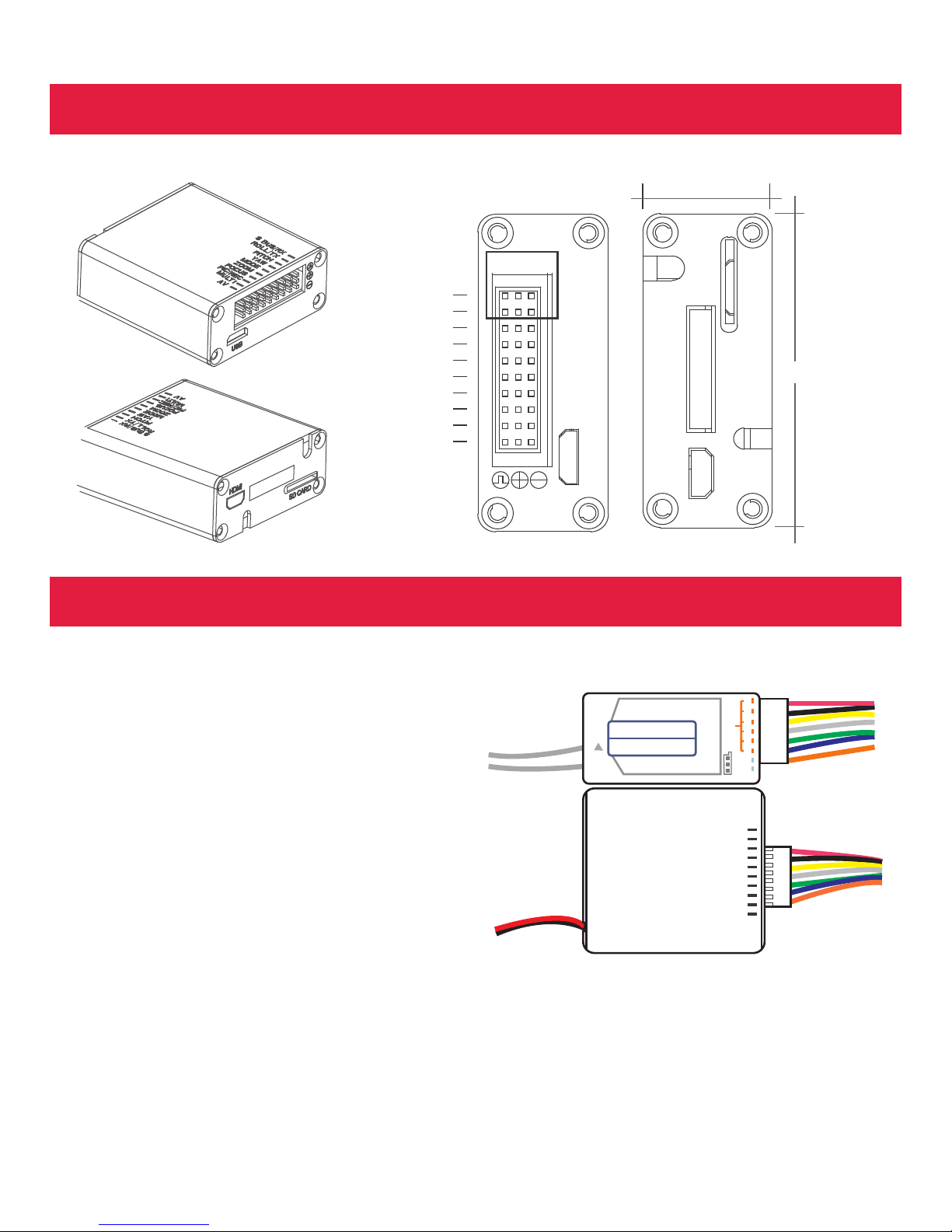

Gimbal signal wire box
Connection of control box and wiring instructions
-6-
1、Camera control line
Zo o m : c a me r a z oo m c o n t ro l l i ne ,
connect PWM receiver on third gear, or
rocker.
Focus: camera manual focus control
line, connect receiver on third gear, or
rocker. If not connect, the camera will
focus automatically after zooming.
Pi c/ R e c : p ho t o g ra p h y /v i d e o, m o de
sw i t c hi n g, vid e o an d ph o t og r ap h y
control, connect receiver on third gear.
Switch from middle to high:
photography/video mode switching
Switch from middle to low:
unit:mm
S.bus/Rx
Roll/Tx
Pitch
Yaw
Mode
Zoom
Focus
Pic/Rec
Multi
Av
USB
19
SD CARD
HDMI
45
1 2 3
.
.
R6208
S B
Fu t a b a
DATA
1
2
3
4
5
6
7
8/B
Digital Servo Only
For HS Mode
S.BUS
S.bu s/R x
Pitch
Yaw
Mode
Zoom
Focus
Pic/R ec
Multi
Av
Roll/ Tx
(1)In the video mode：if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop;
(2)In the photo mode: take a pictures
Multi： Multi control channel for other function, such as tracking, laser light. IR
cut , etc
AV: analog output signal
Page 8
-7-
Functional descriptions of mode (regard the third switch channel mode as the example)
Pod PWM signal instructions:
YAW directional channel: speed mode ,connect rocker channel, (or
third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel: speed mode ,connect rocker channel, (or third
gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A
knob or a thirt gear channel switch.
gear
Turn the knob to the three position: Low speed & not follow yaw mode, at this
moment, the joystick controls YAW and PITCH, pod has the lowest speed of
movement, its yaw does not follow the rotation of the aircraft;
Turn the knob to any position above three：variable speed & following mode,
at this moment, the joystick controls YAW and PITCH, The movement speed of
pod rises(Speed varies with position) ,pod works in follow yaw mode.
Turn the knob to the one position : high speed following mode.
Toggle switches one time between position -2 and -1 rapidly, pod returns to the
home position;
Toggle switches two times between position -2 and -1, pod use speed mode
(profile 1)
Toggle switches three times between position -2 and -1, pod use angle mode
(profile 2);
Toggle switches four times between position -2 and -1, calibrate the accelerator.
Toggle switches five times between position -2 and -1, calibrate the gyroscope
Note: pod turns on in the static state, and the gyroscope is automatically
calibrated ;The working mode of pod at the next boot time is the mode used last
time, factory mode is speed mode.

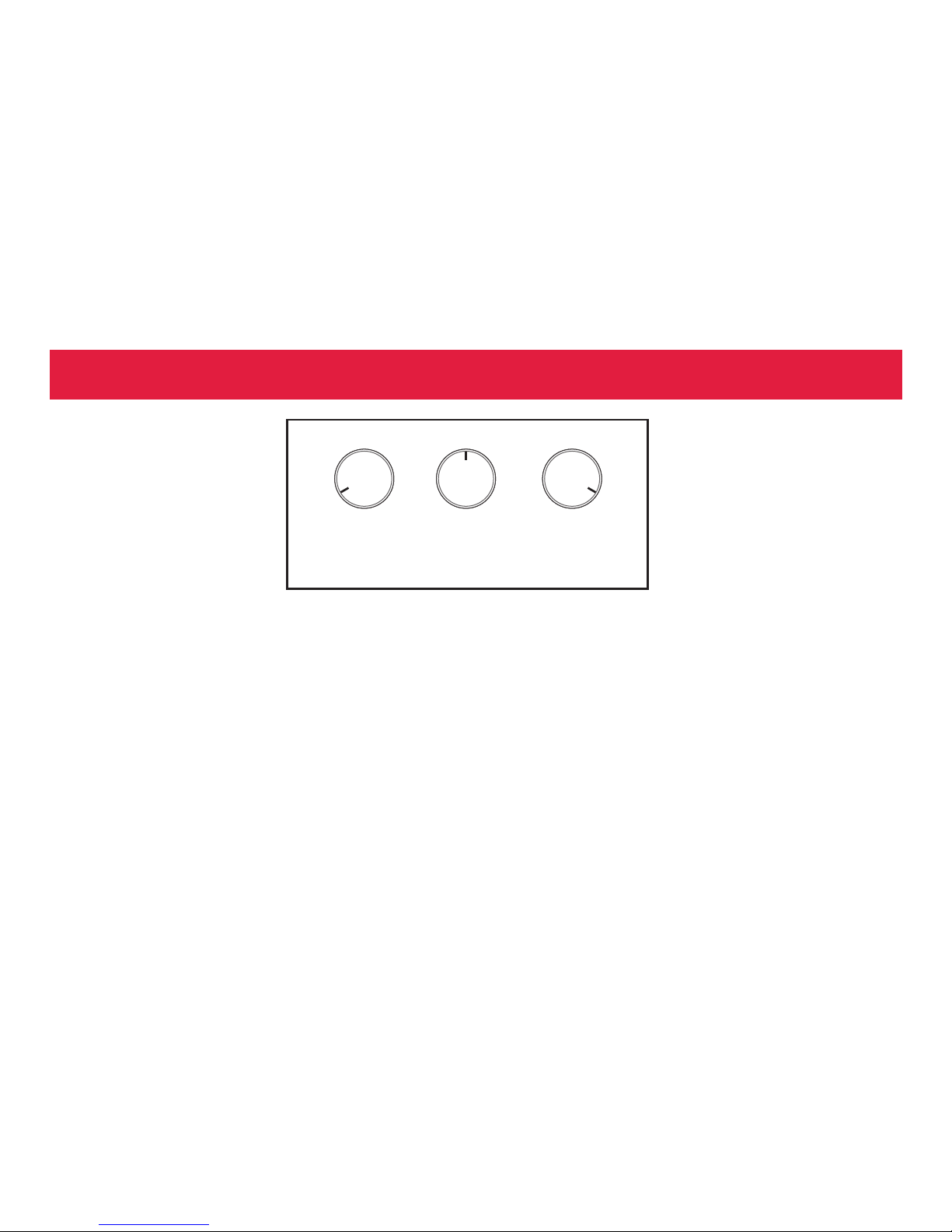

position -1 position -2 position -3
Page 9
30X Optical Zoom Camera
The 30X Optical Zoom Camera has 4 mega effective pixels,
supports 30X optical autofocus. The zooming function makes it
possible to see objects in detail over distance. The SEEKER-30
offers 1080p FULL HD 30fps video recording onboard and 1080p
HDMI output for HD video transmission back to the ground. FOX-
TECH SEEKER-30 support both PWM control and serial command
control, suitable for close range remote control or remote data
command control.
Parameter index
1、Adopt 1/3 inch, 4 million pixels CMOS SENSOR
2
、
The output resolution is 1920*1080P/60 fps.
3
、
30X optical zoom lens.
4、Zoom focal length f=4.5~135mm, aperture diameter 16.
5、Supports wide dynamic state with dynamic range up to 105dB.
6、Miroc-HDMI HD 1080p60 output, 1080P30 video stream in local
TF card storage.
7、Real time fast focus function, the focus time <1s.
8、Support Flip vertically, horizontal mirror, stationary
picture,automatic white balance, automatic gain, automatic color
correction, support OSD menu.
9、Wide temperature range, temperature range from -10℃~55℃ .
10、Support PWM and serial control.
.
φ
-8-
Page 10
-9-
Functional characteristics
Zoom focal length f=4.5~135mm, zoom ranges up to 30X
exhibiting image detail Perfectly.
Zoom Range
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.
The speed of focusing
Adopt 105d B wide dynamic range, in the presence of backlit or
strong light, The view of the over bright and over dark regions can
still be captured at the same time.
Wide dynamic
Ultra low illumination: color 0.05lux@F1.6, The device can still
clearly display image features in Ultra low illumination or poor light
environment.
Ultra low illumination
Using HDMI high-definition output, support HDMI1.3 standard. The
hardware interface uses a standard HDMI signal output socket,
1080P local storage, 1080P HDMI output.
Multiple control modes
Support PWM control and serial command control.
Output interface
