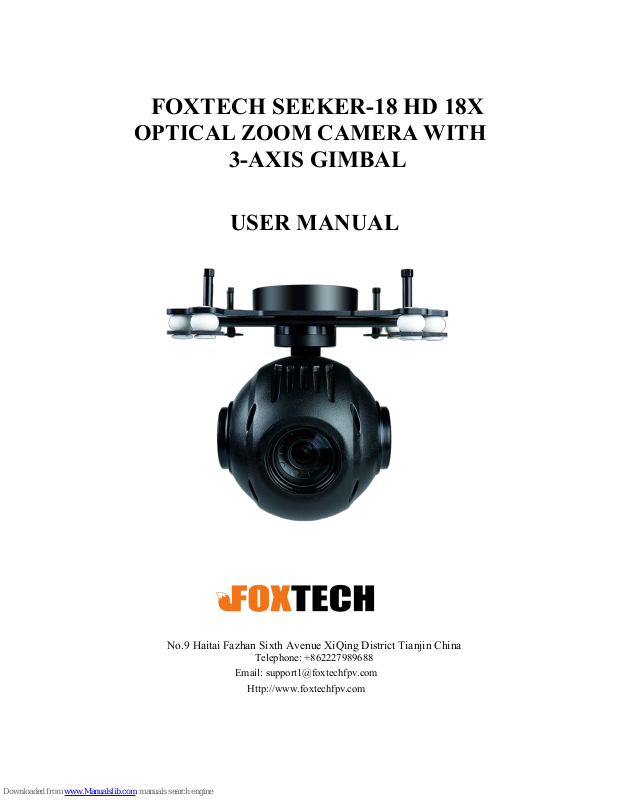

FOXTECH SEEKER-18 HD 18X

OPTICAL ZOOM CAMERA WITH

3-AXIS GIMBAL

USER MANUAL

No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China

Telephone: [phone]

Email: [e-mail]

Http://www.foxtechfpv.com

BRIEF INTRODUCTION

FOXTECH SEEKER-18 is a professional 18x Optical Zoom Camera with 3-Axis

Gimbal that designed for small multicopters. This 18x zoom gimbal can be applied in

the fields like military reconnaissance, police investigation, police surveillance and

evidence collection, power line inspection, disaster prevention and mitigation,

emergency monitoring, and rescue etc.

FEATURES

 All in one design, the 18x zoom optical camera included.

 With a compact structure yet easy to install.

 Plug and play with new intelligent solutions.

 The built-in magnetic encoder accurately senses the change of motor motions.

 The seamless shaft rotating technology brings a smooth operation.

 Secured built-in motor ensures an orderly rotation to avoid the possible stranding.

GIMBAL SPECIFICATIONS

 Dimensions: 156 x 156 x 145mm

 Input voltage: 4S～6S

 Operating temperature: -5℃～45℃

 Augmentation axis: 3 axis

 Angle motion range: -40°～40° (Rolling angle);

-120°～30° (Pitching angle);

-170°～170°(Horizontal Direction)

 Controlling precision: 0.03°

 Supported Receiver : Conventional Receivers

 Weight: 600g

 Material: Aviation aluminum alloy, nylon

FEATURES OF 18X ZOOM CAMERA

 1/4 inch 3 million pixels CMOS SENSOR

 Video Resolution: 1080P/30 frame

 18X zoom optical camera

 Support wide dynamic, dynamic range up to 105dB

 Real-time fast focus function, focus time<2S

 Automatic white balance, automatic gain, automatic color correction

INTERFACE DEFINITIONS:

1234567abcd

Up

PWM 1

PWM 2

PWM 3

PWM 4

PWM 5

PWM 6

TX

Middle

＋5V＋5V＋5V＋5V＋5V

＋5V

RX

Blue

Brown

Blac k

White

Down

GND

GND

GND

GND

GND

GND

GND

Roll

Pitch

Zoom

Mod e

Vide o /

Serial

Video

GND

Definition

Directi on

swit ch

port

Video

GND

Pow er

control

control

control

phot o

output

control

contr ol

control

GND

control

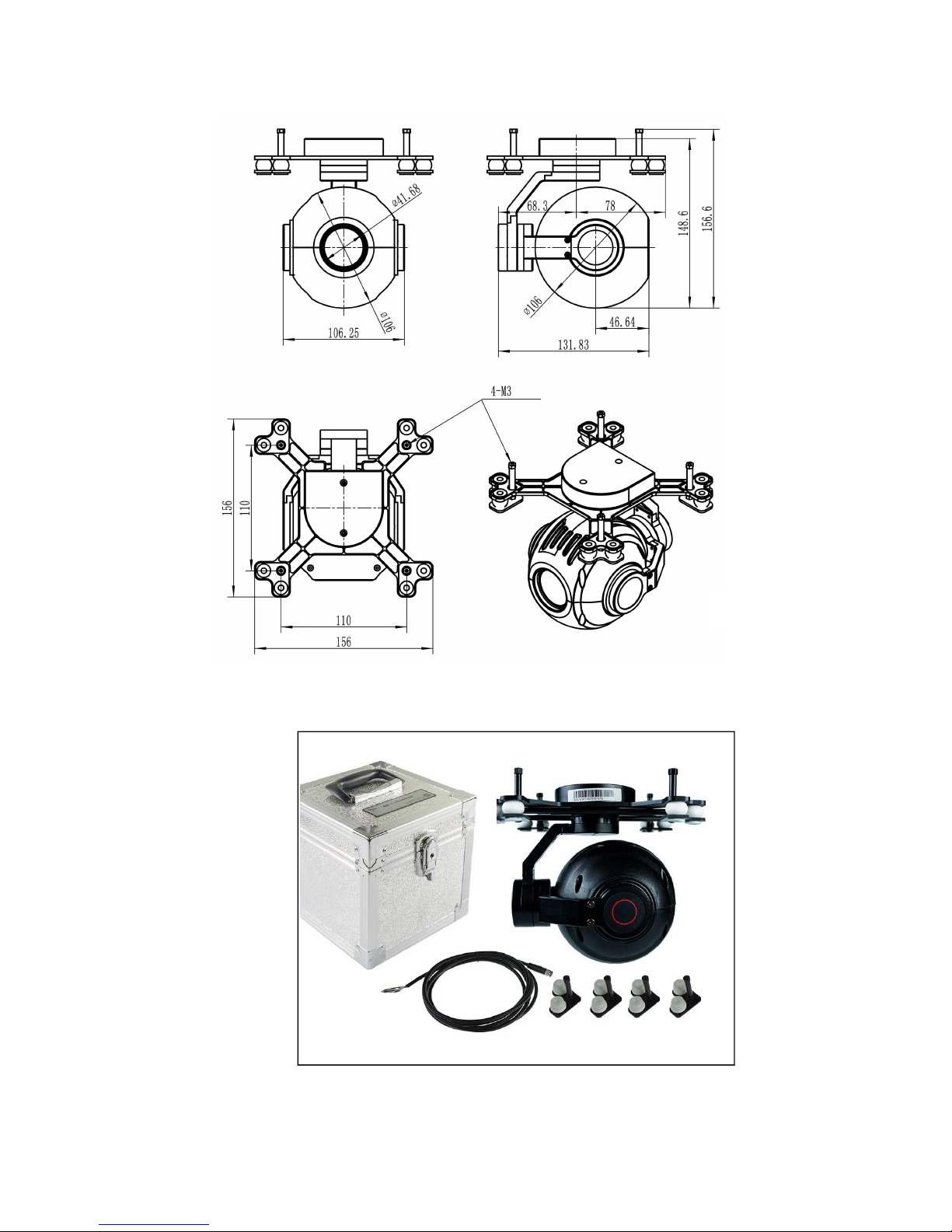

INSTALLATION DIMENSIONS

PACKAGE INCLUDED

1. Foxtech Seeker-18 HD 18X Optical Zoom Carema with 3-axis gimal ×1

2. Plug cable ×1

3. Aluminum alloy case ×1

4. Spare damper and board ×4

5. User manual ×1

CAUTIONS

1. Input voltage: Supports 4-6s only.

2. Please allow 2 seconds for the self-checking of gimbal after powering on. The self-

checking is done once a reminder tone is heard. Please do not shake the gimbal during
the self-checking. If there’s no reminder tone for a long time and the gimbal failed to
self-check, please re-connect to the power.

3. Recommend 3 modes of switch control to record and take pictures. Stop at low

mode, record at middle mode and non-stop recording at high mode.

4. Make sure to stop recording before powering off so as to avoid the possible damage

to the recorded videos.

5. Three modes of the gimbal: Lock Mode (low-grade), Follow Mode (Mid-grade),

Camera Down Mode (High-grade). The gimbal will return to middle after switching
to Lock Mode from other modes.

6. Any removal and modifications of the gimbal are prohibited. Or you can not enjoy

the after-sales service. And as for the loss caused by, we don’t undertake any
responsibility.

7. We reserve the rights for information modification in terms of

product specifications and performance without prior notification.

PACKADGE

Unit: mm
