Foxtech Nimbus V2 is a Vertical Take-off and Landing airplane. It is equipped with new landing gears. The foldable tail landing gear and front landing gear. The front landing gear ensure enough space for mapping cameras or zoom cameras, and will protect the task loads.
In this version, we equip 28kg high speed tilting servos, with the newly upgraded system, the plane canhover like a multicopter more steadily and take off and land in very heavy wind. And the front motor isFoxtech 3520 kv520, which is more powerful, the new power system has great power redundency, andmakes the mapping version more efficient, which can lift max 800g payload.
The highlight of Nimbus V2 is the wind resistant feature. It means that when the plane is in multicopterpositioning mode, or in Auto mode, during taking off and landing stage, the two tilting motors will tilt to acertain level to compensate the wind, that keeps your plane much stable and also give you much bettersafty during landing and taking off stage. With the newly upgraded motors, the max flying speed can reach 35m/s, the average speed is 15m/s to 16m/s, and the stall speed is 10m/s-11m/s.
Another new feature is the new radio control-DA16S, specially designed for VTOL like this Nimbus, and also suitable for other Foxtech series drones. It is 16-channel radio which has datalink and radiolink built inside, so both the datalink and radiolink can reach a range of 5km. You also could equipped the range booster and high-quality antenna to increase the distance to 15km.
Nimbus VTOL V2 also has a big inner space, can put lots of batteries and other equipments. And the quick-detached design makes Nimbus VTOL V2 easy to assembly and dissembly, and transport.
ThisNimbusV2canbeequippedwithFoxtechMap-01andMap-A7Rmappingcamerastodomappingand survey, when you use this Nimbus to do mapping, also could equipped Nimbus with RTK, and PPK system to increase the map precision.
FoxtechNimbus VTOL V2 is a cost-effective planecompared with other expensive multicoptersorfixedwings, it is a good option for customers to do mapping jobs and long range inspection.
Byusing theveryadvancedflight controllerPixhawk2.1,theplanecantakeoff,flywaypointsandland allby itself, in this case, doing long range FPV or survey can never been easier!
The image below shows two typical motor rotation directions.
Although the accelerometer was calibrated already for the PNP version before shipping, please calibrate it again since it might be affected in the transportation.
Under Initial Setup, select Accel Calibration from the left-side menu. Mission Planner will prompt you toplace the vehicle each calibration position. Press any key to indicate that the autopilot is in position and then proceed to the next orientation.
The calibration positions are: level, on right side, left side, nose down, nose up and on its back.
Click this button to begin accelerometer calibration.
This accelerometer trim can be usedto level the HUD horizon.
1.It is important that the vehicle is kept still immediately after pressing the key for each step.
2.The level position is the most important to get right as this will be the attitude that your controllerconsiders level while flying.
Nimbus VTOL uses high sensitivity compass and it has to be re-calibrated when fly in a new place.
Enter the compass setting page and click”start” ,hold the plane and rotate it in order to hit all directions on a sphere to calibrate the compass, when it’s done,a new offset would be given to the flight controller, and a reboot is necessary.
Onboard calibration produces better results.
3. Radio Control CalibrationCalibrating each of the transmitter controls/channels is a straightforward process - simply move each of the enabled sticks/switches through their full range and record the maximum and minimum positions.
5. Calibrate the Airspeed SensorIt is critical that you calibrate airspeed meter to ensure that it is working correctly, and ensure that it iscorrectly zeroed.
After you start up APM on your aircraft you should wait at least 1 minute for your electronics to warm up,preferably longer, and then do a pre-flight calibration of your airspeed sensor. Your ground station software should have a menu for doing this, usually called “Preflight Calibration”. You need to loosely cover yourairspeed sensor tostop windfrom affecting the result, thenpress the button.The calibration will take acouple of seconds.
Choosing that action will re-calibrate both your ground barometric pressure and your airspeed sensor.
Next you should check that your airspeed sensor is working correctly before takeoff. To do that you should blow into the airspeed sensor and make sure that the "AS" airspeed sensor value in your HUD rises as you blow into it.
6. Check the Battery VoltageIf you find the voltage is not correct, Enter the voltage according to the hand-held volt meter in the “MeasuredBattery Voltage” field, Press tab or click out of the field and the “Voltage Divider (Calced)” value will update and the “Battery voltage (Calced)” should now equal the measured voltage.
7. Check Before Flight(1) Connect the internet and load the map.(2) The plane direction should be same with its direction in mission planner, if not, please calibrate again.(3) Check plane status, altitude, voltage airspeed meter working fine.
Make sure all items are checked before every flight.
1. The aircraft connection is stable and normal.
2. All screws and nuts are not loose.
3. The propeller is in the normal direction and is fastened.
4. All the Rudders' direction-correction are correct.
5. The airspeed meter reads correctly.
6. Aircraft voltage is normal.
7. The compass is toward the right direction.
8. More than 15 GPS satellites, or displays GPS FIX.
9. No warning words on the ground station.
10. Device SD card is normal.
11. Recording device is recording normally.
12. Aerial survey camera photo test is normal.
13. Exposure check is normal.
14. The remote controller power is normal.
15. Ground station power is normal.
16. Data connection strength is normal.
17. Aircraft H point positioning is normal.
18. Upload and download to check the routes.
19. The antenna is placed in the normal direction, the antenna of the aircraft is facing down or up, and the
two antennas of the receiver are not in contact.
20. Ground device recording is on.
21. Aircraft onboard camera is turned on.
22. Height setting of Return Home Point is normal.
23. Out of control return-to-lanuch setting is normal.
24. Try to vertically take off and land, make sure the direction-correction and direction control are normal
Start flying.
Beforethe firstflight,it’ssuggesttocheckifeverycomponentiswellconnected,tiltingservosworkingproperly, motors spinning to the correct direction and all control surfaces are moving to the desireddirections.
It’s suggested to use 3 modes, Cruise, Qhover and Qloiter as the labled modes on a three position switch. It’s suggested to do the first flight in a very open area with no buildings or big trees around, and a flat taking off area is necessary.
Use the Qhover(or Qloiter) mode, start the motors by pushing the rudder all to the right with the throttle at the lowest position, the motors should start to spin, gradually increase the throttle until the plane is readyto lift from the ground, move aileron, elevator and rudder stick gently to check if the plane is moving asdesired.
Continue to push the throttle until the plane is lifted from ground, it may swing a bit since there should be big airflow hitting the wing, lift the plane to around 3 meters and try to fly it as a multicopter, it should not be a problem for anyone who can play a multicopter.
When you are familiar with all controls, lift the plane to at least 30m from the ground and make sure there is not obstacle in front of the plane.
Switch it to Cruise mode, the Nimbus should tilt the two front motors together to gather speed, once thespeedisreachingatleast 12m/s, thefrontmotorswill tiltstraight andrearmotorstopsspinning, thentheNimbus is now transferred to fixed wing.
It’s also suggested to active the short and long failsafe, the default action is respectively CIRCLE and RTH. So in case the plane lose RC control, it will go back all by itself.
You can fly a while and see if the plane could go straight, if you find the plane is tilting left for example, don’t try to trim the aileron with your radio, the trim to aileron(SERVO1) must be done in parameter setting. (Ifthe elevator trim is necessary, please trim the SERVO2 and SERVO4 at the same time with the same trim amount.)
If everything goes well, you can try to land. First, reduce the altitude by pushing forward the elevator andwhen the altitude is around 30m above the ground, switch to Qhover(or Qloiter) Mode, two front motorswill tilt upwards to 60degrees, the plane will glide a while until the speed is lower than 12m/s, then the front motors will tilt straight up and the plane is then become a multicopter again, then you can land it just as a normal multicopter.
After the first flight, you can try to do autopilot.
You can choose to take off and land either by manual control or automatically.
To use automatic taking off and landing, you can change the first waypoint to VTOL_TAKE OFF, and set an altitude like 30 or 50m for this action, then set the next waypoint a bit far (like 100m ) from the first waypoint, the Nimbus will take off as a multicopter, when it reaches the wanted altitude, it will switch to fixed wing and fly waypoints or missions like a fixed wing.
The VTOL landing is also the similar, you can set the last waypoint to VTOL_LAND, but it’s suggested to set one waypoint which is around 100m from this one, since the plane will try to turn to multicopter before the last waypoint, if the waypoint before VTOL_LAND is too far, the Nimbus VTOL will finish the final distance all in multicopter mode, the power consumption in mutlicopter mode is 5 times more than in fixed wing mode.

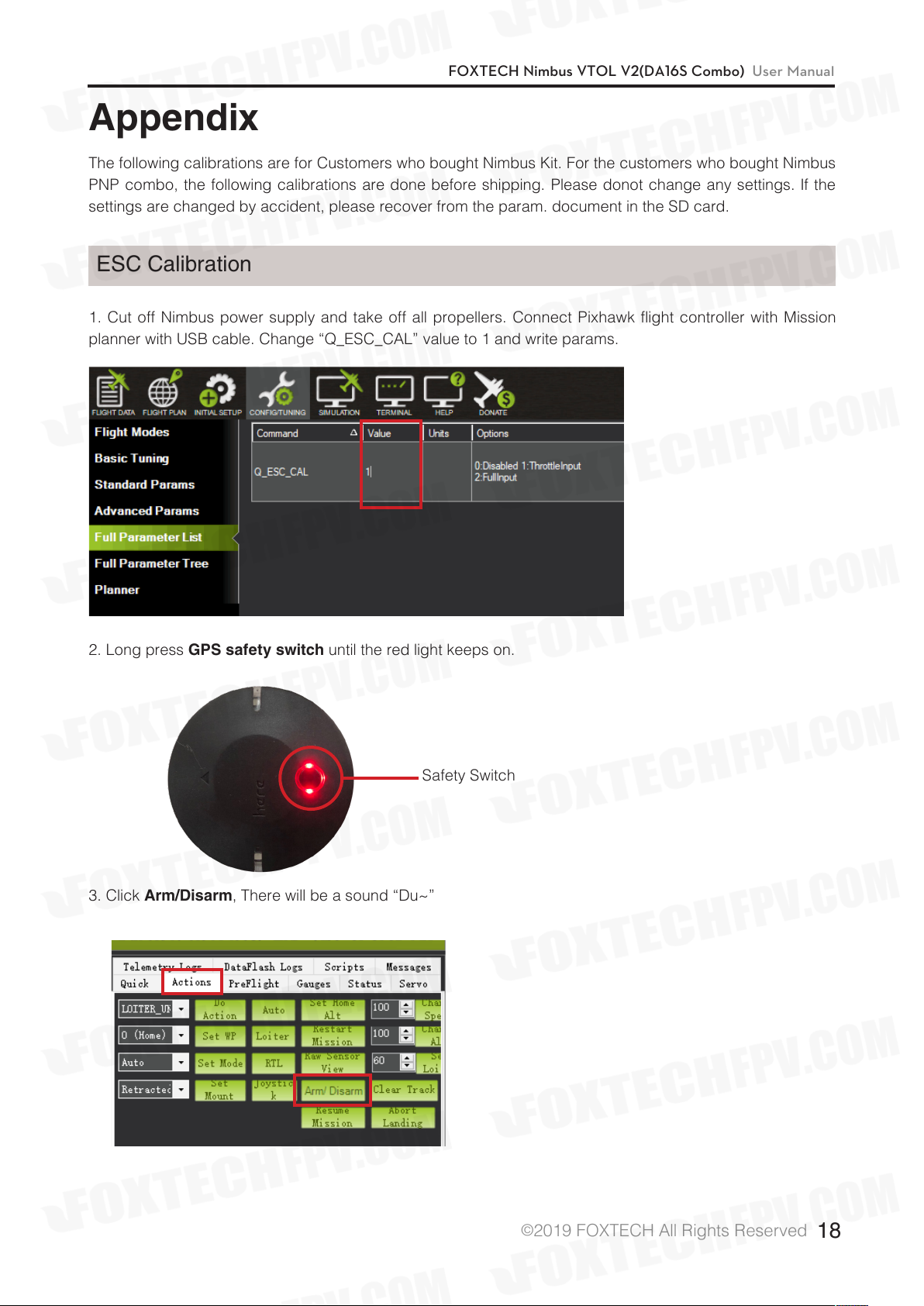

The following calibrations are for Customers who bought Nimbus Kit. For the customers who bought Nimbus PNP combo, the following calibrations are done before shipping. Please donot change any settings. If the settings are changed by accident, please recover from the param. document in the SD card.
ESC Calibration
1. Cut off Nimbus power supply and take off all propellers. Connect Pixhawk flight controller with Missionplanner with USB cable. Change “Q_ESC_CAL” value to 1 and write params.
4. In the following demonstration, Take Left hand throttle as anexample.Push throttle to Max.(Pic 4-1),connect Nimbus with power, when there is “di di ~ di” sound quickly push throttle to Min.(Pic 4-2) Whenthere is “di di di di ~di” sound, ESC calibration is successful. Then cut off power.
Pic 4-1
5. Connect Nimbus with power again. Long press GPS safety switch.Radio throttle push to Min, directionstick push to right(Pic 5-1), disarm Nimbus, you can adjust “Q_M_SPIN_MIN”in mission planner. The default value is 0.25. Write the value, it is complete.

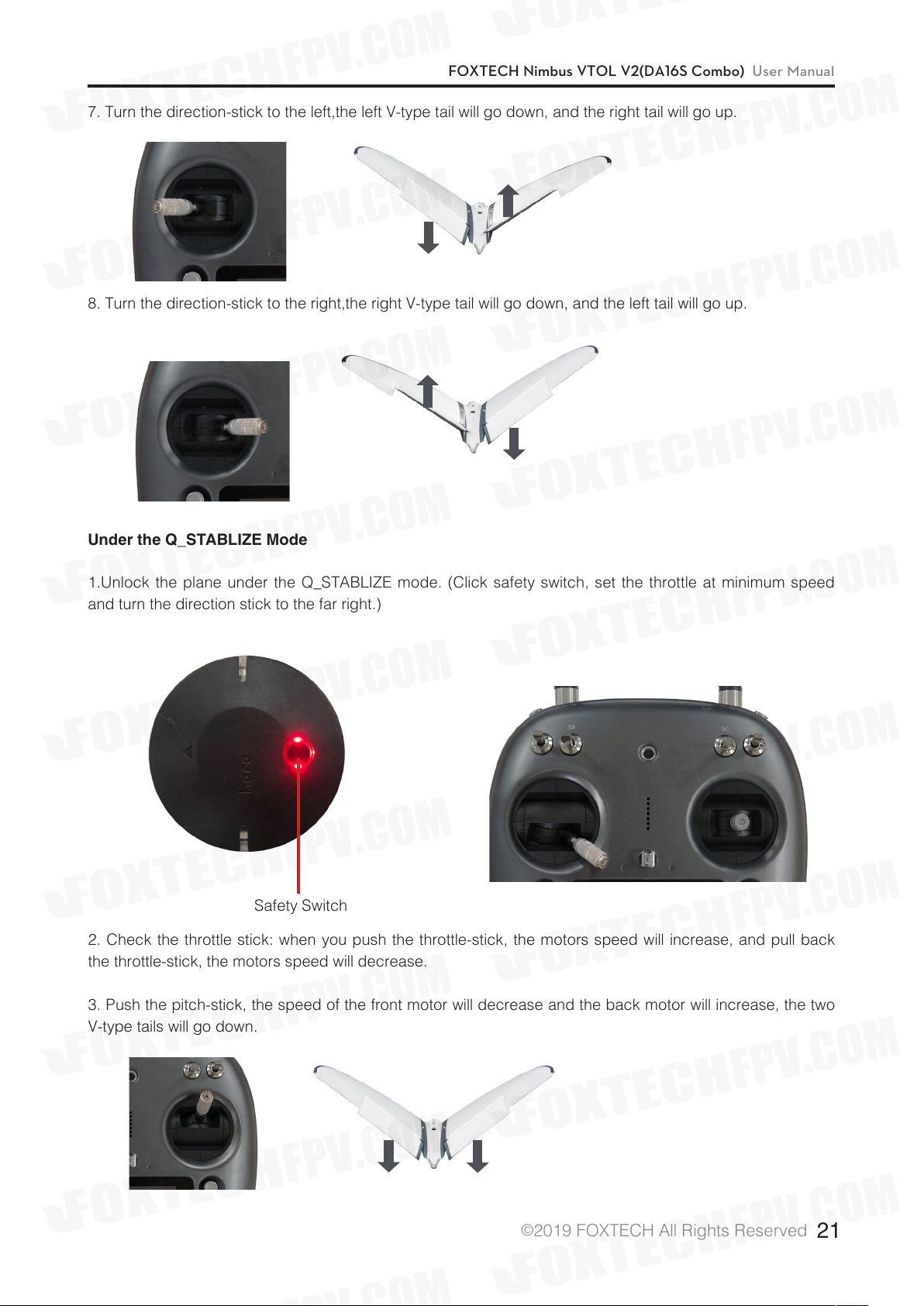

7. Turn the direction-stick to the left,the left V-type tail will go down, and the right tail will go up.
8. Turn the direction-stick to the right,the right V-type tail will go down, and the left tail will go up.
Under the Q_STABLIZE Mode
1.Unlock the plane under the Q_STABLIZE mode. (Click safety switch, set the throttle at minimum speedand turn the direction stick to the far right.)
Safety Switch
2. Check the throttle stick: when you push the throttle-stick, the motors speed will increase, and pull back the throttle-stick, the motors speed will decrease.
3. Push the pitch-stick, the speed of the front motor will decrease and the back motor will increase, the two V-type tails will go down.

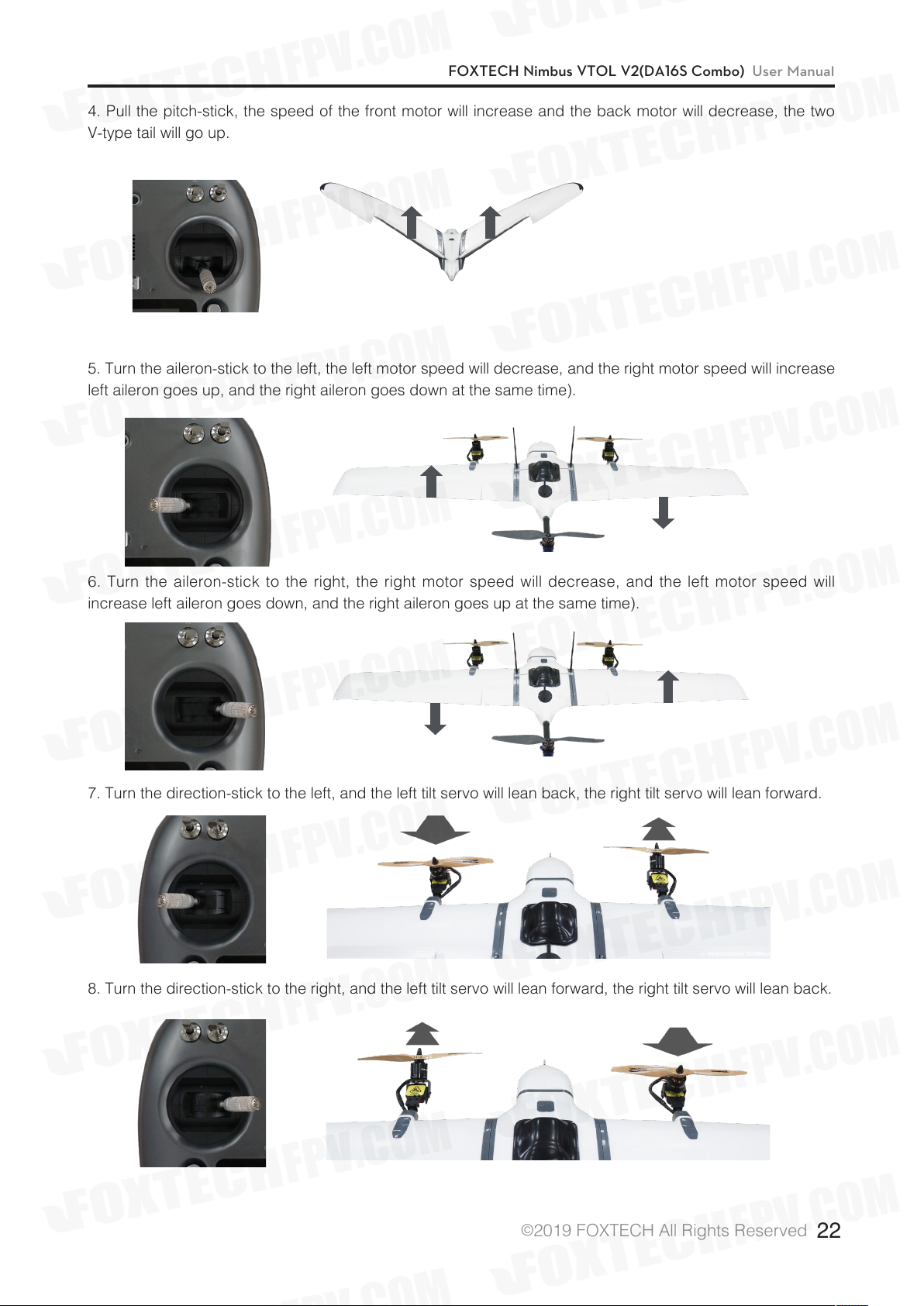

4. Pull the pitch-stick, the speed of the front motor will increase and the back motor will decrease, the two V-type tail will go up.
5. Turn the aileron-stick to the left, the left motor speed will decrease, and the right motor speed will increaseleft aileron goes up, and the right aileron goes down at the same time).
6. Turn the aileron-stick to the right, the right motor speed will decrease, and the left motor speed willincrease left aileron goes down, and the right aileron goes up at the same time).

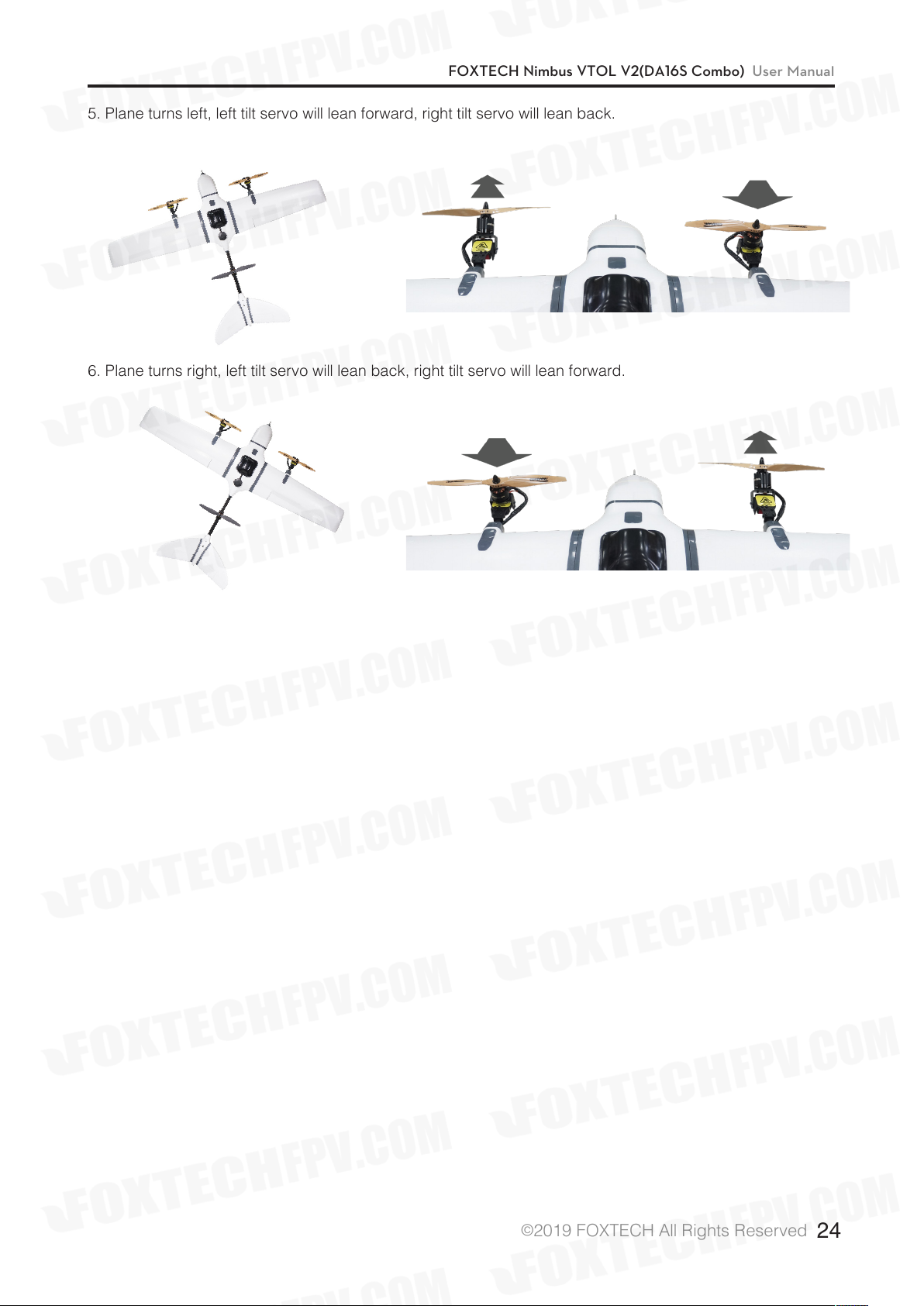

7. Turn the direction-stick to the left, and the left tilt servo will lean back, the right tilt servo will lean forward.
8. Turn the direction-stick to the right, and the left tilt servo will lean forward, the right tilt servo will lean back.
1. Plane leans forward, the speed of the front motors will increase, the back motor-decrease,the two V-type tails go up.
2. Plane leans back, the speed of front motors will decrease, the back motor-increase,the two V-type tails go down.
3. Plane leans to the left, left aileron will go down, and the right aileron will go up, the speed of left motor increases, and the right motor decreases.
4. Plane leans to the right,left aileron will go down, and the right aileron will go up, the speed of left motor decreases, and the right motor increases.
Some default setttings in Pixhawk for Nimbus Mapping VTOL PNP Combo for reference.
1. Nimbus Pixhawk Basic Settings for Reference
2. Suggested ”Q_VFWD” is: 0.025 , this setting will increase anti-wind performance in QLOITER mode and Vtol-take off and landing.
3. Suggested “Q_WVANE_GAIN” value is: 0, if you want to plane to point to the wind in QLOITER Mode and Vtol-take off and landing, change it to 1.
4. Suggested “Q_WVANE_MINROLL” value is: 3
5. Suggested “ALT_HOLD_RTL” value is: 5000, default home altitude, 50m is a good number for Vtol-landing.
6. Suggested “Q_RTL_MODE” value is: 1, if you prefer the plane go circles around the Home point instead of go into Vtol-landing during RTL ,change it to 0.
7. Suggested “BRD_SAFETYENABLE” value is: 1, always important to have the safety switch on after power on,you will need to press the safety switch on the GPS for 2 second to active the plane to fly.
8. Suggested “Q_WP_SPEED_DN” is: 250Suggested “Q_WP_SPEED_UP” is: 150
9. Suggested “Q_LAND_FINAL_ALT” is: 8Suggested “Q_LAND_SPEED” is: 50
10. Suggested “Q_TRAN_PIT_MAX” value is: 5
FOXTECH Nimbus VTOL V2(DA16S Combo) User Manual
11. Suggested “WP_RADIUS” value is: 30
12. Since all control surfaces are pre-connected, so no need to change any setting in the radio calibration in Mission Planner.
If you need faster yaw speed, you can try to change the value Q_TILT YAW ANGLE to higher value, default value is from 10-15, and the max value is 30.
Warning: propellers would hit the wings if the input value is too high.
13. Transition servo speed can be adjusted by Q_tilt_rate_up and Q_tilt_rate_dn, it’s suggested to set the Q_tilt up with at least 100degree/s speed so the plane can be saved in case there is any malfunction caused by setting or plane mechanism.
If you need to update your Pixhawk FC to the latest version, please follow the steps:
1. Install firmware.
2. Recover your Nimbus parameters to the FC (There is a param. document in the SD card).
3. Do not change any data in the flight controller. Please recover the parameter again if by any chance your FC data is changed.
Update Notice(Sep 6th, 2018)
One pair of self-locking nuts for servos will be shipped with Nimbus. Because the bullet nuts may loose after repeatly take off, install or long flight time.
