Foxtech KRAKEN 130 V2 Assembly Manual

1 / 20

★★★★★★★FOXTECH HOBBY Co., Ltd★★★★★★★

KRAKEN 130 V2 Assembly Manual

Foxtech is and always will be engaged in the continuous innovation and improvement in Aerial photo/video and FPV industry. Being the Foxtech featured product-Kraken130, we focus on its improvement all the time. The upgraded version is The Kraken 130 V2. The V2 is the continuation of original functions: equipped with powerful motors and high efficiency 18inch CF propeller which generates crazy lifting capacity (20KG flying weight,40kg with Tmotor U7 ) and very long fly time (over 50 minutes with enough battery); combined withGH3/5DII/5DIII /BMCC/Red-epic gimbals; installed with unique Easy-folding system and automatic folding landing gear allow for a quick set up and immediate launching at job site. K130 V2 is equipped with new motor seat. The new motor seat is made of durable and rigid materials which could avoid any broken situation to happen,it is not only compatible with Foxtech 5010/8108 motor but also compatible with Tmotor's U7/U8. The Foxtech Multi-Pal ESC(60A OPTO/600HZ Max) with up-to-date SimonK Firmware(2014.3.5 version currently) is perfect matched with Foxtech 5010/8108 motor and T-Motor U7/U8, directly compatible with Foxtech 300A Power Distributor Board.

www.foxtechfpv.com V1.1

2 / 20

Specifications

Width

1790mm(18" propeller mounted)

500mm(Landing gear skid)

Length

1790mm(18" propeller mounted)

Heigth

520mm(18" propeller mounted)

400mm(Centeral damper plate to ground)

Diagonal wheel

1310mm

Carry size

600mm*500mm*420mm

830mm*500mm*420mm(18" propeller mounted)

Battery mount seat

220mm*220mm

Frame arm length

500mm

Weight

6kg(Gimbal, battery not includes)

15kg(Rountine)

20kg(Max, short fly time expected)

Motor suggested

Foxtech 5010/8108/Tmotor U7/U8 Brushless motor

ESC suggested

Foxtech Multi-Pal 60A OPTO 600HZ

Propeller suggested

17"-18" CF

Radio suggested

Futaba 14SG

Flight control suggested

DJI A2M

DJI WKM

ZeroUAV X6P

Battery suggested

>6S 10000mah

Kraken130 V2 Kit Packing List

3 / 20

1. Frame Arm Assembly And Installation

Step 1

Step 2

4 / 20

Step 3

Step 4

5 / 20

Step 5

-Please repeat Step1 to Step 5 to assembly other Frame Arms.

Step 6

6 / 20

Step 7

Step 8

7 / 20

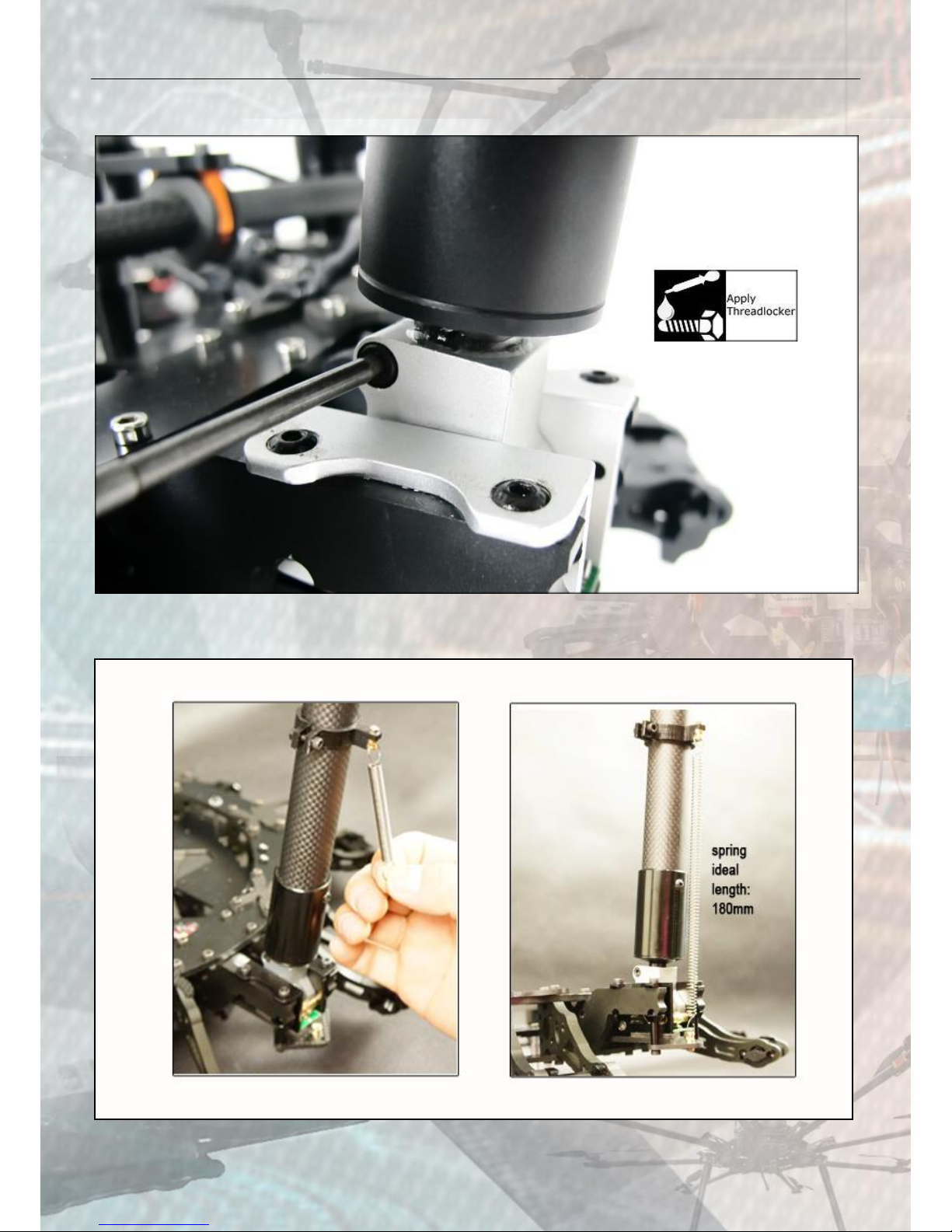

2. Landing Gear Assembly And Installation

Step1

Step 2

8 / 20

Step 3

Step 4

9 / 20

Step 5

3. Electronic Equipments Installation

Multi-rotor Mixied Type：Octo-rotor V(Very Important!)

10 / 20

Landing Gear Operation Voltage: 4.8-6V

Electronic Equipments Connection

11 / 20

Step 1

Step 2

12 / 20

Step 3

Step 4

13 / 20

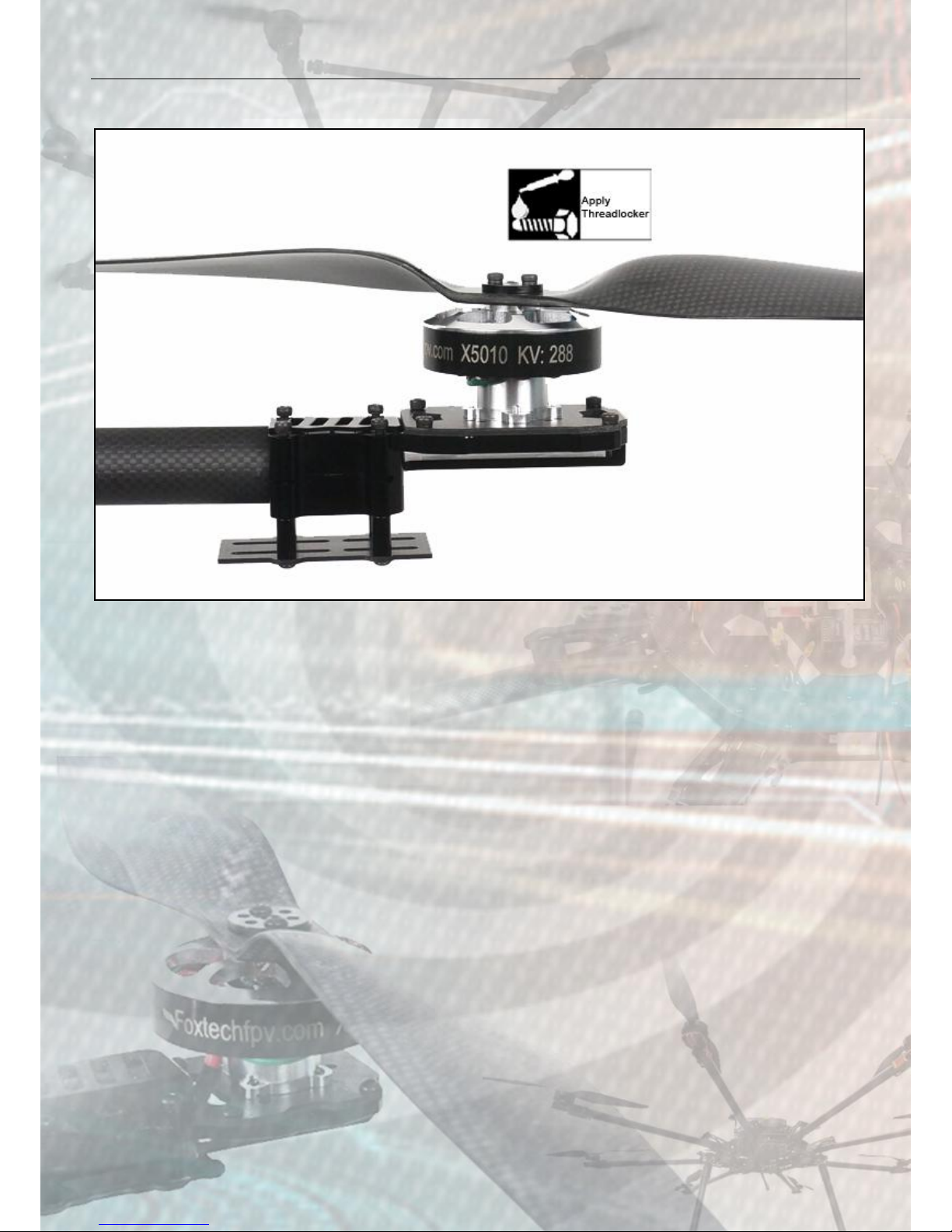

4. Propeller Installation

Step 1

Step 2

14 / 20

Step 3

15 / 20

5. Electronic Devices Setting Suggested:

Radio: Futaba 14SG + SB7008 SBUS

F.mode: CH7

Gain: CH6

Landing Gear: CH5

DJI A2:

Receiver Type: D-BUS

Gain Basic: Pitch 220%/Roll 220%/Yaw 220%/Vertical 120%

Gain Attitude: Pitch 120%/Roll 120%

Voltage Protection Swith: OFF

Landing Voltage: 3.5V/Cell

16 / 20

Kraken130 V2 Parts List

17 / 20

Kraken 130 dedicated thread on RCG：

http://www.rcgroups.com/forums/showthread.php?t=2054477

Share your K130 on Facebook:

https://www.facebook.com/groups/1421185571471438/1421187934804535/?notif_t=like

18 / 20

MEMO

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

19 / 20

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

20 / 20

For more info ,please visit www.foxtechfpv.com to check more of our amazing products.

Pls forgive that if any change of products will not make additional specify in advance.

June,20,2014
