Foxtech KRAKEN 130 Assembly Manual

1 / 16

★★★★★★★FOXTECH HOBBY Co., Ltd★★★★★★★

KRAKEN 130 Assembly Manual

FOXTECH Kraken 130(K130) is designed and manufactured by Foxtech Hobby Co.,ltd.

The K130 is specifically designed for heavy lift operations, it is equipped with powerful motors and

high efficiency 18inch CF propeller which generates crazy lifting capacity (20KG flying weight)and

very long fly time(over 50 minutes with enough battery).

The K130 is an ultimate aerial photography or video platform when combined with GH3/5DII/5DIII

/BMCC /Red-epic gimbals.

The unique Easy-folding system and automatic folding landing gear allow for a quick set up and

immediating launching at job site.

www.foxtechfpv.com V1.0

2 / 16

Specifications

Width

1750mm(18" propeller mounted)

500mm(Landing gear skid)

Length

1750mm(18" propeller mounted)

Heigth

520mm(18" propeller mounted)

400mm(Centeral damper plate to ground)

Diagonal wheel

1270mm

Carry size

600mm*500mm*420mm

830mm*500mm*420mm(18" propeller mounted)

Battery mount seat

220mm*220mm

Frame arm length

500mm

Weight

6kg(Gimbal,battery not includes)

15kg(Rountine)

20kg(Max,short fly time expected)

Motor suggested

500W 300kv Brushless motor

ESC suggested

40A OPTO

Propeller suggested

17"-18" CF

Radio suggested

Futaba 14SG

Flight control suggested

DJI A2M

DJI WKM

ZeroUAV X6P

Battery suggested

>6S 10000

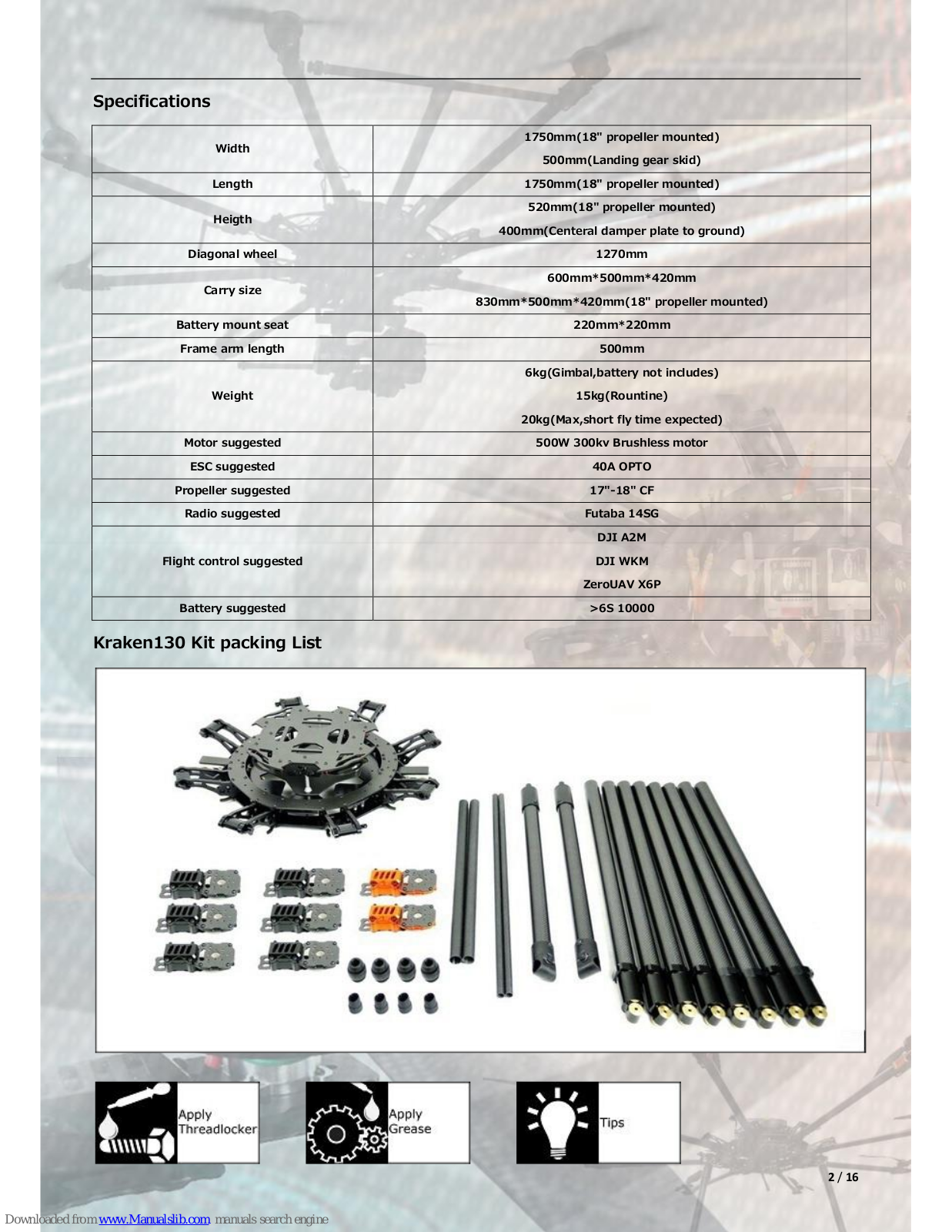

Kraken130 Kit packing List

3 / 16

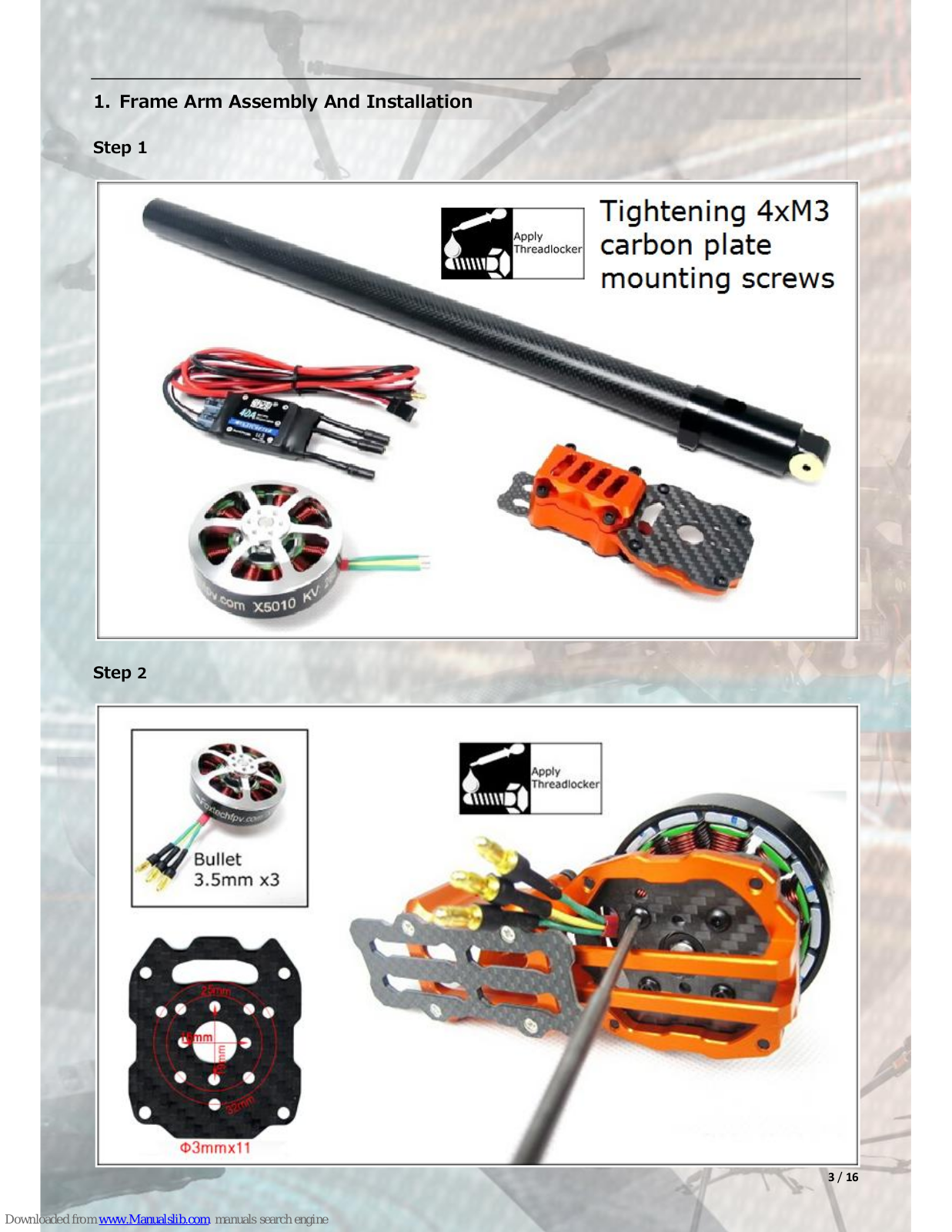

1. Frame Arm Assembly And Installation

Step 1

Step 2

4 / 16

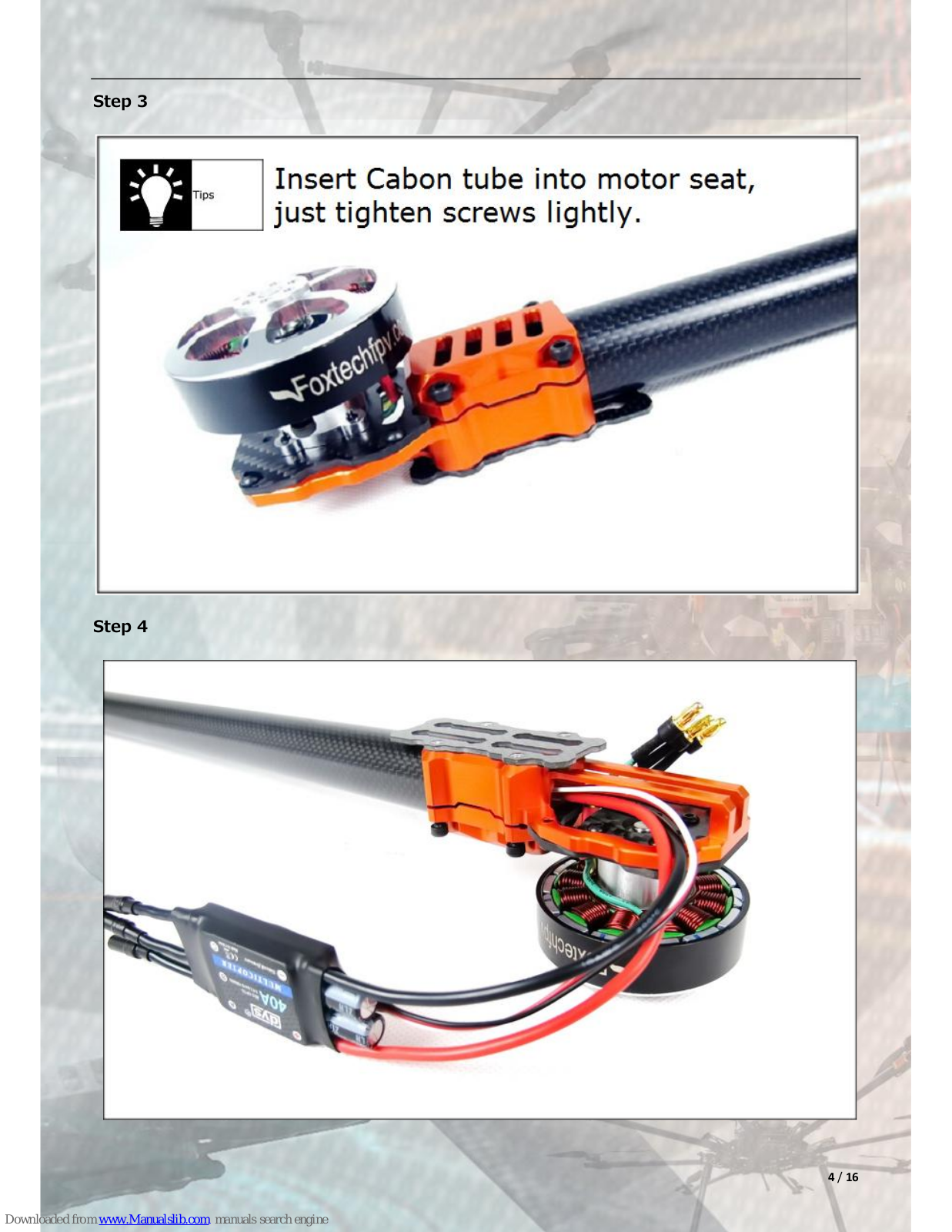

Step 3

Step 4

5 / 16

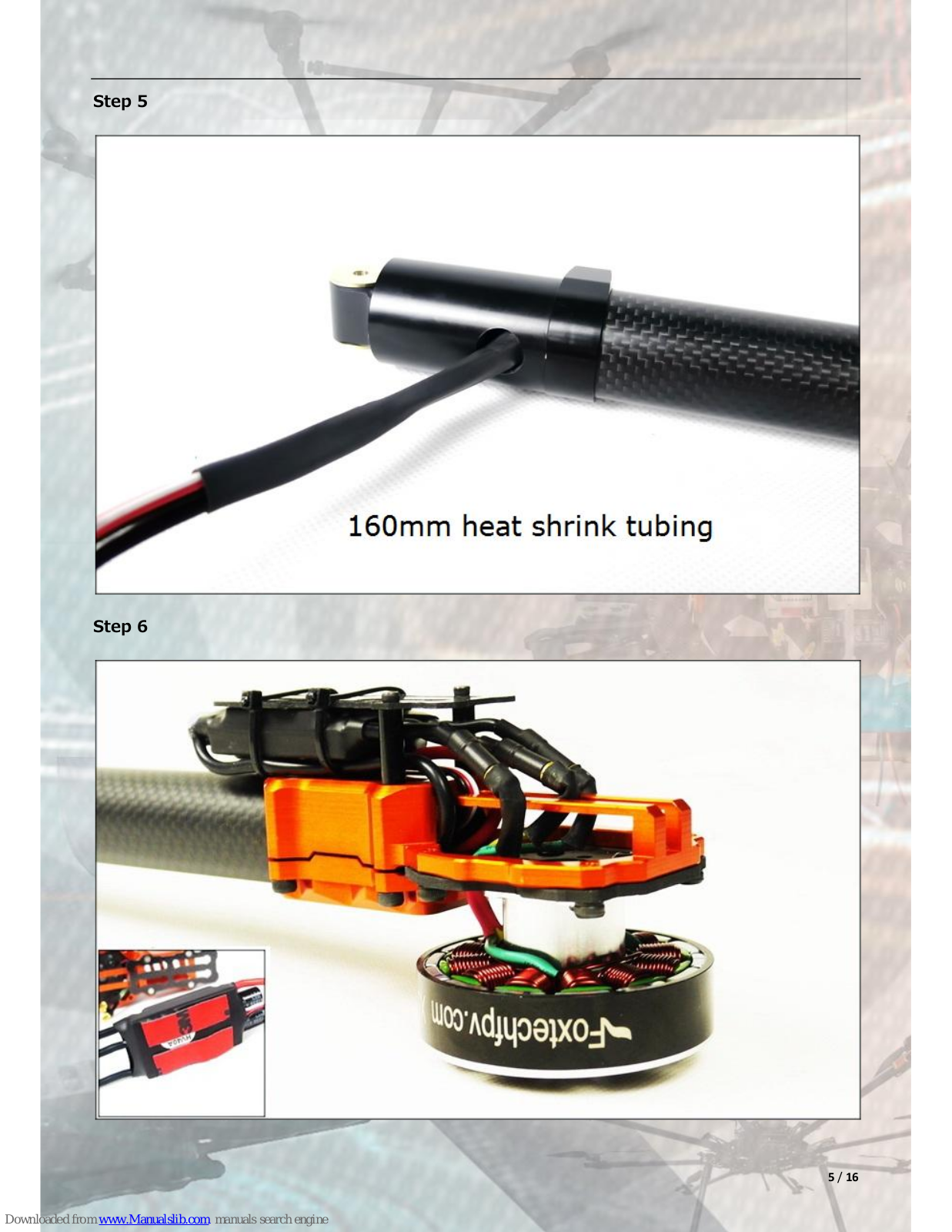

Step 5

Step 6
