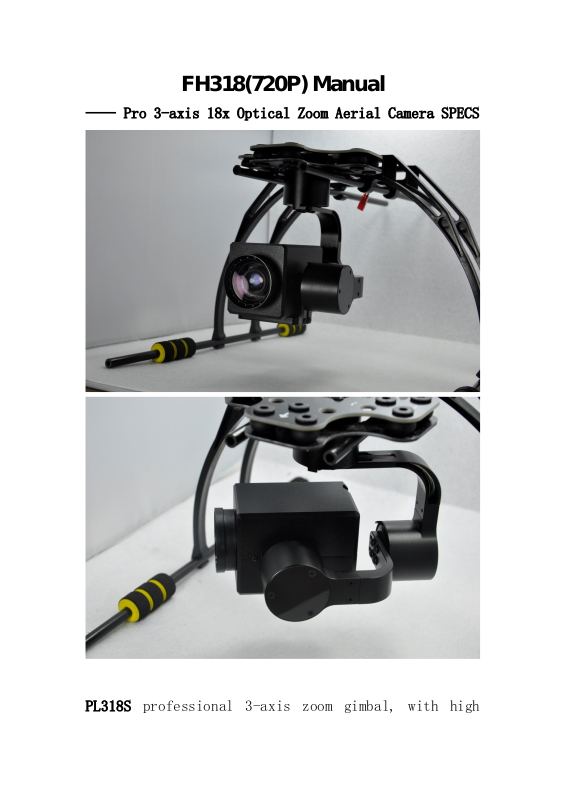

FH318(720P) Manual
—— Pro 3-axis 18x Optical Zoom Aerial Camera SPECS
PL318S professional 3-axis zoom gimbal, with high
accuracy encoder FOC solution, mount 18x optical zoom
Voltage
3s （11.1v）
IDDQ
330mA@12V
IDDT
450mA @12V
Temp
-10~+50 °C
Dimensions
137(L)x88(W)x155(H)mm
Weight
535g
Pitch: -90°to +90°
Roll: -90°to +90°
Yaw: -150°to +150°smooth rotation
Angular Vibration Range:
Pitch & Roll: 0.02°
Yaw: 0.03°
and 720p Full HD camera, providing a detailed long
distance zoom aerial shoot, is designed for public
security，fire protection, power industry etc.
Features:
Light: 535g weight
Small: 137(L) x 88(W) x 135(H)mm
Power saving: 330mA@12V
Unparalleled stabilization: ±0.02°
Electronic properties:
Performance：
88 mm 135 mm
Gimbal:
1. Adjustable speed and mode: When zoomed in, with low
speed and lock head mode,the control is more accurate;
when zoomed out, with high speed and follow mode, the
control is more sensitive and quick.
2. Onekey reset: The camera can auto return to its
original position quickly with one click.
3. Support PWM and serial port command control,suitable
for close range controller or remote digital gimbal
control.
Camera:
1. 18x optical zoom, Full HD 720p video steaming, 14MP
shoot, stunning clearly plate within only 200M.
2. Ultrafast auto focus, which speed is less than 1s,
specially designed for drones.
3. Various interfaces, analog video output, HDMI HD
video output,SD card storage for photo 、 video, PWM
control of camera zoom 、auto focus、manual focus、
photograph、recording, support serial port control of
the camera`s functions,IR controller call camera menu
and set the parameters.
137 mm

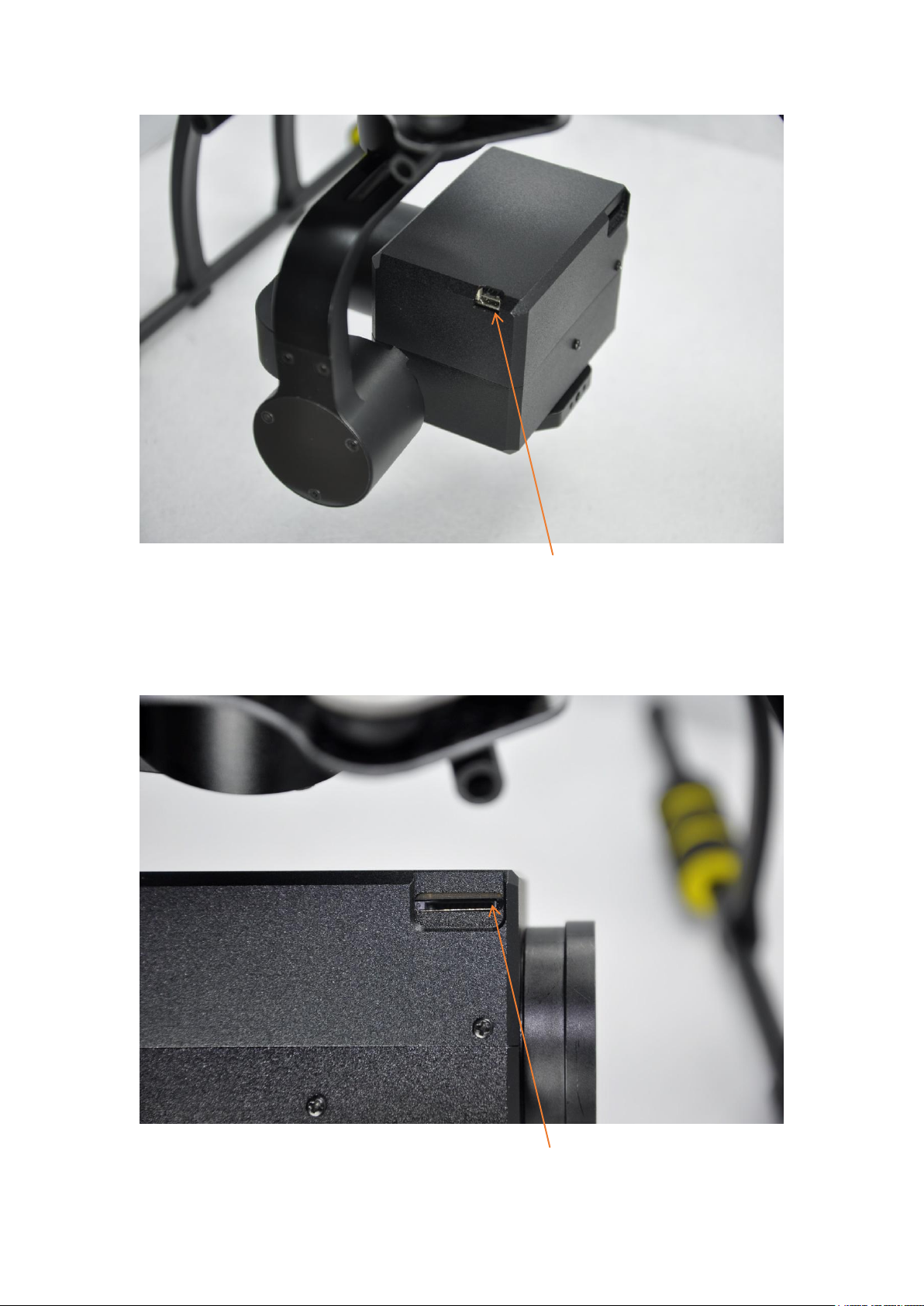

Micro HDMI
Micro SD slot
Camera parameter remote control
PWM control gimbal camera connection manual:
1. 5P gimbal PWM control wire manual:
3p Dupont orange( PITCH channel)、red(5V Power the
receiver)、black( GND receiver ): Connect to receiver
stick or three-way switch channel.
1p Dupont green( YAW channel): Connect to receiver
stick or three-way switch channel.
1p Dupont blue( MODE Switch operate mode ): Connect
to receiver rotary knob or non-auto reset THR channel
or three-way switch channel, specifics as below:
Switch to low: Gimbal low speed, lock head( When
the drone turns, gimbal follows, only controlled by
controller);
Switch to middle: Gimbal high speed,
follow( Gimbal follows the drone`s direction, and
controlled by ground controller);
Switch to high: Gimbal reset, follow( Gimbal
return to its original position, and follows the
drone`s direction).
2. 7P camera signal and control wire connection manual:
1p Dupont blue(ZOOM Camera zoom control wire,spare
wire[Spare usually, if uses, Connect to receiver stick
or three-way switch channel.]).
2p Dupont yellow(AV analog signal output)、green(GND
Analog video GND):Connect to AV channel.
1p Dupont green(zoom Auto focus control wire):
Connect to receiver stick or three-way switch channel.
1p Dupont yellow(focus Manual focus control wire):
Connect to receiver stick or three-way switch channel.
1p Dupont white(pic Switch photo/video mode):
Connect to three-way switch channel.
Switch from middle to high: Photo or video mode
switch
Switch from middle to low:
① Video mode: Screenshot;
② Photo mode: Take photos.
2p Dupont blue(record Start/stop recording),
black(GND):Connect to three-way switch channel.
① Video mode, switch from middle to high: Start
recording; Switch from middle to low: Stop recording;
② Photo mode, switch from middle to high: Take
photos.
PWM board
Yellow：AV OUT Camera zoom spare wire
Green：GND
