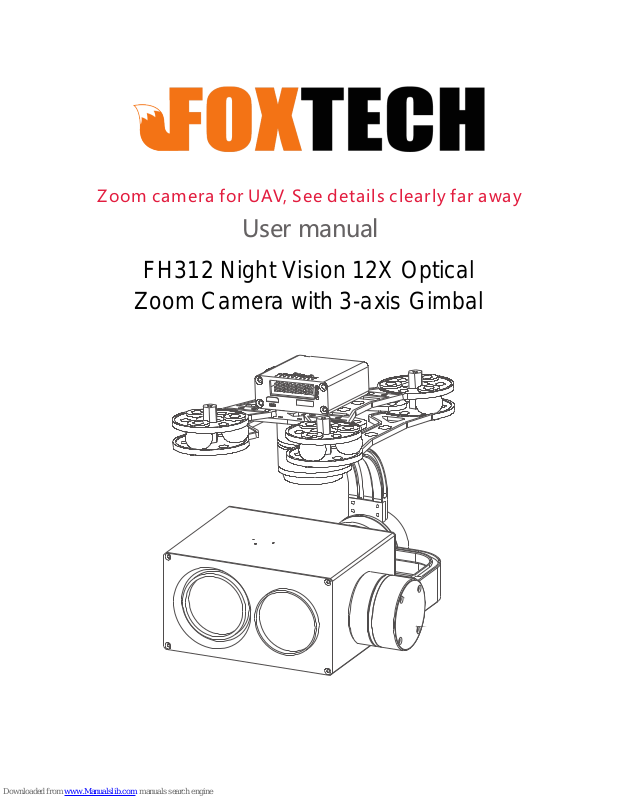

Page 1
User manual
Zoom camera for UAV, See details clearly far away
FH312 Night Vision 12X Optical
Zoom Camera with 3-axis Gimbal
Page 2
igh-precision gimbal
1、 Gimbal introduction
2、Object tracking function Optional
3、Gimbal description……………………………………......…………………3
4、 Packing list.....................................…………....………………….....4
5、Mounting plate dimension drawing……………………......…………………4
6、Installing………....………….............................………………………5
7、Mechanics@Electronic characteristics……….....…………………………5
8、Working characteristics…………………….......................…………………5
9、Gimbal’s signal wire box………………..................…………………6
10、 functional descriptions of gimbal mode……………………………7
…………..................…………………….........2
( )………………....……………………2
1 Camera introduction.............
2、Lighting device characteristics......… … …………………......…………9
、 …………………………..........................8
-1-
Contents
etwork camera
H
N
Page 3
Gimbal introduction
uses professional three axis stabilized zoom gimbal,
adopt high precision encoder FOC control scheme, mount 12
times optical zoom, 1080p Full HD night vision network camera,
Realize long-distance zoom night aerial photography in the air,
designed for public security, fire protection, electricity, etc.
Gimbal characteristics:
1)The speed of gimbal is adjustable: At large times of the
camera,adjust to slow speed,control is more accurate ;and at
small times of the camera, use fast speed, control is more
sensitive and faster.
2)The function of one button back to home position: return
initial position automatically and rapidly by one button.
3)Support PWM control and serial command control, suit for
close distance remote control or remote data transferring
command control gimbal and camera.
-2-
Object tracking function(optional)
-2-
1
Build-in normalization ,cross-correlation and tracking algorithm,
combining with object missing recapture algorithm, achieve stable
track of the target.
Support custom characters of user OSD, adaptive gate, cross
cursor,trace information display.
2、Tracking performance
1)Update rate of deviation pixel 50Hz
2)Output delay of deviation pixel <15ms
3)Minimum target contrast 5%
4)the minimal signal-to-noise ratio ( SNR) 4
5)Minimum target size 16*16 pixel
6)Maximum target size 160*160 pixel
7)Tracking speed 32 pixel/frame
8)The mean square root values of pulse noise in the target
position<0.5 pixel
、Function description
FH312
Page 4
[5]
[6]
[1]
[2]
[7]
[3]
[4]
[8]
[9]
Gimbal description
-3-
!
Please make sure that the motor is not stopped by any object
during the rotation，if the gimbal is blocked during rotation,
please remove the obstruction immediately.
[1]Gimbal fixed copper pillar
[2]Damping sphere
[3]Upper plate of gimbal board
[4]Under plate of gimbal board
[5]YAW axis motor
[6]Roll axis motor
[7]Pitch axis motor
[8]Lighting device
[9]HD zoom network camera
Page 5
163.00
158.00
-4-
164.00
106. 00
Screw pack*1
M3*5mm half round inner six
angle screw*12
(fixed copper pillar and damping
plate)
Packing list
Gimbal*1
Copper pillar*4 Damping sphere*12
挂载板尺寸图
unit:mm
54.00~102.00
(Minimum adjustment unit is 4mm)
Mounting plate dimension drawing
Page 6

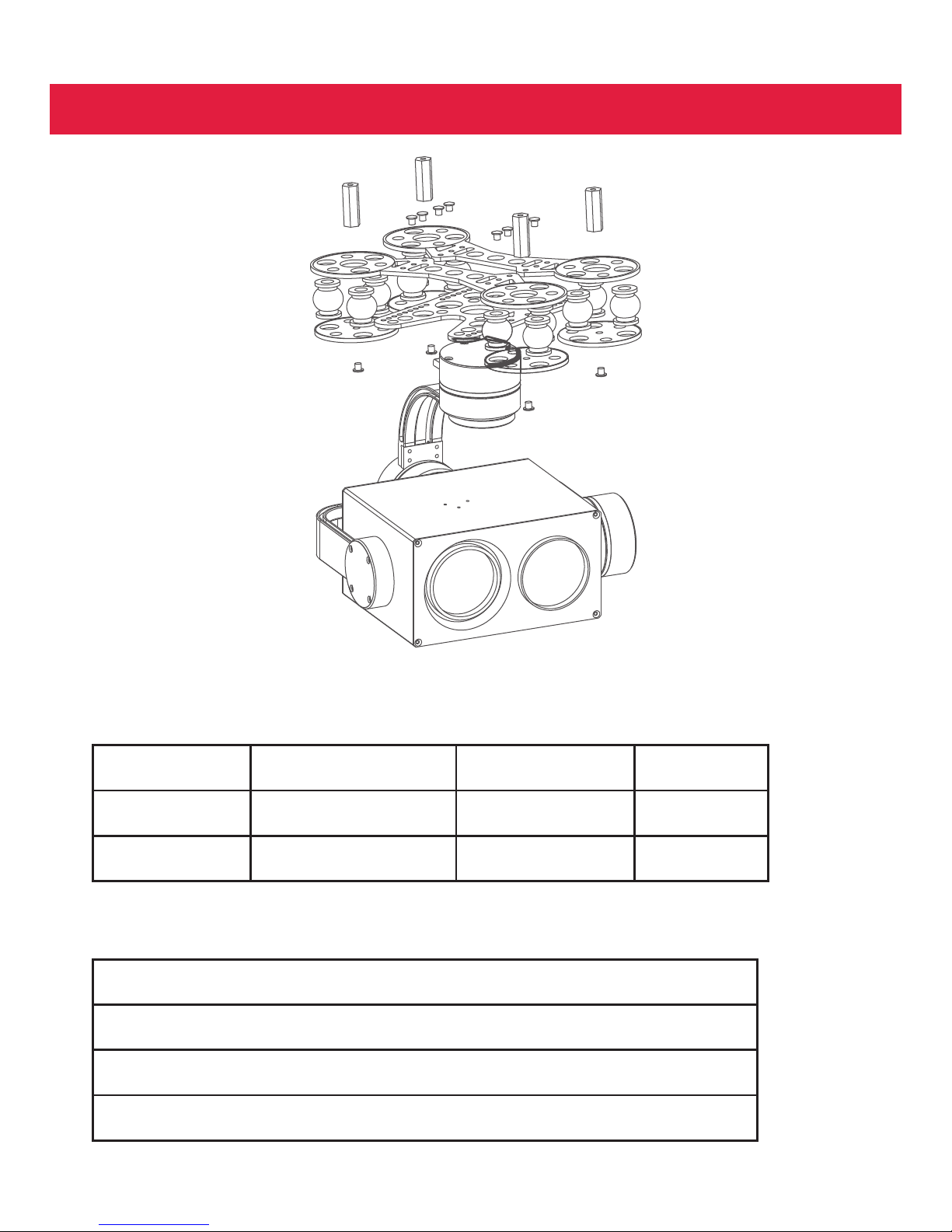

Installing
-5-
Voltage
Working current
Size
3S~6S(12V)
450mA@12V
L163*W164*H158mm
330mA@12V
-20 ~+80° °
1265g
Working characteristics
Mechanics@Electronic characteristics
Pitch angle range of action: ° °-90 ~+90
Roll angle range of action: ° °-85 ~+85
Yaw angle range of action: ° °-150 ~+150
Angle jitter pitch and roll direction ,horizontal direction ±0.03 : ±0. 02° °
Quiescent current
Weight
Work environment
Page 7

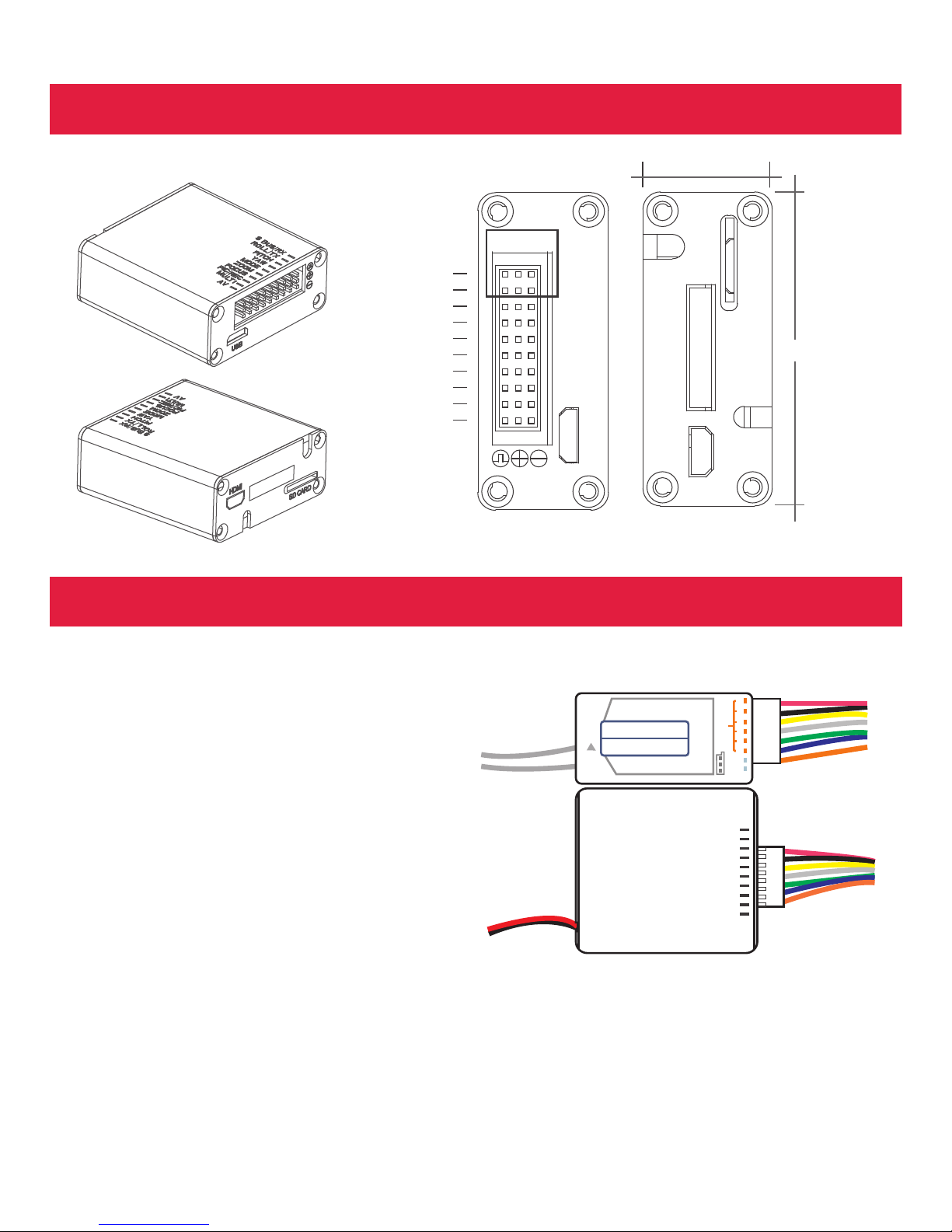

Connection of control box and wiring instructions
S.bus/Rx
Roll/Tx
Pitch
Yaw
Mode
Zoom
Focus
Pic/Rec
Multi
Av
USB
19
SD CARD
HDMI
45
1 2 3
.
.
-6-
R6208
S B
Fu t a b a
DATA
1
2
3
4
5
6
7
8/B
Digital Servo Only
For HS Mode
S.BUS
S.bu s/R x
Pitch
Yaw
Mode
Zoom
Focus
Pic/R ec
Multi
Av
Roll/ Tx
Note: This product has internet access output and
no HDMI output, SD CARD at the tail of camera
Gimbal signal wire box
unit:mm
1、Camera control line
Zoom: camera zoom control line, connect
PWM receiver on third gear, or rocker.
Focus: camera manual focus control line,
connect receiver on third gear, or rocker. If
n o t c o n n e c t , t h e c a m e r a w i l l f o c u s
automatically after zooming.
P i c / R e c : p h ot o g r a p h y / v i d e o , m o d e
switching, video and photography control,
connect receiver on third gear.
Switch to high:
Start video, REC ON display
Switch to middle :
Stop recording, STBY display
Switch to low: Take photos, SNAP display
Multi: Night view mode on / off, Laser on / off
Switch from middle to high: camera night feel infrared mode (black and white mode)
Switch from middle to high again: Camera color mode
Switch from middle to low; Turn on the laser in the camera night sensitive infrared
mode(pay special attention to safety!!! High-power laser
You can't look straight into your eyes, or face consequence!!!)
Switch from middle to low again :Turn off the laser
AV: analog output signal
Page 8
-7-
Functional descriptions of mode (regard the third switch channel mode as the example)
GImbal PWM signal instructions:
YAW directional channel: speed mode ,connect rocker channel, (or third
gear switch channel, stopping need third gear to middle position.）
PITCH Pitch channel：speed mode ,connect rocker channel, (or third
gear switch channel, stopping need third gear to middle position.）
MODE gimbal one button back and speed adjustment：angle mode, A
knob or a thirt gear channel switch.
Turn the knob to the three position: Low speed & not follow yaw mode, at this
moment, the joystick controls YAW and PITCH, gimbal has the lowest speed of
movement, its yaw does not follow the rotation of the aircraft；
Turn the knob to any position above three:variable speed & following mode,
at this moment, the joystick controls YAW and PITCH, The movement speed of
gimbal rises(Speed varies with position) ,gimbal works in follow yaw mode.
Turn the knob to the one position : gimbal returns to the home position;
Toggle switches one time between position -2 and -1 rapidly, gimbal returns to
the home position;
Toggle switches two times between position -2 and -1, gimbal use speed mode
(profile 1)
Toggle switches three times between position -2 and -1, gimbal use angle mode
(profile 2);
Toggle switches four times between position -2 and -1, calibrate the accelerator.
Toggle switches five times between position -2 and -1, calibrate the gyroscope
Note: GImbal turns on in the static state, and the gyroscope is automatically
calibrated ;The working mode of gImbal at the next boot time is the mode used
last time, factory mode is speed mode.

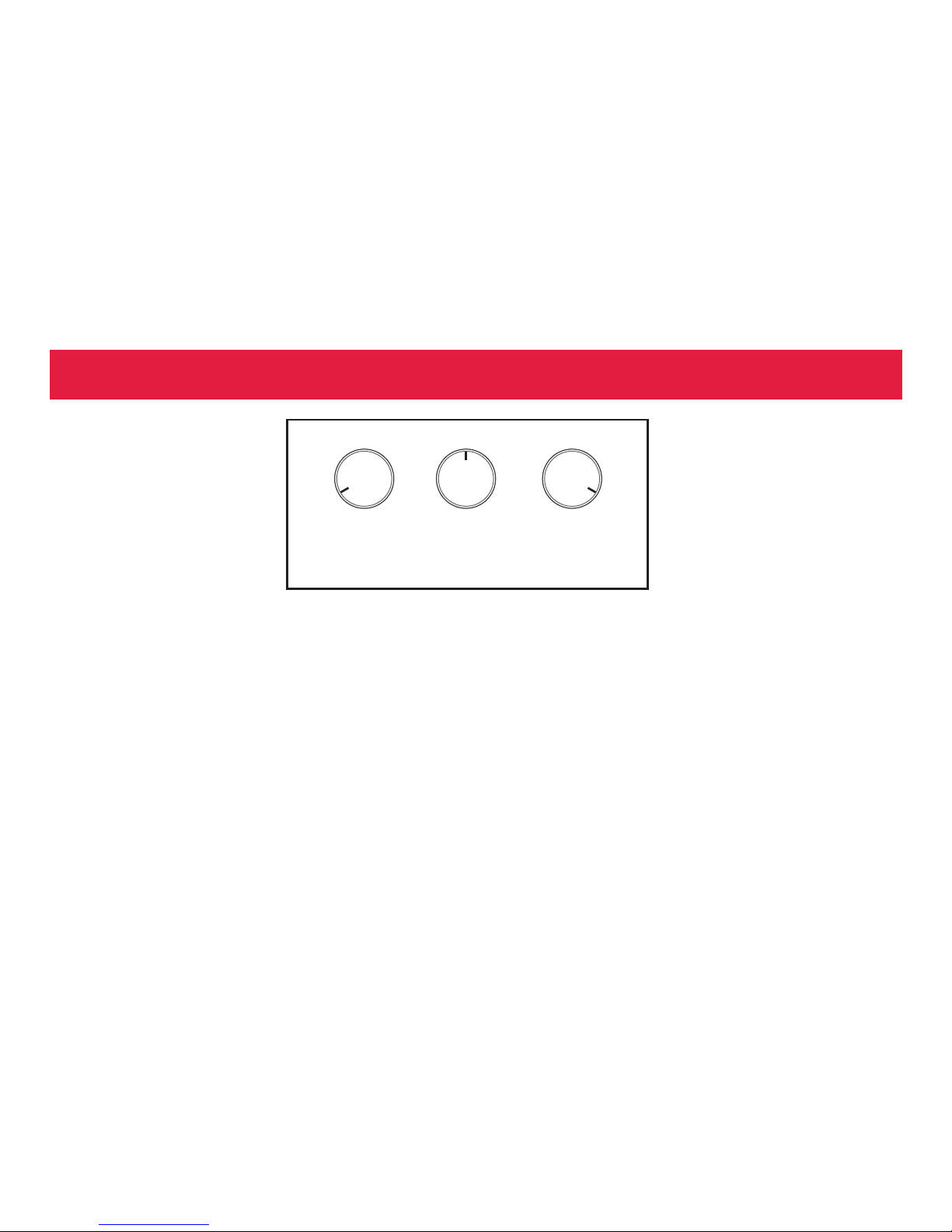

position -1 position -2 position -3
Page 9
Camera characteristics
•
•
•
•
•
•
•
•
•
•
•
1080(1920*1080)HD image quality.
IMX185-1/1.9 high performance CMOS sensor, 2 million pixels, high
picture quality and high sensitivity.
Powerful zoom ability 12 times optical zoom, 12X digital zoom, excellent
autofocus performance, aperture range of F1.5~F1.9, focal length range
of 7.0~84mm.
Video output pixel (H) * (V): 1920*1080.
Video formats 1080p/25, 1080p/30
Daily / night function (on, off, automatic)
Multiple white balance modes
Powerful low noise effect and excellent noise reduction
performance
Support starlight class ultra low illumination: 0.005Lux@F1.5 (color),
0.0005Lux@F1.5 (black and white), 0Lux (IR)
The signal-to-noise ratio>55dB
Picture special effects (electronic flip, black and white, mirror image,
image GAMMA, electronic fog, digital wide dynamic)
Speed autofocus, focusing speed <1s, designed for UAVs.
Rich interface, analog video output, Network port 1080p@25fps HD video
output, SD card photos and video storage, Client or use the PWM to
control the camera zoom autofocus. Manual focus, camera, video,
support serial control camera functions, set the camera parameters.
-8-
Page 10
Lighting device characteristics
• Valid distance: ≥500m
• Lighting wavelength: 85010nm(940nm,980nm)
• Lighting angle: Electric continuous zoom ,continuously adjust
• Zoom time: 2s (Near angle, far angle)
• Laser chip power：2±0.2W
• Lighting angle:
Far angle : Finite distance , spot diameter＜20m
Near angle , Finite distance>40m
• Working voltage: DC12V±10%
• Total power consumption: ＜11W
• Control mode: PWM/TTL command control
• Communication mode: UART_TTL
• Communication protocol: Pelco_D protocol (9600bps)
• Working temperature: - 20℃~+80℃
• Storage temperature: -40℃~+80℃
-9-
