Foxtech FH310Z User Manual

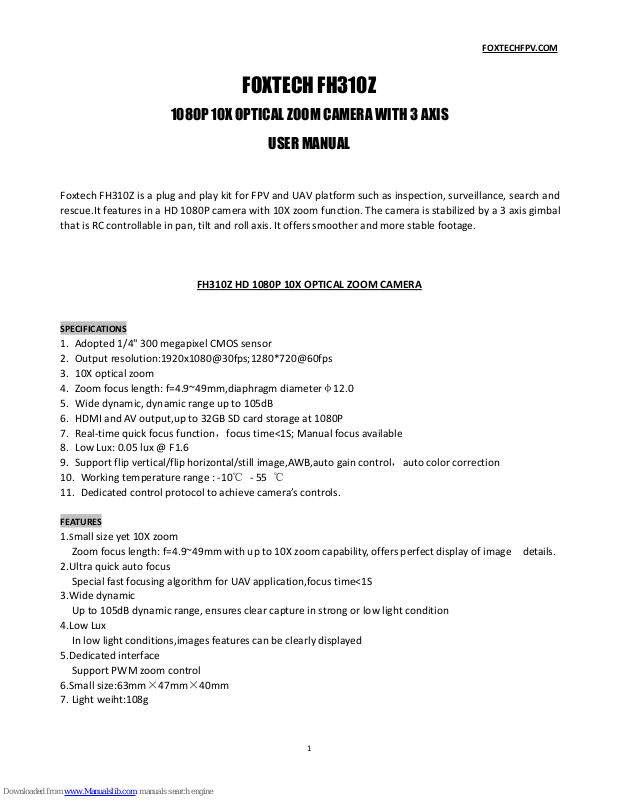

FOXTECHFPV.COM

1

FOXTECH FH310Z

1080P 10X OPTICAL ZOOM CAMERA WITH 3 AXIS

USER MANUAL

Foxtech FH310Z is a plug and play kit for FPV and UAV platform such as inspection, surveillance, search and
rescue.It features in a HD 1080P camera with 10X zoom function. The camera is stabilized by a 3 axis gimbal
that is RC controllable in pan, tilt and roll axis. It offers smoother and more stable footage.

FH310Z HD 1080P 10X OPTICAL ZOOM CAMERA

SPECIFICATIONS

1. Adopted 1/4" 300 megapixel CMOS sensor

2. Output resolution:1920x1080@30fps;1280*720@60fps

3. 10X optical zoom

4. Zoom focus length: f=4.9~49mm,diaphragm diameterφ12.0

5. Wide dynamic, dynamic range up to 105dB

6. HDMI and AV output,up to 32GB SD card storage at 1080P

7. Real-time quick focus function，focus time<1S; Manual focus available

8. Low Lux: 0.05 lux @ F1.6

9. Support flip vertical/flip horizontal/still image,AWB,auto gain control，auto color correction

10. Working temperature range : -10℃ - 55 ℃

11. Dedicated control protocol to achieve camera’s controls.

FEATURES

1.Small size yet 10X zoom

Zoom focus length: f=4.9~49mm with up to 10X zoom capability, offers perfect display of image details.

2.Ultra quick auto focus

Special fast focusing algorithm for UAV application,focus time<1S

3.Wide dynamic

Up to 105dB dynamic range, ensures clear capture in strong or low light condition

4.Low Lux

In low light conditions,images features can be clearly displayed

5.Dedicated interface

Support PWM zoom control

6.Small size:63mm×47mm×40mm

7. Light weiht:108g

FOXTECHFPV.COM

2

FOXTECHFPV.COM

3

FH310Z 3 AXIS GIMBAL

WARNINGS AND DISCLAIMER

Do not alter or add any other parts to the camera gimbal. Do not power the FH310Z gimbal until it is
mounted correctly using mounting plate/parts provided. Do not fit any filters or lens hood to the camera as
this can cause imbalance which could damage the gimbal motors, use the camera in it's original state do
not add other peripherals to the camera.

When setting up the FH310Z gimbal it is recommended that the propellers be removed from the aircraft to
avoid injury. When you test fly your aircraft ensure you are in a clear safe area and the flight controller is
set up correctly for safe flight. Keep children and animals well clear of the flight test area to avoid injury.

Use outside the guidelines given is out of the control of the manufacturer and therefore the company will
not be liable for any loss or liability for improper use of the FH310Z gimble.

GIMBAL INTRODUCTION

FH310Z gimbal is especially designed for FH310Z camera, all settings are pre set from factory. It stabilizes in
pan, roll and tilt. The all in one piece design of the gimbal and anti-vibration greatly minimizes the
mechanism vibration. It is an excellent option for wide UAV applications such as public security, zoomable
aerial photography etc.

FH310Z is made for FH310 camera. It may not work well with other cameras.

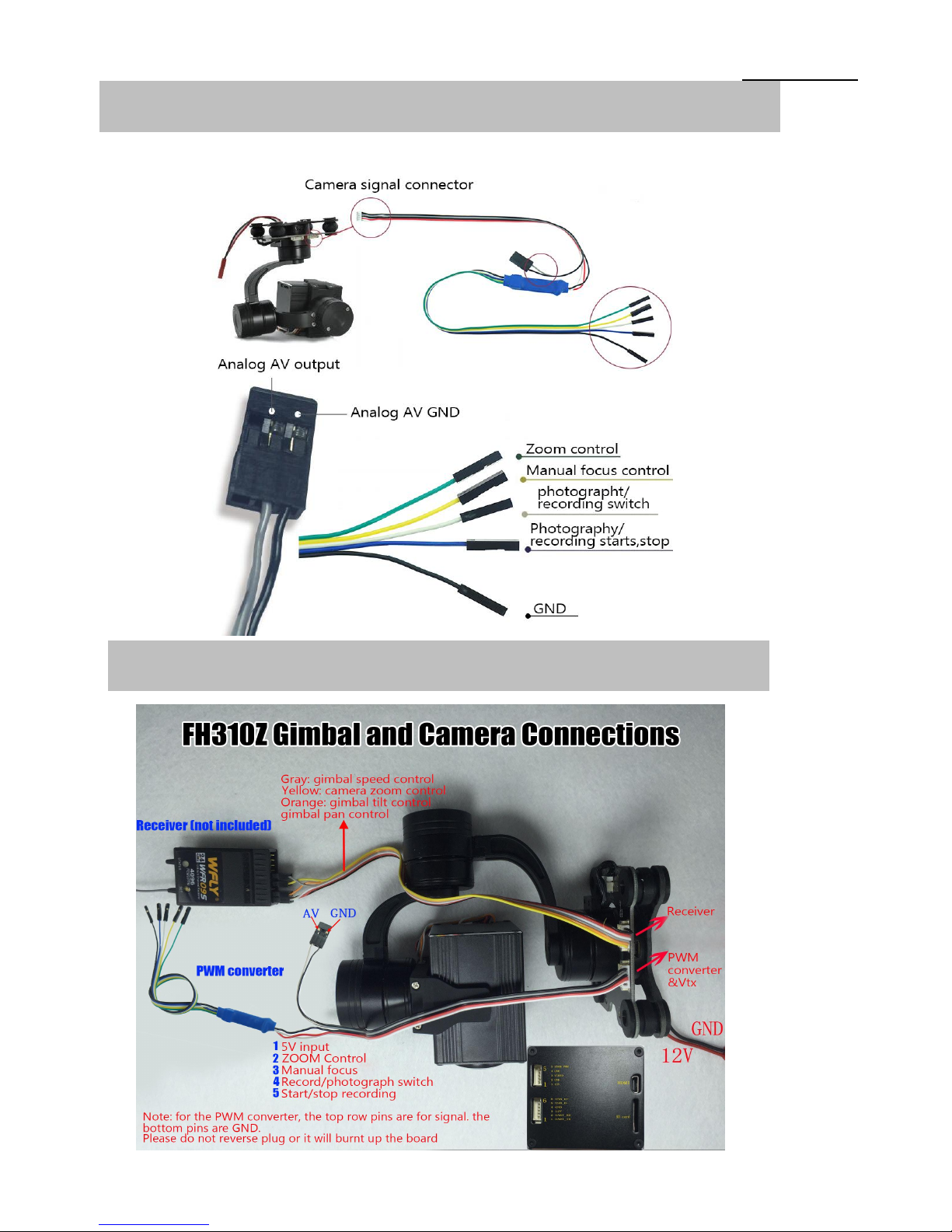

Gimbal Details
