Foxtech Falcon Operation Manual

FOXTECH FALCON BRUSHLESS GIMBAL OPERATION MANUAL

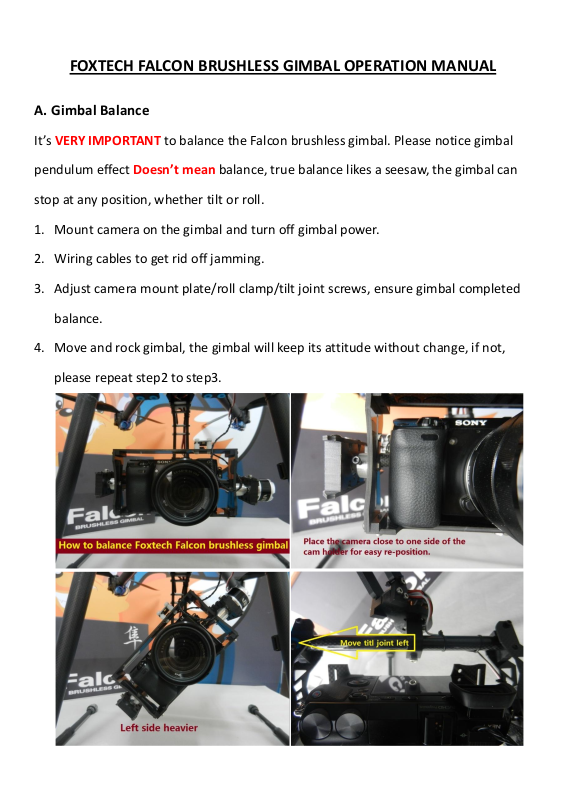

A. Gimbal Balance

It’s VERY IMPORTANT to balance the Falcon brushless gimbal. Please notice gimbal

pendulum effect Doesn’t mean balance, true balance likes a seesaw, the gimbal can

stop at any position, whether tilt or roll.

1. Mount camera on the gimbal and turn off gimbal power.

2. Wiring cables to get rid off jamming.

3. Adjust camera mount plate/roll clamp/tilt joint screws, ensure gimbal completed

balance.

4. Move and rock gimbal, the gimbal will keep its attitude without change, if not,

please repeat step2 to step3.
