Foxpro Hammerjack Instruction Manual
2
Important Information
FOXPRO®’s goal is to provide our customers with the highest quality products in the
industry. We take great pride in manufacturing our products in the USA. Please do not
hesitate to contact us for assistance, comments or questions.
FOXPRO® Inc.
14 Fox Hollow Drive
Lewistown, PA 17044
Hours of Operation
Monday – Friday
8AM – 5PM EST
Contact Us
Service & Support: 717-248-2507
Toll Free Orders Only: 866-463-6977
General Inquiry E-mail: sales@gofoxpro.com
Technical Support: techsupport@gofoxpro.com
Stay up to date with the latest sounds by visiting our online sound library. Watch for
new products and upgrades from FOXPRO®. Visit us online:
www.gofoxpro.com
This manual, the animal sounds stored in your caller, and animal sounds purchased from FOXPRO® Inc. for
installation in your caller are protected by copyright.
Copyright ©℗ 2017 by FOXPRO® Inc.
Publication Date: July 6, 2017 – REV2
3
Contents
1. Getting Started ..................................................................................................................................... 4
1-2 HammerJack: First Glance .................................................................................................................... 4
1-3 HammerJack: Power Requirements ...................................................................................................... 4
1-4 TX915 Transmitter: First Glance ........................................................................................................... 5
1-5 TX915 Transmitter: Power Requirements ............................................................................................ 5
2. Quick Start Guide .................................................................................................................................. 5
2-1 Playing Sounds ...................................................................................................................................... 6
2-2 Using Favorites/Presets (P1 and P2) ..................................................................................................... 6
3. About the HammerJack Speakers ......................................................................................................... 7
4. Using External Speakers ........................................................................................................................ 7
5. Batteries and Charging .......................................................................................................................... 8
6. Using External Power Sources ............................................................................................................... 9
7. Auxiliary Devices ................................................................................................................................... 9
7-1 Integrated Decoy Wiring Harness ......................................................................................................... 9
7-2 Using the Fox Jack 4 Decoy ................................................................................................................. 10
8. TX915 Detailed Overview .................................................................................................................... 10

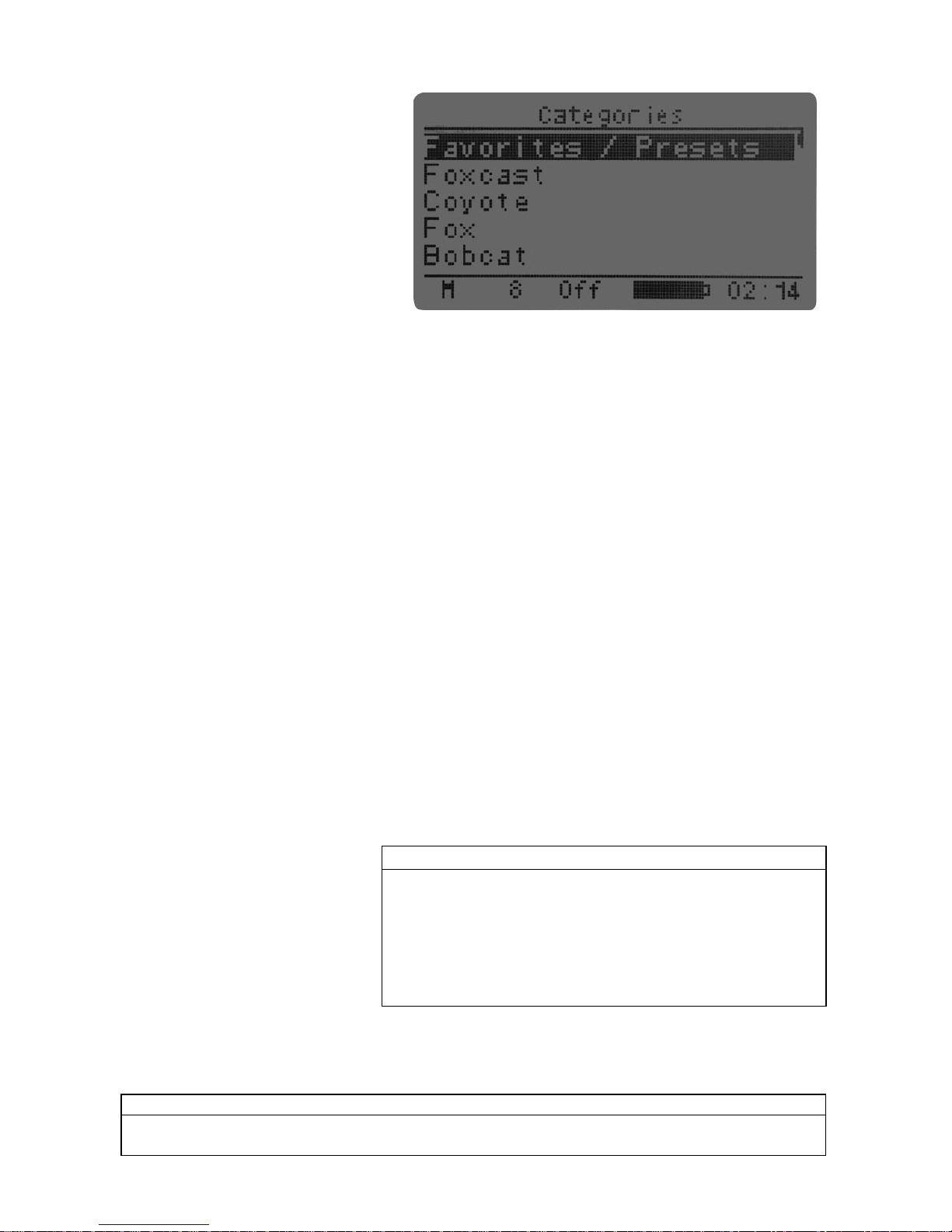

8-1 Primary Display Area .......................................................................................................................... 11
8-2 Main Menu ......................................................................................................................................... 11
8-3 FOXFEATURES: FOXBANG ................................................................................................................... 11
8-3 FOXFEATURES: User Button ................................................................................................................ 12
8-4 Sound Settings: Volume Steps ............................................................................................................ 12
8-5 Sound Settings: Play Mode ................................................................................................................. 12
8-6 Sound Settings: Preset Mute Override ............................................................................................... 12
8-7 Display/Power: Backlight .................................................................................................................... 12
8-8 Display/Power: Backlight T.O. ............................................................................................................ 12
8-9 Display/Power: Contrast ..................................................................................................................... 13
8-10 Display/Power: Display Mode ........................................................................................................... 13
8-11 Display/Power: Auto Off ................................................................................................................... 13
8-12 Timer: Stand Timer ........................................................................................................................... 13
8-13 Timer: Alarm ..................................................................................................................................... 13
8-14 Transmitter Settings: Download List ................................................................................................. 13
8-15 Transmitter Settings: AUX ................................................................................................................ 14
8-16 Transmitter Settings: View ............................................................................................................... 14
8-17 Transmitter Settings: About Info ...................................................................................................... 14
8-18 Transmitter Settings: Cable Detect ................................................................................................... 14
9. FOXCAST ............................................................................................................................................. 14

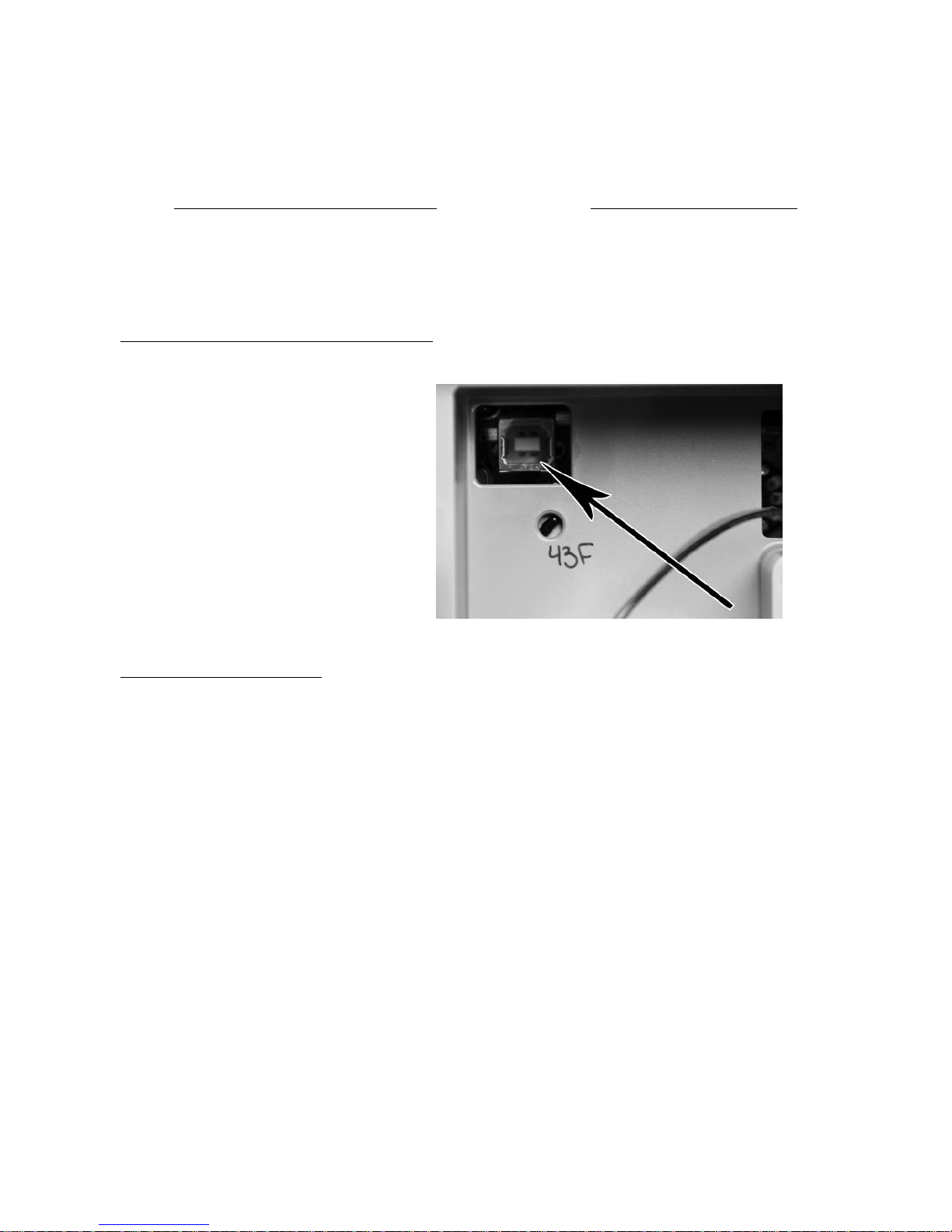

10. Programming the HammerJack ........................................................................................................... 16

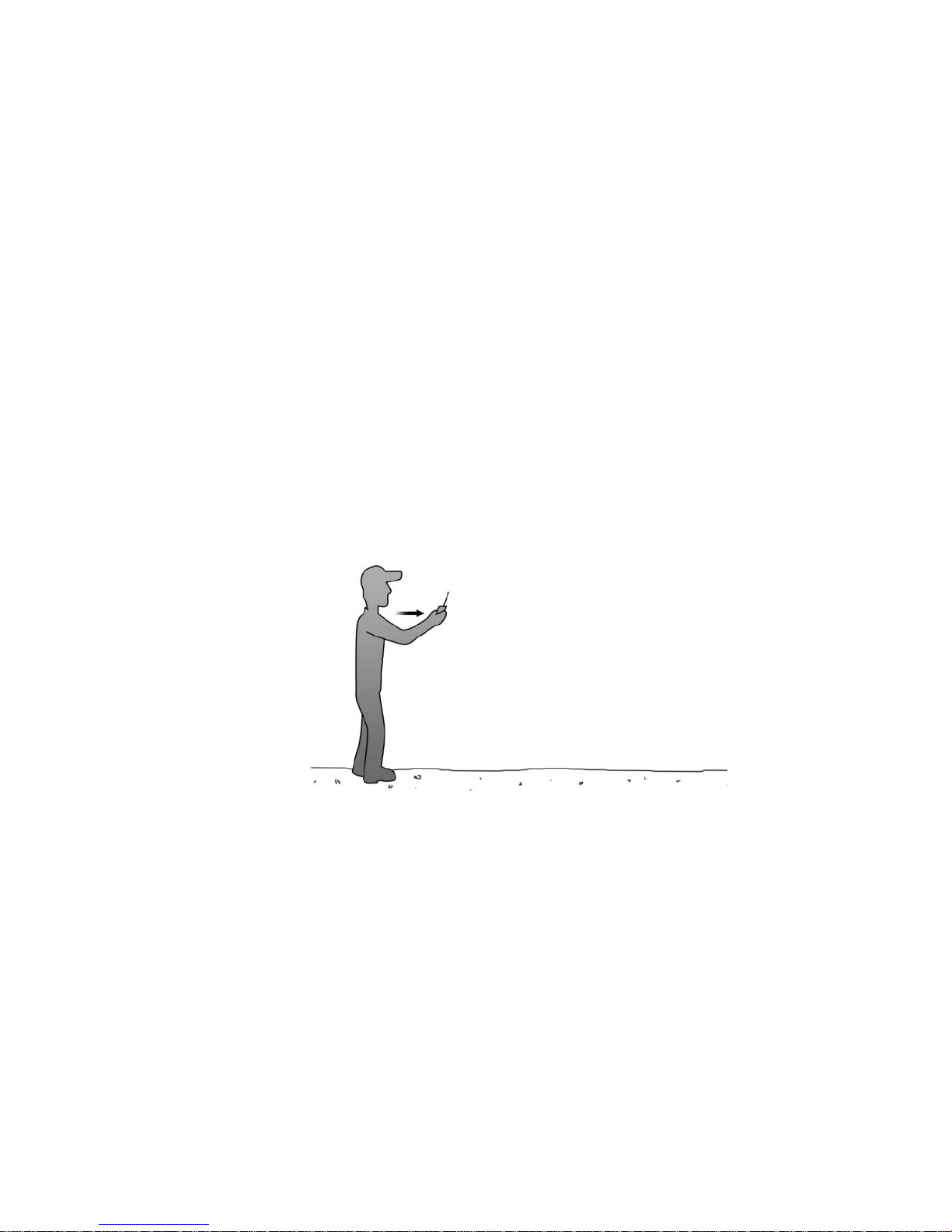

11. Maximizing Remote Range ................................................................................................................. 19
12. Product Care & Maintenance .............................................................................................................. 19
13. Troubleshooting .................................................................................................................................. 20
14. FCC & IC Information .......................................................................................................................... 21
15. Warranty Statement ........................................................................................................................... 22
4
1. Getting Started
Congratulations on your purchase of the FOXPRO HammerJack digital game call! To avoid personal injury
and product damage, be sure to read all operating instructions before using the FOXPRO HammerJack.
1-2 HammerJack: First Glance
The following chart corresponds to a graphic of the HammerJack game call bellow. Certain aspects of the
HammerJack are marked with a number that corresponds to the chart defining that particular element.
1
Carry handle
2
Rear cone speaker
3
Fox Jack 4 decoy
4
Power on/off switch
5
Internal speaker on/off switches
6
Charge jack
7
Rear external speaker jack
8
Auxiliary jack
9
Front external speaker jack
10
Low battery indicator
11
Front horn speaker
1-3 HammerJack: Power
Requirements
The HammerJack is shipped without batteries. It requires 8 ‘AA’ batteries. You may use alkaline batteries to
get started, but it is recommended that you use high capacity rechargeable NiMH (nickel metal hydride)
batteries or one of FOXPRO’s optional rechargeable battery packs.
Installing Batteries in the HammerJack
1. Access the battery compartment by removing the Fox Jack 4 from the back of the HammerJack.
The Fox Jack 4 is secured with a knurled thumbscrew. Notice that the Fox Jack 4 has an interface
wire attaching to a wiring harness inside the back of the HammerJack. You can disconnect this
5
wire if needed. After the Fox Jack 4 is removed, locate the black plastic battery tray. This tray is
double-sided, providing spaces for 8 ‘AA’ batteries. The tray is connected to a power cable—you
may unplug this cable during battery installation.
2. Place the batteries into each battery cavity. Be sure to observe polarity as indicated.
3. Reconnect the power cable (if you unplugged it) and the Fox Jack 4 interface wire (if you
disconnected it). Place the battery tray back inside of the HammerJack.
4. Secure the Fox Jack 4 back on the HammerJack.
1-4 TX915 Transmitter: First Glance
The following chart corresponds to a graphic depicting the
HammerJack remote. Certain aspects of the HammerJack
remote are marked with a number that corresponds to the
chart defining that particular element.
1-5 TX915 Transmitter: Power Requirements
The HammerJack remote operates on 3 ‘AA’ batteries. It is recommended that you use high-quality lithium
or alkaline batteries for the best performance.
Installing Batteries in the HammerJack Remote
1. Access the battery compartment by removing the door from the back of the remote. The door
slides down and off of the remote.
2. Place the batteries into each battery cavity while observing polarity as indicated.
3. Slide the battery compartment door back on the remote.
2. Quick Start Guide
The Quick Start Guide gives you a quick rundown on how to get your HammerJack up and running right
away. While this section provides you with the basics to get started, we strongly suggest reading the manual
in its entirety to fully understand all of the features and get the most out of your new product.
1
Power on/off
2
Select
3
Volume up/down
4
Mute
5
Quick access buttons for preset 1 and preset 2
6
Lanyard loop
7
Auxiliary button
8
User button
9
Sound up/down
10
Back/Menu
11
Timer
12
Battery indicator
13
Sound list upload jack
14
Mute status indicator
15
Volume level indicator
16
FOXBANG indicator
6
2-1 Playing Sounds
The primary function of your HammerJack game call is to produce sounds to attract wildlife. This section
explains how to turn on the HammerJack and the TX915, and how to start playing sounds. Be aware that the
HammerJack can only play sounds by being commanded by the TX915 transmitter.
IMPORTANT NOTE
THE TX915 TRANSMITTER IS NOT INTENDED TO OPERATE THE CALLER AT DISTANCES SHORTER
THAN 1 METER (3 FEET). IF THE TRANSMITTER IS LOCATED TOO CLOSE TO THE CALLER,
PROPER OPERATION CANNOT BE ENSURED.
1. Turn on the HammerJack by turning the power on/off switch clockwise until it clicks.
2. Make sure that at least one of your internal speakers is turned on by sliding the respective
speaker on/off switch to the right or “on” position.
3. Turn on the TX915 transmitter by pushing and holding the power button for approximately 1-2
seconds.
4. Notice the black horizontal highlight bar on the TX915 display. The bar moves up and down the
screen as you use the “Scroll Up” or “Scroll Down” arrow buttons.
5. Move the highlight bar to one of the sound categories and push the “Select” button. Doing this
results in displaying all of the sounds in that particular category. To exit the current category,
push the “Back/Menu” button.
6. After moving the highlight bar to the sound you wish to play, push the “Select” button a single
time to begin playback. You won’t hear anything at first as the volume level hasn’t been set.
7. To adjust the volume: Use the “Volume Up” button to raise the volume level to your desired
setting. Use the “Volume Down” button to decrease the volume level. The transmitter has 20
volume steps.
8. To silence the sound: Push the “Mute” button a single time. When muted, the mute status
indicator on the TX915 display shows an “M” and the current sound is silenced. Un-muting is
accomplished by pushing the “Mute” button a second time (the “M” will no longer be displayed
and the sound will resume playing).
9. To switch sounds: Use the scroll buttons to navigate to a different sound and push the “Select”
button. You can switch sounds while the HammerJack is actively playing a sound or while muted.
10. To turn off the TX915: Push and hold the power button for approximately 1-2 seconds. Be aware
that turning off the remote control does not end sound playback on the HammerJack. If you are
finished calling, use the “Mute” button to silence the HammerJack prior to turning off the TX915.
11. To turn off the HammerJack: Rotate the power switch to the off position (counter-clockwise).
2-2 Using Favorites/Presets (P1 and P2)
The TX915 transmitter is capable of storing up to 10 unique presets/favorites. A preset, or favorite, is a
shortcut to a specific sound and volume level. The TX915 has 2 quick-access preset buttons located on the
keypad labeled “P1” and “P2.” By default, the transmitter has one preset established which is sound 000
(Coyote Pup Distress 3) at volume 10 (50% max).
Creating a New Favorite/Preset
1. From the main screen on the transmitter, select the “Favorites/Presets” menu item.
2. Select one of the 10 preset slots. Notice that the screen indicates “Preset Recording” on the top
line of the display. The second line down displays “P1 – Select Sound.”
3. Use the scroll buttons to highlight the sound you want to select for this preset and then push the
“Select” button.
4. Use the volume buttons to set the desired volume level for this preset and then push “Select.”
5. Your preset is now setup.
7
Changing/Overwriting Existing Favorite
1. Select the “Favorites/Presets” menu item on the TX915.
2. Position the highlight bar on the favorite that you wish to change.
3. Push and hold the “Select” button for about 3-4 seconds. The remainder of the process is exactly
the same as setting up a new favorite where you select the desired sound and volume level.
Using a Favorite
Make sure that both the HammerJack and TX915 transmitter are powered on, and push the corresponding
preset button (P1 or P2) on the transmitter keypad. The HammerJack will then instantly switch to that
sound and volume level. To initiate playback of any other preset: Select the “Favorites/Presets” menu on
the main screen, browse through the available presets, and then use the “Select” button, just as if you were
picking a sound for normal playback. The “User” button can be configured to initiate playback of presets 3,
4, and 5; see section 8-3 for more information about the “User” button.
3. About the HammerJack Speakers
The HammerJack incorporates two different types of loudspeakers. The front speaker is a high efficiency
horn with maximum sensitivity in the frequency range necessary to reproduce small animal distress
sounds. Distress sounds of rabbits, small rodents, birds, canines, and many others are best reproduced by
using the front horn only with the rear cone speaker turned off. This will also ensure maximum battery life
as playing both speakers requires almost twice as much battery power. The rear cone speaker is best
suited for sounds that have significantly lower frequency content. These sounds would include bear
growls, mountain lion roars, certain owl hoots, and some other large mammal sounds. The rear speaker,
however, is not as efficient as the front horn. Because of this, it will not play as loud as the horn.
Understand that not all calling sounds will benefit greatly from playing both speakers at once. If you elect
to do this, remember that battery life will be reduced.
4. Using External Speakers
The HammerJack is equipped with two External Speaker Jacks which allows you to connect up to two
additional speakers. The internal speakers perform admirably; however, you may encounter situations that
require higher volume levels. By connecting a larger and more efficient external speaker(s) to the
HammerJack, the volume level can be increased significantly.
Connecting an External Speaker
The external speaker jacks on your HammerJack accept standard 3.5mm plugs. When choosing an external
speaker, it is recommended to use one with an impedance rating of 8-ohms. To connect an external
speaker, plug the connector of the external speaker into one of the external speaker jacks. You will notice
that each external speaker jack corresponds to one of the internal speakers. For example, the internal front
speaker and front external speaker are linked together. If you wish to have ONLY the external speaker(s)
produce sound, you must disable the internal speakers as the internal speakers are not disabled
automatically.
Disabling/Enabling the Internal Speaker
Move the speaker slide switch to the “OFF” position for the desired speaker you wish to disable (front or
back). To re-enable the speaker later, simply place the slide switch back to the “ON” position. By disabling
the internal speaker(s) when using an external speaker(s), battery life will be extended longer than having
all of the speakers operating at once.
Loading...
