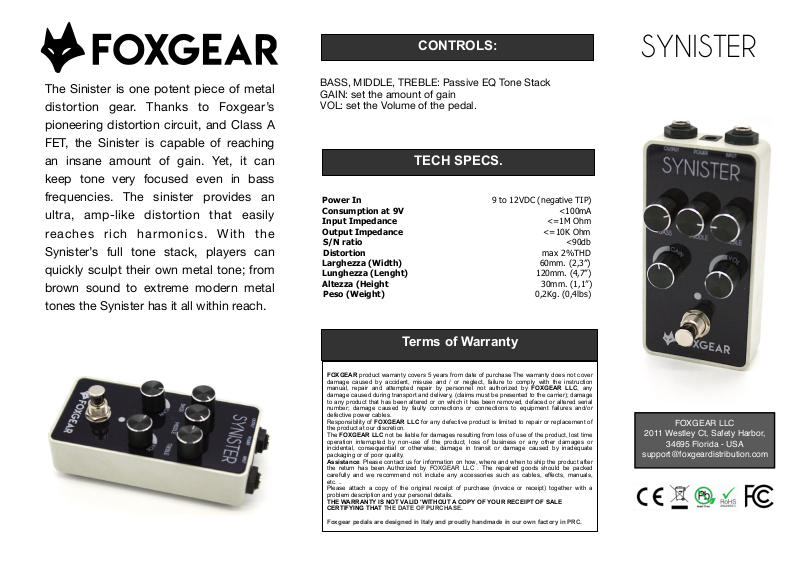

SYNISTER
FOXGEAR product warranty covers 5 years from date of purchase The warranty does not cover
damage caused by accident, misuse and / or neglect, failure to comply with the instruction
manual, repair and attempted repair by personnel not authorized by FOXGEAR LLC, any
damage caused during transport and delivery, (claims must be presented to the carrier); damage
to any product that has been altered or on which it has been removed, defaced or altered serial
number; damage caused by faulty connections or connections to equipment failures and/or
defective power cables.!
Responsibility of FOXGEAR LLC for any defective product is limited to repair or replacement of
the product at our discretion.!
The FOXGEAR LLC not be liable for damages resulting from loss of use of the product, lost time
operation interrupted by non-use of the product, loss of business or any other damages or
incidental, consequential or otherwise; damage in transit or damage caused by inadequate
packaging or of poor quality.
Assistance: Please contact us for information on how, where and when to ship the product after
the return has been Authorized by FOXGEAR LLC . The repaired goods should be packed
carefully and we recommend not include any accessories such as cables, effects, manuals,
etc. ..!
Please attach a copy of the original receipt of purchase (invoice or receipt) together with a
problem description and your personal details.
THE WARRANTY IS NOT VALID 'WITHOUT A COPY OF YOUR RECEIPT OF SALE
CERTIFYING THAT THE DATE OF PURCHASE.
Foxgear pedals are designed in Italy and proudly handmade in our own factory in PRC.!
Terms of Warranty
FOXGEAR LLC
2011 Westley Ct, Safety Harbor,
34695 Florida - USA
support@foxgeardistribution.com
BASS, MIDDLE, TREBLE: Passive EQ Tone Stack!
GAIN: set the amount of gain!
VOL: set the Volume of the pedal.!
CONTROLS:
The Sinister is one potent piece of metal
distortion gear. Thanks to Foxgear’s
pioneering distortion circuit, and Class A
FET, the Sinister is capable of reaching
an insane amount of gain. Yet, it can
keep tone very focused even in bass
frequencies. The sinister provides an
ultra, amp-like distortion that easily
reaches rich har monics . Wit h the
Synister’s full tone stack, players can
quickly sculpt their own metal tone; from
brown sound to extreme modern metal
tones the Synister has it all within reach.!
Power In 9 to 12VDC (negative TIP)
Consumption at 9V <100mA
Input Impedance <=1M Ohm
Output Impedance <=10K Ohm
S/N ratio <90db
Distortion max 2%THD
Larghezza (Width) 60mm. (2,3”)
Lunghezza (Lenght) 120mm. (4,7”)
Altezza (Height 30mm. (1,1”)
Peso (Weight) 0,2Kg. (0,4lbs)
TECH SPECS.
