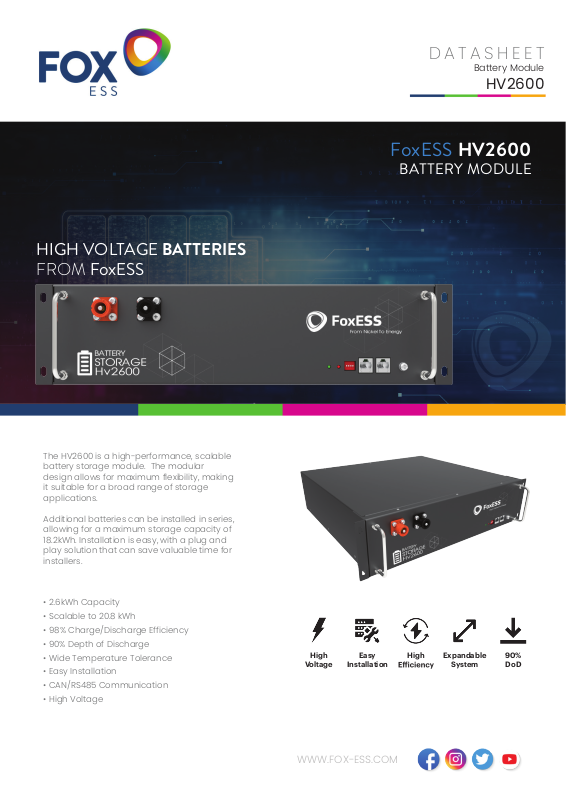

Page 1
HIGH VOLTAGE BATTERIES
FROM FoxESS
DAT ASHEE T
Battery Module
HV2600
FoxESS HV2600
BATTERY MODULE
The HV2600 is a high-performance, scalable
battery storage module. The modular
design allows for maximum flexibility, making
it suitable for a broad range of storage
applications.
Additional batteries can be installed in series,
allowing for a maximum storage capacity of
18.2kWh. Installation is easy, with a plug and
play solution that can save valuable time for
installers.
• 2.6kWh Capacity
• Scalable to 20.8 kWh
• 98% Charge/Discharge Efficiency
• 90% Depth of Discharge
• Wide Temperature Tolerance
• Easy Installation
• CAN/RS485 Communication
• High Voltage
High
Voltage
Easy
Installation
High Expandable
System
90%
DoD
WWW.FOX-ESS.COM
Page 2
FoxESS HV2600
BATTERY MODULE
SPECIFICATIONS
Battey Module* 2 3 4 5 6 7 8
Nominal Capacity (kWh) 5.2 7.8 10.4 13.0 15.60 18.20 20.80
467.2Maximum Charge Voltage (V) 116.8 175.2 233.6 292.0 350.40 408.80
Discharge Cut Voltage (V) 40
Rated Charge / Discharge Current (A) 50
Peak Discharge Current (A)
Peak Charge Current (30S) (A)
Operating Temperature (°C) -10 - 50°C
Storage Temperature (°C) -20 - 50°C
Charge/Discharge Efficency (%) >98
Protection Level IP21
Weight (kg) 54 81 108 135 162 189 216
Dimensions (L*W*H) (mm)
443*410*232 443*410*348 443*410*464 443*410*580 443*410*696
60
60
443*410*812 443*410*928
*Minimum of 2 battery modules per system.
Version 2.0 | 12/11/2020
