Page 1

FM-6606FM-6606

User Manual

Digital Mp3 Player

Page 2

Thank you for purchasing Foxda digital Mp3 Player. Please read through the user manual carefully beforeoperating the machine in order tomaximize the ability and life of our product. Please take good care ofthis manual for future reference. The appearance of our players shown in the manual may differ from the actual products since allpictures are based on the prototypeof our models.

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)this device may not cause harmful interference received,including interference that may cause undesired operation.

We strongly recommend you to read through this manual before connecting this machine with any PC. If you want to connect this player with the PC, please first connect the USB cable to the player and then to the PC. If you want to disconnect the player from the PC, Please first unplug the cable from the PC. Our company will not take the responsibility for damage caused by any inappropriate operation.

As some components would take up spaces in the flash memory, it is normal to find out that the available memory size is lesser than normal.

Page 3

Content

Note................................1

Overview

MP3 Player.......................3

LCD.................................4

Earphone.........................5

Features..........................6

Technical Spec.................7

Operational Notes.............8

Operation Notes

Battery/Power on or off......9

Operation MODE..............10

Operation Notes...............11-13

Advanced Function

Menu/Function.................15

Music........................ . .....16

Voice............................... 16 -17

FM tuner...........................18-20

CD Line-in........................20 -21

Configuration....................21-24

Erase files........................25 -26

About/Return....................27

Communication with Computer

Connection...........................29

Installation............................30

Download..............................31

Remove......................... ........32

Formatting.............................33

FAQ.............................. .........34

Menu Overview.......................35

Page 4

OVERVIEW

This player is an MP3 player and fashionable appearance. It is user-friendly, easy to operate and provides recoding, music playing and repeating function.

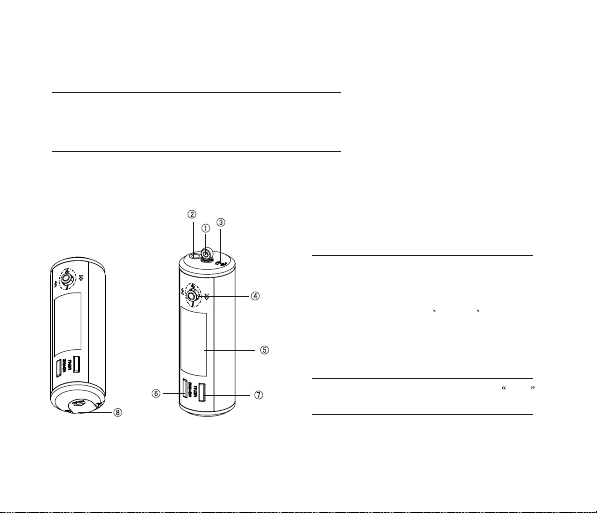

Player overview

1.Neck StrapLoop

2.Earphone/USB port/CDLine-inJack

3.Internal Microphone

4.Function key(play/stop FF/RW Vol+/Vol-)

5.LCD

6.EQ/REC

7.Menu

8.Battery Cover

Note: Press 6&7 Button to enable the hold function.

Page 5

001-02:26/03:63

VOL15

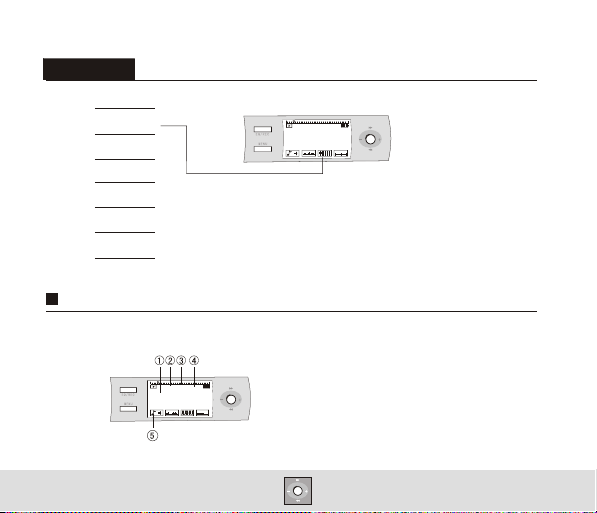

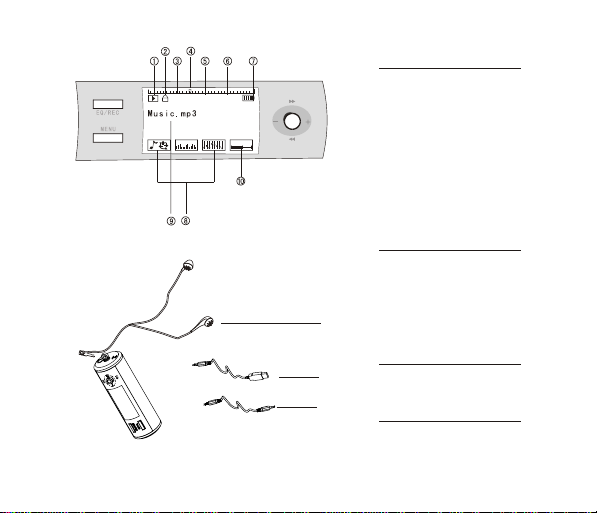

LCD

1.Status indicator

2.Holding state

3.Song Number

4.Playing status column

5. Current Music playing time

6.Total playing time

7.Battery power level

8.Function status

9.Song information

10.Volume

Earphone overview

1.Ear piece

2.USB cable

3.CD Line-in

Page 6

Accessories

1.USB cable

2.Earphone

3.Manual

4.AAA battery

5.CD-ROM

6.Neck Strap

7.CD Line-in cable

Features

Small in size, all-round functions One jack for USB, earphone and CD Line-in connection (patent) Online FM recording CD Line-in Animation Menu

Playback MP3/ WMA multi-format files Equalizer mode options: Normal, Classic, Jazz, Pop, Rock, DBB. LCD display, 7 colors backlight. A-B repeat function 10 hours recording time (128MB) 12M full speed USB internal flash memory Low power consumption, AAA battery (12 hrs continuous playback time) No driver required for windows me/2000/xp (except Windows 98SE) Compact and light in Weight, Stylish appearance Multilanguage version

Page 7

Data reference

Size 24 x 70 mm Weight 26 g Power Source 1.5V "AAA" Alkaline Batt. Frequency Range (+-1db) 20Hz - 20KHz Frequency 8 KHz - 48 KHz Encode ISO 11172-3 (MPEG 1.0 Layer 3) Bit Rate 64 kdps - 320 kdps Distortion (1Khz) 0. 1% SNR >80 db MP3 (Sound Track Separation) >80 db MP3 (Dynamic Range) >93 db Recorder Length 16 bit Transfer Speed 12 Mb Full Speed USB Delivery Speed 4 Mbps Power Out >5mW*2

Page 8

Operational Notes

“ If the MP3 player will not be operated for a prolonged period, remove the battery to avoid possible damage caused by electrical leakage. “ The MP3 player should be kept in areas free from extreme temperature changes, moisture and dust. “ Set the HOLD switch to release position before operation “ Do not drop the player “ Battery life may vary depending on usage condition and manufacture date. “ Please change the battery under Low Battery indicator displayed. “ Do not use the player for a very long period in order to protect your audio ability “ If the player stops running under propero peration,p lease r eset b y t aking o ut b attery. “ Do not use player when driving or cycling. “ The optimum temperature for operation is 5 -45 degree Celsius (41F-95F) with humidity between 10% and 75 %.

“ Do not disassemble the player

Page 9

Operating Instructions

Page 10

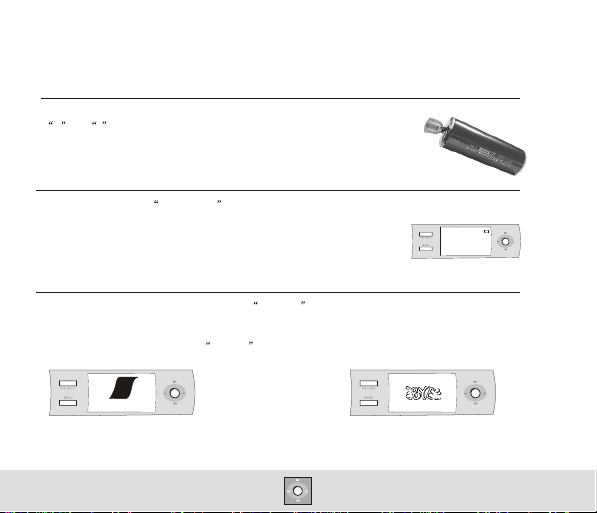

Load battery

Open the battery compartment and load one AAA battery as directed by

+and-.

Change battery

When the LCD displays Low Battery , it indicates a need of battery change. Turn off the machine before replacing a new battery.

Turning the power on/off

The OSD with green backlight appears when EQ/REC button is pressed. The length of time for the backlight to stay on is depending on user setting.Switching the power off by pressing on the

key

button continuously.When the machine has idled for a while, auto power off will activate according

to the time set by user. You can set Disable function to let machine cancel this function.

FOXDA

function

Page 11

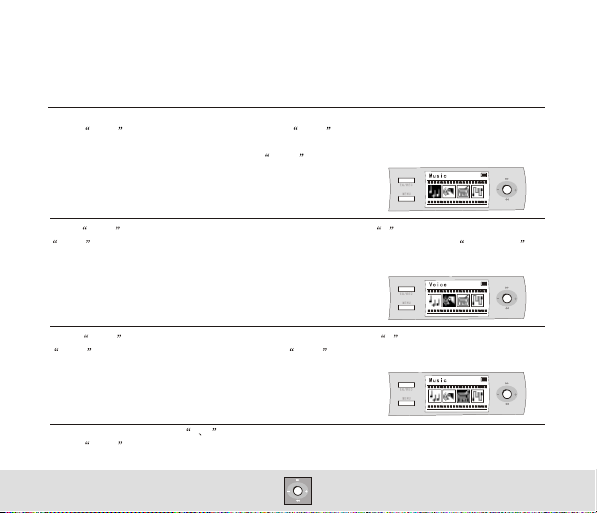

Functional Options

Music playing, voice playing & recording, radio function Press Menu to select music mode. Then press Menu again to confirm playing music (machine will automatically switch back to music mode if no operation for more than 10 seconds). You can play Mp3 and WMA format files in this mode. LCD displays music as:

Music play mode

Press Menu button into music mode. Push the function button to + to select voice mode and press

Menu button again to confirm this mode. It is the same procedure transferring from voice mode to

music mode. LCD displays voice as:

Voice play mode

Press Menu button into music mode. Push the function button to + toselect FM Tuner mode. Press

Menu again to confirm FM Tuner mode. Press Menu button into music mode.

FM mode

Push the function button to + - to select music, voice, radio, settings, erase files about or exit mode. Press Menu again to confirm selection. (Ref. P. 15)

Page 12

Music playing functions

The default OSD is in stop status under music mode

Play/Pause/Stop/FF/RW

Press button to play, LCD displays as: function

Under playing music mode, LCD displays music mode

001-00:00/04:47

music.mp3

001-01:00/04:47

music.mp3

Press button again to pause playing. LCD displays as:function

001-01:00/04:47

LCD displays pause mode when music is pause playing

Under play or pause mode, press down button for 3 seconds to jump to stop mode, and press button again to return to playing music mode, LCD displays as:

Note: Only in stop mode, hold button to switch off the machine. If the machine is playing, please stop playing first before switching off.

Push the function button to to select next song. Push the function button to to select previous song.

function

LCD displays stop mode when music is stopped playing

music.mp3

001-01:00/04:47

VOL15

music.mp3

001-01:00/04:47

music.mp3

002-01:00/03:27

VOL15

Page 13

VOL+/ VOL-

Push the function button to + - ,you could control the volume under either Play or Pause mode. The volume steps (see illustration) will increase or decrease when then the VOL+/VOL- button is pressed corre spondingly.

002-01:00/03:27

music.mp3

002-01:00/03:27

music.mp3

VOL15

Volume adjustment can be displayed by digit change

002-01:00/03:27

music.mp3

002-01:00/03:27

music.mp3

Min volume

Max volume

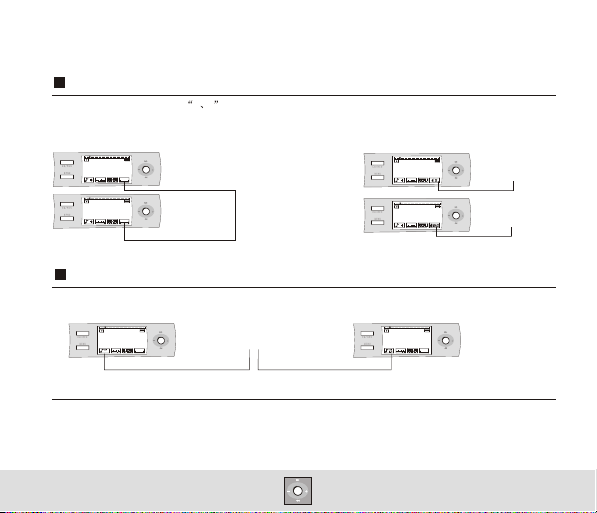

Repeat A-B function

Under music/voice mode, you can press EQ/REC button to select A and B, then A-B music or voice will play continuously. Press EQ/REC button to cancel, LCD displays as:

002-01:00/03:27

music.mp3

VOL15

Remark: Under stop mode, this function is out of operation. Press EQ/REC/REC for a period of time to change into EQ setting. (For EQ setting please refer to P. 13)

Repeat A-B setting display

002-01:00/03:27

music.mp3

VOL15

Page 14

EQ setting

Under the playing mode, press EQ/REC button for a period of time to select 6 different music modes:

Normal DBB Jazz Rock

LCD displays as:

Classical

Pop

Press this button a period for EQ set, short time for repeat A-B set

Music/Voice information display:

When in play/stop status, the display will show the information of music or voice files e.g. Song title, distributor, copyright, etc. The display will also show the playing file the particular information(status, music or voice file number, current playing time, music total time)

002-01:00/03:27

music.mp3

VOL15

002-01:00/03:27

music.mp3

VOL15

1.Song information

2.music or voice file number

3.Current playing time

4.file total time

5.music or voice

Page 15

Advanced function

Page 16

Advanced function

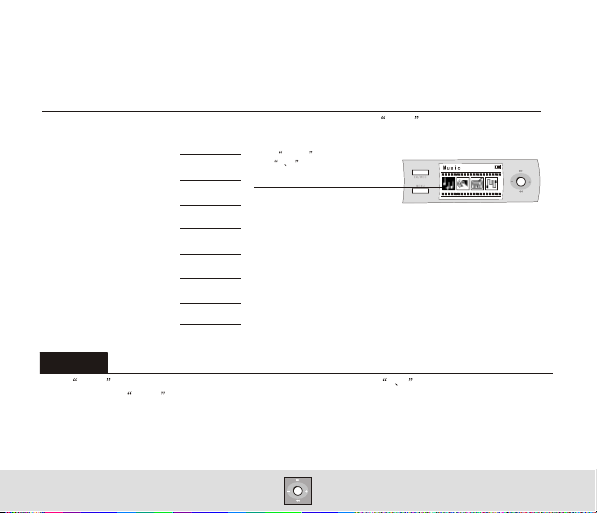

Followed are the more advanced functions of our MP3 player . Press Menu button to select modes

press MENU button and push

Music

Voice

FM Tuner

Line in

Settings

Erase Files

About

Exit

Press Menu button to enter this mode. Push the function button to + - to select the above modes and press Menu button again to confirm your selection.

Note: No operation in 5 seconds, machine returns to latest setting mode.

upon + - select change to different modes item, LCD display as :

Page 17

Music mode

This is the default mode. Users can play MP3/WMA files under this mode. Users can also run repeat (Ref. P. 22) /A-B/RW/FF/V+,-/EQ setting in this mode.

Voice mode

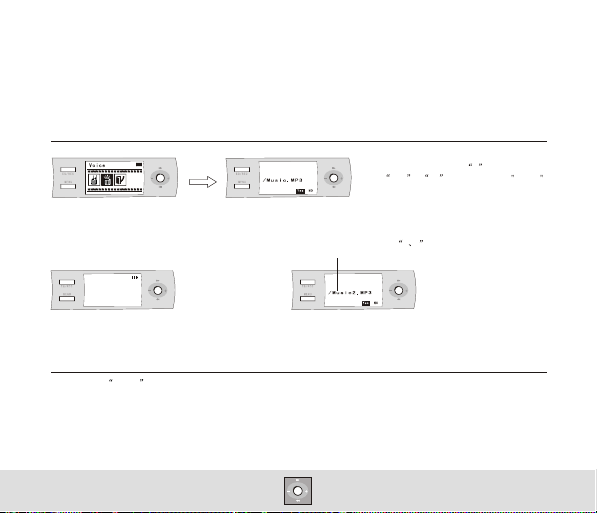

Under music mode, press Menu button and push upon + to select voice mode then press Menu button to confirm . Under voice mode, you can select play/record/repeat/A-B/RW/FF/V+,-/EQ setting.

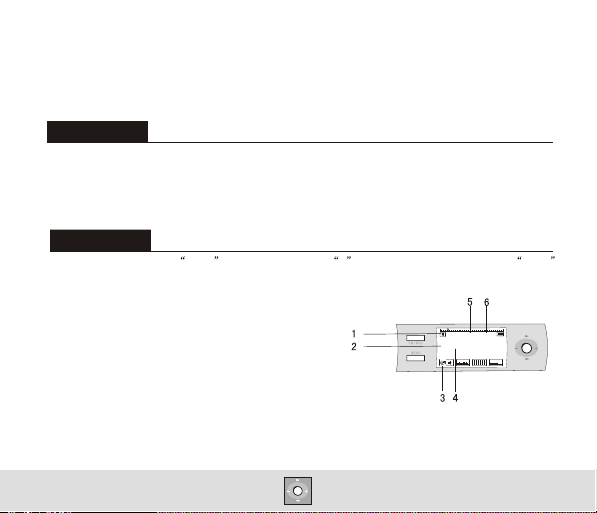

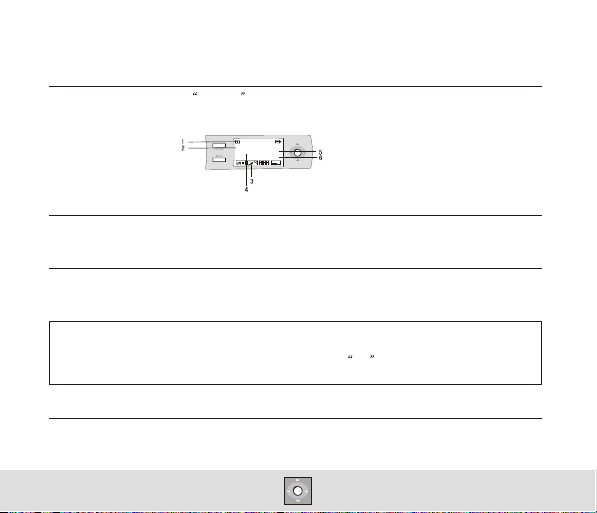

Recording: Under voice mode, LCD display as

1.Display Stop status

2.Voice file name and path

3.Voice file icon

4.Voice file number

5.Voice file current recording time

6.Voice file total recording time

001-01:00/03:27

/L001.WAV

VOL15

Page 18

Start Recording

Under Voice Function, press EQ/REC button to start recording (build-in Microphone, microphone's position can be seen on P.2). The display is as follows:

1.Recording Function display

/VOICE/V001.WAV 00:01:00 05:21:29 05:20:29

VOL15

2.Name and track of recorded file

3.REC Function

4.Time of recorded file

5.Total time of recorded file

6.Total free time

Stop Recording

Press EQ/REC button again to stop recording.""

Play Recording

The operating procedure is the same as operating music files (Ref. page 11). (Display reference in Page 13)

Note: "A-B" repeat function only works in playing or pause mode. Users cannot use this function in recording or stop mode. Press "EQ/REC" for a while and then users can adjust the EQ mode in play/stop/pause status. Users cannot use this function in recording mode.

Name your recorded files

Users can name the recorded files according to their own preference. (Ref. Page 29)

Page 19

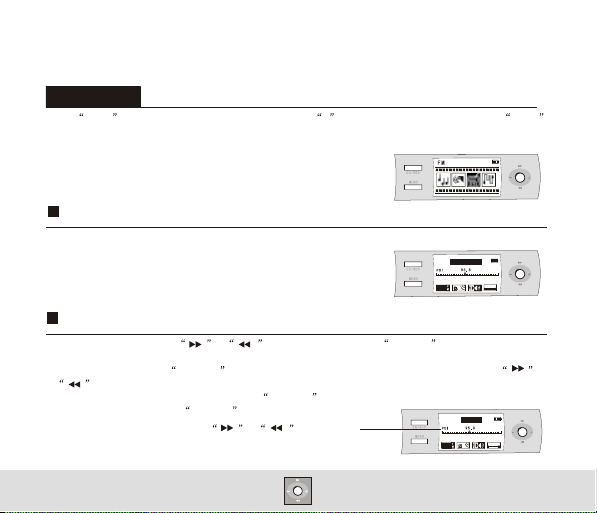

FM Tuner

Press Menu button and Push the function button to + to select FM tuner, and then press Menu to confirm.(Adjust the direction of earphone line to get better radio effect)

Auto search

Press 'menu' button to auto search and memorize up to 32 radio channels.

VOL25

FM fine tuner

Push the function button to or to fine tune. By pressing EQ/REC button for a moment, the machine will memorize the current radio frequency. If you want to repeat the auto search function, press function button until PRESET appeared on the screen,then Push the function button to or to activate the auto search function again. Similarly, if you want to fine tune any channels, you onlyneed to press function button once till thE PRESET disappeared from the screen. You may now fine tune the channelby press the EQ/REC button for a while.

Push the function button to or to fine tune

PRESET

VOL25

Page 20

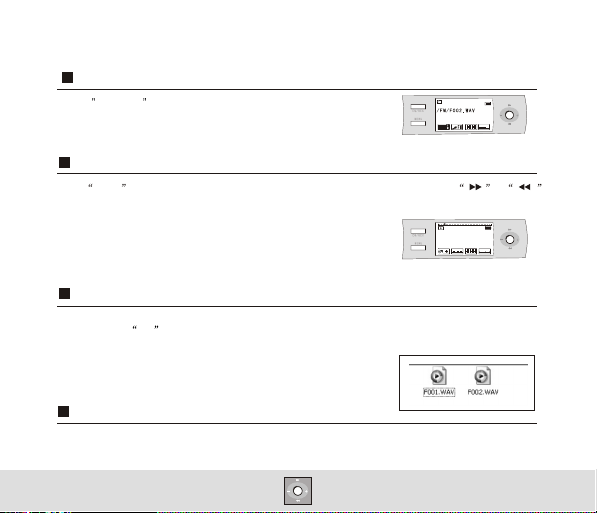

FM Recording

Press EQ/REC button to start recording the current listening radio channel. The display is shown below:

00:02:10 02:34:58 02:32:48

Record the current listening channel

Playing recorded FM files

Press Menu button to return to voice playing mode. Push the function button to or to search for the recorded files and press play button to play the file. You can treat the file as common music file to run EQ setup and other related functions

002-01:00/03:27

/F001.WAV

Play the FM files under voice mode

Operation of FM files in PC

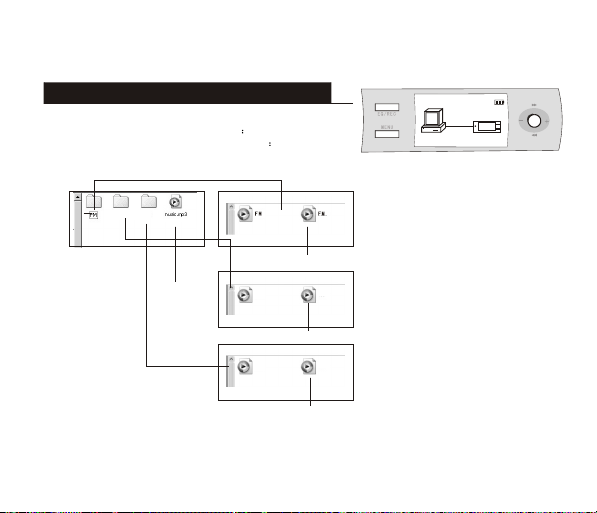

When the USB connection between the mp3 player and PC has completed, you can find that there is a folder called FM in the player. Inside you can find the recorded FM files. Just like other music files, you can rename, copy or delete the Recorded FM files.

Quit FM Tuner mode

Press 'Menu' button to quit FM tuner mode and back to music or voice mode.

VOL15

Page 21

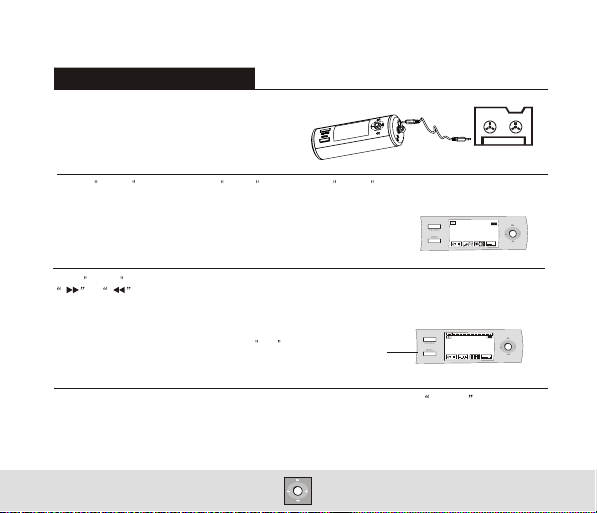

Line-in recording function

1.Connection Use the CD line-in cable to connect the player with CD player

(or other audio equipment) as shown below:

2.Recording

Press Menu and then push + or - upon. Press Menu to confirm and start recording. At the same time, press the play button on the CD player and start the recording as shown below:

3.Playing recorded files

Press Menu button to return to main menu and select music playing mode. Push the function button

or to find the wave file 001.WAV. Press play to listen to the recorded music files. You can

configure and adjust the EQ mode of the file just like the normal music files.

Press rec to stop recording, and press it again to start recording.

4.Operation on recorded music files Connect the playerwithPCbyaUSBcable.Youmay find a foldercalled LINE In in the flash

memory of mp3player.Inside you can find the file you have recorded. Like common music files, you may also play/rename/copy/deletethefile.

/LINE-IN/L007.WAV 00:02:00 02:24:18 02:22:18

001-01:00/03:27

/L001.WAV

VOL15

Page 22

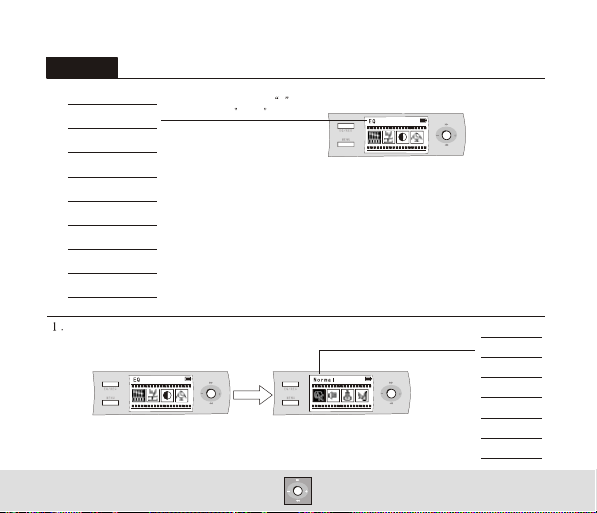

Settings Enter this mode according to the instructions on Page 15.

Push the function button to + to

EQ Play Mode Contrast PowerSaving Backlight Backlight color Language Exit

EQ Setting (Ref. page 13 for another

setting method)

select, and press Menu to confirm.

Note: Except in record mode, you can select setting function both in play and stop mode. 5 seconds standby time later, machine will automatically return to music/voice play mode (or latest setting mode).

Normal DBB Rock Jazz Classical Pop

Page 23

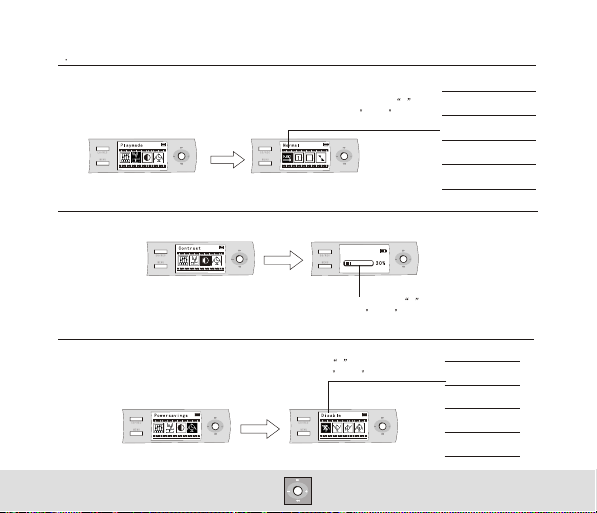

2 Play Mode

playing mode includes:

Push the function button to + to select, and press Menu to confirm.

ALL

3.Contrast

User can customizethecontrastsettingforbettervisualeffect.

Push the function button to + to select, and press Menu to confirm.

4.Power Saving

In order to save power, the machine can be set to auto power-off if it has idled for a certain period of time under voice and music mode.

Push the function button to

+ to select, and press Menu to confirm.

Normal

Repeat singlesong

Repeat all

Shuffle play

Shuffle repeat

CONTRAST

Disable 1Min 2Mins 5Mins 10Mins

Page 24

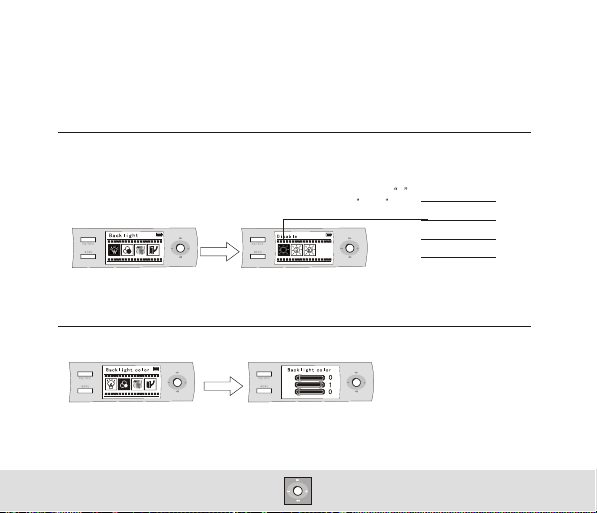

5.Backlight

User can disable or change the backlight lasting time in this setting.

Note: when low battery, backlight maybe wink.

Push the function button to + to select, and press Menu to confirm.

6.Backlight color

it contains the setting of seven backlight colors, you can select color preference.

Disables 3Sec 10Sec

R B G

Page 25

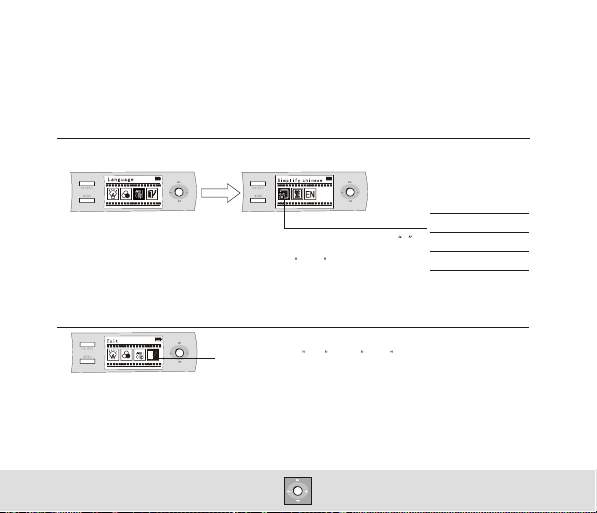

7.Language

8.Exit

Push the function button to + to select, and press Menu to confirm.

When LCD displays Exit , press Menu to confirm, and return to setting mode.

Chinese Traditional Chinese English

Page 26

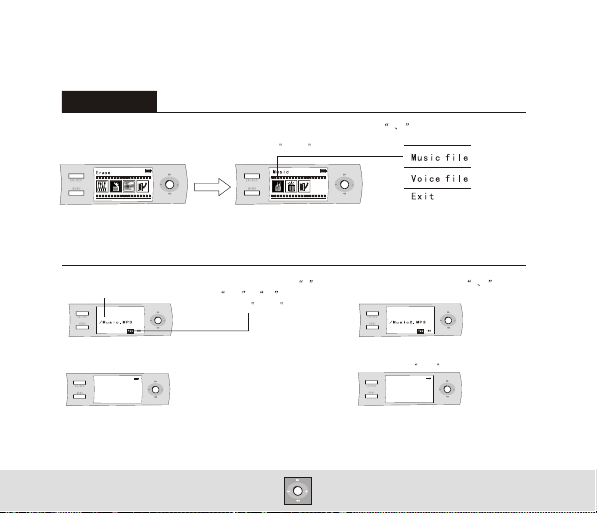

Erase files

Erase music files

File name

Are you sure want to

When the files has been erased, you can see the display shown below.

delete the file

File deleted

Push the function button to + to select, and then press

Menu to confirm.

Push the function button to + to select yes or no , and then press Menu to confirm.

Push the function button to + - to select the music files selection

Are you sure want to

delete the file

The LCD will display no files when all files deleted

NO Files

Page 27

Erase voice files

When the files has been erased, you can see the display shown below

File deleted

Note: Under delete mode, 5 secs standby time can cause the machine to return to voice/music mode (or the latest setting mode)

Are you sure want to

delete the file

Push the function button to + - to select music files

Push the function button to + to select yes or no , and then press Menu to confirm.

Are you sure want to

delete the file

Page 28

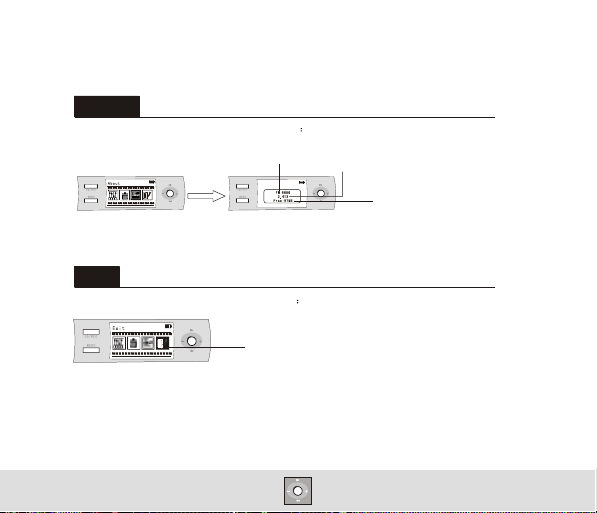

About

Please refer to P. 15 on how to enter this mode

Production Model

Note: As some components would take up spaces in the flash memory, it is normal to find out that the available memory size is less than normal.

Firmware VER.

About

Exit

Please refer to P. 15 on how to enter this mode

Press menu to return to music or voice mode (latest running mode)

Note: Under this mode, 5 secs standby time can cause the machine to return to voice/music mode (or the latest setting mode)

Free memery

Page 29

CONNECTION WITH COMPUTER

Page 30

Requirements for computer system

1. Operating systems: Microsoft Windows 98 SE, Windows Me, Windows 2000, Windows NT, Windows XP

2. CPU: Intel Pentium 3, Pentium 4 or above CPU

3. Memory: 64 MB or above

4. HD: 200MB idle memory and above

5. Interface: full-speed USB

6. CD-ROM

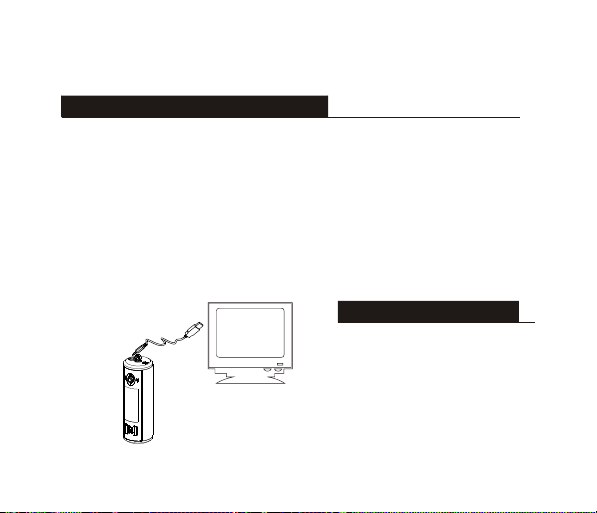

Connection with computer

Connect the USB cable with the computer USB port.

Page 31

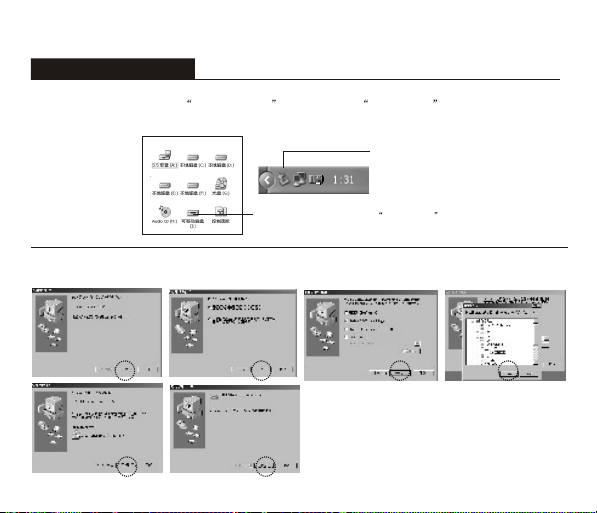

Installation of Driver

After connecting with computer, Windows 2000/ME/XP will automatically identify and install the driver. The machine is ready to use when a removable drive icon appears in my computer . The attached CD-ROM is needed for Windows 98SE to install Driver.

The icon will be displayed here after installation

The icon will be displayed in my computer after installation

Windows 98SE CD-ROM installation Put the attached CD-ROM into computer, and then

install the software according to instruction.

Display may vary on different computers

Page 32

Save and rename music and voice files

After successful connection between the machine and computer, it is displayed as

Double-click removable disk, it is displayed as

LINE INVOICE

Music file

Note: This machine can recognize and play .Mp3, .WMA and .WAV format files

FM FM

FM file

Voice

Voice file

Line in

Line in file

Voice

Line in

Ver 2.413.000

READY

Page 33

The operating procedure of the removable flash disk is the same as normal USB storage device. Users may copy files to relevant folder. You may also rename it for your own convenience

Ver 2.413.000

WRITING

The icon will move with importing or exporting

It show when writing

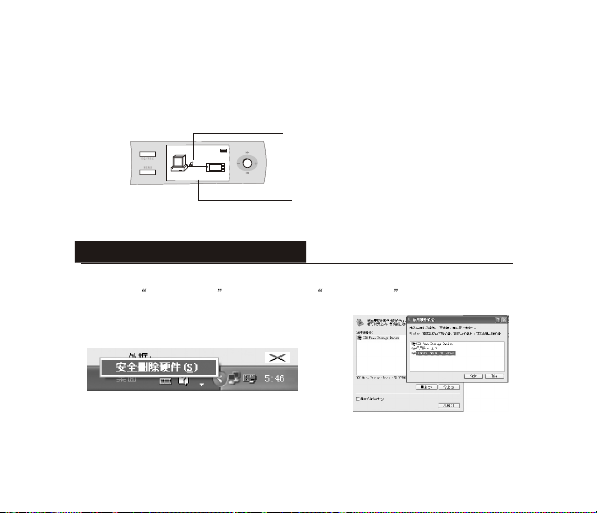

Disconnection with computer

Please follow the instruction below for disconnection between Mp3 player and computer.

Right click plug and play icon then select safe to delete to disconnect

Note: Do not unplug the machine with computer when the file is reading, writing or deleting. Foxda Technology is not liable for any damage/lose of any files.

Page 34

Formatting

Right click the removable disk icon then select FAT mode to format. The machine may not be able to play music if FAT 32 or NTFS mode selected. To recover, please format the machine again as FAT mode.

Press"Begin"button

Page 35

General question&answer

Problems

Unable to switch on the machine

No audio output from the earphone

LCD cannot display

Poor FM receiving

Cannot upload/download Mp3 /WMA/WAV files

Cannot record or receive FM

Possible causes

No battery Incorrect battery position

Loosen plug Volume is 0 Check the battery status Check the plug for whether it has oxidized or covered by any dirty stain Corrupted Mp3 or Wav files

Wrong lang. setting Do not support certain lang. Signal too weak Interfere by other electronic appliances

Check the battery Check the USB connection Mal-function USB cable Out of memory

Out of memory
