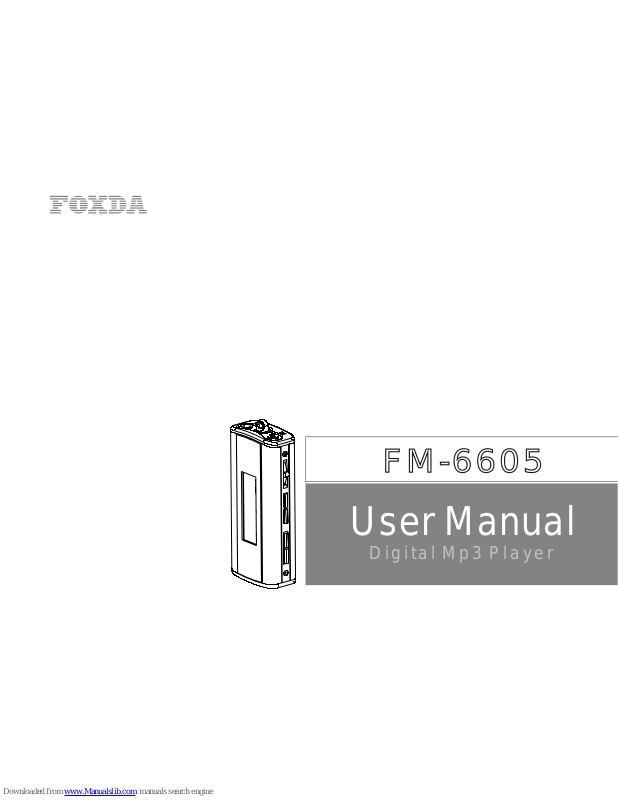

Foxda FM-6605 User Manual

FM-6605FM-6605

User Manual

Digital Mp3 Player

1

,

Thank you for purchasing Foxda s MP3 player. Please
read through the user manual carefullybefore operating
the machine in order to maximizethe ability and life of
our product. Please take goodcare of this manual for
future reference. Theappearance of our players shown
in the manual may differ from the actual products since
all pictures are based on the prototype of our models.

As some components would take up spaces in the flash
memory, it is normal to find out that the availablememory
size is lesser than normal.

This device complies with Part 15 of the FCC Rules.Operation
is Subject to the following two conditions:(1)this device may not
cause harmful interfertence received,including interference that
may cause undesired operation.

2

Note...................................1

Overview

MP3 Player.........................3

LCD....................................4

Earphone............................4

Features............................. 5

Technical Spec....................6

Operational Notes...............7

Operational Notes

Battery/Power on or off........9

Operation MODE.......... .....10

Music............................... .11-14

Voice.................................15-16

FM tuner............................17-19

Communication with Computer

Connection.........................21

Installation..........................22

Download...........................23-24

Disconnection.....................25

Formatting..........................25

Content

3

OVERVIEW

This player is an MP3 player with removable storage hard
disk and fashionable appearance. It is user-friendly, easy
to operate and provides recoding, music playing and
repeating function.

Player overview

1.Earphone Jack

2.Neck Strap Loop

3.Internal Microphone

4.RW

5.PLAY

6.STOP

7.FF

8.FUNCTION

Note: Press 8&9 Button to enable the
hold function.

9.REC/A-B/EQ

10.VOL-

11.Vol +

12.LCD

13.Battery Cover

14.CD Line-in

15.USB port

JAZZ

A-B

2

8

3

4

6

5

1

1

2
3

4

001-004:02

10

9

7

LCD

1.Repeat A-B display

2.Status indicator

3.Play mode display

4.Volume

5.Hold Status

6.Power

7.Current music playing time

8.EQ

9.Song number

10.Function

Earphone overview

1.Ear piece

2.USB cable

3.CD Line-in

5

Features

“ Online FM recording
“ CD Line-in

“ Playback MP3/ WMA multi-format files
“ Equalizer mode options: Normal, Class, Jazz, Pop, Rock, DBB.
“ LCD display, blue light background.
“ A-B repeat function
“ 10 hours recording time (128MB)
“ 12MB full speed USB internal flash memory
“ Low power consumption, AAA battery (12 hrs continuous playback time)
“ No driver required for windows me/2000/xp (except Windows 98SE)
“ Compact and light in Weight, Stylish appearance

Accessories

1.USB cable

2.Earphone

3.Manual

4.CD-ROM

5.Neck Strap

6.CD Line-in cable

6

Size 69 x 31 x 16 mm
Weight 25 g
Power Source 1.5V "AAA" Alkaline Batt.
Encode ISO 11172-3 (MPEG 1.0 Layer 3)
Bit Rate 64 kdps - 320 kdps
Frequency 8 KHz - 48 Khz
Frequency Range (+ -1db) 20Hz - 20KHz
Distortion (1Khz) 0. 1%
SNR >80 db
MP3 (Sound Track Separation) >80 db
MP3 (Dynamic Range) >93 db
Recorder Length 16 bit
Transfer Speed 12 Mb Full Speed USB
Delivery Speed 4 Mbps
Power Out>5mW*2

Data reference

7

Operational Notes

“ If the MP3 player will not be operated for a prolonged period, remove the battery
to avoid possible damage caused by electrical leakage.
“ The MP3 player should be kept in areas free from extreme temperature changes,
moisture and dust.
“ Set the HOLD switch to release position before operation
“ Do not drop the player
“ Battery life may vary depending on usage condition and manufacture date.
“ Please change the battery under Low Battery indicator displayed.(All buttons
are not responding even after the battery has been taken out and replaced)
“ Do not use the player for a very long period in order to protect your audio ability
“ If the player stops running under propero peration,p lease r esetb y t aking o ut b attery.
“ Do not use layer when driving or cycling.
“ The optimum temperature for operation is 5 -45 degree Celsius (41F -95F) with
humidity between 10% and 75 %.

8
