Fox GR-110 User Manual

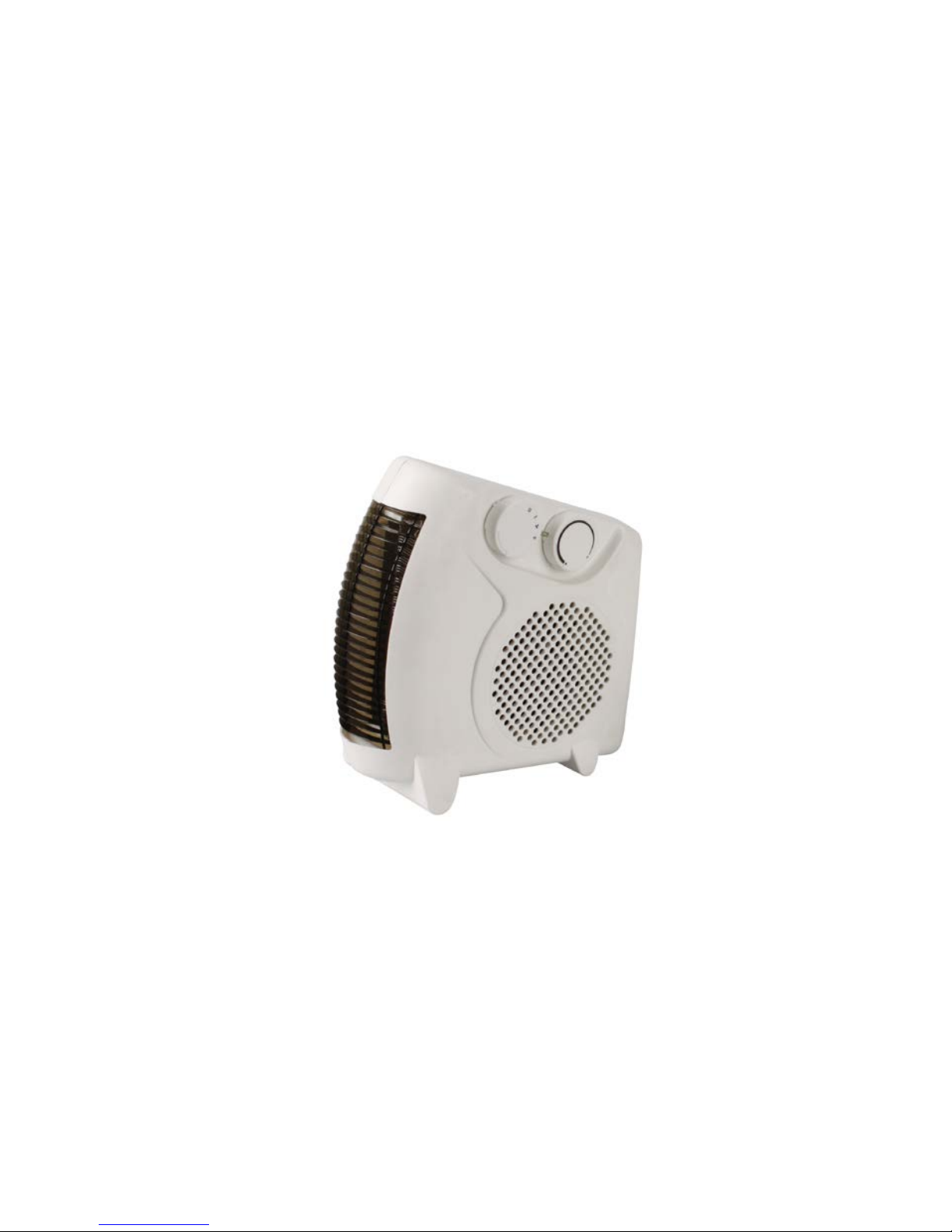

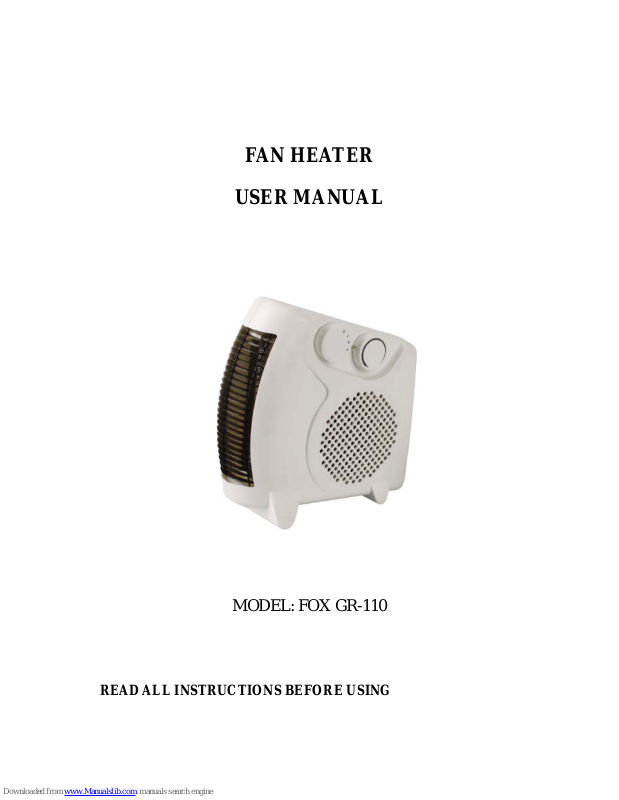

FAN HEATER

USER MANUAL

MODEL: FOX GR-110

READ ALL INSTRUCTIONS BEFORE USING

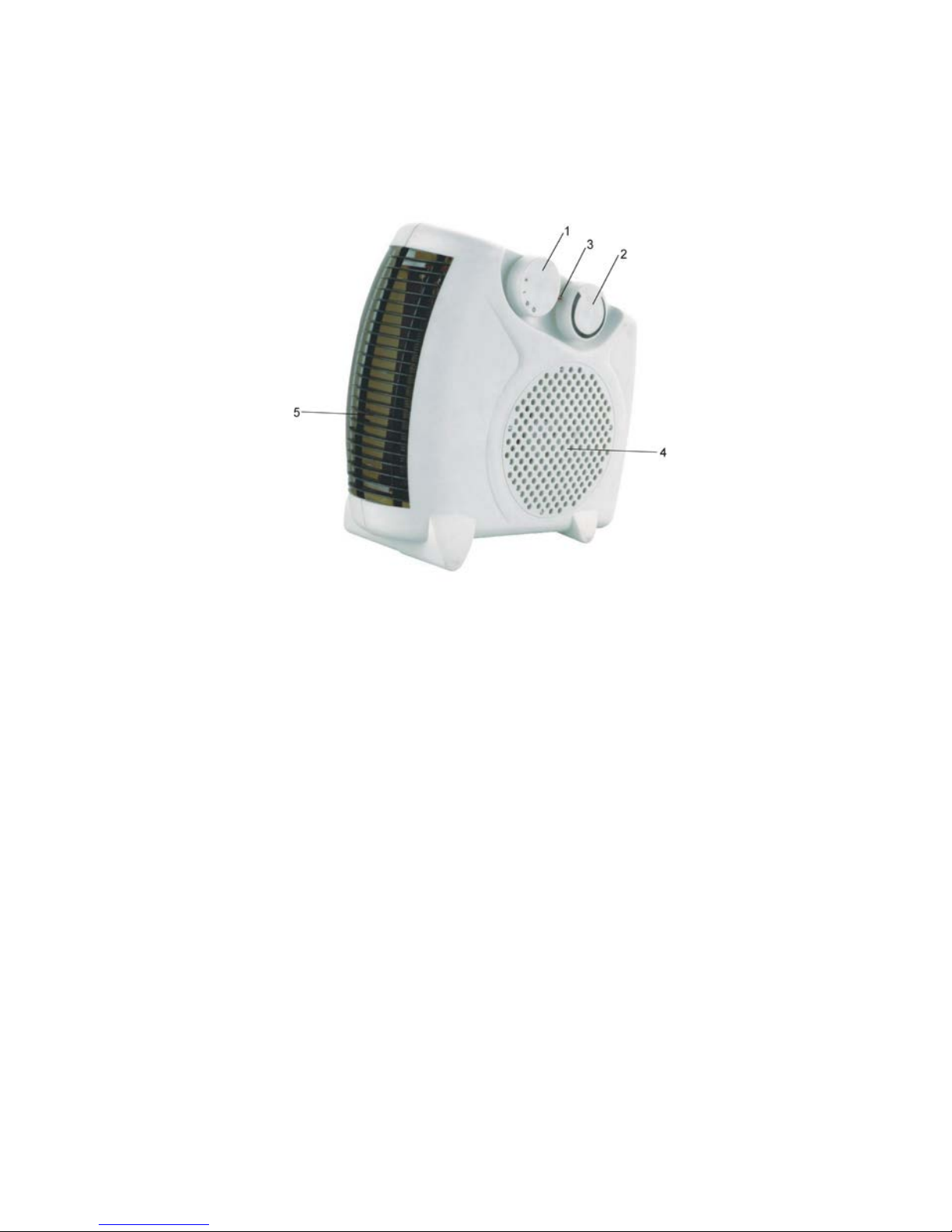

FEATURES

1.Adjustable thermostat

2.Switch

3.Indicator light

4.Air inlet

5.Air outlet

IMPORTANT SAFEGUARDS

Thank you for buying our product. Please attentively read this
before operating the machine. Keep this operation manual for
future reference.

1. Use the heater on flat surfaces not titling or upsides down.

No use underneath socket directly.

2. Do not use your heater in the presence of explosive or

flammable substance.

3. It is absolutely necessary ensure the following:

- The socket is not used to the heater and other high

power electrical appliance at a time.

- The cord is rated for at least 10 AMPS.

- Tight connection between plug and socket so as to avoid

the overheating plug and malfunction.

- Unplug heaters by grasping plug and pulling it from the

socket. Never yank on cord.

- Carefully use when children, old man, disabled man

inside solely. No use when no su pe r vision.

- Our factory, if damaged manufactures the power cord

and plug; Return the heater to the approved service
agent for changing.

- Caution: Do not dr ape anything on your heater when i n

use.

OPERATING UNSTRUCTIONS

1. Plug into any 220-240V AC~50/60 Hz.

2. Your heater i s equipped with a 4-position rotary switch

SYMBOL FUNCTION

0 OFF
* BLOW COOLING AIR
I HALF HEAT OUTPUT
II FULL HEAT OUTPUT

3. Set the rotar y switch to maximum for fast w arm up of a

room. Once the room is comfortable, select a lower
setting to reduce electrical consumption and to prevent
the room from becoming too warm.

4. Adjust the thermostat to maximum and select the

desired power setting. Once the room is comfortable,
rotate the thermostat counterclockwise, until the heater
shuts off. The thermostat will now maintain the
temperature by cycling the heater on or off. During
particularl y cold weather, the low power setting may be
insufficient to satisfy the thermostat. Select a higher
setting for these periods.

5. Before swi tching off and better work for 5-10 s econd in

cool condition.

SAFETY CONTROL

To avoid damage and danger by overheating, your heater is fitted
with super protector that switch as off the heater in the event of
overheating unti l t he temperature drops to some extent.

MAINTENANCE

1. When your h eater needs cleaning , wipe exterior sur faces of the

heater with a moistened cloth. Not rinse with water directly. Be
sure to unplug before cleaning.

2. To prolong the heater life, not disassemble it personally when

malfunction occurs. Send your heater to relative identification
after-sold service center or provider for the convenience
inspecting.

SPECIFICATIONS

Power supply: 220-240V~50/60Hz
Power regulation range 1000/2000W
Suitable area 15-20 m

2

SERVICE LIFE OF TH E FAN HEATER

Not less than 1 years.

1.This appliance is not intended for use by persons(including
children)with reduced physical,sensory or mental capabilities,or lack of
experience and knowledge,unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.

2.Children should be supervised to ensure that they do not play with the
appliance.

---- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.

---- Children should be supervised to ensure that they do not play with the
appliance.

----If the supply cord is damaged, it must be replaced by the manufacture,
its service agent or similarly qualified persons in order to avoid a hazard.

----WARNING: In or der to avoid overheating, do not cover the heater.

----The instructions shall state that the heater must not be located
immediately below a socket outlet.

----Do not use this heater in the immediate surroundings of a bath, a
shower or a swimming pool.

----This heater is filled with a precise quantity of special oil. Repairs
requiring opening of the container are only to be made by the
manufacturer or his serv ice agent who should be co ntracted if t here is an
oil leak
