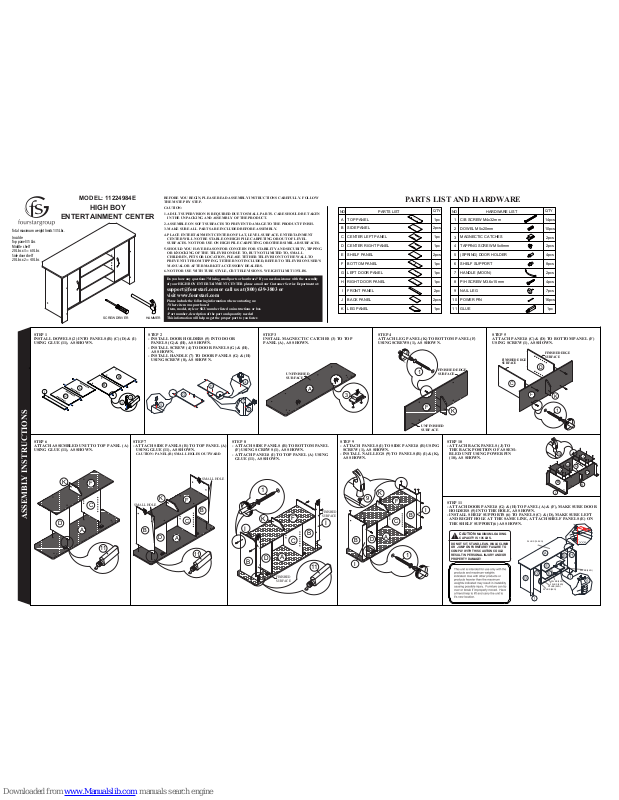

FourStar 11224984E Assembly Manual
MODEL: 11224984E
HIGH BOY
ENTERTAINMENT CENTER
ASSEMBLY INSTRUCTIONS
PARTS LIST AND HARDWARE
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW
THEM STEP BY STEP.
CAUTION:
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN
IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT.
2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY.
4. PLACE ENTERTAINMENT CENTER ON FLAT, LEVEL SURFACE. ENTERTAINMENT
CENTER WILL NOT BE STABLE ON HIGH PILE CARPETING OR OUT OF LEVEL
SURFACES. NOT FOR USE ON HIGH PILE CARPETING OR OTHER SIMILAR SURFACES.
5. SHOULD YOU HAVE REASON FOR CONCERN FOR STABILITY AND SECURITY, TIPPING
OR KNOCKING OF THE TELEVISION DUE TO, BUT NOT LIMITED TO, SMALL
CHILDREN, PETS OR LOCATION, PLEASE TETHER TELEVISION TO THE WALL TO
PREVENT IT FROM TIPPING. TETHER NOT INCLUDED, REFER TO TELEVISION USER'S
MANUAL OR AFTER MARKET ACCESSORY DEALERS.
6. NOT FOR USE WITH TUBE STYLE, CRT TELEVISIONS. WEIGHT LIMIT 135 LBS.
Do you have any questions? Missing small parts or hardware? If you need assistance with the assembly
of your HIGH BOY ENTERTAINMENT CENTER please e-mail our Customer Service Department at:
support@fourstari.com or call us at (800) 639-3803 or
visit www.fourstari.com
Please include the following information when contacting us:
• Where item was purchased
• Item, model, style or SKU number listed on instructions or box
• Part number, description of the part and quantity needed
This information will help us get the proper part to you faster.
SCREWDRIVER HAMMER
3
A
FINISHED EDGE
SURFACE
1
F
K
C
D
K
F
1
11
F
K
D
C
A
11
F
K
D
C
A
B
B
10
J
J
B
K
F
C
A
I
1
11
K
F
C
D
B
B
A
I
I
9
1
K
F
C
D
B
B
A
I
I
SMALL HOLE
SMALL HOLE
FINISHED
SURFACE
FINISHED
SURFACE
FINISHED EDGE
SURFACE
FINISHED EDGE
SURFACE
UNFINISHED
SURFACE
3
D
C
B
B
I
11
UNFINISHED
SURFACE
PARTS LIST
NO
QTY
A
B
C
D
E
F
G
H
I
J
K
1pc
2pcs
1pc
1pc
2pcs
1pc
1pc
1pc
2pc
2pcs
1pc
TOP PANEL
SIDE PANEL
CENTER LEFT PANEL
CENTER RIGHT PANEL
SHELF PANEL
BOTTOM PANEL
LEFT DOOR PANEL
RIGHT DOOR PANEL
FRONT PANEL
BACK PANEL
LEG PANEL
NO HARDWARE LIST
QTY
1
2
3
4
5
6
7
8
9
10
11
14pcs
10pcs
2pcs
2pcs
4pcs
8pcs
2pcs
4pcs
7pcs
16pcs
1pc
C/B SCREW M4x32mm
DOWEL M5x20mm
MAGNECTIC CATCHES
TAPPING SCREW M5x8mm
(SPRING) DOOR HOLDER
SHELF SUPPORT
HANDLE (MOON)
P/H SCREW M3.6x15mm
NAIL LEG
POWER PIN
GLUE
STEP 9
- ATTACH PANELS (I) TO SIDE PANELS (B) USING
SCREW (1), AS SHOWN.
- INSTALL NAIL LEGS (9) TO PANELS (B) (I) & (K),
AS SHOWN.
STEP 10
- ATTACH BACK PANELS (J) TO
THE BACK POSITION OF ASSEMBLED UNIT USING POWER PIN
(10), AS SHOWN.
STEP 11
- ATTACH DOOR PANELS (G) & (H) TO PANEL (A) & (F), MAKE SURE DOOR
HOLDERS (5) INTO THE HOLE, AS SHOWN.
- INSTALL SHELF SUPPORTS (6) TO PANELS (C) & (D), MAKE SURE LEFT
AND RIGHT HOLE AT THE SAME LINE, ATTACH SHELF PANELS (E) ON
THE SHELF SUPPORT(6) AS SHOWN.
STEP 1
INSTALL DOWELS (2) INTO PANELS (B) (C) (D) & (I)
USING GLUE (11), AS SHOWN.
STEP 2
- INSTALL DOOR HOLDERS (5) INTO DOOR
PANELS (G) & (H), AS SHOWN.
- INSTALL SCREW (4) TO DOOR PANELS (G) & (H),
AS SHOWN.
- INSTALL HANDLE (7) TO DOOR PANELS (G) & (H)
USING SCREW (8), AS SHOWN.
STEP 3
INSTALL MAGNECTIC CATCHES (3) TO TOP
PANEL (A), AS SHOWN.
STEP 5
ATTACH PANELS (C) & (D) TO BOTTOM PANEL (F)
USING SCREW (1), AS SHOWN.
STEP 6
ATTACH ASSEMBLED UNIT TO TOP PANEL (A)
USING GLUE (11), AS SHOWN.
STEP 7
- ATTACH SIDE PANELS (B) TO TOP PANEL (A)
USING GLUE (11), AS SHOWN.
CAUTION: PANEL (B) SMALL HOLES OUTWARD
STEP 4
ATTACH LEG PANEL (K) TO BOTTOM PANEL (F)
USING SCREWS (1), AS SHOWN.
STEP 8
- ATTACH SIDE PANELS (B) TO BOTTOM PANEL
(F) USING SCREWS (1), AS SHOWN.
- ATTACH PANELS (I) TO TOP PANEL (A) USING
GLUE (11), AS SHOWN.
Total maximum weight limits 135 Lbs.
Inculde:
Top panel 35 Lbs
Middle shelf
20 Lbs x 3 = 60 Lbs
Side door shelf
20 Lbs x 2 = 40 Lbs
20 LBS (9KG)
20 LBS (9KG)
20 LBS (9KG)
20 LBS (9KG)
20 LBS (9KG)
35 LBS (15.9KG)
CAUTION:
MAXIMUM LOADING
CAPACITY IS 135 LBS.
DO NOT SIT, STAND, LEAN, WALK CLIMB
OR JUMP ON FURNITURE! FAILURE TO
COMPLY WITH THIS CAUTION COULD
RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE!
