Page 1
TOOLS REQUIRED:
1. Check the Hardware against the Hardware list
to make sure all items are present.
2. Assemble your furniture on a soft, flat surface
to avoid scratching the finish.
3. CAUTION: Do not over tighten screws, nuts
or bolts during assembly.
4. Your furniture may require occasional
tightening.

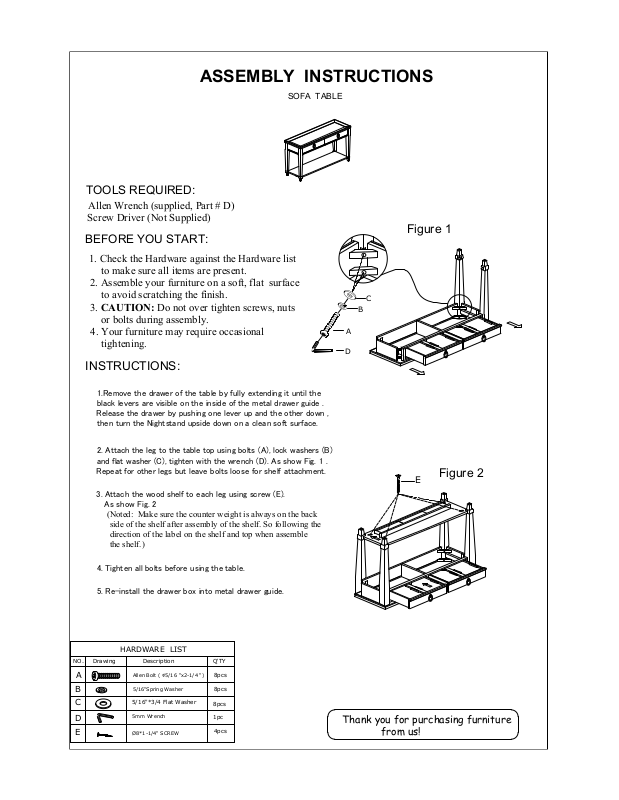

ASSEMBLY INSTRUCTIONS
BEFORE YOU START:
INSTRUCTIONS:
Allen Wrench (supplied, Part # D)
8pcs
A
8pcs
5/16"Spring Washer
Allen Bolt ( ∅5/16 "x2-1/4 ")
C
5/16"*3/4 Flat Washer
D
E
5mm Wrench
8pcs
1pc
B
Figure 1
SOFA TABLE
Screw Driver (Not Supplied)
HARDWARE LIST
DrawingNO. Description Q'TY
1.Remove the drawer of the table by fully extending it until the
black levers are visible on the inside of the metal drawer guide .
Release the drawer by pushing one lever up and the other down ,
then turn the Nightstand upside down on a clean soft surface.
4pcs
2. Attach the leg to the table top using bolts (A), lock washers (B)
and flat washer (C), tighten with the wrench (D). As show Fig. 1 .
Repeat for other legs but leave bolts loose for shelf attachment.
3. Attach the wood shelf to each leg using screw (E).
As show Fig. 2
(Noted: Make sure the counter weight is always on the back
side of the shelf after assembly of the shelf. So following the
direction of the label on the shelf and top when assemble
the shelf.)
4. Tighten all bolts before using the table.
5. Re-install the drawer box into metal drawer guide.
Ø8*1-1/4" SCREW
D
A
B
C
Figure 2
E
Thank you for purchasing furniture
from us!
