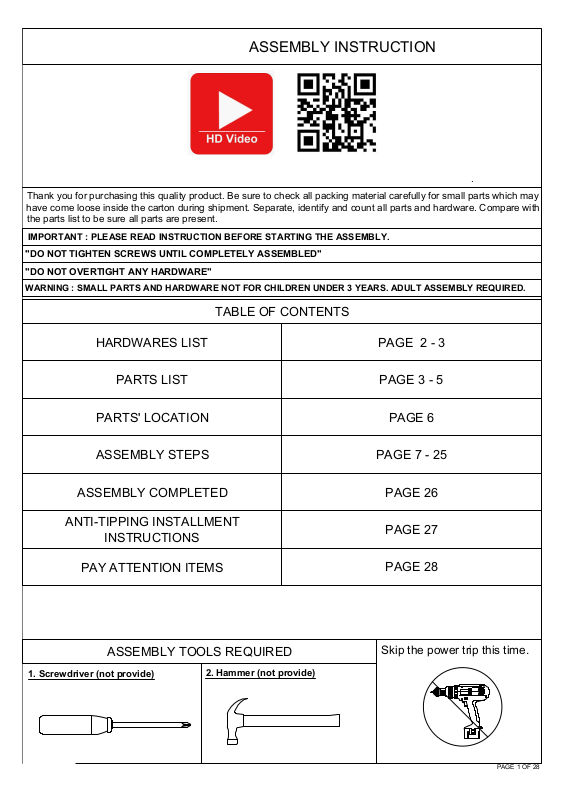

Foundstone W007178629 Installation & Assembly

IMPORTANT : PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY.

ASSEMBLY INSTRUCTION

PAGE 1 OF 28

https://youtu.be/LWMvJIFC2z4

.

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and hardware. Compare with the parts list to be sure all parts are present.

"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"

"DO NOT OVERTIGHT ANY HARDWARE"

WARNING : SMALL PARTS AND HARDWARE NOT FOR CHILDREN UNDER 3 YEARS. ADULT ASSEMBLY REQUIRED.

TABLE OF CONTENTS

HARDWARES LIST

PARTS LIST

PARTS' LOCATION

ASSEMBLY STEPS

ASSEMBLY COMPLETED

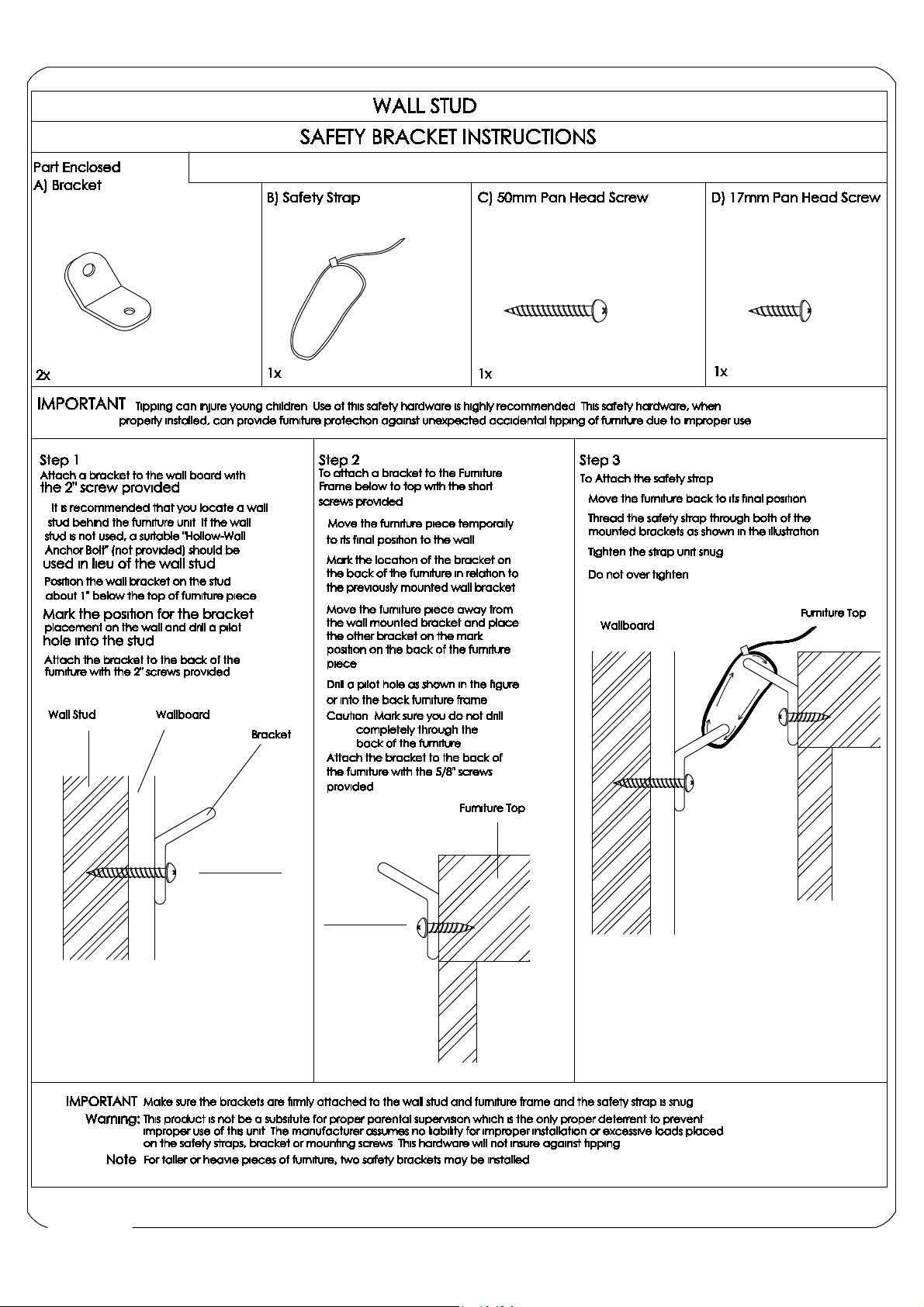

ANTI-TIPPING INSTALLMENT

INSTRUCTIONS

PAY ATTENTION ITEMS

PAGE 2 - 3

PAGE 3 - 5

PAGE 6

PAGE 7 - 25

PAGE 26

PAGE 27

PAGE 28

ASSEMBLY TOOLS REQUIRED

1. Screwdriver (not provide)

2. Hammer (not provide)

Skip the power trip this time.

DR ASSEMBLY INSTRUCTION

ITEM

A

B

C

D

I

J

K

L

M

DESCRIPTION

MINIFIX CAM LOCK

MINIFIX CAM BOLT

WOOD DOWEL (M8 x 25MM)

WOOD DOWEL (M6 x 25MM)

TRUSS M-SCREW (12MM)

6/8" NAIL

HANDLE

LEFT DRAWER SLIDE

RIGHT DRAWER SLIDE

QTY

86 PCS

38 PCS

48 PCS

12 PCS

24 PCS

6 PCS

DRAWING

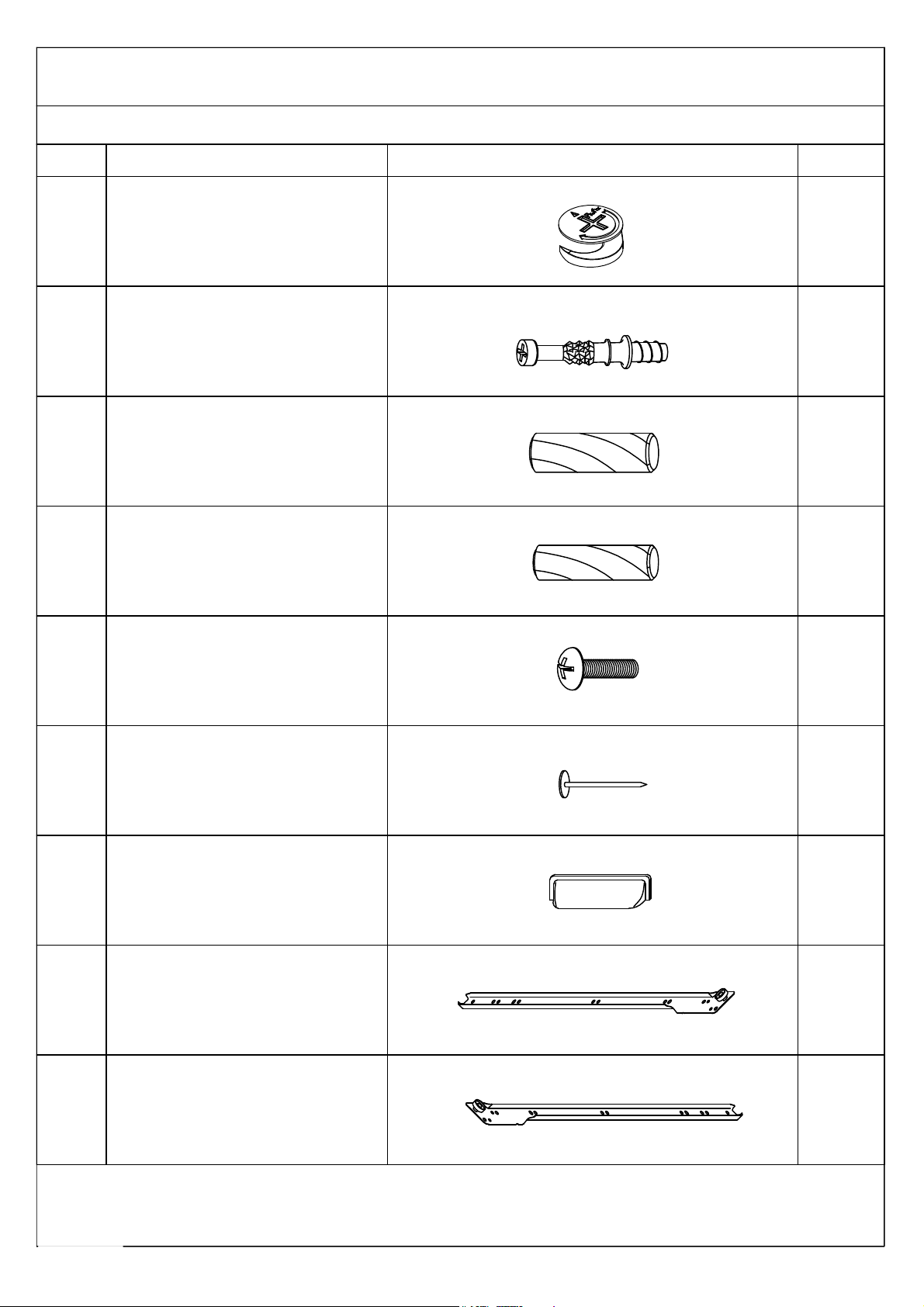

HARDWARES LIST

PAGE 2 OF 28

MORE HARDWARES DETAIL IN NEXT PAGE...

MORE PARTS DETAIL IN NEXT PAGE...

ITEM

D1

D5

D6

D7

D8

D9

DESCRIPTION

TOP PANEL

FRONT TOP SUPPORT RAIL

FRONT CENTRE SUPPORT RAIL

BACK TOP LEFT SUPPORT RAIL

BACK TOP RIGHT SUPPORT RAIL

BACK CENTRE LEFT SUPPORT RAIL

QTY

1 PC

4 PCS

1 PC

DRAWING

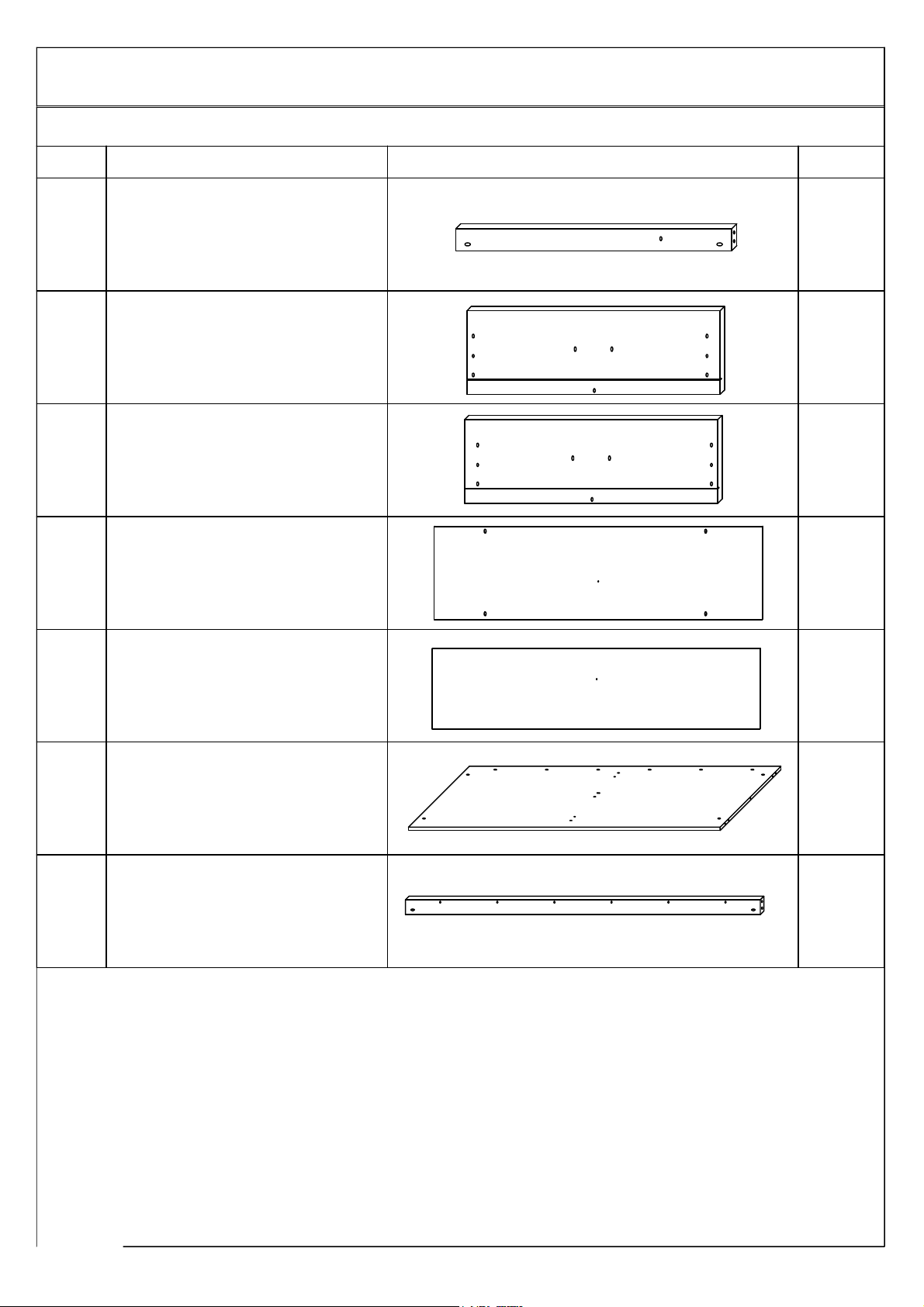

PARTS LIST (BOX 1)

DR ASSEMBLY INSTRUCTION

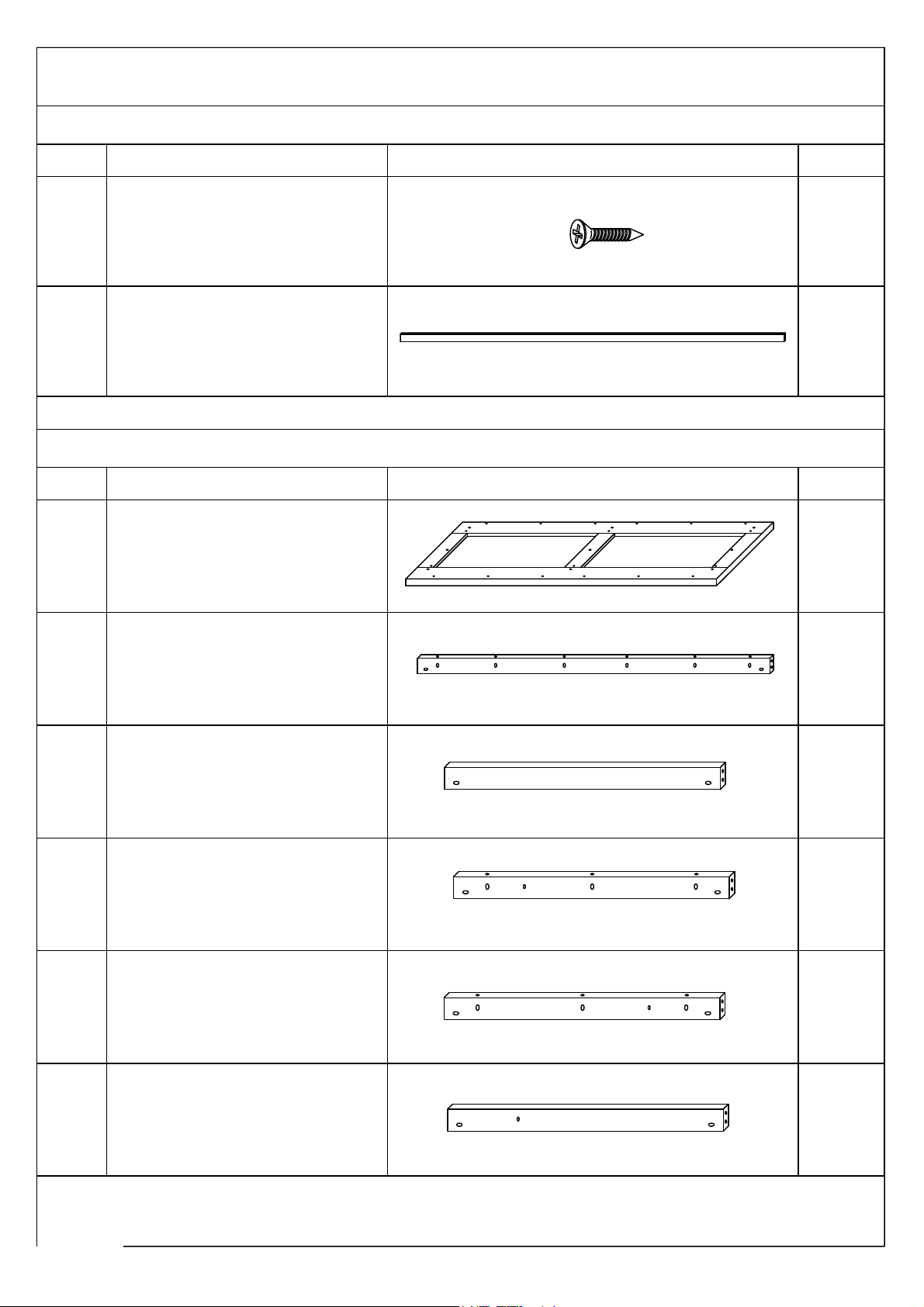

HARDWARES LIST

PAGE 3 OF 28

ITEM

N

O

DESCRIPTION

CSK SCREW M3 x 10mm

PLASTIC STRIP (H SHAPE)

QTY

48 PCS

1 PC

DRAWING

ASSEMBLY INSTRUCTION

PAGE 4 OF 28

MORE PARTS DETAIL IN NEXT PAGE...

ITEM

D10

D14

D15

D18A

D18B

D19

D20

DESCRIPTION

BACK CENTRE RIGHT SUPPORT RAIL

LEFT DRAWER HEAD

RIGHT DRAWER HEAD

UPPER BACK PANEL

LOWER BACK PANEL

BOTTOM PANEL

BOTTOM SUPPORT RAIL

QTY

1 PC

3 PCS

1 PC

DRAWING

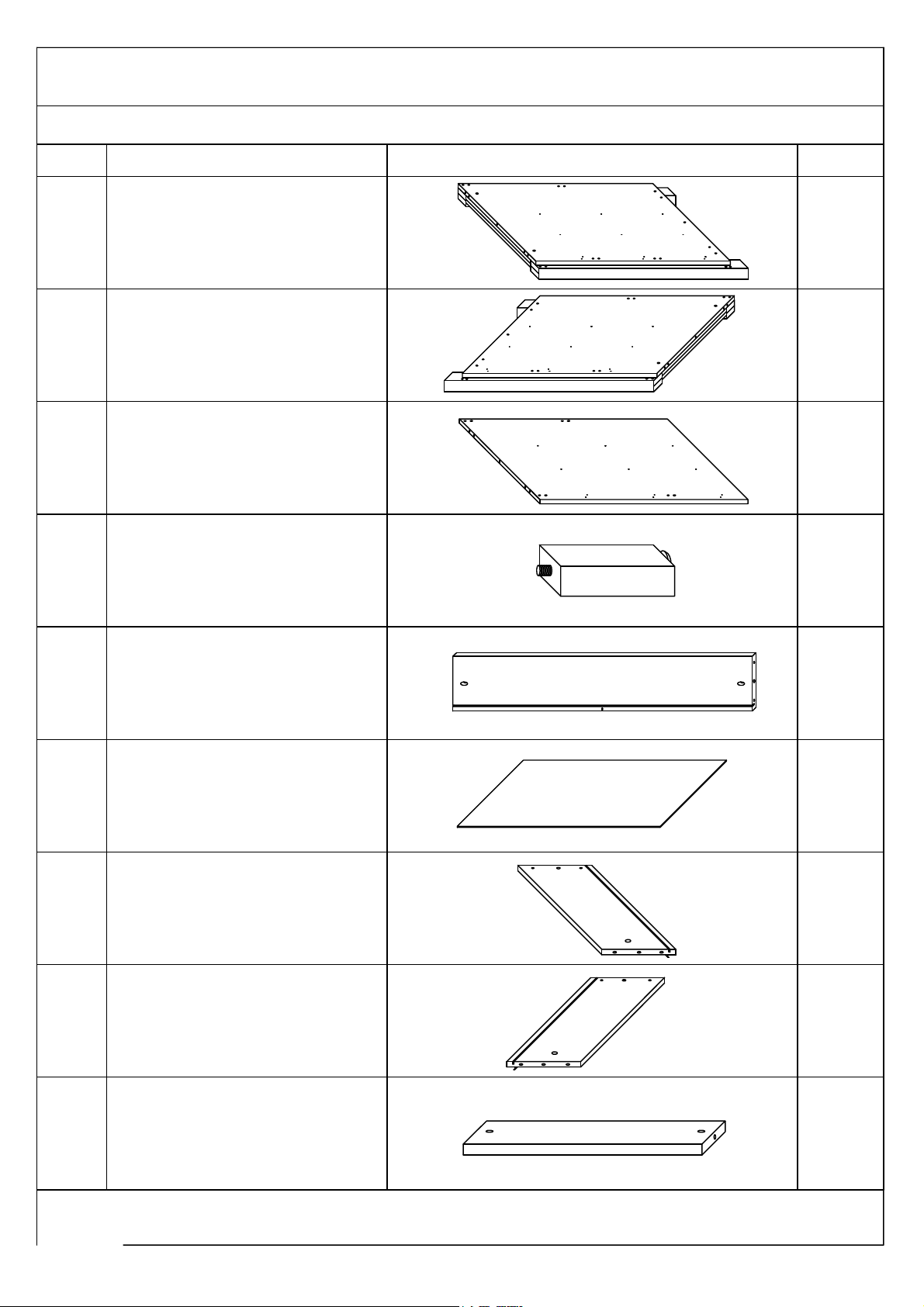

PARTS LIST (BOX 1)

ASSEMBLY INSTRUCTION

PAGE 5 OF 28

DESCRIPTION

LEFT PANEL

RIGHT PANEL

CENTRE PANEL

CENTRE SUPPORT LEG

DRAWER BACK PANEL

DRAWER BOTTOM PANEL

DRAWER LEFT PANEL

DRAWER RIGHT PANEL

DRAWER BOTTOM SUPPORT RAIL

QTY

1 PC

6 PCS

DRAWING

PARTS LIST (BOX 2)

ITEM

D2

D3

D4

D24

D16

D17

19

20

21

ASSEMBLY INSTRUCTION

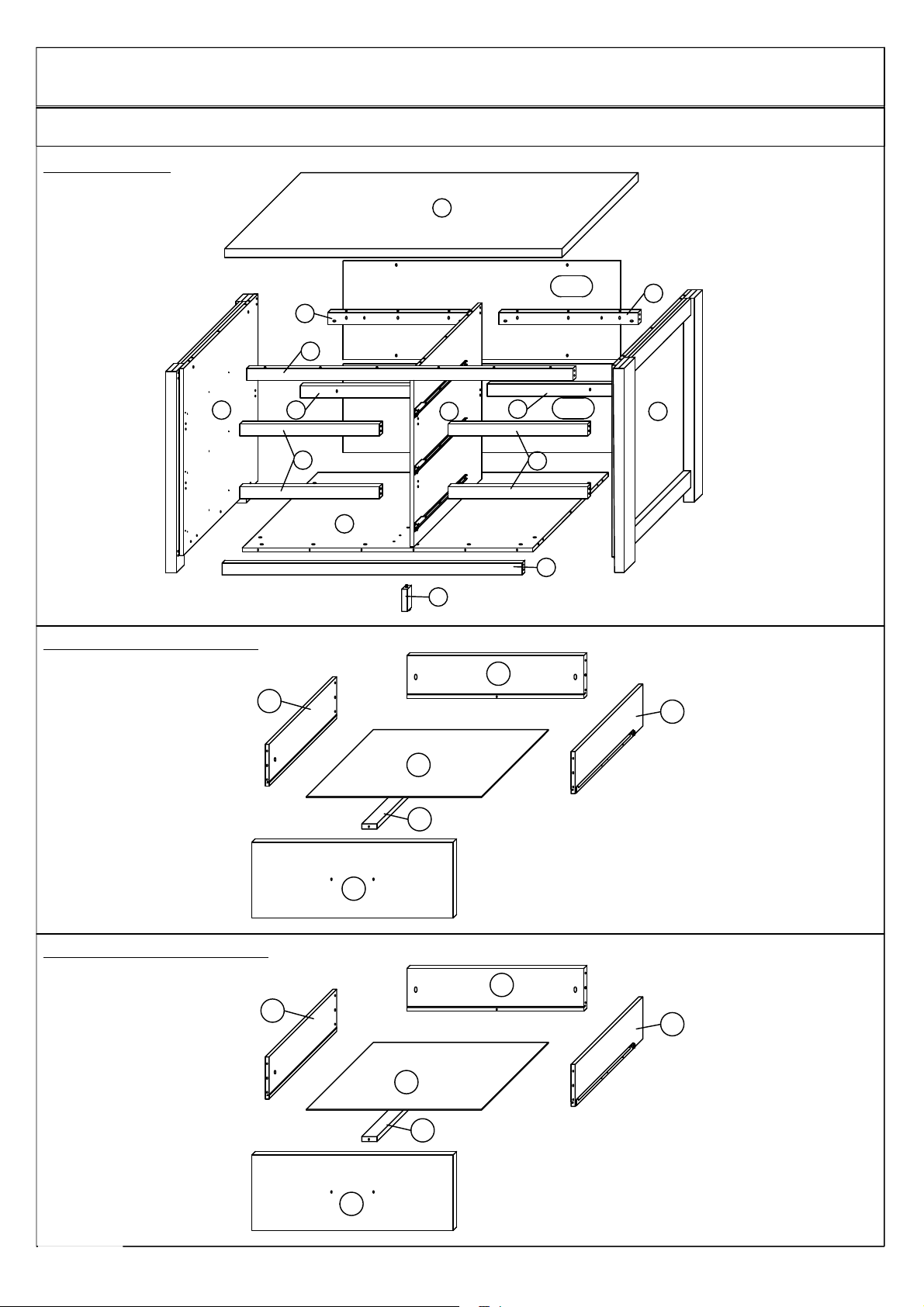

PARTS ' LOCATION

DRESSER x 1 PC

LEFT SIDE DRAWER x 3 PCS

PAGE 6 OF 28

D14

19

20

D16

D17

21

D1

D5

D7

D2

D3

D4

D6

D8

D9

D10

RIGHT SIDE DRAWER x 3 PCS

D15

19

20

21

D16

D17

D19

D24

D18A

D18B

D20

Arrow need to face outside.

Assembled looks

D2

B

C

A

ASSEMBLY STEPS

ASSEMBLY INSTRUCTION

PAGE 7 OF 28

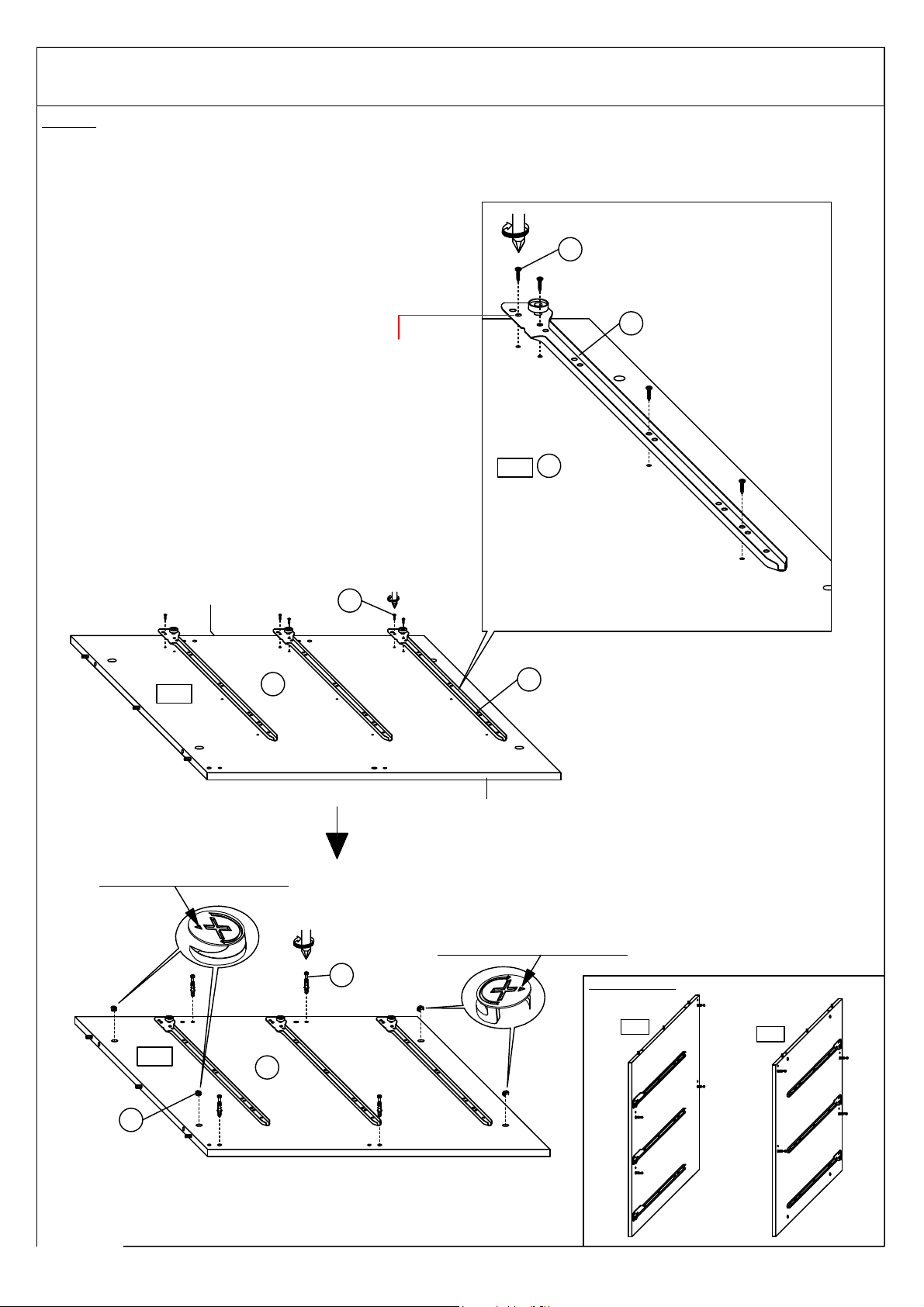

STEP 1

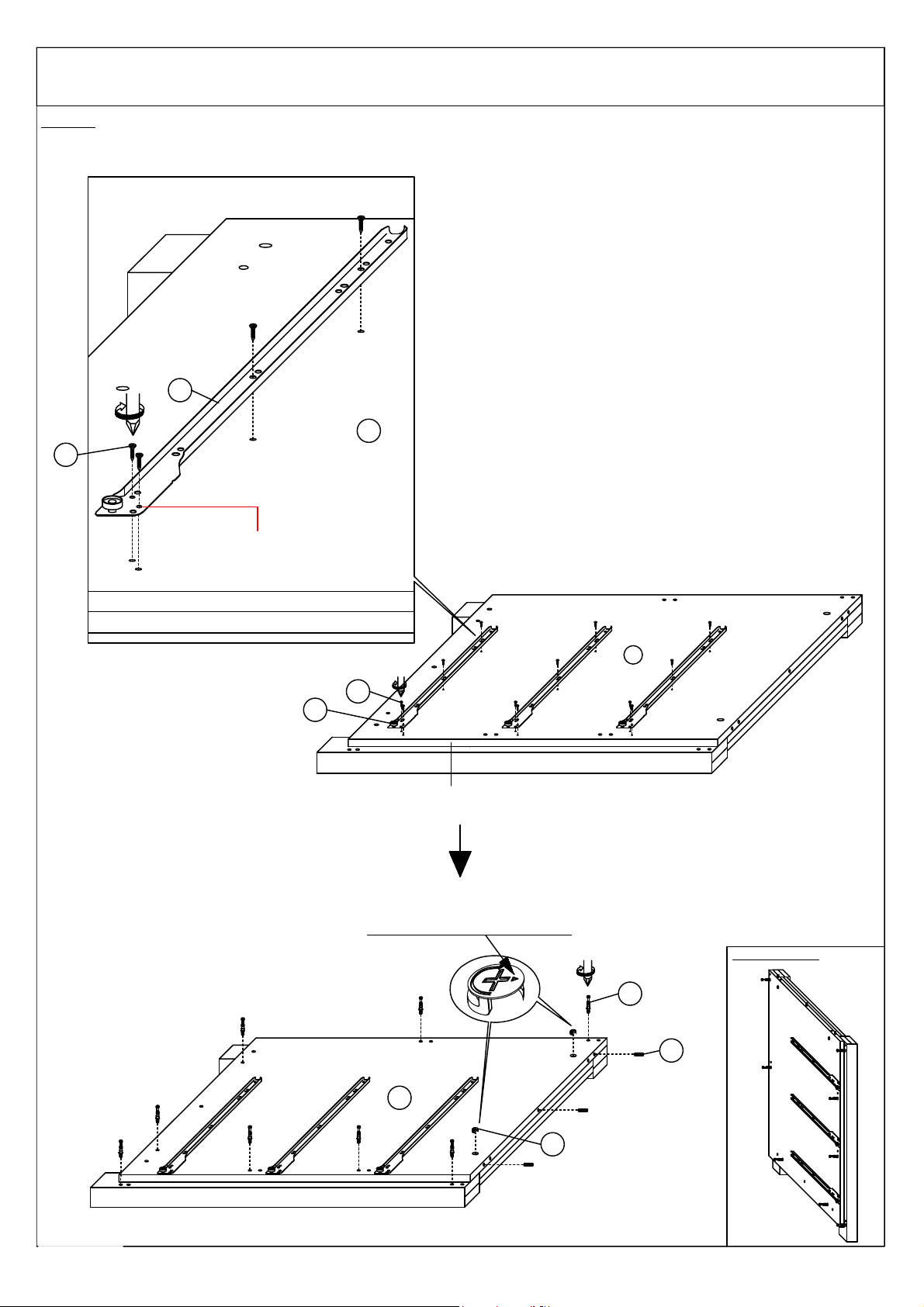

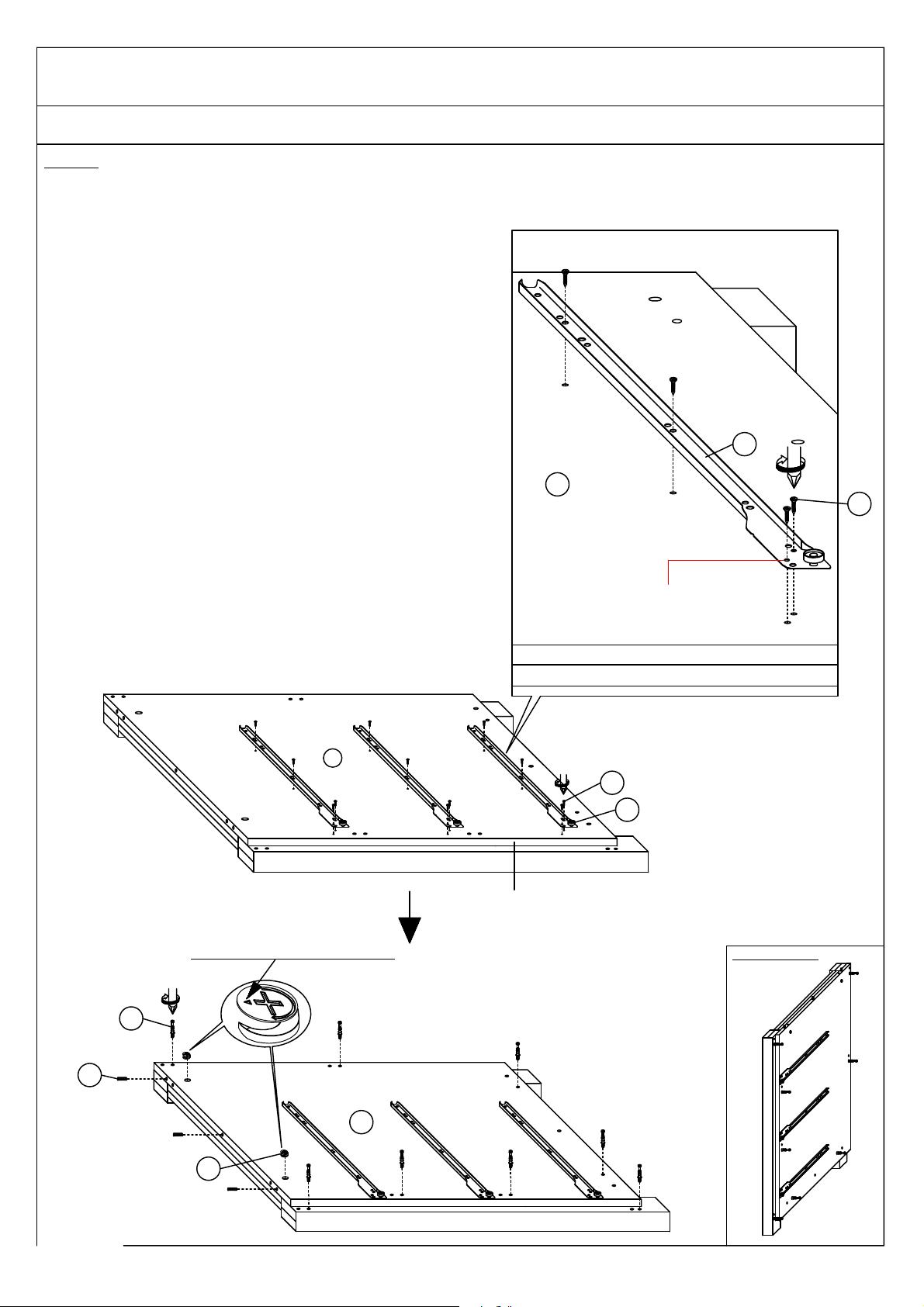

Fix the 3 pieces (L) to the (D2) by using 12 pieces (N).Then insert 2 pieces (A), 8 pieces (B) and 3 pieces (C) as shown.

Finished edge

Insert screw to tight

this hole first

D2

N

L

D2

L

N

STEP 2

ASSEMBLY INSTRUCTION

PAGE 8 OF 28

Insert screw to tight

this hole first

D3

N

M

Finished edge

Arrow need to face outside.

D2

B

C

A

M

N

D3

Assembled looks

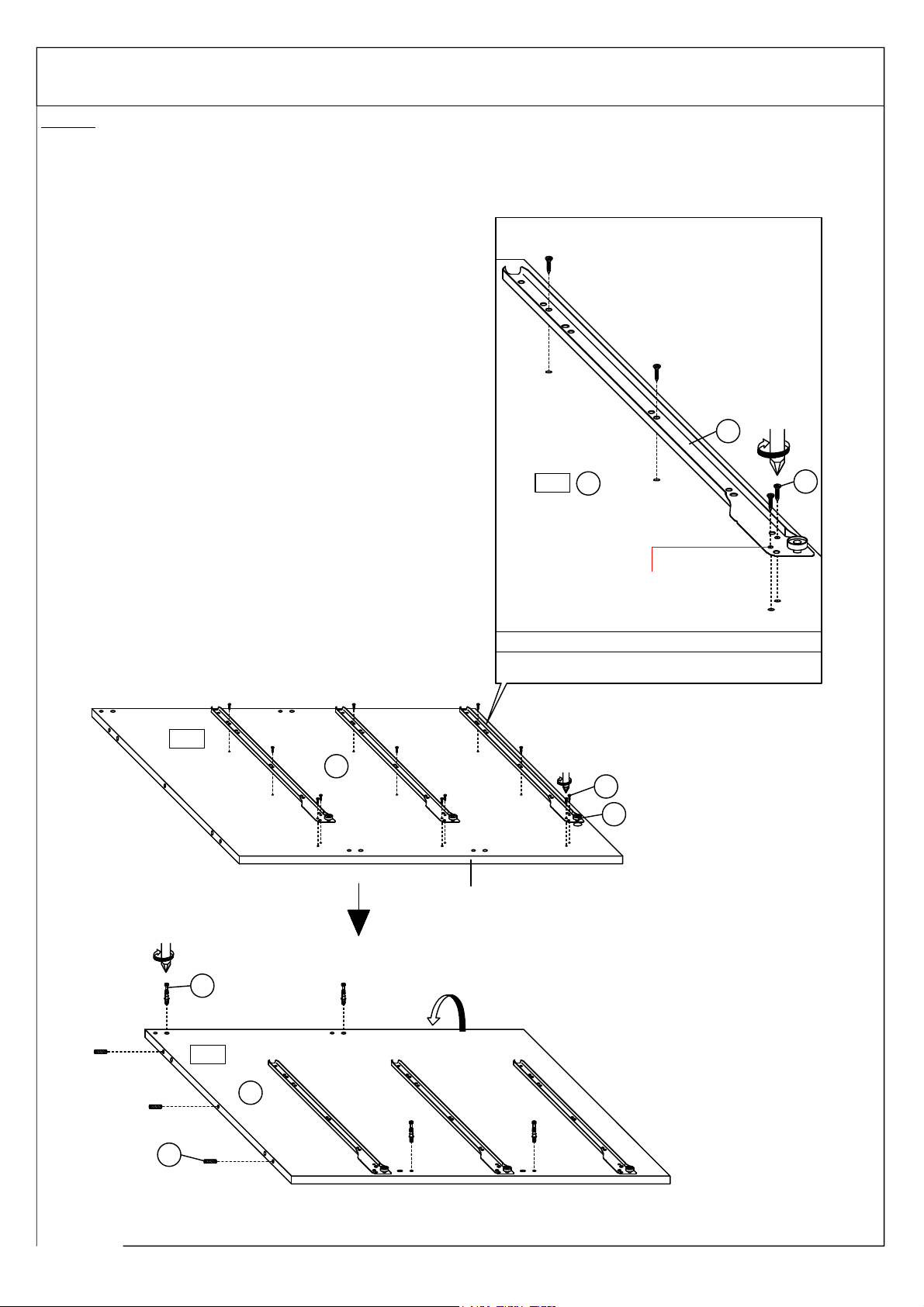

Fix the 3 pieces (M) to the (D3) by using 12 pieces (N).Then insert 2 pieces (A), 8 pieces (B) and 3 pieces (C) as shown.

B

C

D4

R

180 °

Fix the remaining 3 pieces (L) to the right side of (D4) by using 12 pieces (N). Then insert 3 pieces (C) and 4 pieces (B)

as shown.

R

Insert screw to tight

this hole first

N

L

D4

N

L

Finished edge

R

STEP 3

ASSEMBLY INSTRUCTION

PAGE 9 OF 28

B

A

Arrow need to face outside.

L

D4

Arrow need to face outside.

L

R

M

N

D4

Fix the remaining 3 pieces (M) to the left side of (D4) by using 12 pieces (N). Then insert 4 pieces (A),(B) as shown.

L

Finished edge

Without edge

N

M

D4

L

Insert screw to tight

this hole first

Assembled looks

STEP 4

ASSEMBLY INSTRUCTION

PAGE 10 OF 28

STEP 5

D5

Arrow need to face outside.

ASSEMBLY INSTRUCTION

Arrow need to face outside.

D6

C

Arrow need to face outside.

A

D5

STEP 6

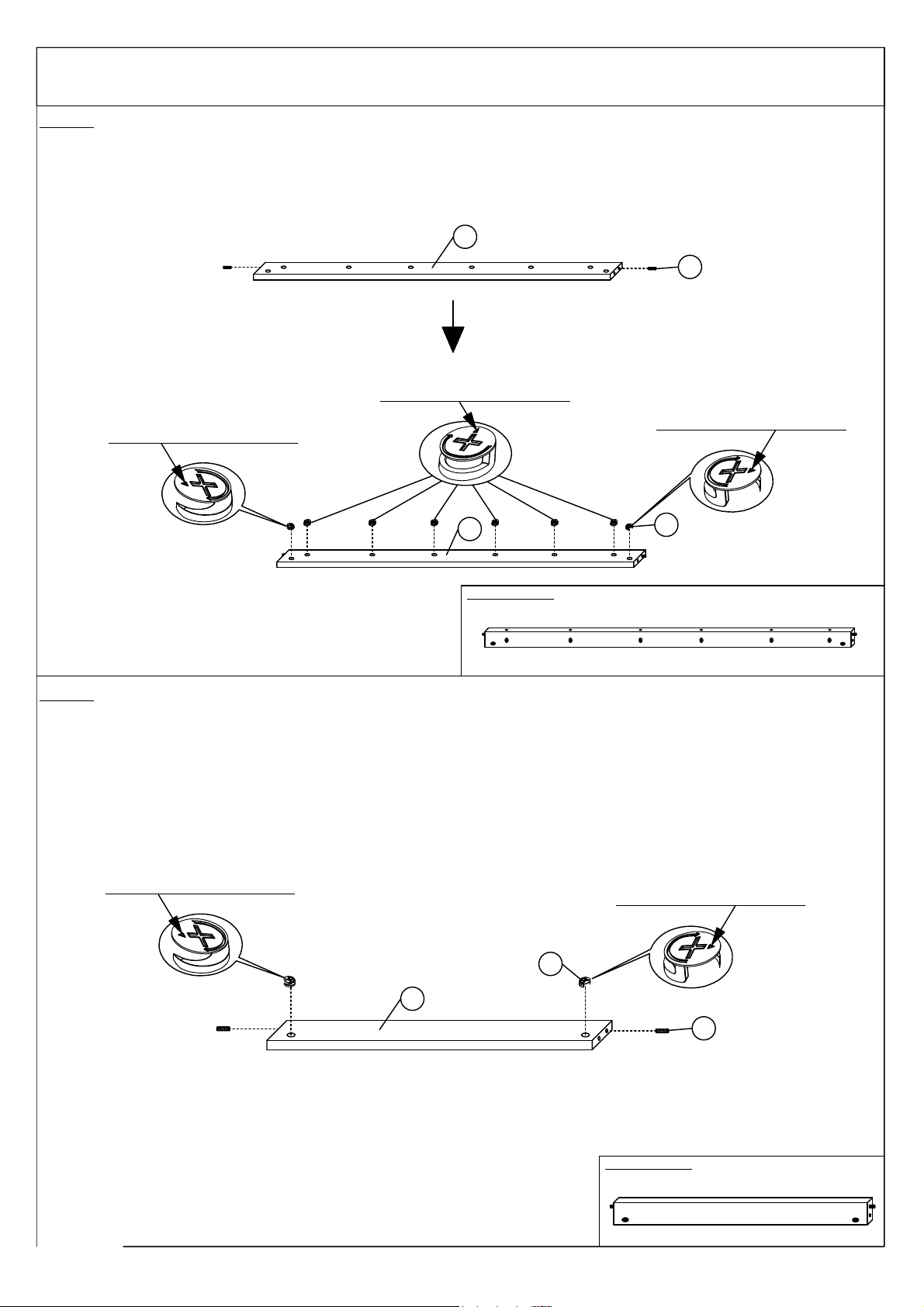

Insert 2 pieces (C) and 8 pieces (A) to (D5) as shown.

Insert 2 pieces (A),(C) to (D6) as shown.

This step needs to be done four times.

A

C

Assembled looks

PAGE 11 OF 28

ASSEMBLY INSTRUCTION

D7

C

Arrow need to face outside.

A

D7

D8

C

Arrow need to face outside.

A

D8

STEP 7

STEP 8

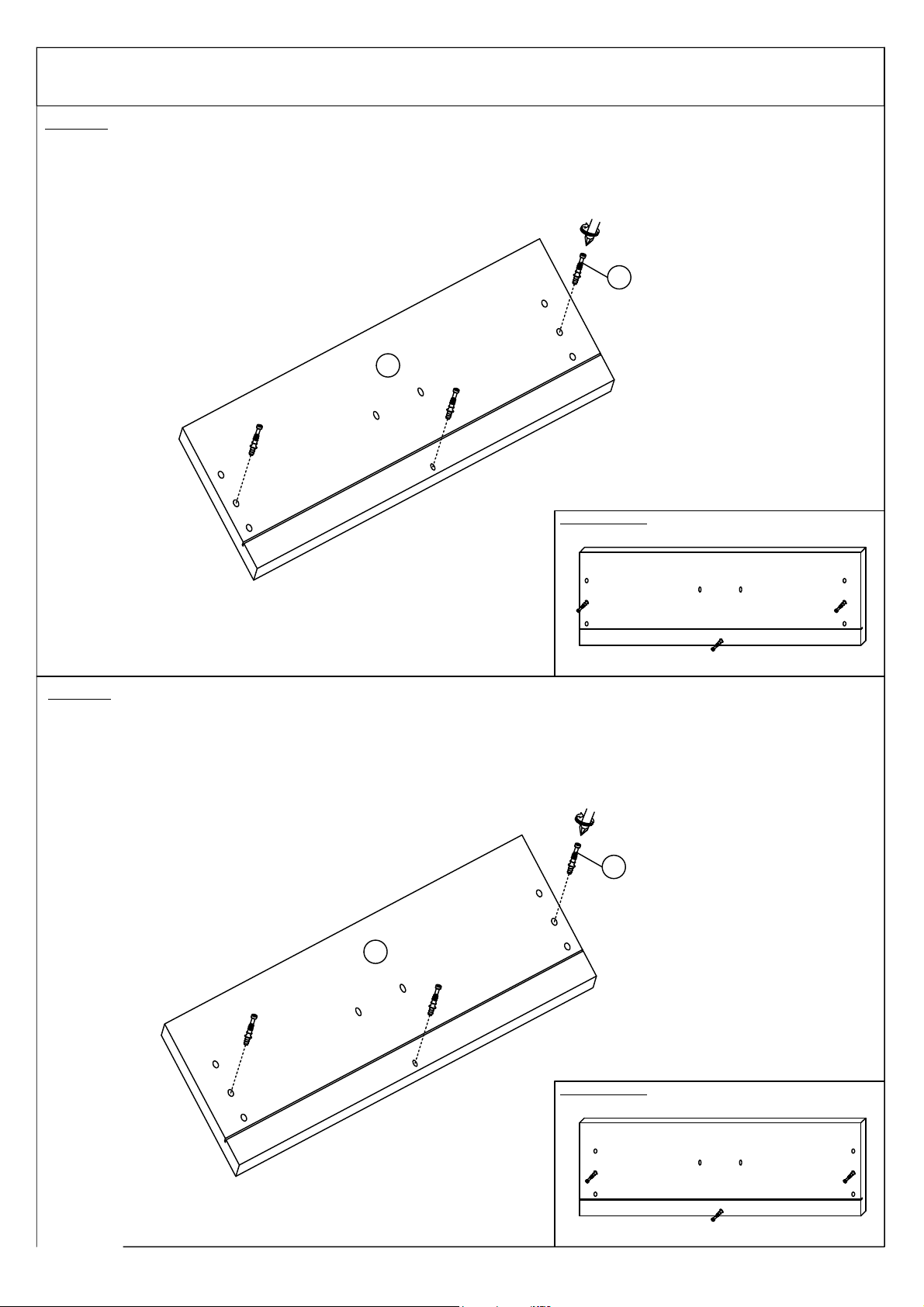

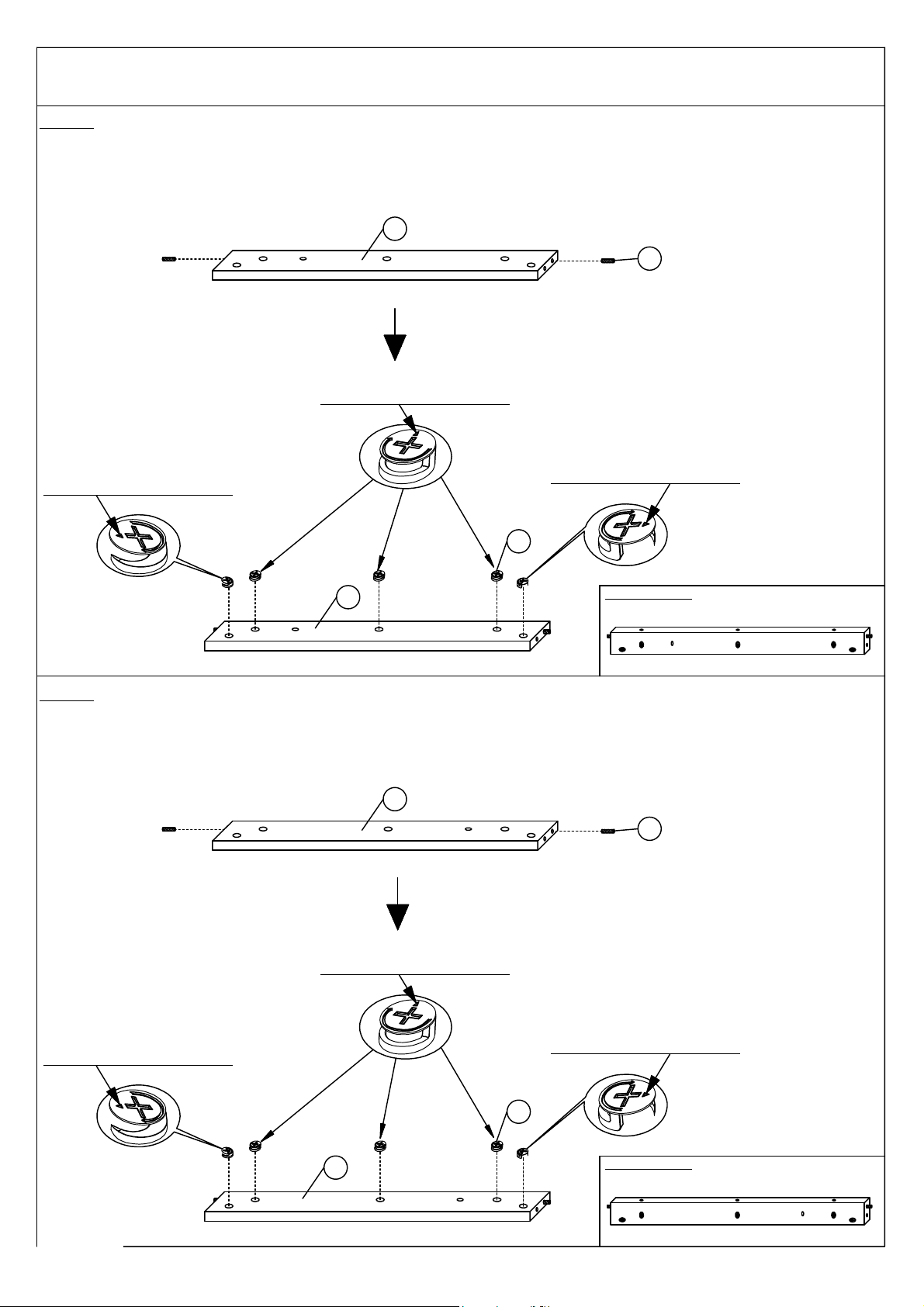

Insert 2 pieces (C) and 5 pieces (A) to (D7) as shown.

Insert 2 pieces (C) and 5 pieces (A) to (D8) as shown.

Assembled looks

PAGE 12 OF 28

ASSEMBLY INSTRUCTION

PAGE 13 OF 28

D9

C

Arrow need to face outside.

A

D10

C

Arrow need to face outside.

A

STEP 9

STEP 10

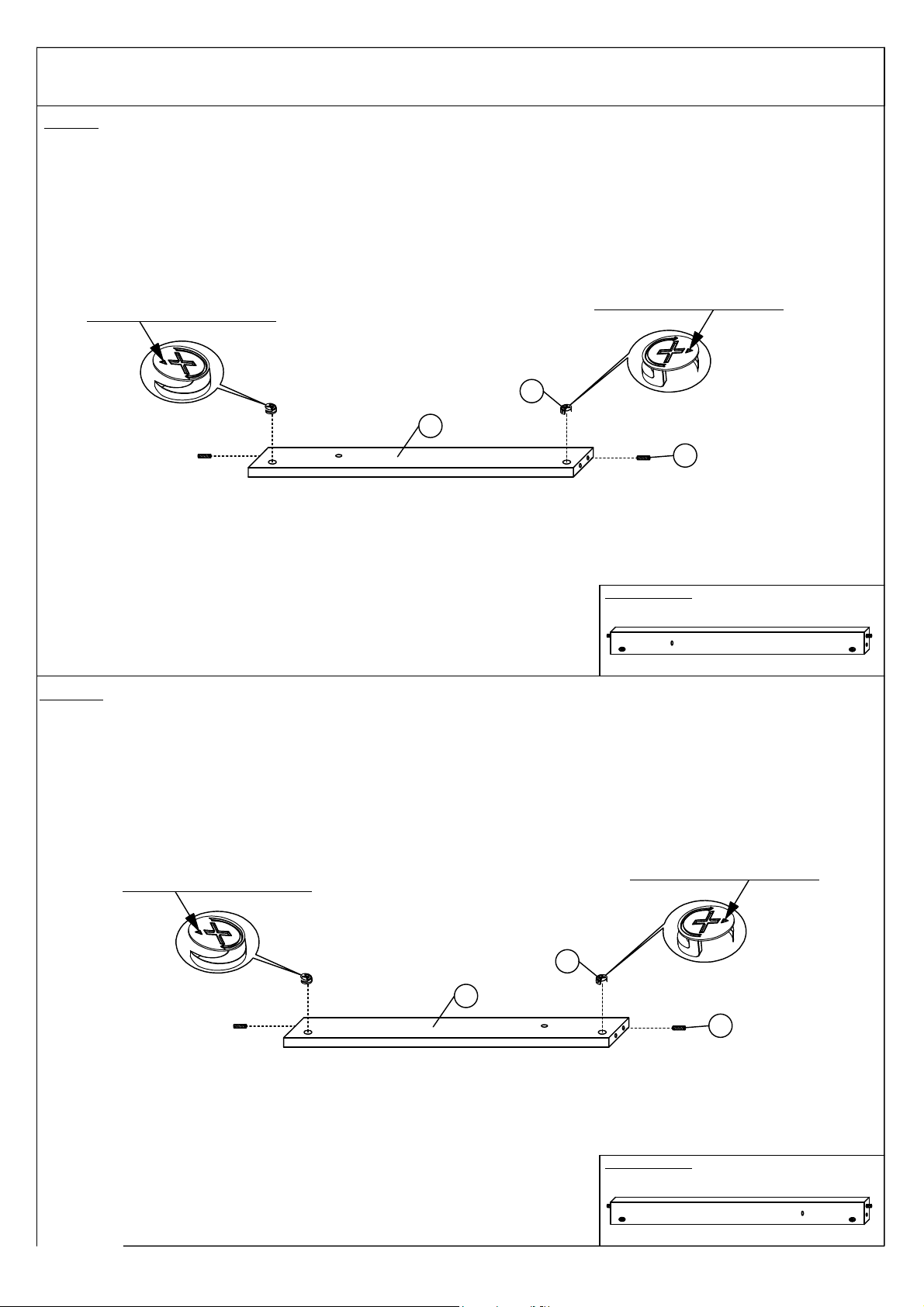

Insert 2 pieces (A),(C) to (D9) as shown.

Insert 2 pieces (A),(C) to (D10) as shown.

Assembled looks

ASSEMBLY INSTRUCTION

PAGE 14 OF 28

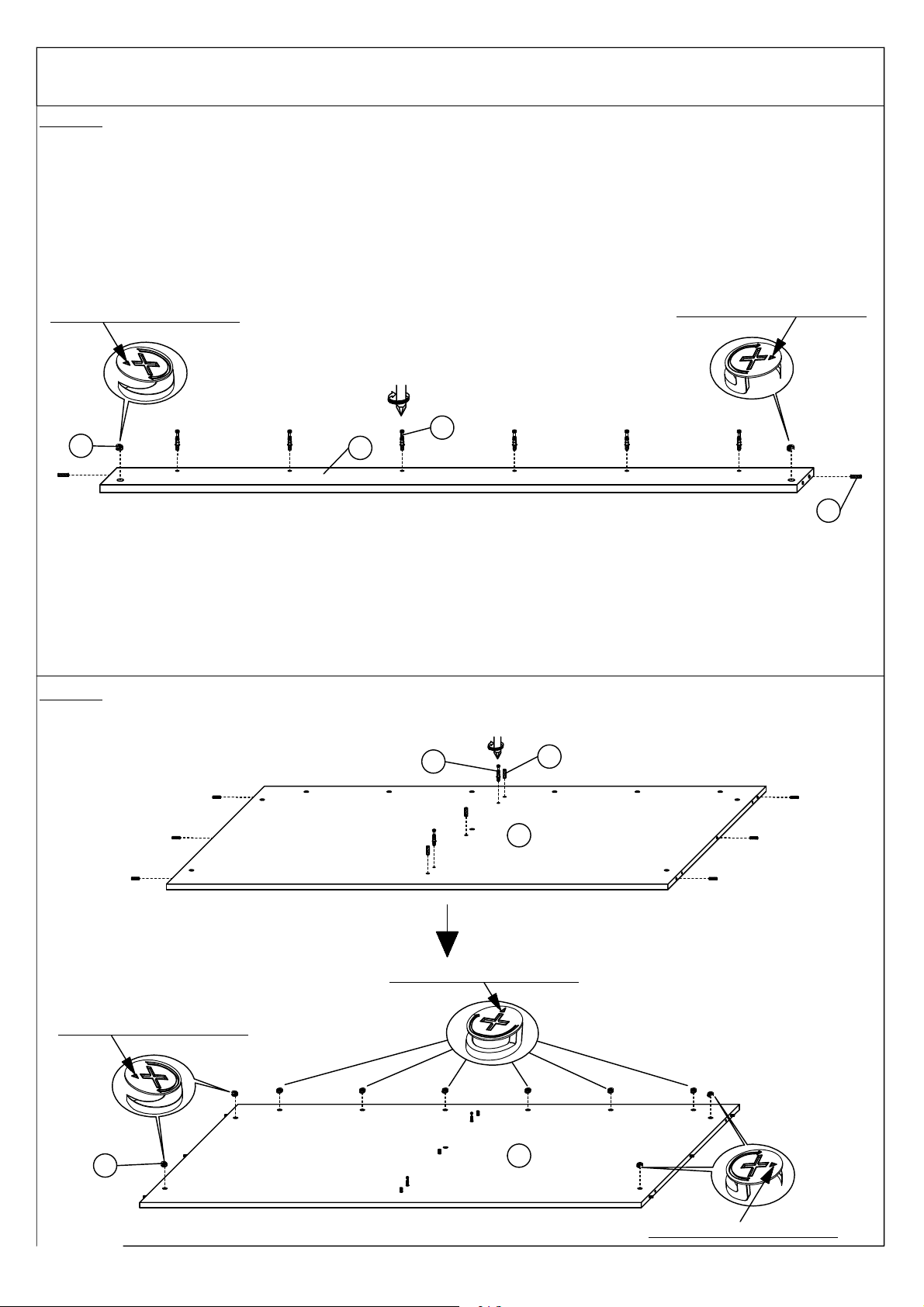

STEP 11

Insert 2 pieces (A),(C) and 6 pieces (B) to the (D20) as shown.

Arrow need to face outside.

C

B

A

D20

STEP 12

Arrow need to face outside.

D19

B

C

A

Insert 10 pieces (A), 2 pieces (B) and 9 pieces (C) to the (D19) as shown.

ASSEMBLY INSTRUCTION

PAGE 15 OF 28

STEP 14

STEP 13

D2

D7

D6

D9

D2

D7

D9

D6

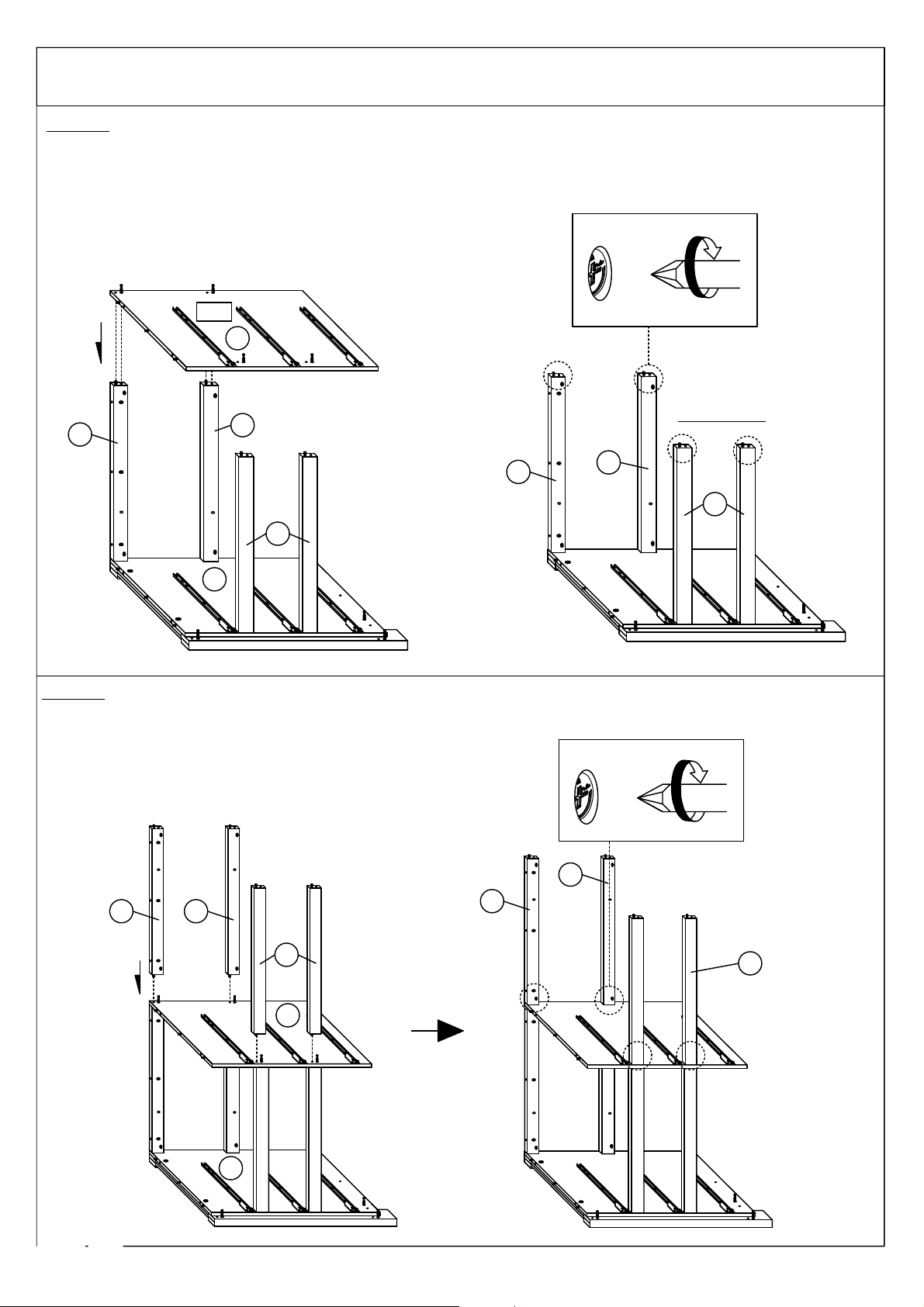

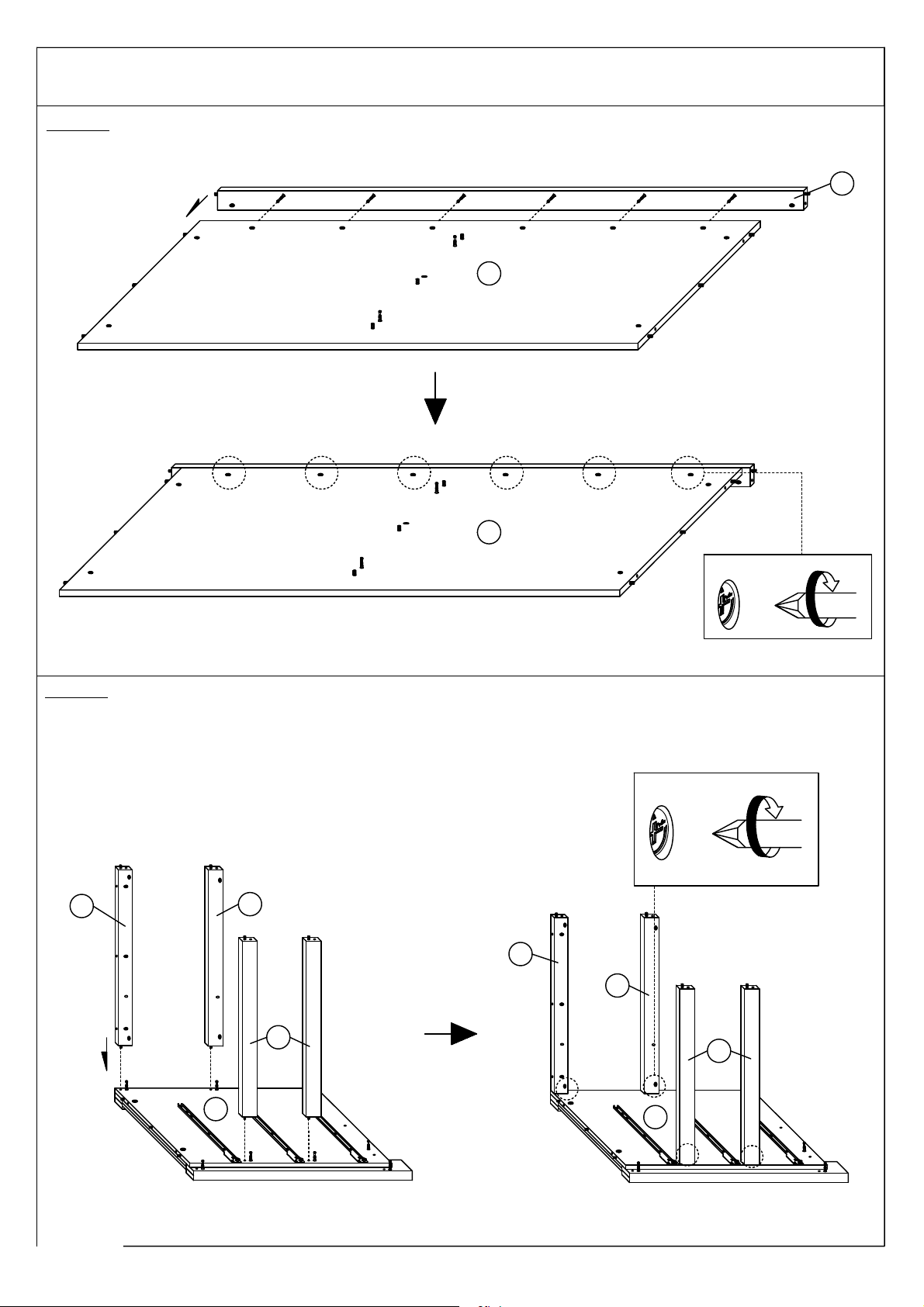

Combine (D6),(D7) and (D9) to (D2). Then tighten the 4 pieces (A)-(pre-insert in step 6,7 and 9) as shown.

D19

D20

Combine the (D19),(D20) and tighten the 6 pieces (A)-(pre insert in previous step) as shown.

ASSEMBLY INSTRUCTION

PAGE 16 OF 28

STEP 15

STEP 16

D2

D4

R

D7

D9

D6

D7

D9

D6

INSIDE VIEW

D2

D4

D8 D10

D6

D8

D10

D6

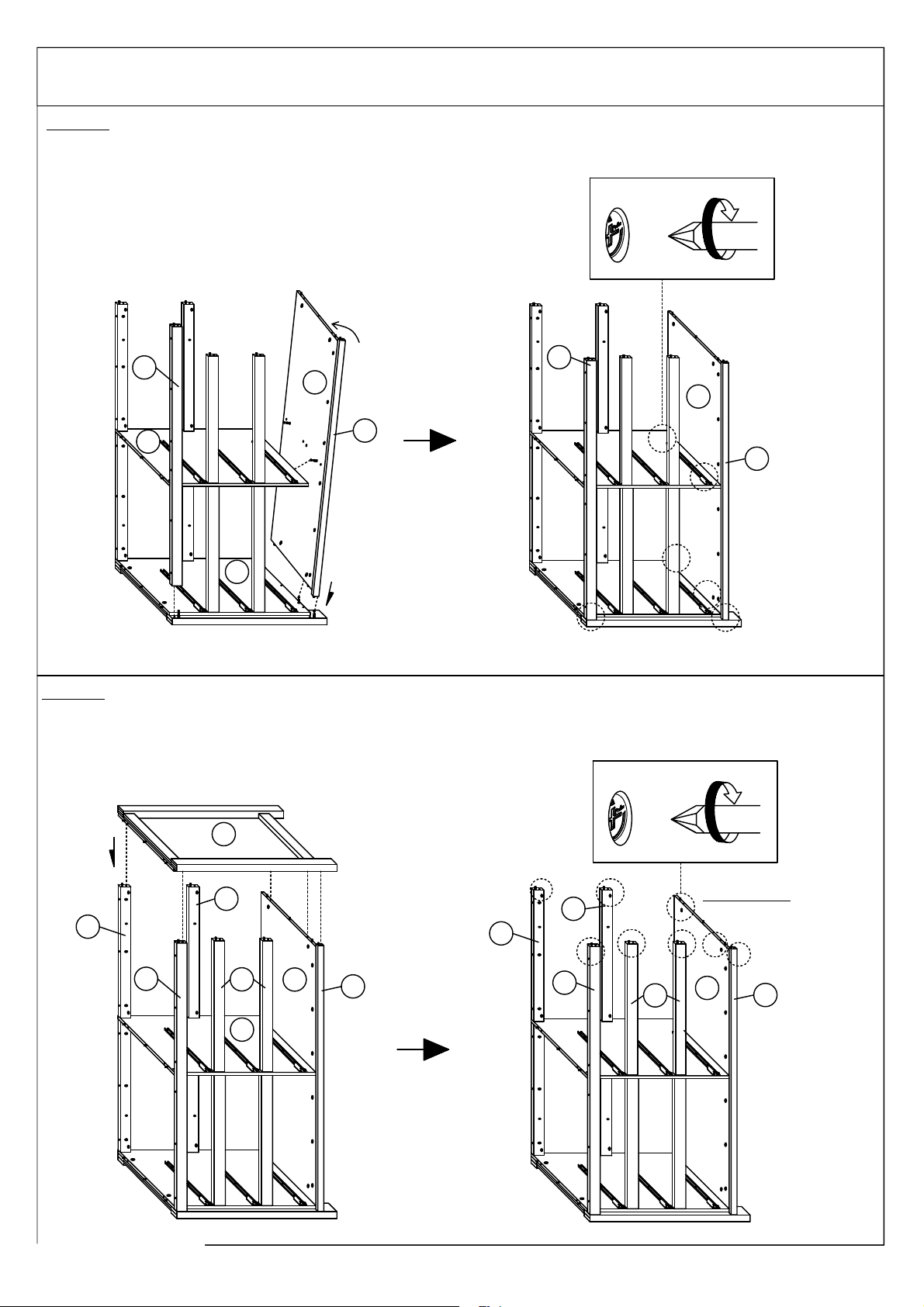

Combine the (D4) to the (D6),(D7) and (D9) then tighten the another 4 pieces (A)-(pre-insert in step 6,7 and 9) as shown.

Combine the remaining 2 pieces (D6) and (D8),(D10) to the (D4). Then tighten the 4 pieces (A)-(pre-insert in step 6,8 and 10) as shown.

ASSEMBLY INSTRUCTION

PAGE 17 OF 28

STEP 17

STEP 18

INSIDE VIEW

D4

D5

D19

D2

D5

D3

D4

D5

D8

D10

D6

D8

D6

D5

D10

Combine the (D5),(D19),(D20) to the (D2). Then tighten the 6 pieces (A)-(pre-insert in step 5,11 and 12) as shown.

Combine the (D3) to the (D5),(D6),(D8),(D10),(D19),(D20) . Then tighten the 8 pieces (A)-(pre-insert in step 5,6,8,10,11

and 12) as shown.

D19

D20

D19

D20

D19

D20

FRONT

BACK

D1

B

ASSEMBLY INSTRUCTION

PAGE 18 OF 28

STEP 19

STEP 20

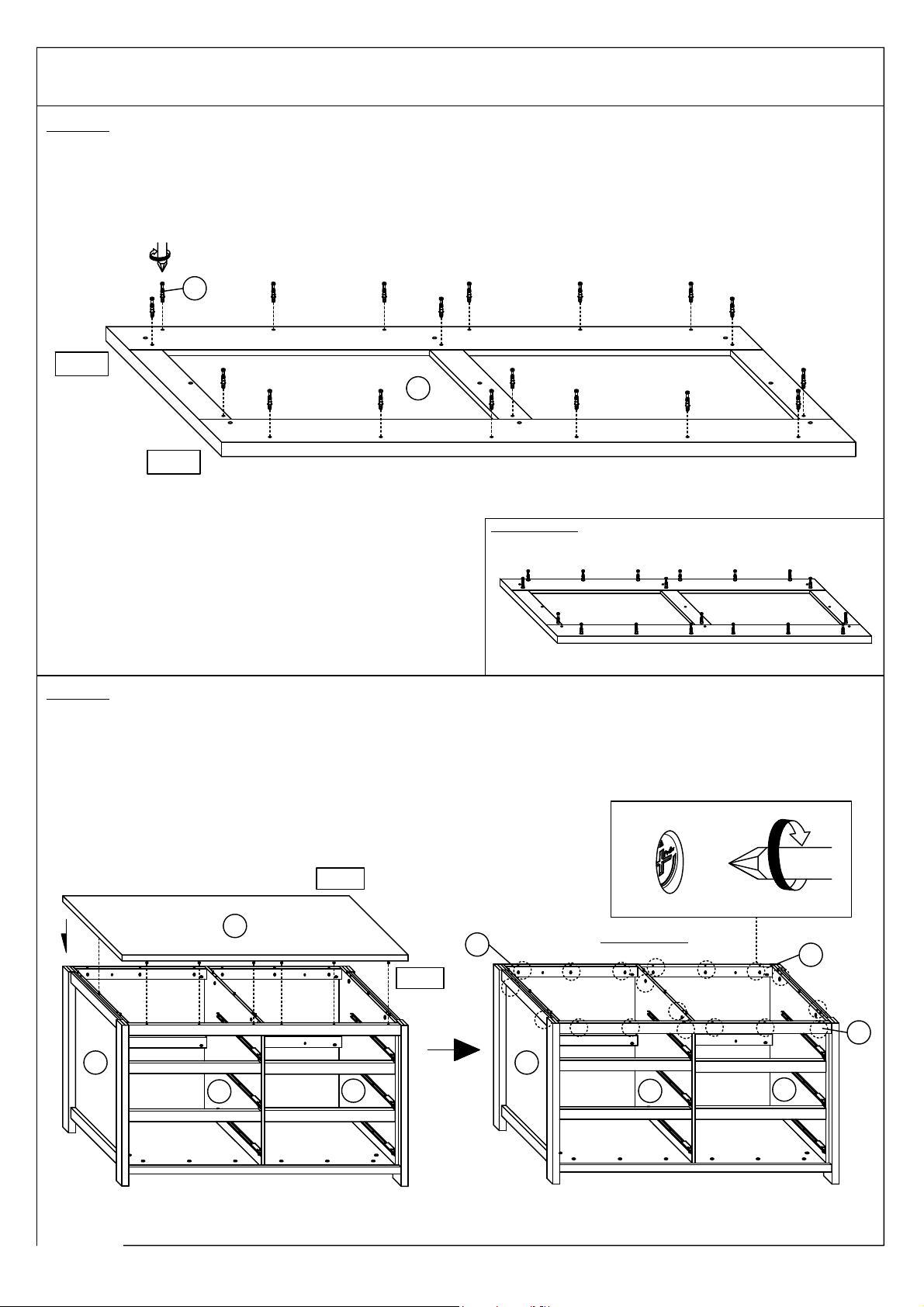

Insert 18 pieces (B) to (D1) as shown.

D1

D2

D3

D4

D2

D3

D4

D5

Combine the (D1) to the frame then tighten the 18 pieces (A)-(pre-insert in step 1,2,4,5,7 and 8) as shown.

D8

D7

FRONT

BACK

INSIDE VIEW

Assembled looks

ASSEMBLY INSTRUCTION

PAGE 19 OF 28

STEP 21

STEP 22

O

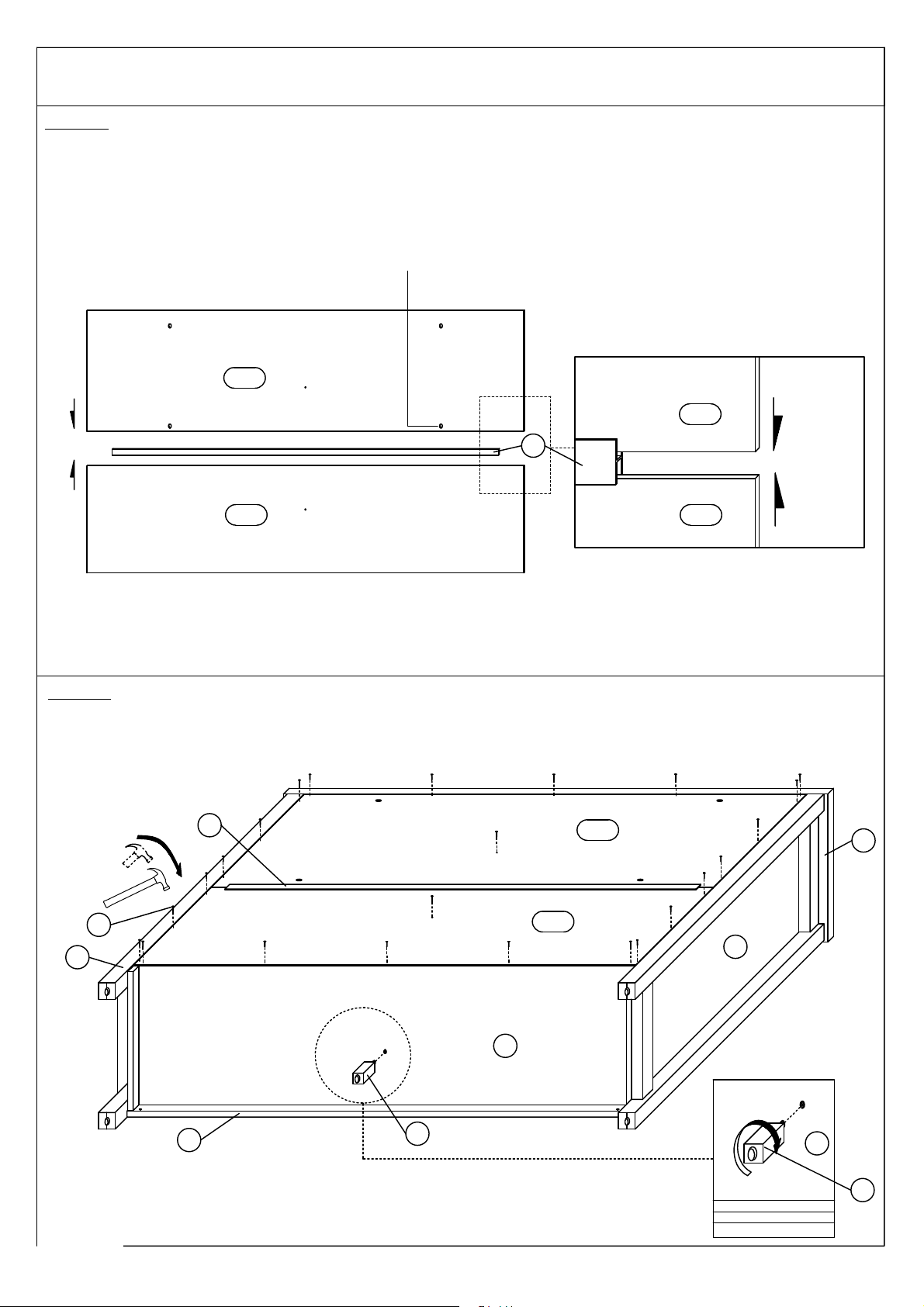

Put the (D18A) and (D18B) to the gap of (O) as shown.Direction of the side with colored paper must be the same.

This side closer to the hole needs to face inside

D18A

D18B

D18A

D18B

D18A

D18B

J

D19

D20

D24

D2

D3

D1

D24

O

Insert the 24 pieces (J) to fix the (D18A) and (D18B) as shown. Colored paper face to outside.

To prevent blocking (D2) and (D3), make sure the (O) at the middle of (D18A) and (D18B) , do not over left or right. Then turn (D24) clockwise to combine to the (D19).

B

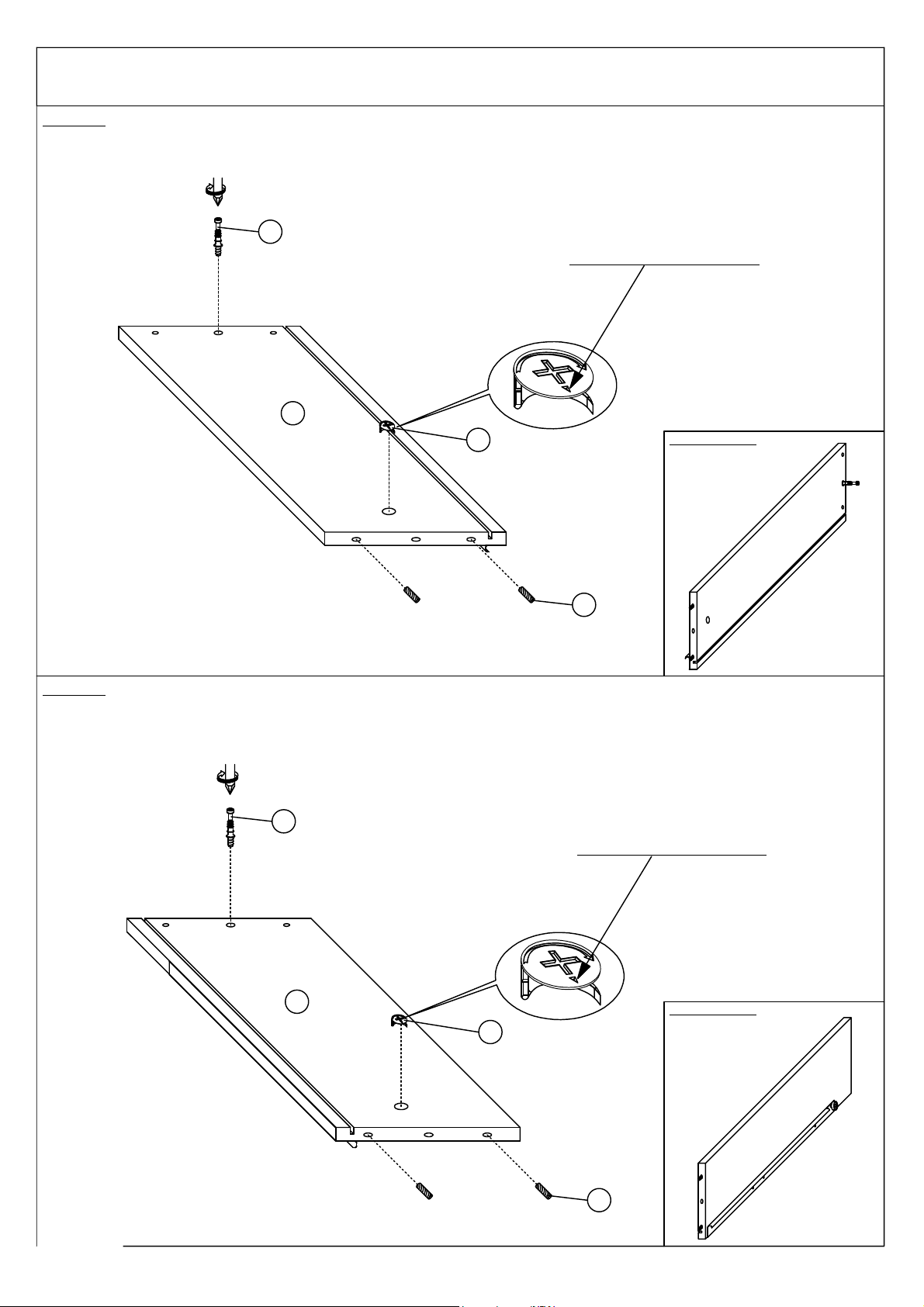

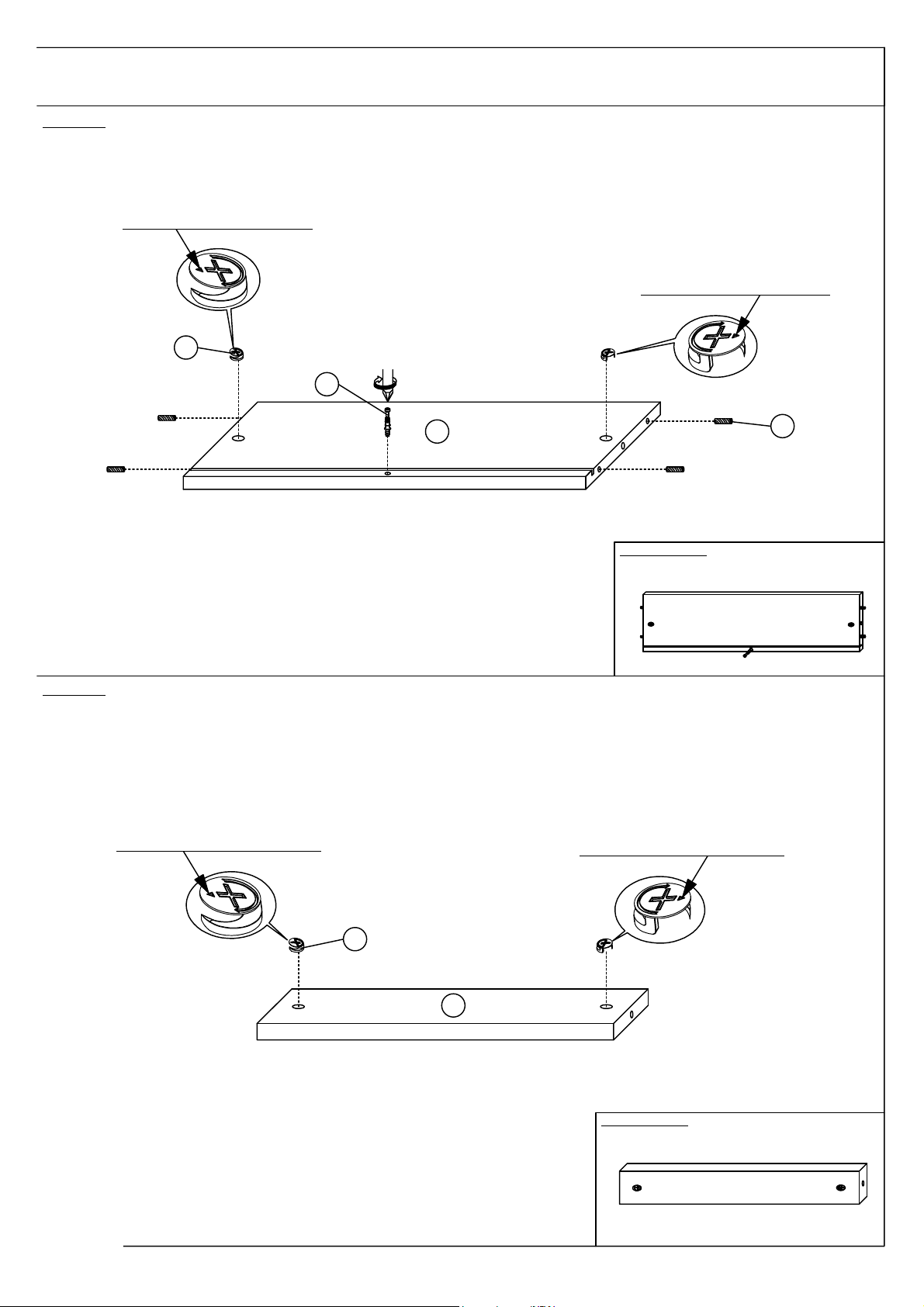

Insert 3 pieces (B) to the (D14) as shown.This step needs to be

done three times.

Insert 3 pieces (B) to the (D15) as shown.This step needs to be done three times.

D14

D15

Assembled looks

ASSEMBLY INSTRUCTION

PAGE 20 OF 28

STEP 23

STEP 24

ASSEMBLY INSTRUCTION

STEP 25

STEP 26

PAGE 21 OF 28

Arrow need to face outside.

19

A

B

D

A

Arrow need to face outside.

B

D

20

Insert 1 piece (A),(B) and 2 pieces (D) to (19) as shown.This step needs to be

done six times.

Insert 1 piece (A),(B) and 2 pieces (D) to (20) as shown.This step needs to be done six times.

Assembled looks

ASSEMBLY INSTRUCTION

STEP 27

STEP 28

PAGE 22 OF 28

D

A

D16

Arrow need to face outside.

Insert 2 pieces (A) , 1 piece (B) and 4 pieces (D) to (D16) as shown.This step needs to be

done six times.

B

21

Arrow need to face outside.

Insert 2 pieces (A) to (21) as shown.This step needs to be done six times.

A

Assembled looks

ASSEMBLY INSTRUCTION

STEP 29

STEP 30

PAGE 23 OF 28

D16

D17

D16

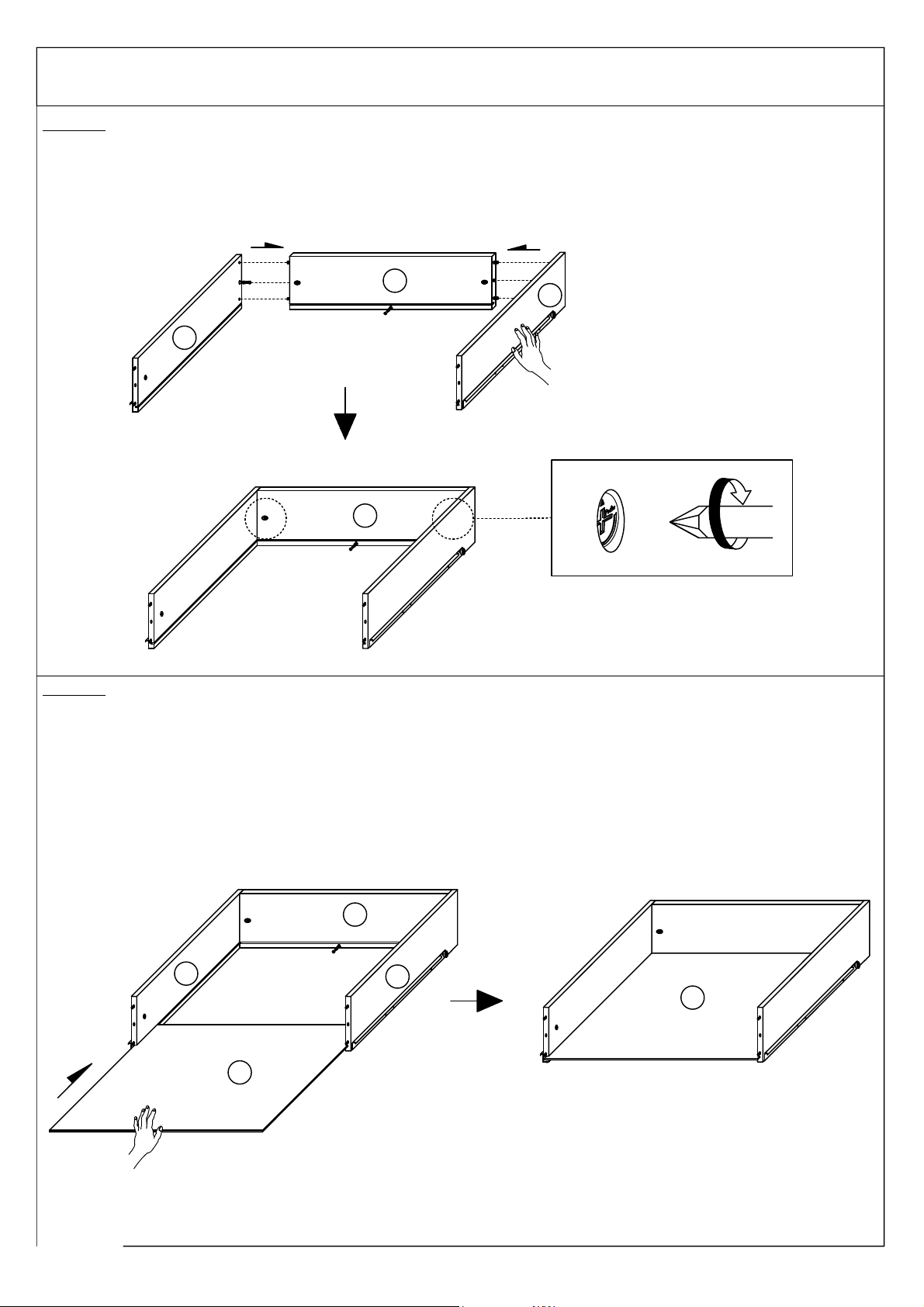

Combine the (19) and (20) to the (D16) . Then tighten the 2 pieces (A)-(pre-insert in step 27) as shown.This step needs to be done six times.

Put the (D17) into the gap of (19),(20) and (D16) as shown.This step needs to be done six times.

19

20

19

20

D16

D17

ASSEMBLY INSTRUCTION

STEP 31

STEP 32

PAGE 24 OF 28

D17

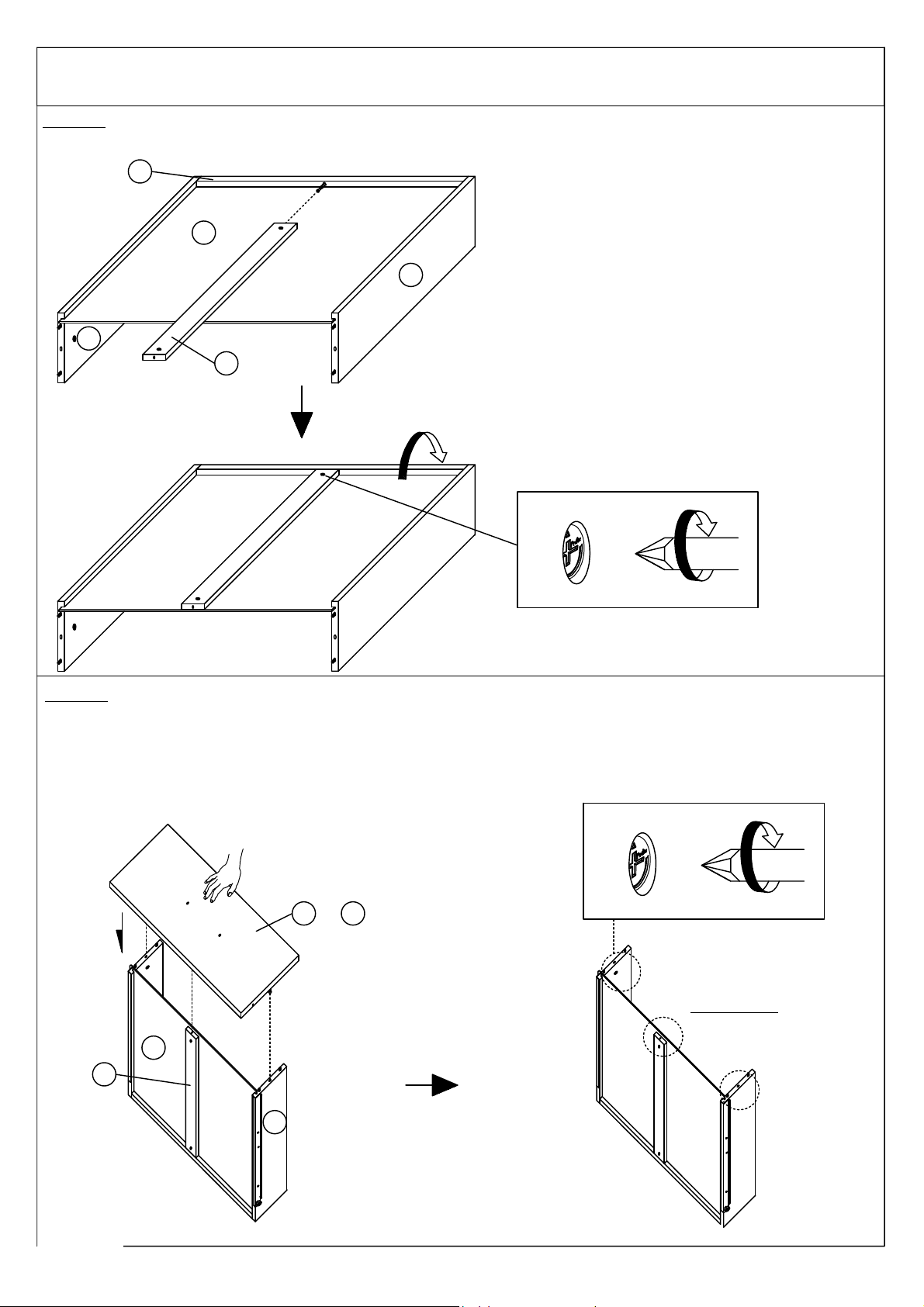

Combine the (21) to the (D16) then tighten the 1 piece (A)-(pre-insert in step 28) as shown.This step needs to be done six times.

Combine the (D14) and (D15) to the drawer frame. Then tighten the 3 pieces (A)-(pre-insert in step 25,26 and 28) as shown.This step needs to be done six times.

D14 D15

&

D16

21

19

20

21

90 °

INSIDE VIEW

ASSEMBLY INSTRUCTION

STEP 34

STEP 33

PAGE 25 OF 28

19

20

K

I

D3

D1

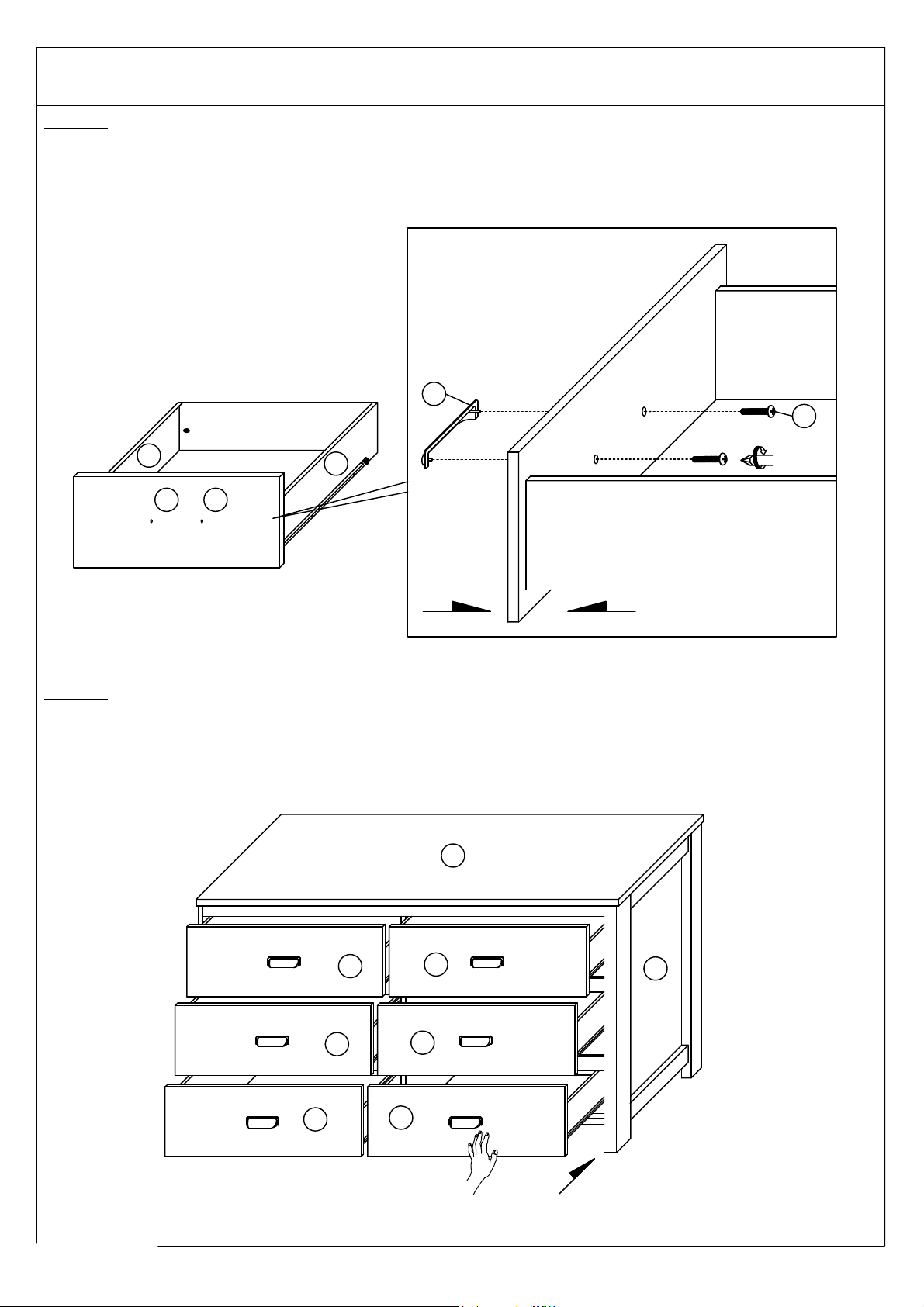

Insert 2 pieces (I) fix the (K) as shown.

This step needs to be done six times.

Align the position then push the 6 pieces drawer to inside exactly by your hand as shown.

D14 D15

&

D14

D15

D14

D15

D14

D15

ASSEMBLY INSTRUCTION

PAGE 26 OF 28

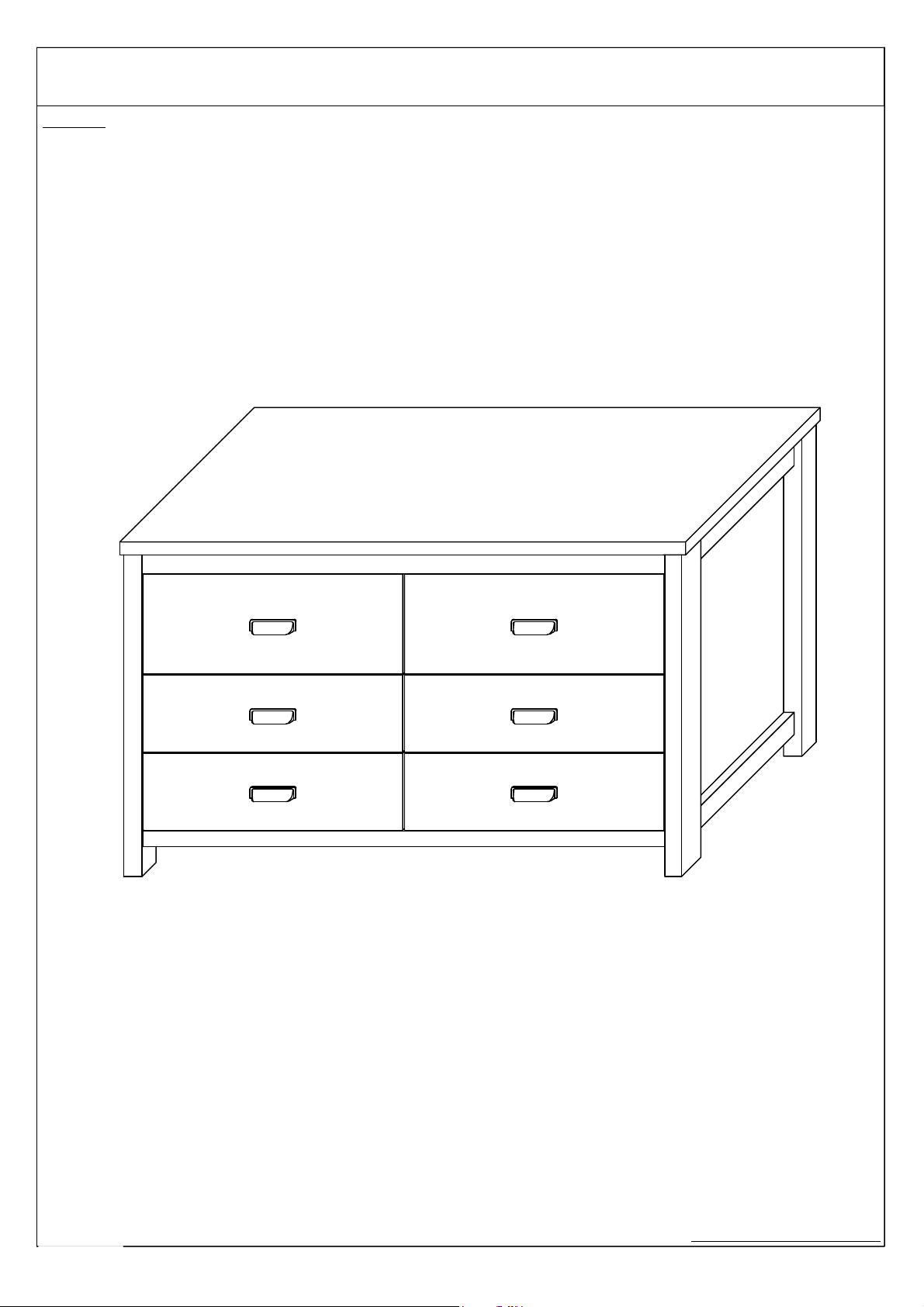

ASSEMBLY COMPLETED

STEP 35

PAGE 27 OF 28

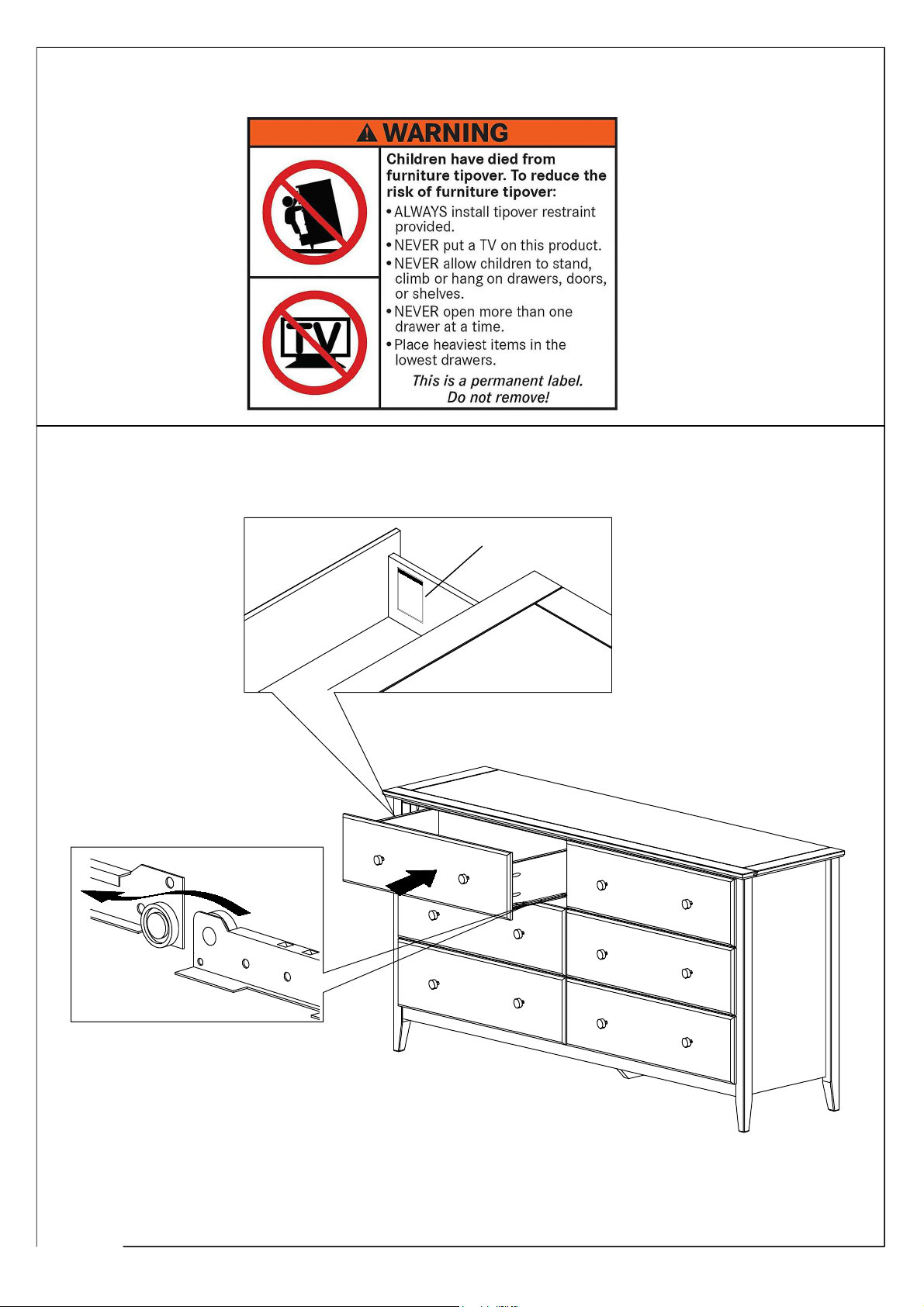

Place the drawer which sticked a warning label in the top as shown.

PAGE 28 OF 28

This sticker was sticked at one of the DRAWER LEFT PANEL(19).

STICKER
