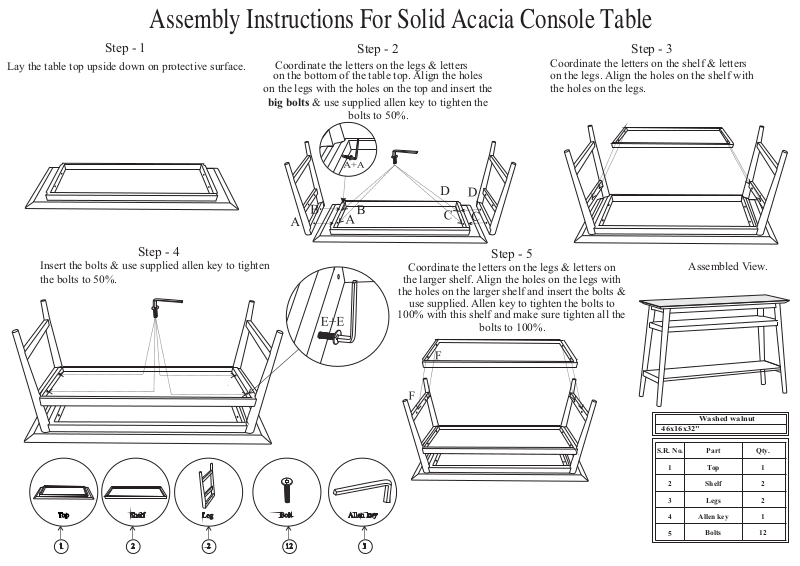

Assembly Instructions For Solid Acacia Console Table
Step - 1
Lay the table top upside down on protective surface.
Step - 4
Insert the bolts & use supplied allen key to tighten
the bolts to 50%.
Step - 2
Coordinate the letters on the legs & letters
on the bottom of the table top. Align the holes
on the legs with the holes on the top and insert the
big bolts & use supplied allen key to tighten the
bolts to 50%.
Coordinate the letters on the legs & letters on
the larger shelf. Align the holes on the legs with
the holes on the larger shelf and insert the bolts &
use supplied. Allen key to tighten the bolts to
100% with this shelf and make sure tighten all the
bolts to 100%.
Step - 3
Coordinate the letters on the shelf & letters
on the legs. Align the holes on the shelf with
the holes on the legs.
Step - 5
Assembled View.
46x16x32"
S.R. No.
1
2
3
4
5
Washed walnut
Part
Top
Shelf
Legs
Allen key
Bolts
Qty.
1
2
2
1
12
